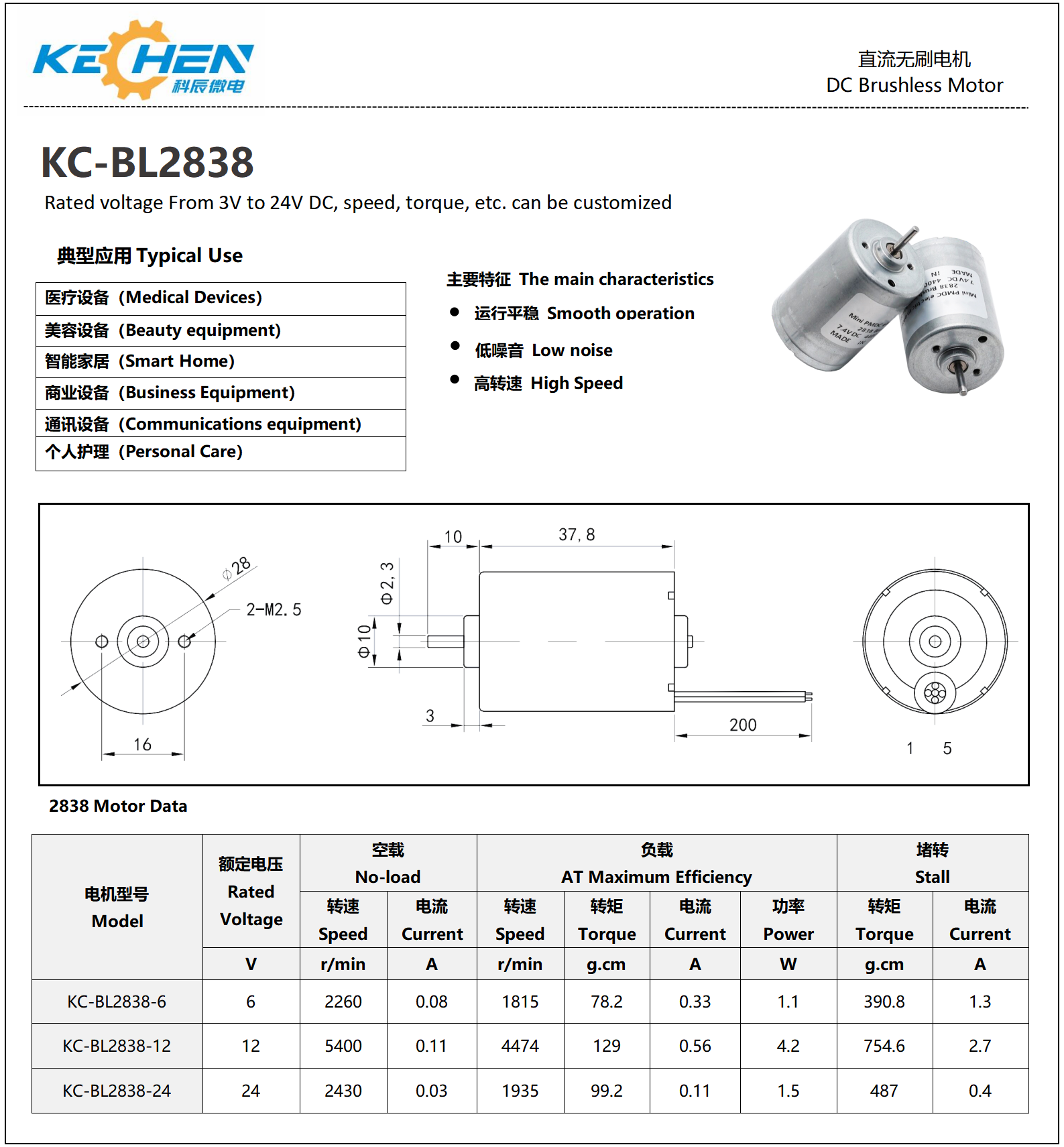

| 28mm inner rotor brushless dc motor | |
|---|---|
| Model | BL2838 |

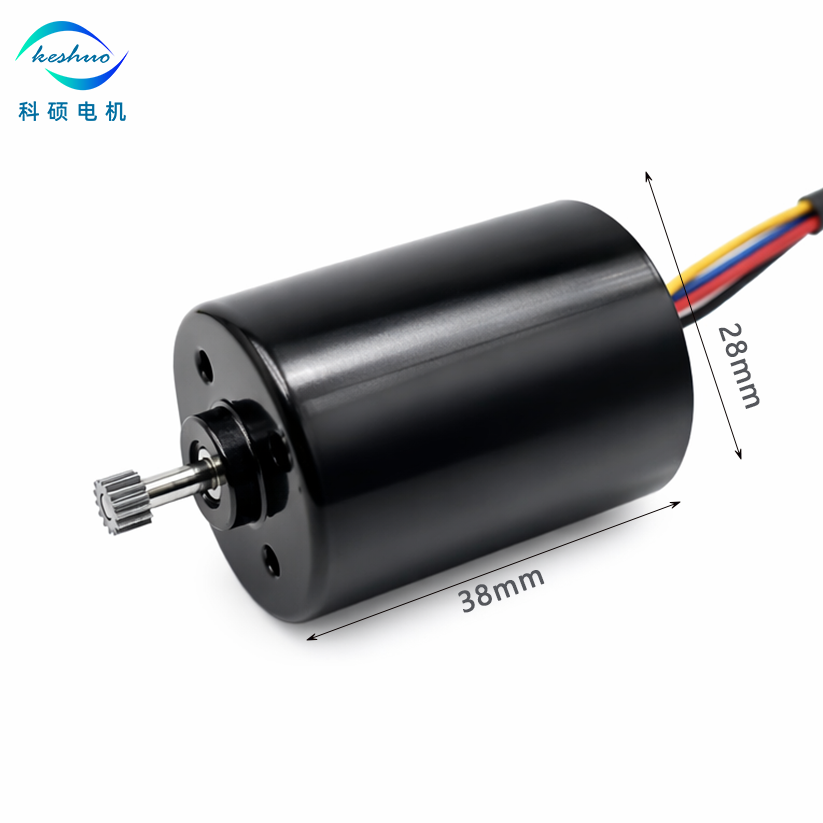

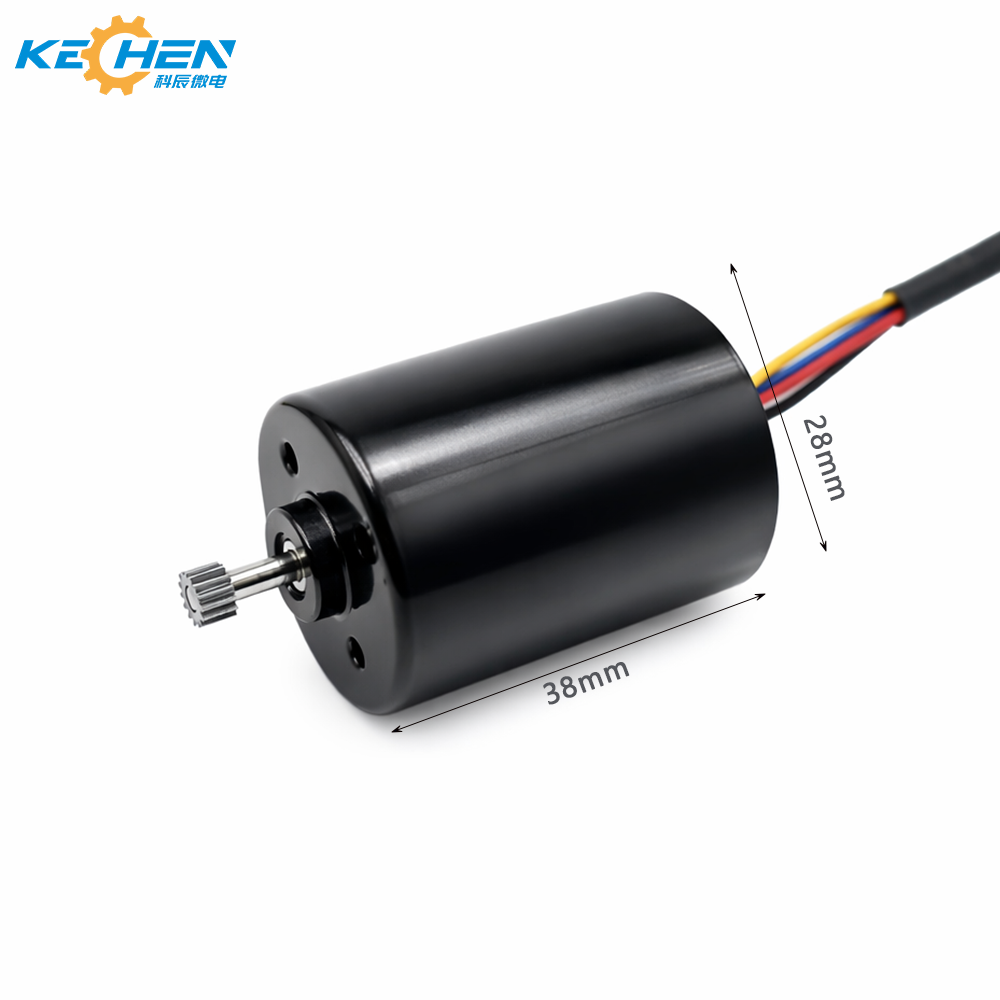

| Shell Stator Size | Φ28* L 38 mm(Φ 1.1 inch * 1.5 inch) |
| Shaft | Φ2.3mm(0.09 inch), screw lead, D shape, etc. |
| Shaft length | 10–15 mm |
| Rated Output Power | 1W - 16W |
| Rated Voltage | DC 3.7V-24V |
| Rated speed | 4000-18000rpm |
| Rated Torque | up to 95 gf-cm(9.31 mNm) |
| Number of Phases | 3-phase |
| Efficiency | ≥75% |
| Bearing Type | Dual ball bearings |
| Operating Temperature | −20 °C to +60 °C |
| Service Life | ≥10,000 hours (bearing-dependent) |
| Driver(Optional) | built-in driver PCB with MCU |
| Commutation | Brushless-PWM drive |
| Sector | Application Details |
|---|---|
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend a suitable motor per your request accordingly.
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC, we can make it too.
Yes, definitely you can. After confirming the needed motor specs, we will quote and provide a proforma invoice for samples. Once we get the payment, we will proceed with the samples accordingly.

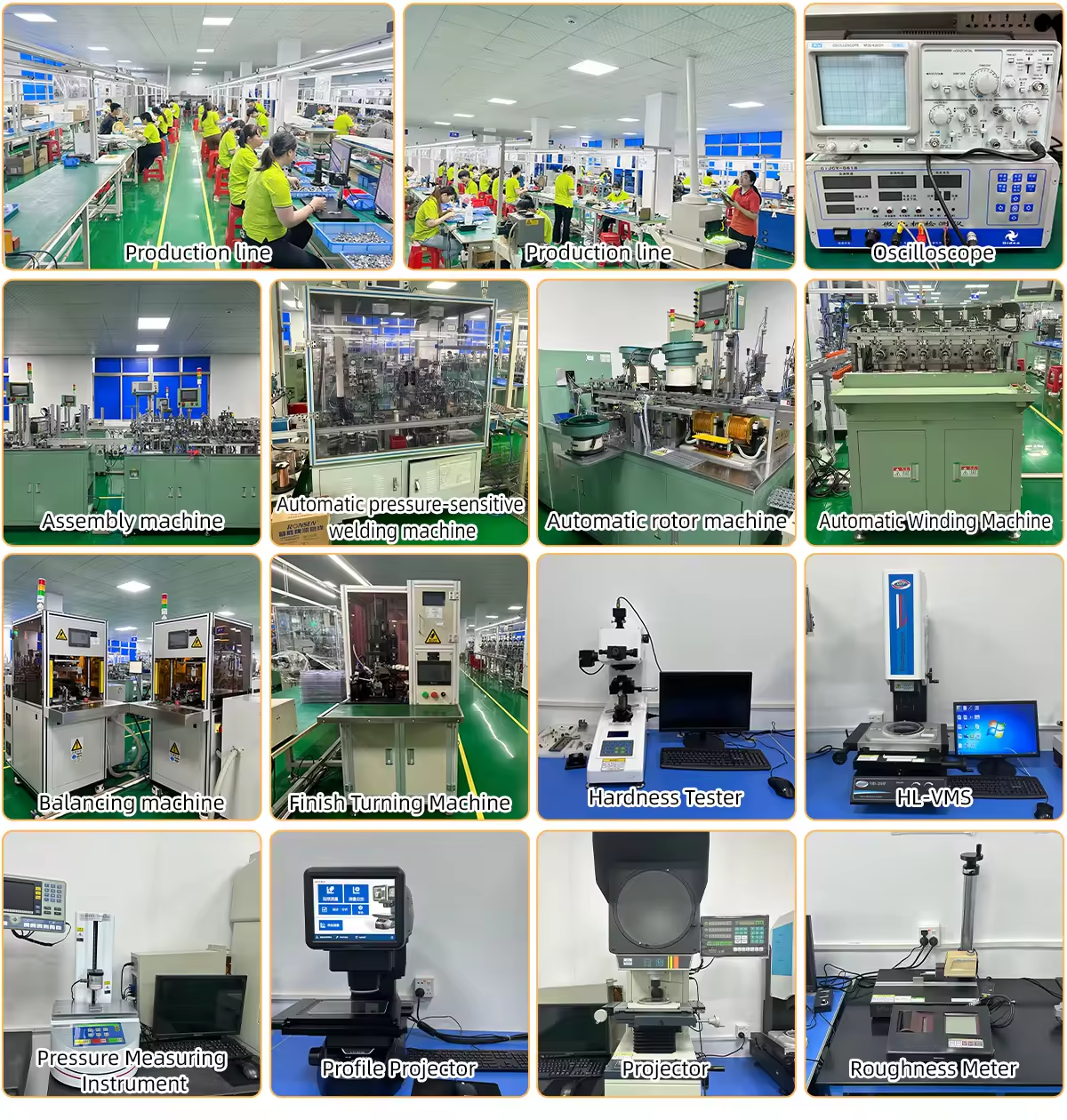

We have our own inspection procedures: for incoming materials, we check signed samples and drawings to ensure qualified materials; for the production process, we have tour inspections and a final inspection to guarantee qualified products before shipping.
Generally speaking, our regular standard product will need 25-30 days, and a bit longer for customized products. We are flexible on lead times depending on the specific orders.
We currently hold CE, ROHS, ISO13485, IATF16949, and REACH certifications.
