Customized 24V DC Micro Brushless Motor 42mm Planetary Gear for Smart Home Cosmetics Explosion-Proof 200rpm Speed ROHS Certified

Product Description

Products Description

Product Description
GMP42-4260(24 V) Specs.

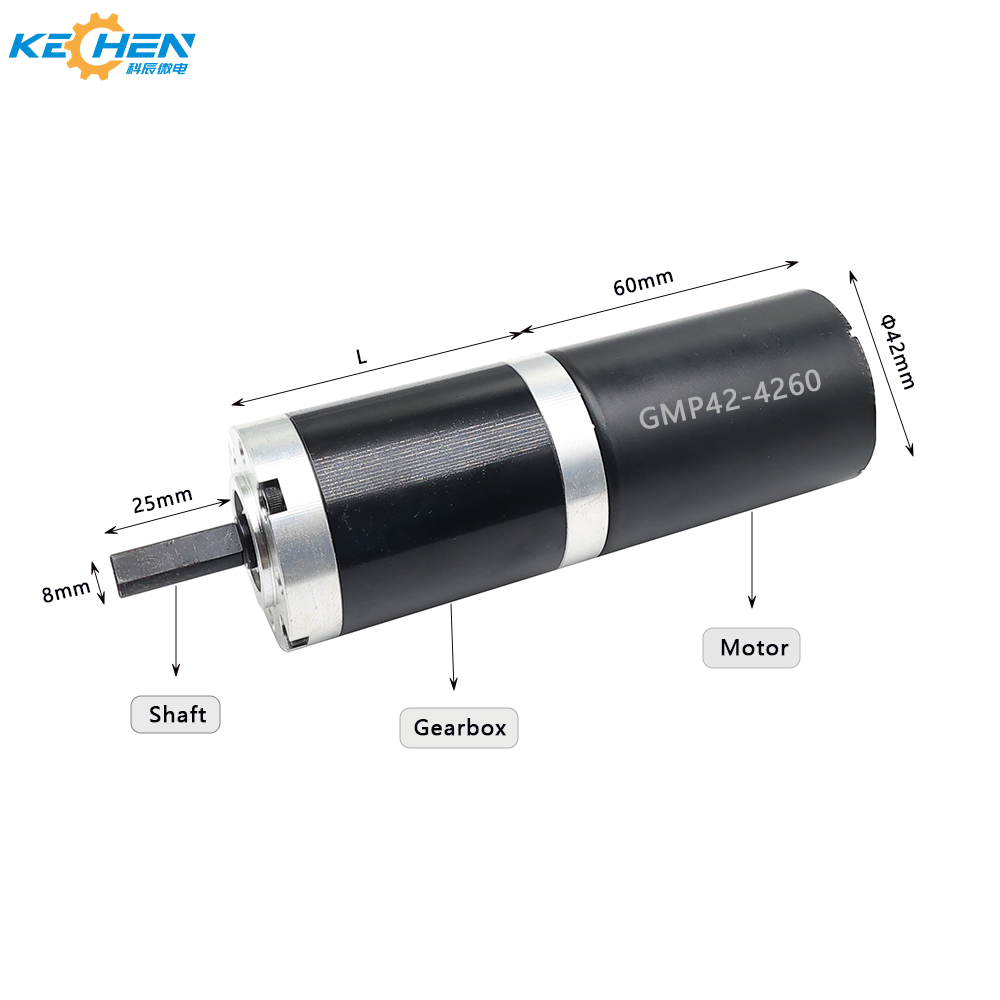

  • Motor + gearbox: 42 × 53.5 mm gearbox, 42 × 60 mm motor body
  • Voltage: 24 V
  • Reduction ratio: 49:1
  • No-load speed: ~ 160 RPM
  • No-load current: < 0.5 A
  • Rated torque: 50 kg·cm
  • Rated speed: 90 RPM
  • Rated current: < 2.8 A
  • Stall torque: 60 kg·cm
  • Stall current: < 4 A

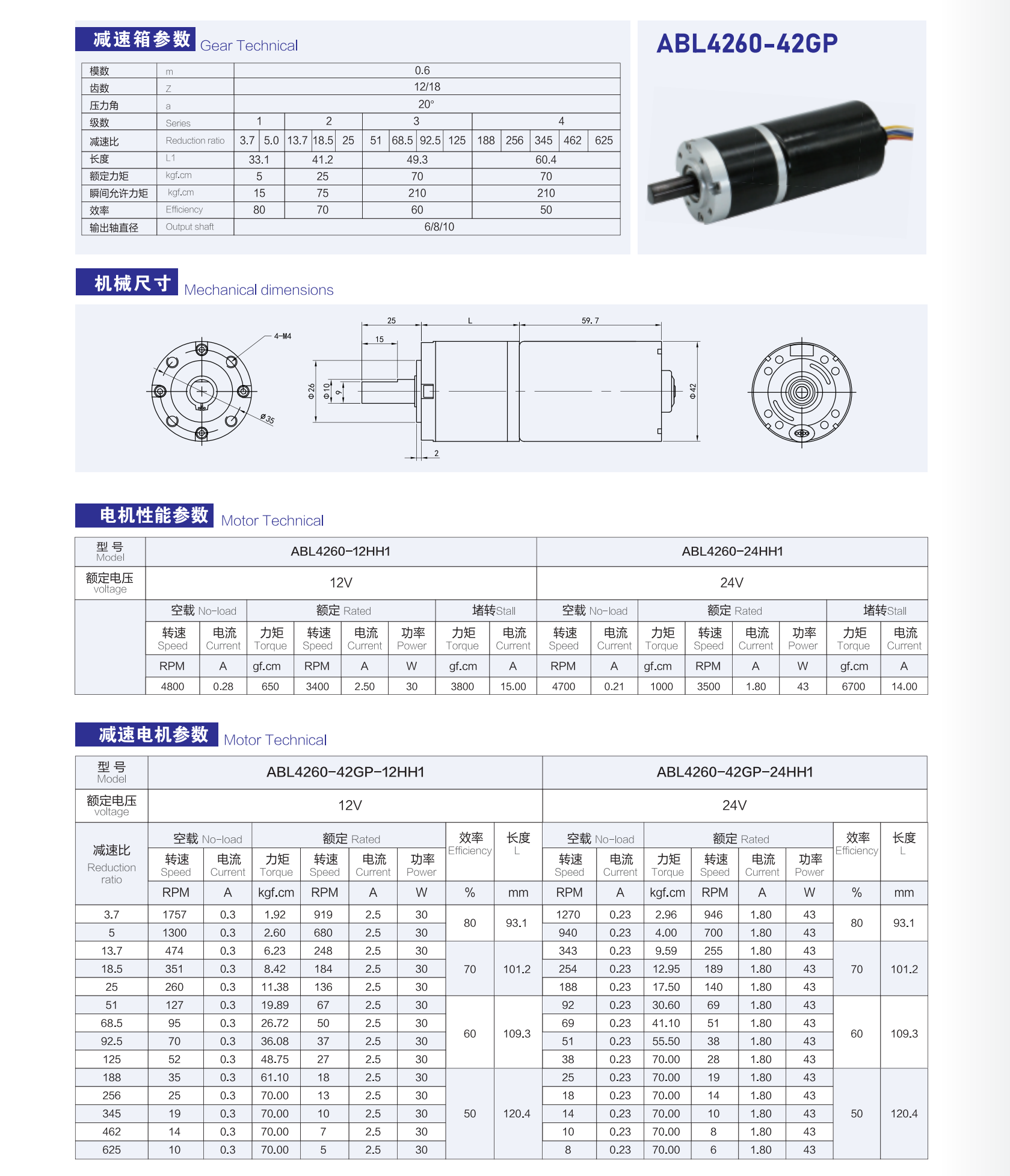

Product Specs Dimension Drawing

Recommend Products

Recommend Products

Motor raw materials

Motor raw materials

Production Equipment

Production Equipment 1 Production Equipment 2 Production Equipment 3

Company Profile

Company Office Company Facility Company Workshop
We were established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. Our main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since our establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Certifications

Application Scenario

Application Scenario Overview
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market Chart 1 Global Market Chart 2 Global Market Banner

Frequently Asked Questions

Q1: What are the primary applications of the GMP42-4260 planetary gear motor?
A1: The GMP42-4260 micro DC planetary gear motor is widely used in high-torque applications such as medical equipment, smart home automation (like intelligent window openers and door locks), business machines, robotics, and food and beverage processing equipment.
Q2: Can the specifications of these micro motors be customized?
A2: Yes. Key performance parameters including rated voltage, reduction ratios, rated speed, stall torque, and shaft dimension specifications can be adjusted during the manufacturing process to align with your project requirements.
Q3: What materials are used to ensure the durability of the planetary gear box?
A3: We source premium raw materials, featuring precision-machined steel gears, high-performance copper windings, and durable structural alloys to maximize torque output and prolong operational lifespan.
Q4: How does a planetary gear system compare to traditional spur gearboxes?
A4: Planetary gear systems offer significantly higher torque density, better efficiency, lower backlash, and compact physical dimensions compared to spur gearboxes. This makes them ideal for precision operations in confined spaces.
Q5: What safety and quality control certifications do your products carry?
A5: Our products are manufactured under rigorous QA and QC standards. The production line aligns with international quality frameworks to guarantee safety, reliable operation, and consistent performance.
