Brea Tech Micro Motor
1 / 5
| Medical equipment | Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |

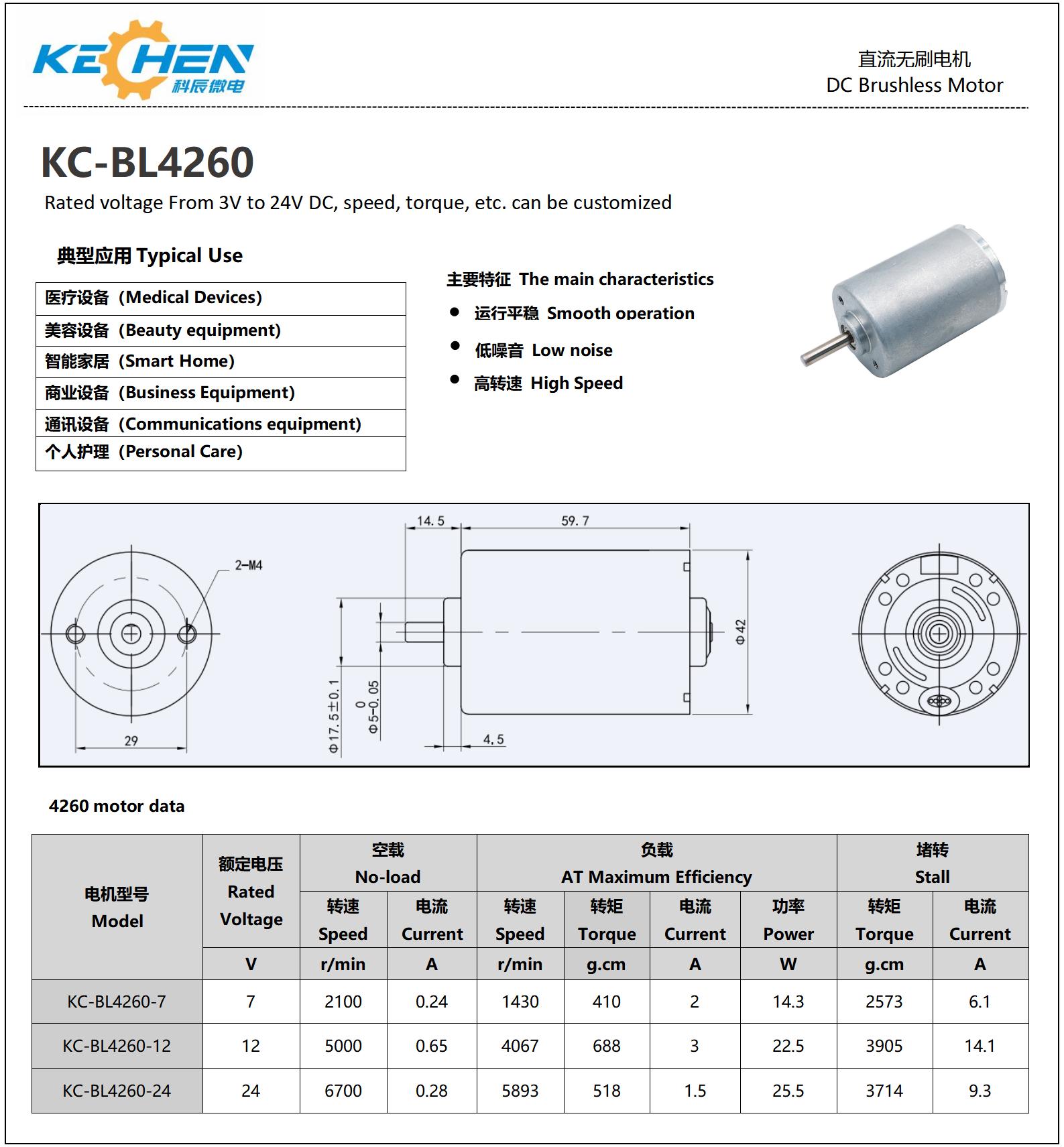

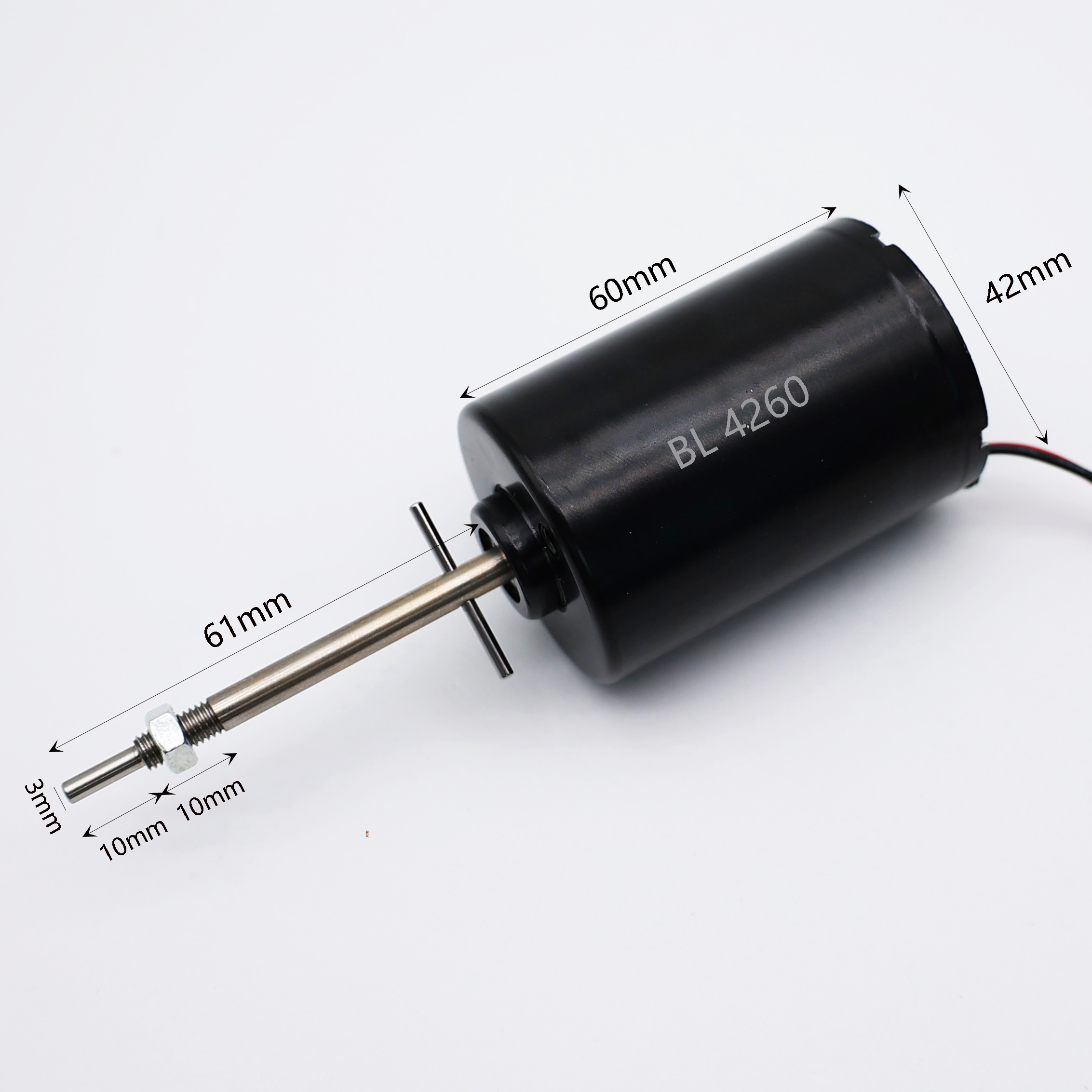

The KC-BL4260I features a compact 42mm outer diameter inner rotor layout. It provides a rated output power range of 10W - 78W, delivers up to 1000 gf-cm of torque, has low electromagnetic noise (EMC), and supports a lifespan of up to 20,000 hours.
Yes, custom shaft lengths are provided. The shaft configurations can also be customized to fit your applications, such as screw lead, D-shape designs, and various diameter sizes.
The motor operates within a rated voltage range of DC 6V to DC 24V, allowing compatibility with various standard power supply systems.
Yes, we offer an optional built-in driver PCB equipped with an MCU, supporting convenient Brushless-PWM drive speed regulation directly integrated into the motor housing.
This motor is widely used across medical equipment (such as analyzers and pumps), smart home appliances (like window openers and coffee makers), business automation (3D printers, copiers), and robotic applications (AGV/AMR, serving robots).
