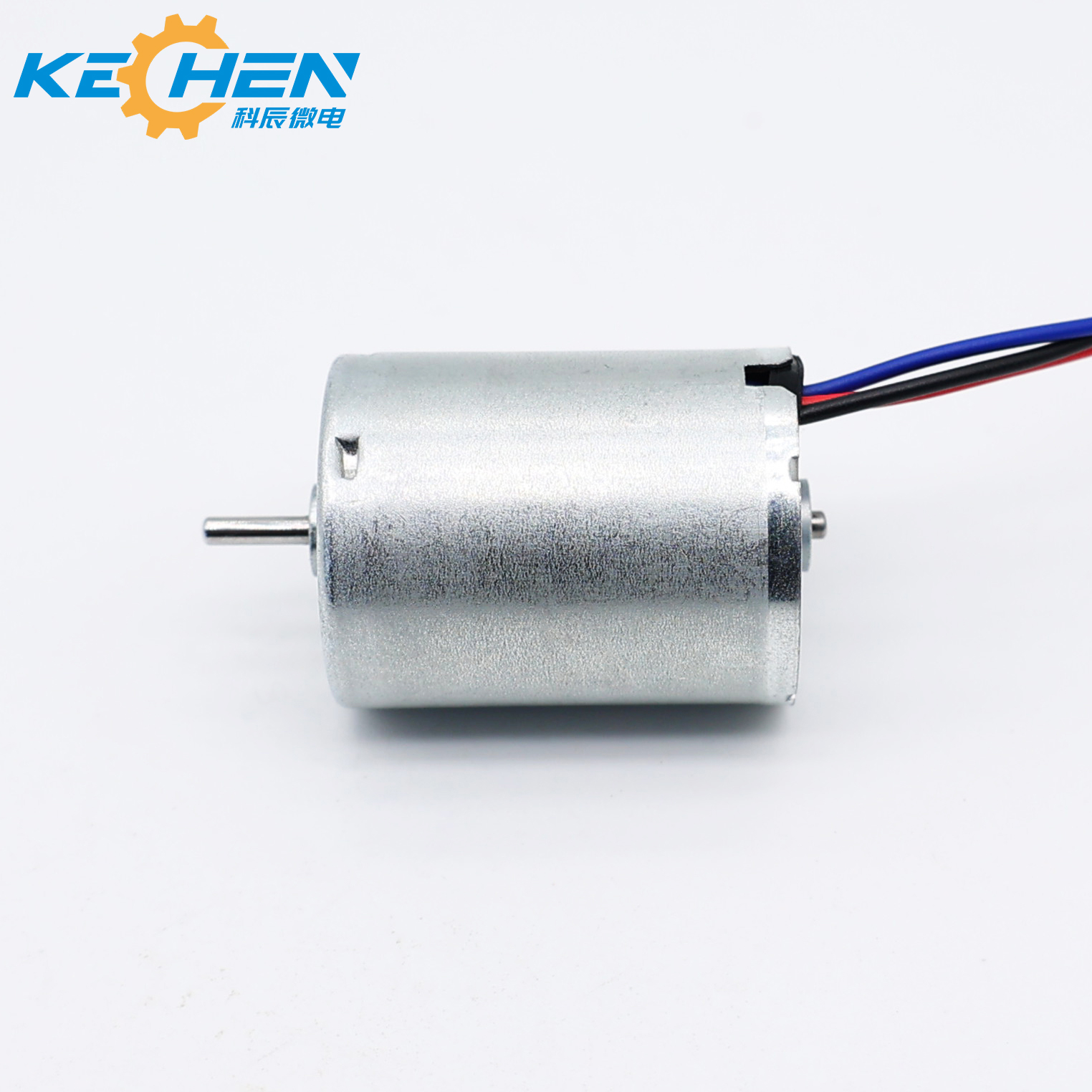

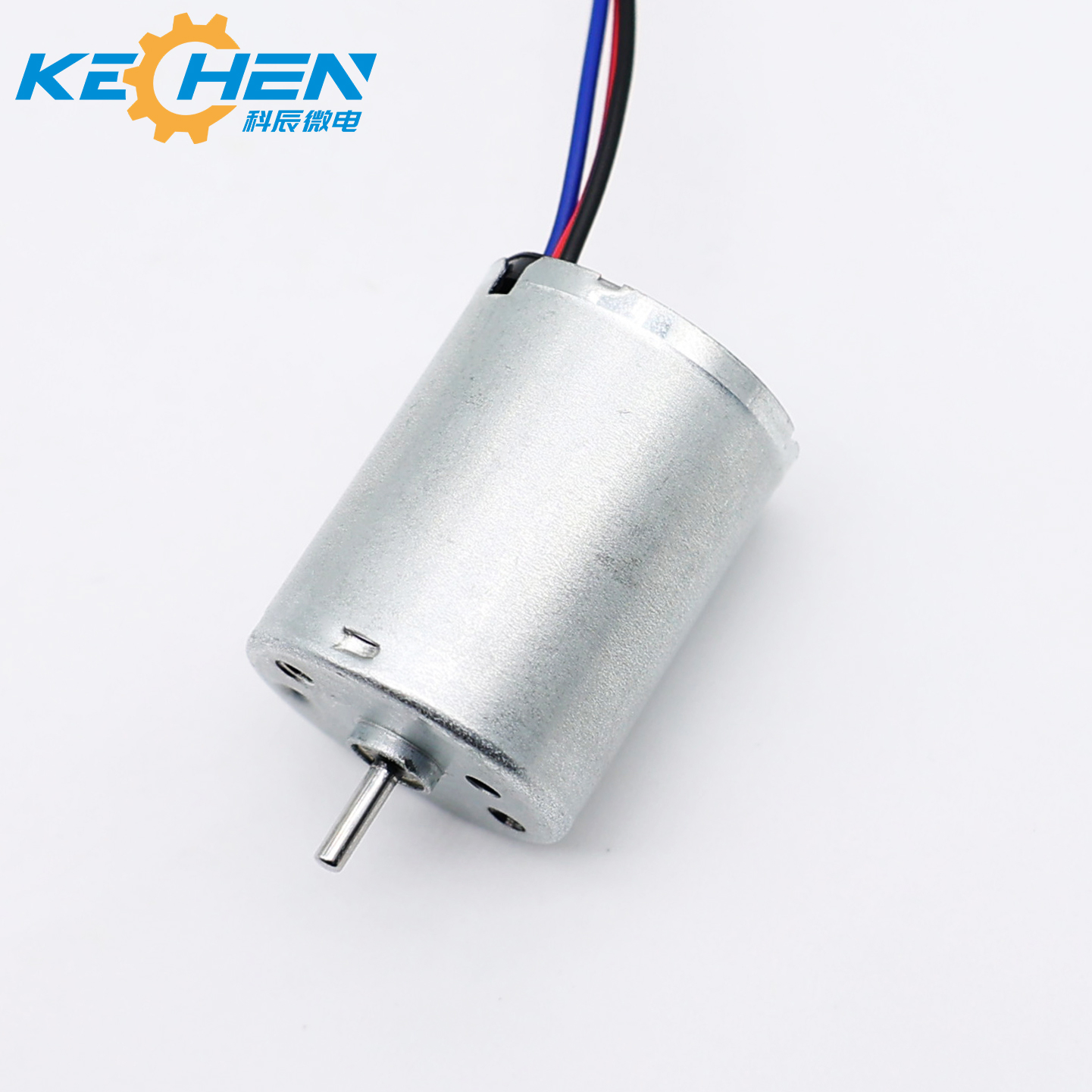

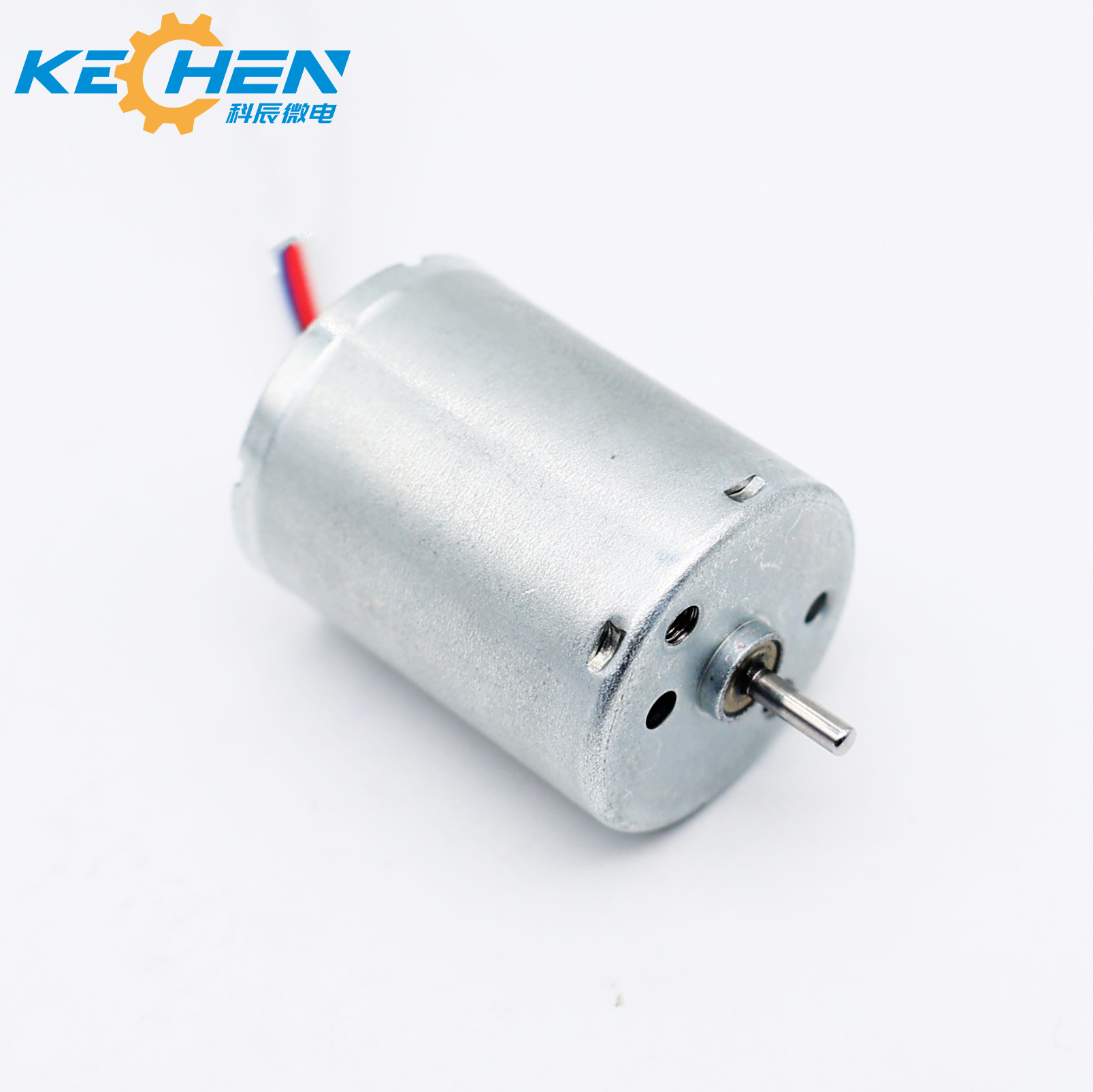

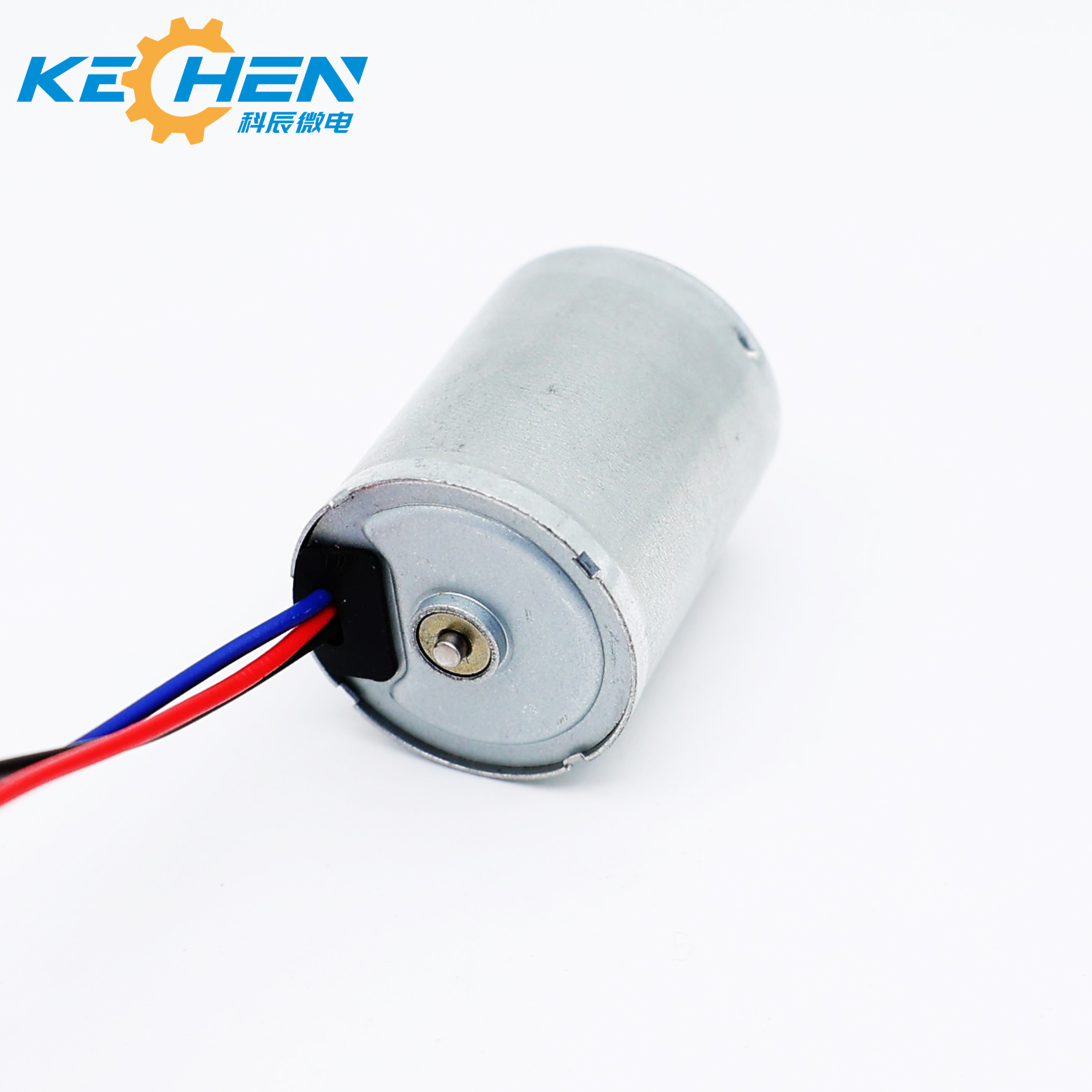

Bl2430 24mm Brushless DC Motor 12V 500RPM with Permanent Magnet Construction for Home Appliance & Cosmetic Instrument Use

Product Description

Products Description
24mm Inner Rotor Brushless DC Motor
  • Model Number: BL2430

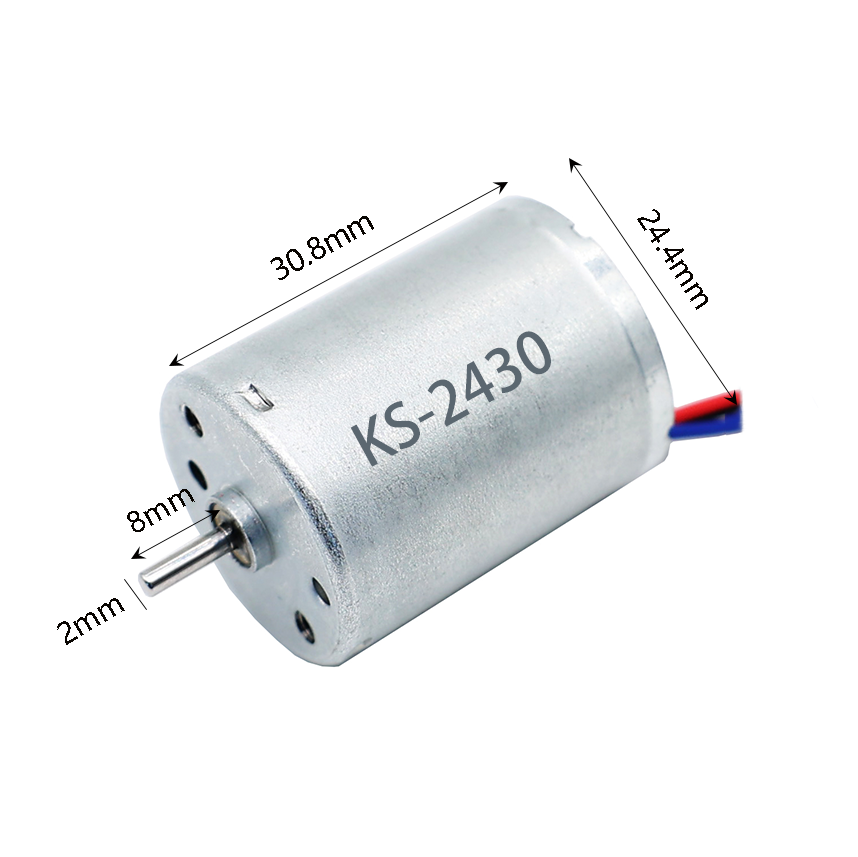

  • Shell Stator Size: Φ24 * L 30 mm (Φ 0.945 inch * 1.18 inch)
  • Shaft: Φ2.0mm [0.079 inch], screw lead, D shape, etc.
  • Shaft Length: Free customization
  • Rated Output Power: 1W - 9W
  • Rated Voltage: DC 6V - 24V
  • Rated Torque: Up to 75 gf-cm (7.35 mNm)
  • Rotor: Inner rotor with Nd2Fe14B strong magnet
  • Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
  • Driver (Optional): Built-in driver PCB with MCU
  • Construction: Permanent Magnet
  • Commutation: Brushless-PWM drive
Brushless DC Motor

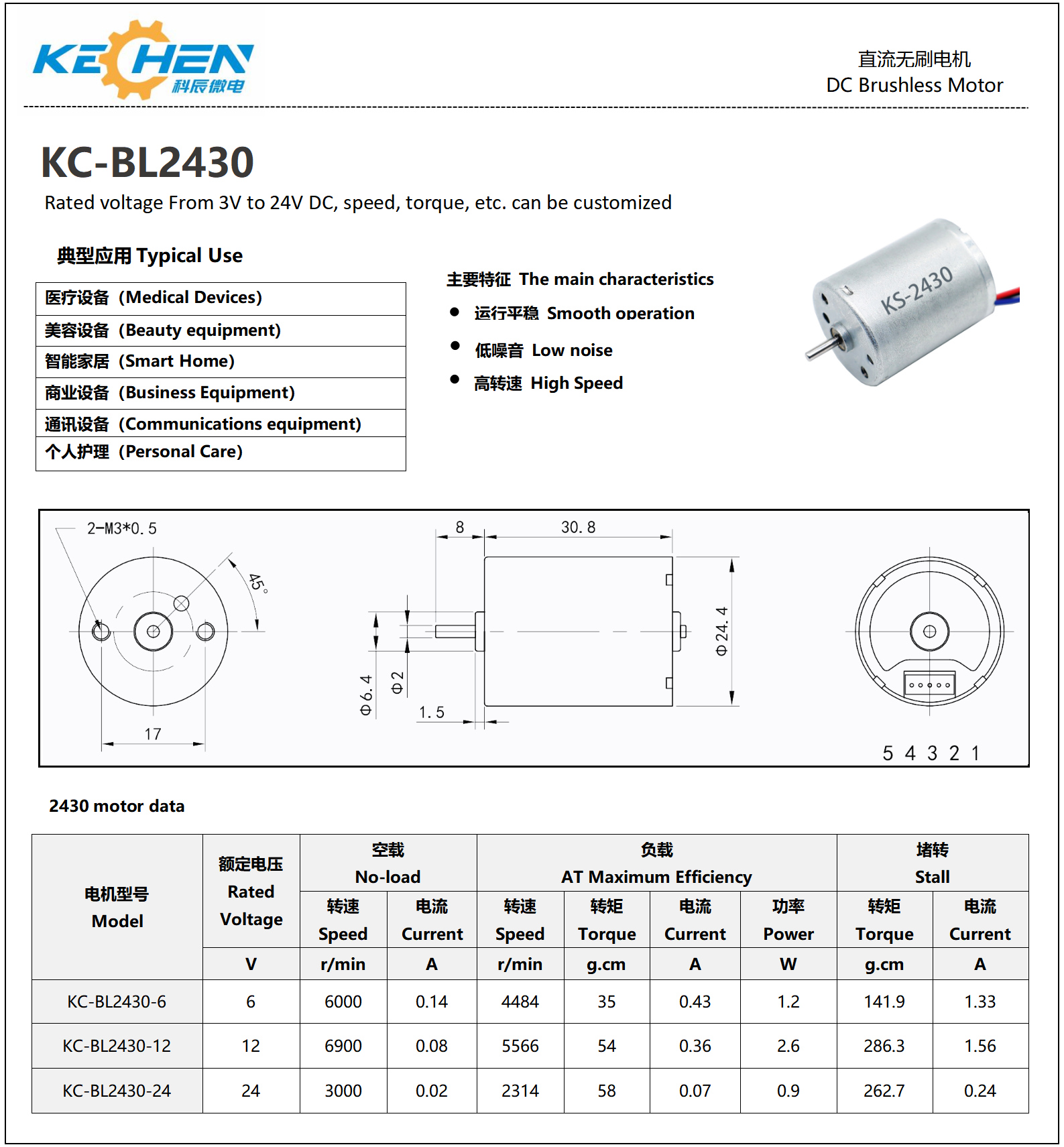

Motor Dimension Drawing
Recommend Products
Recommend Products
Motor Raw Materials
Motor Raw Materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, the company has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young, pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Company Facility
Certifications
Certifications
Application Scenario
Application Scenario Overview
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Distribution Map
Global Market Growth Charts
Distribution Partners
Frequently Asked Questions
Q1: What are the main dimensions of the BL2430 brushless DC motor?
A1: The outer shell stator size of the BL2430 model is Φ24 * L 30 mm (Φ 0.945 inch * 1.18 inch), and it features a Φ2.0mm [0.079 inch] shaft.
Q2: Can the shaft length and shape of the motor be customized?
A2: Yes, we offer free customization for the shaft length, and the shaft shape can be configured as a screw lead, D-shape, or other customized configurations.
Q3: What is the rated voltage range and output power of this brushless motor?
A3: The motor operates on a rated voltage range of DC 6V to 24V, and supports a rated output power ranging from 1W to 9W.
Q4: Does the BL2430 brushless motor come with an integrated driver?
A4: A built-in driver PCB with MCU is optional, allowing for flexible control configurations according to your application requirements.
Q5: What kind of rotor and commutation mechanism are used?
A5: It utilizes an inner rotor structure with a strong Nd2Fe14B permanent magnet, and operates via brushless-PWM drive commutation.
Q6: In which applications are these micro motors commonly used?
A6: These micro motors are widely applied in medical equipment (like urine analyzers and sphygmomanometers), smart home systems (like locks and vacuum cleaners), robotics, food & beverage machinery, and smart business machines.
