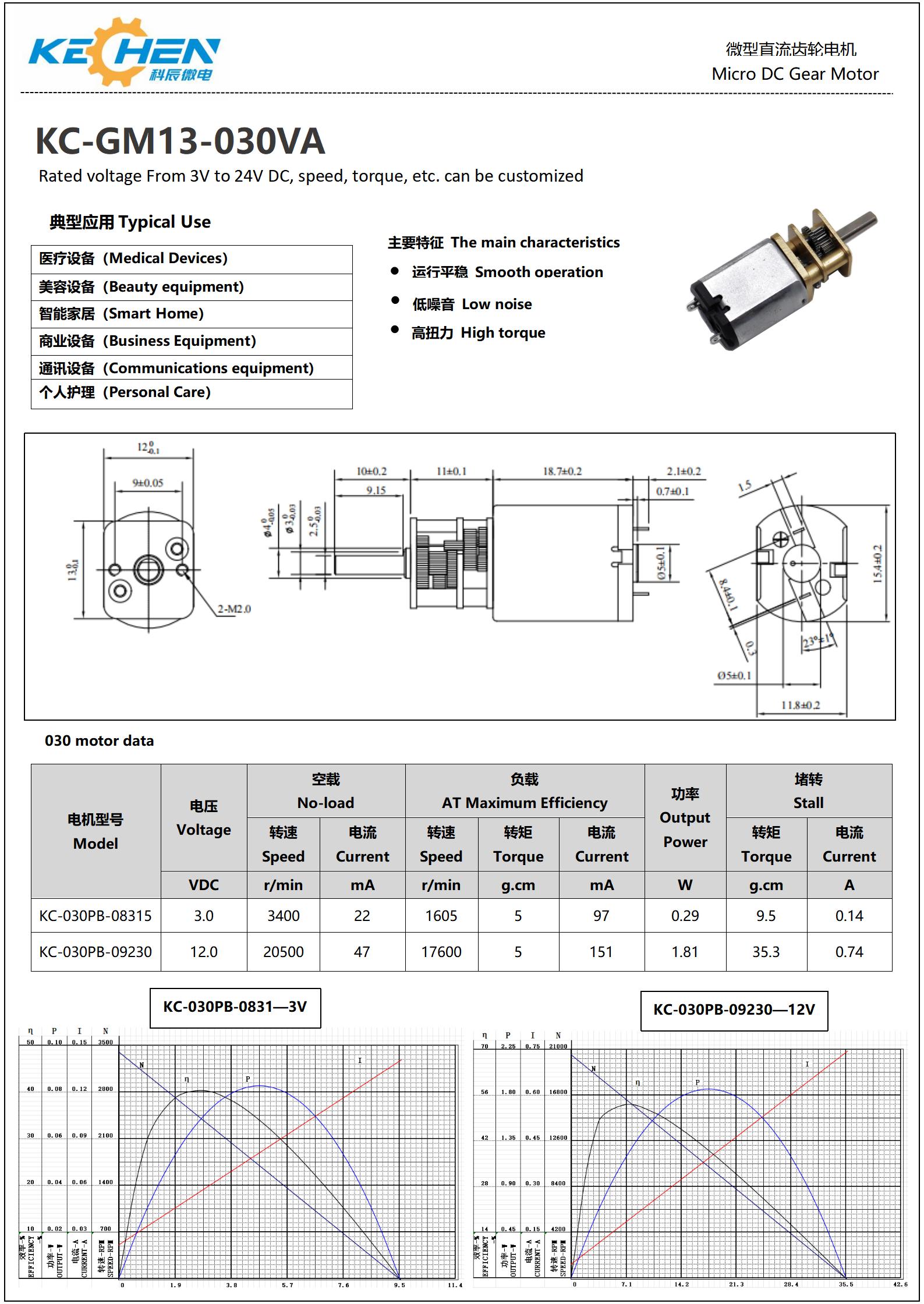

| Gearbox with motor Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model: GM13-030PB-08315-3.0V | |||||||||
| Reduction | 6 | 20 | 52 | 85 | 118 | 170 | 215 | 250 | 297 |
| Length(mm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| No-load speed(rpm) | 567 | 170 | 65 | 40 | 29 | 20 | 16 | 14 | 11 |
| Rated speed(rpm) | 268 | 80 | 31 | 19 | 14 | 9 | 7 | 6 | 5 |
| Rated torque(kg.cm) | 0.02 | 0.07 | 0.16 | 0.26 | 0.30 | 0.43 | 0.54 | 0.63 | 0.74 |
| Stalling Torque (kg.cm) | 0.05 | 0.13 | 0.30 | 0.48 | 0.56 | 0.81 | 1.02 | 1.18 | 1.41 |
| Model: GM13-030PB-09230-12.0V | |||||||||
| Reduction | 52 | 85 | 118 | 170 | 215 | 250 | 297 | 360 | 1000 |
| Length(mm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 13.2 |
| No-load speed(rpm) | 394 | 241 | 174 | 121 | 95 | 82 | 69 | 57 | 21 |
| Rated speed(rpm) | 338 | 207 | 149 | 104 | 82 | 70 | 59 | 49 | 18 |
| Rated torque(kg.cm) | 0.16 | 0.26 | 0.30 | 0.43 | 0.54 | 0.63 | 0.74 | 0.90 | 1.5 |
| Stalling Torque (kg.cm) | 1.10 | 1.80 | 2.09 | 3.0 | 3.8 | 4.42 | 5.25 | 6.36 | 10.6 |
Our micro motor enterprise was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since our establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have built a group of young, pragmatic, professional and efficient work teams, utilizing advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency.

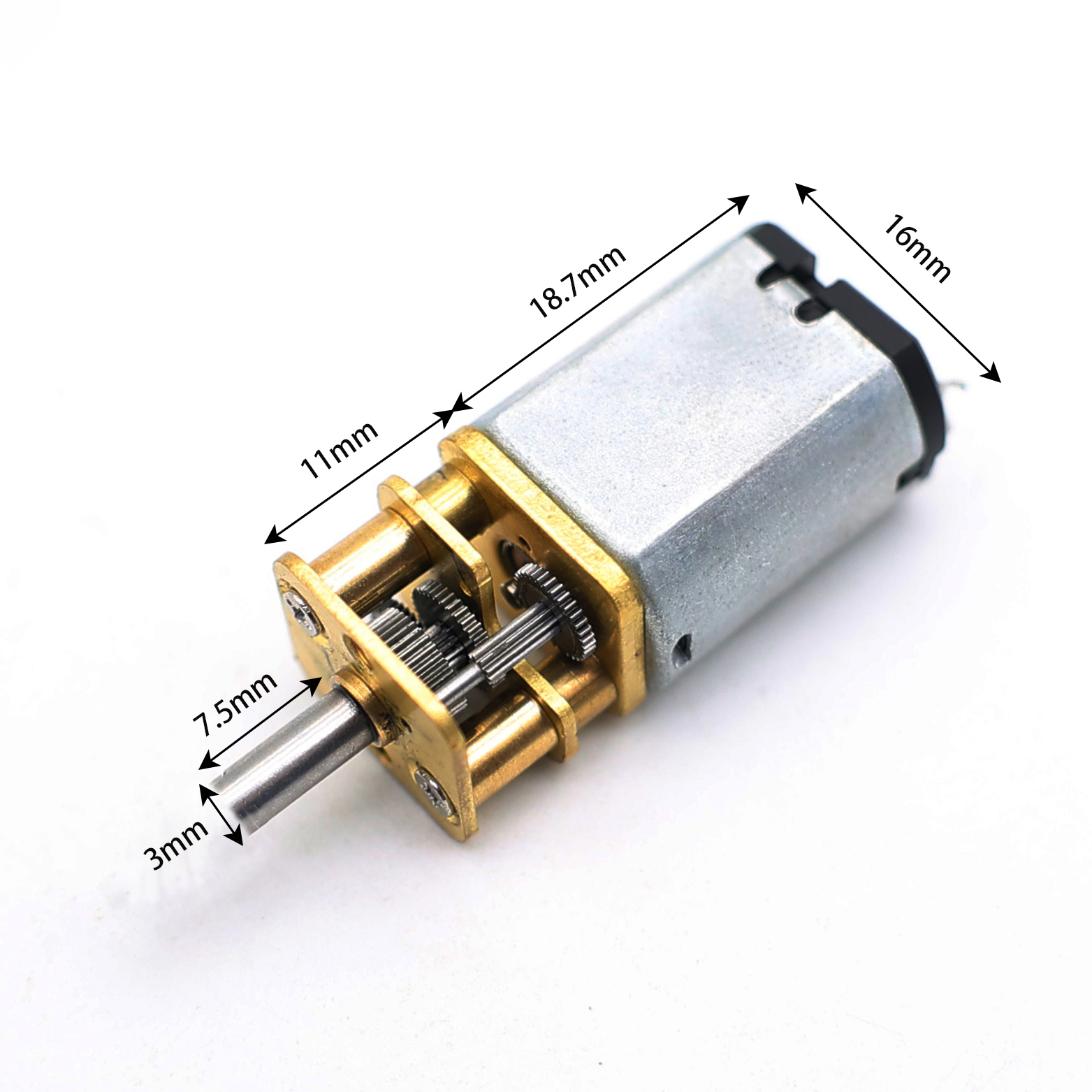

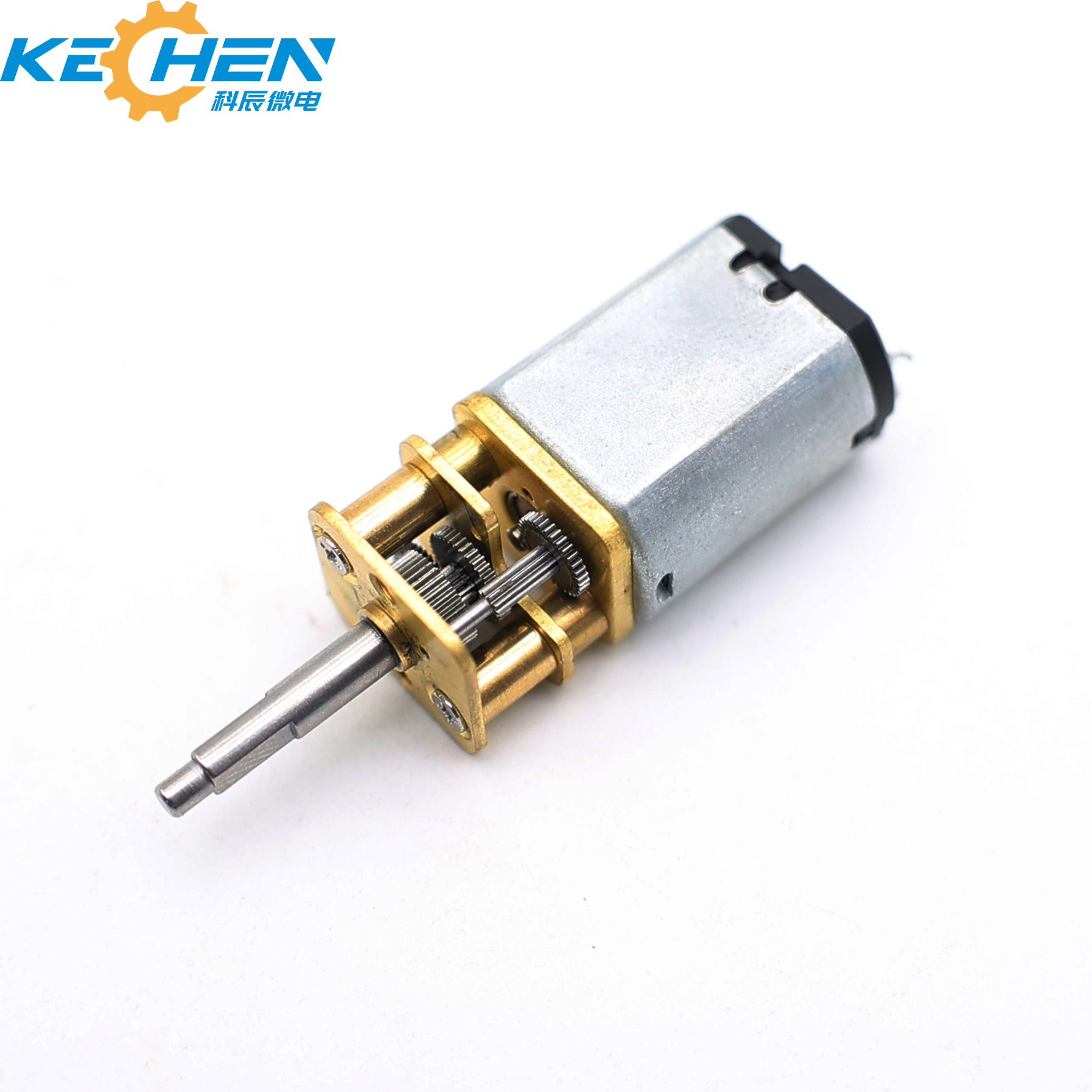

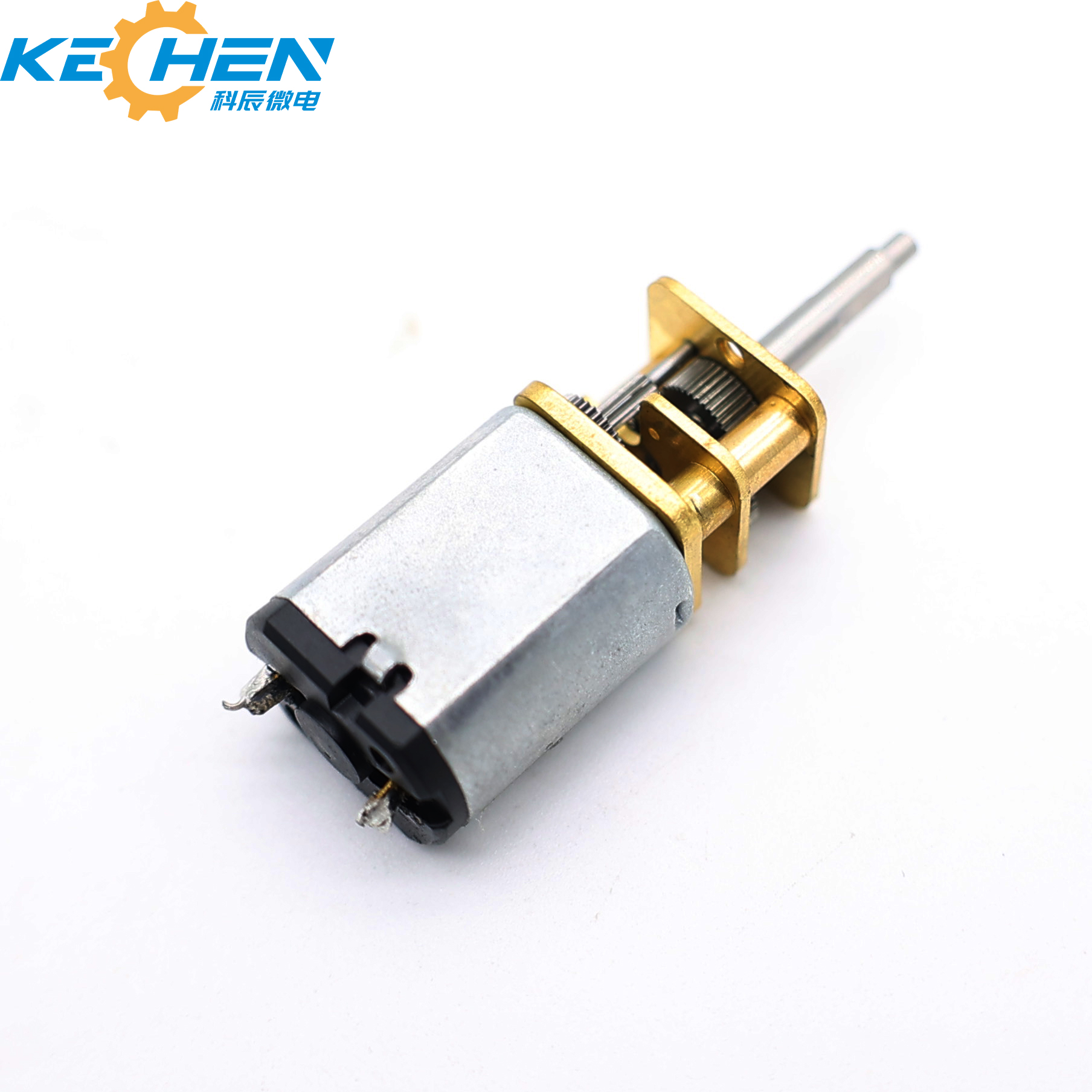

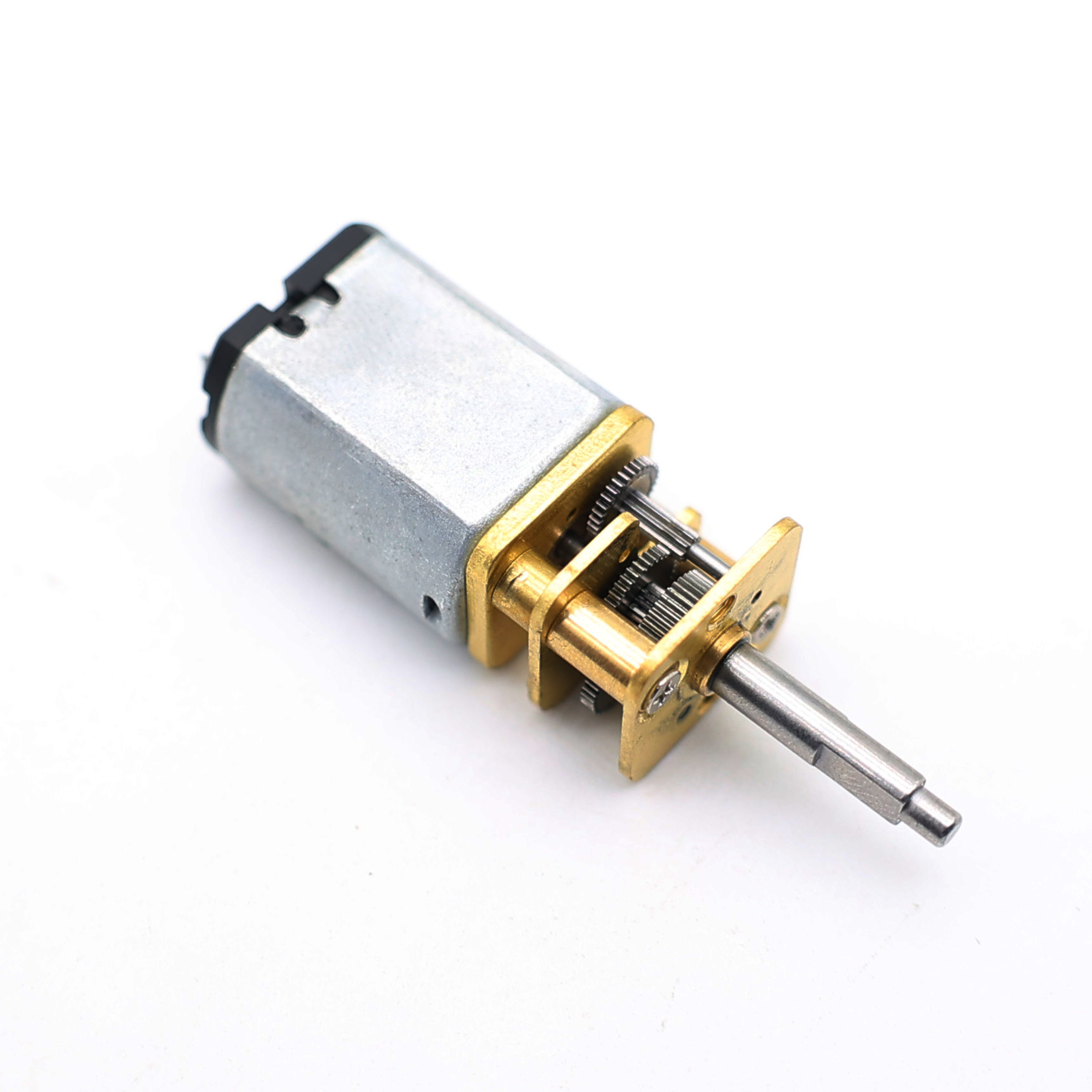

The GM13-030 features a compact 13mm metal spur gear reducer, offering strong stability, durability, and a maximum rated torque of up to 2.0Kgf-cm. It supports a wide range of DC voltages and customizable motor shafts.
Yes, we provide customizable options for rated voltage (DC 3V to 24V), shaft designs (standard Φ3mm D-cut, M3, M4, or other styles), and customized lengths to fit your specific device design requirements.
Yes, magnetic encoder configurations are available for designs requiring precise speed control and feedback positioning.
Depending on your operational environment and lifespan requirements, we support carbon brush, graphite brush, or metal brush commutation options.
Our standard Minimum Order Quantity (MOQ) is 500 pieces. For bulk inquiries or custom requirements, please feel free to send us a product request.
