GM37 Dc Motor 500 Model 12V 5Rpm High Torque Low Speed for Feeder with 6mm D Shaft Diameter

Product Description

Products Description

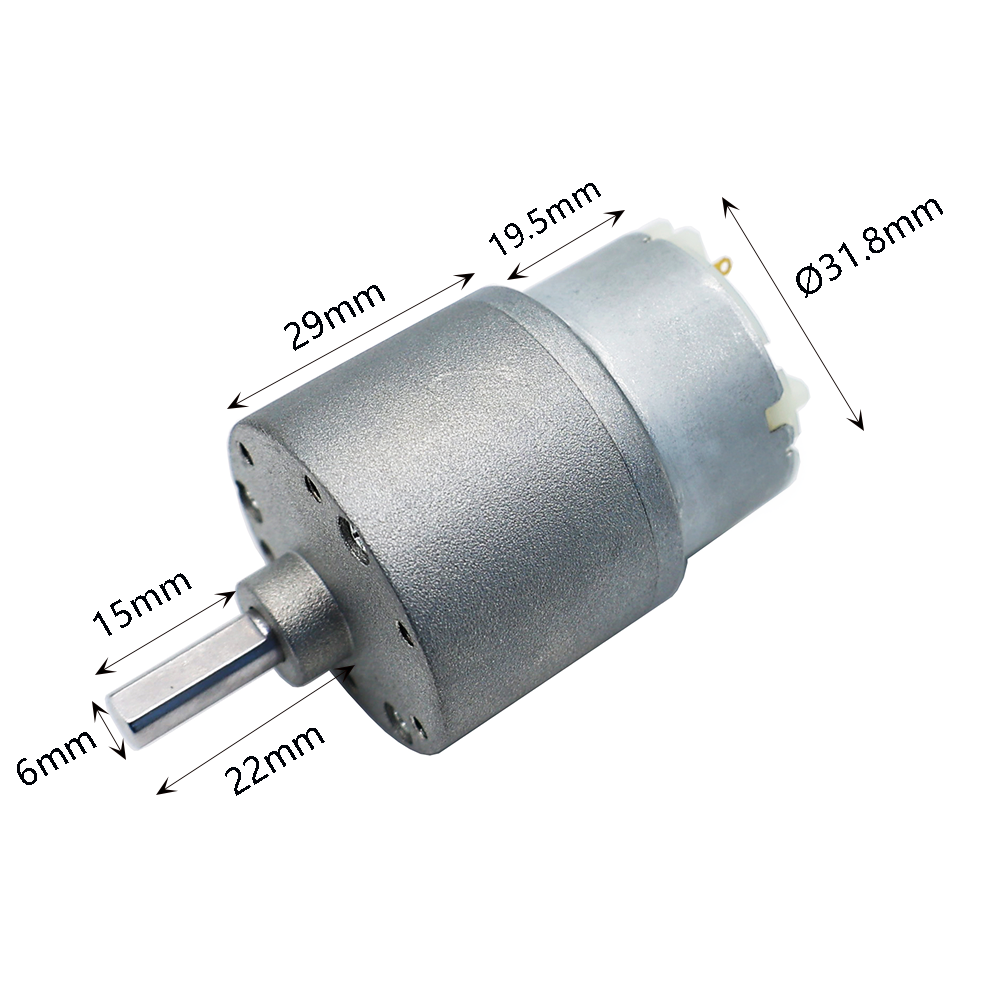

GM37-500 Micro DC geared motor
GM37-500 Micro DC geared motor

Main features:

  • Model Number: GM37-500
  • Shaft : Φ6.0mm, D shape, etc.
  • Shaft length free customization
  • Rated Output Power: up to 12W
  • Rated Voltage: DC 12V
  • Rated Torque: up to 8 kgf·cm
  • Construction: Permanent Magnet
  • Commutation: Metal brush
  • Clockwise/counter-clockwise rotation (CW&CCW)

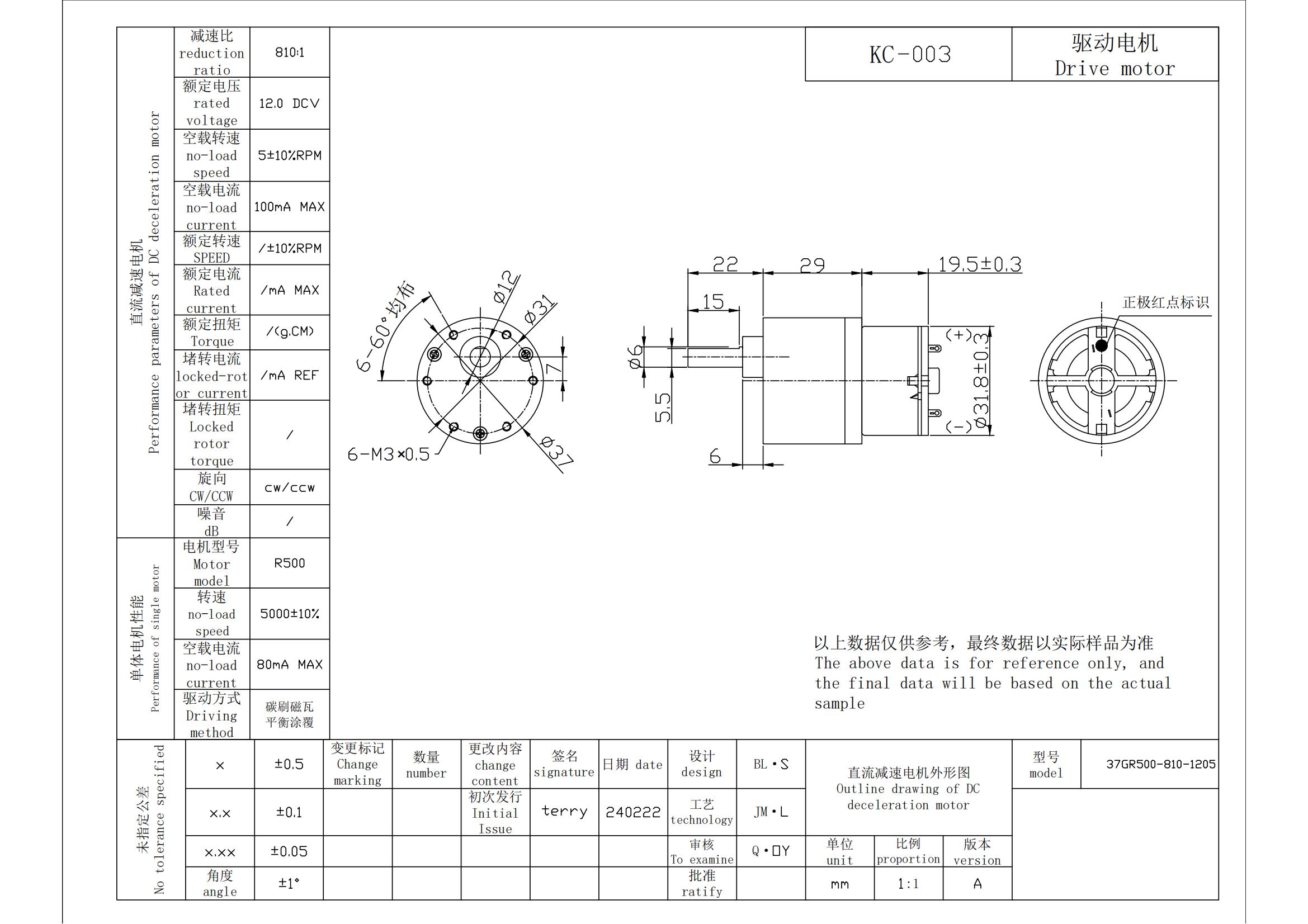

Product drawing detail

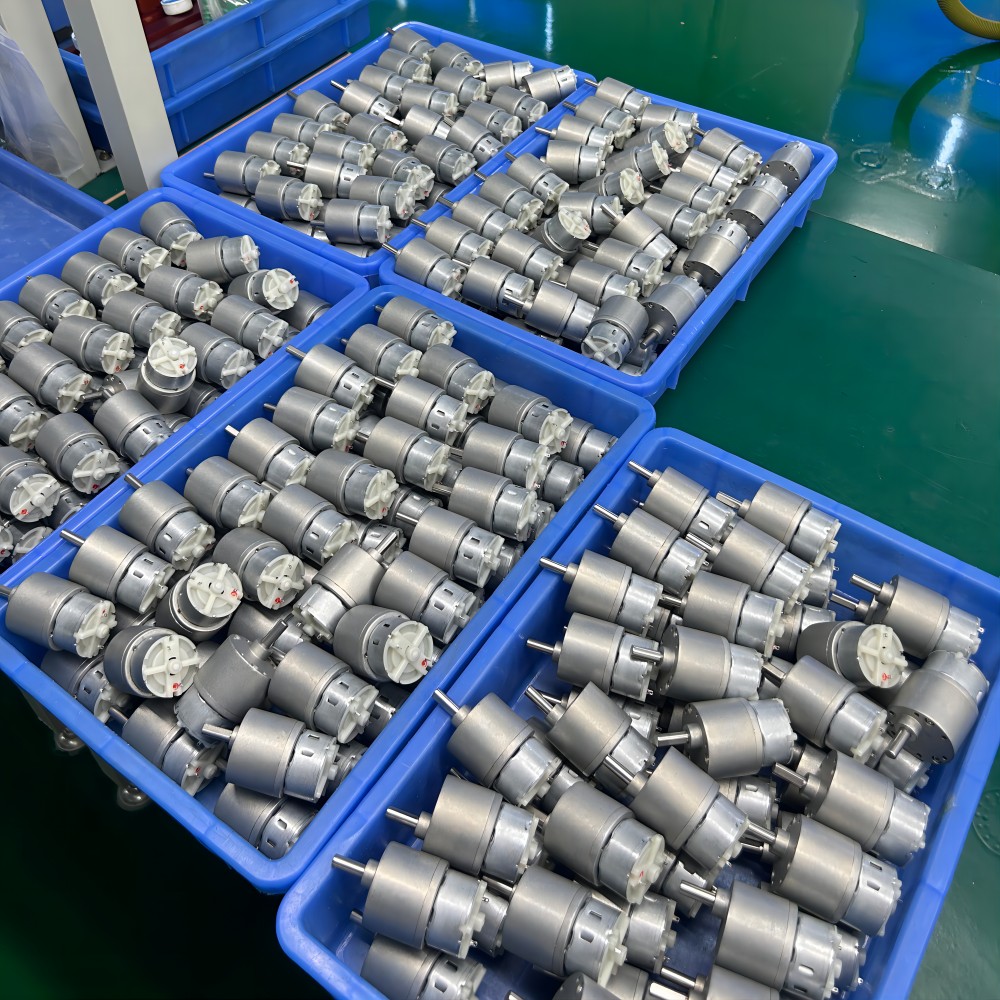

Product detail specs
Recommend Products
Recommend Products
Motor raw materials
Motor raw materials
Production Equipment
Enterprise Profile
Factory Facility

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has built a group of young, pragmatic, professional, and efficient work teams, equipped with advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from global customers.

Certifications
Industry Certifications
Application Scenario
Applications Grid
Medical equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map
Frequently Asked Questions
What are the main features of the GM37-500 Micro DC Geared Motor?
The motor operates at a rated voltage of DC 12V, provides a rated output power up to 12W, and delivers a torque output up to 8 kgf·cm. It features permanent magnet construction, metal brush commutation, and supports both clockwise and counter-clockwise rotation (CW & CCW).
Can the motor shaft configuration be customized?
Yes, the motor comes with a standard Φ6.0mm D-shape shaft, but the shaft length and design can be customized according to your specific layout requirements.
In what products are these Micro DC Geared Motors commonly applied?
These motors are highly versatile and widely used in medical equipment (like sphygmomanometers and air pumps), business machines (like intelligent robots and 3D printers), smart home devices (like intelligent locks, window openers, and coffee machines), as well as robotics and electric tools.
What types of motors are available in your production lineup?
The product range includes a variety of precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors suitable for diverse industrial and consumer applications.
Does the motor design support bidirectional rotation control?
Yes, the motor construction supports both clockwise and counter-clockwise (CW & CCW) rotation directions, allowing for flexible operational movement in devices like smart locks and actuators.
