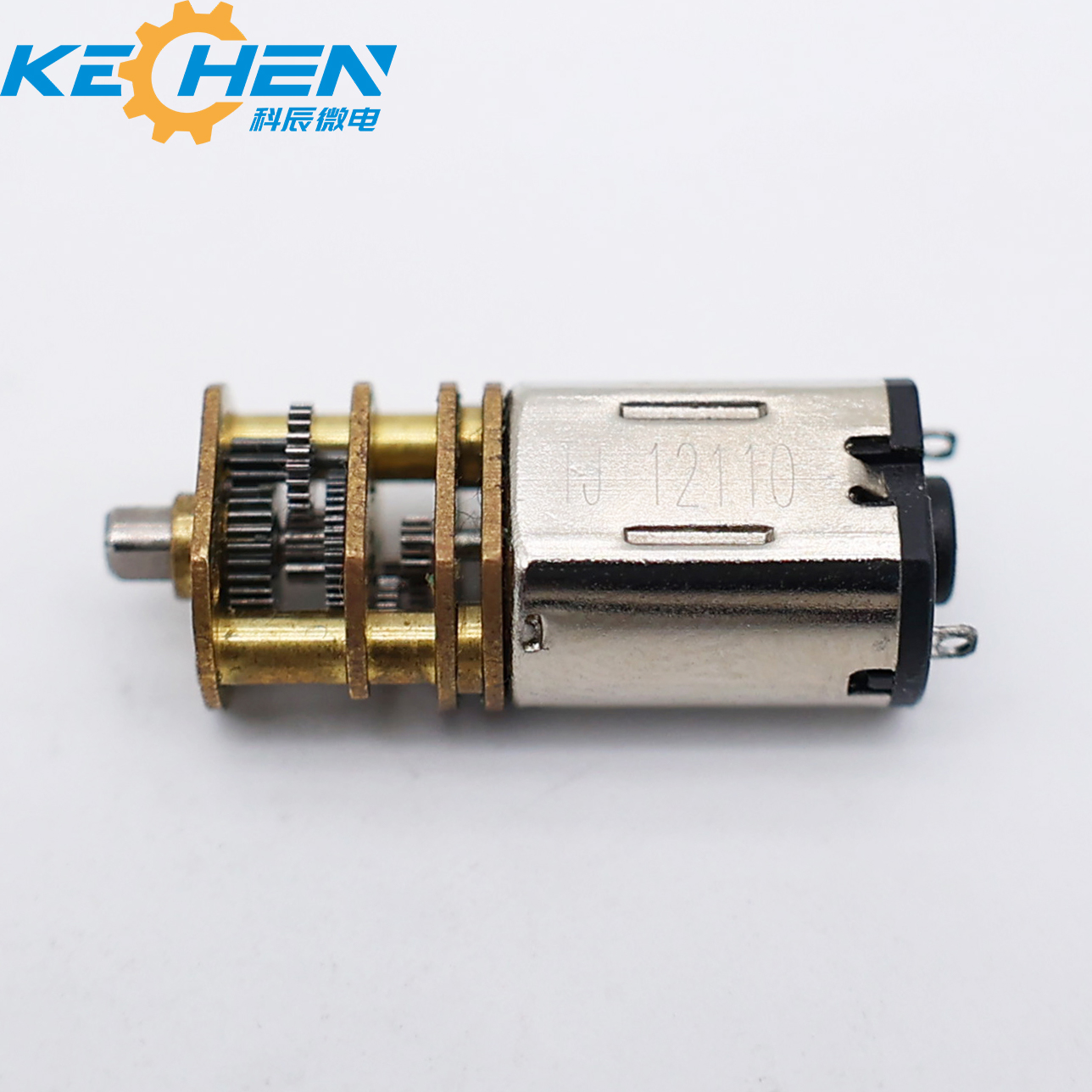

GM10-M20 Low Rpm 12mm Dc Gear Motor Carbon Brush M20 Dc Motor with Gearbox

Product Description

Products Description

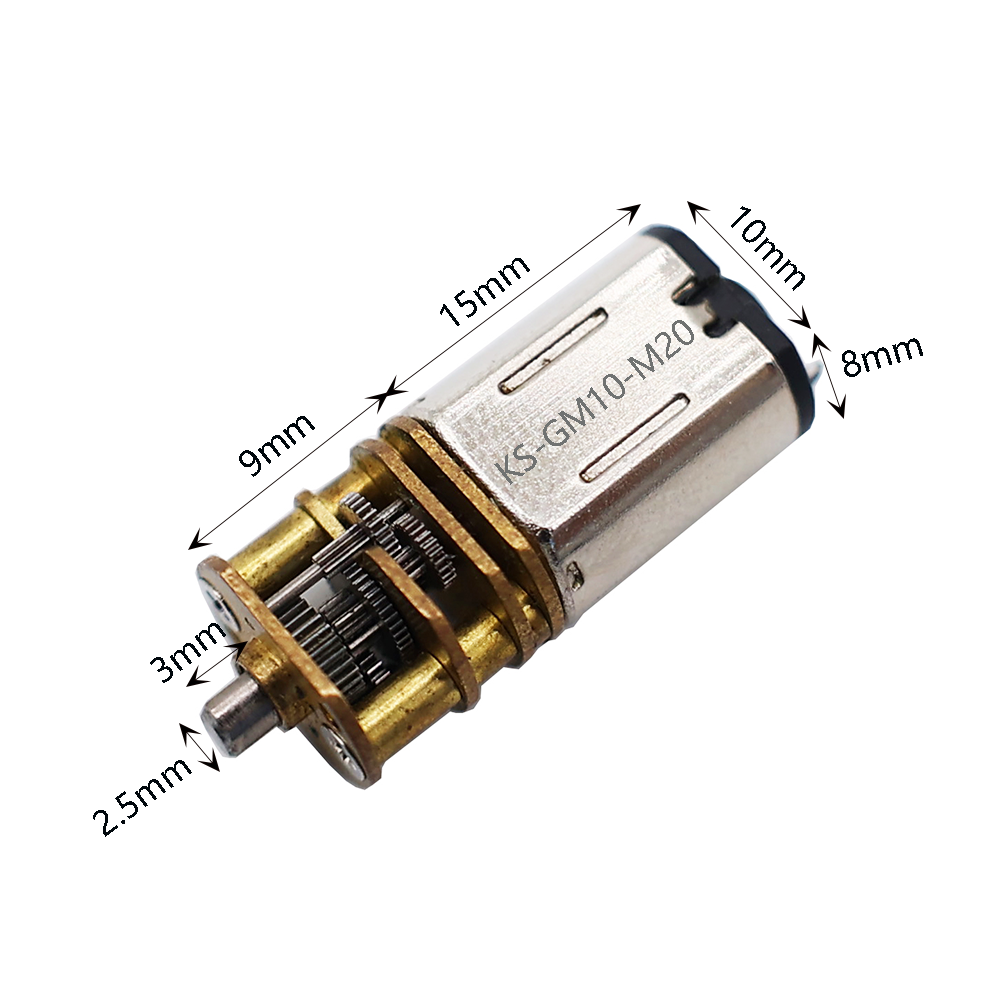

Main features image
Main Features
  • Model: GM10-M20VA micro metal gearmotor
  • Gearbox: 10 mm metal spur gear reducer
  • Rated Voltage: DC 1.5V, 3V, 4.5V, 5V, 6V, 9V, 12V
  • Rated Torque: Max. 0.6Kgf-cm
  • Size: Φ10 * L 24.2mm
  • Shaft: Φ2.5mm D-cut 0.5mm
  • Encoder: magnetic encoder available
  • Commutation: Carbon brush / Graphite brush / Metal brush
  • Construction: micro Permanent Magnet iron cored DC electric motor
  • MOQ: 500 pcs

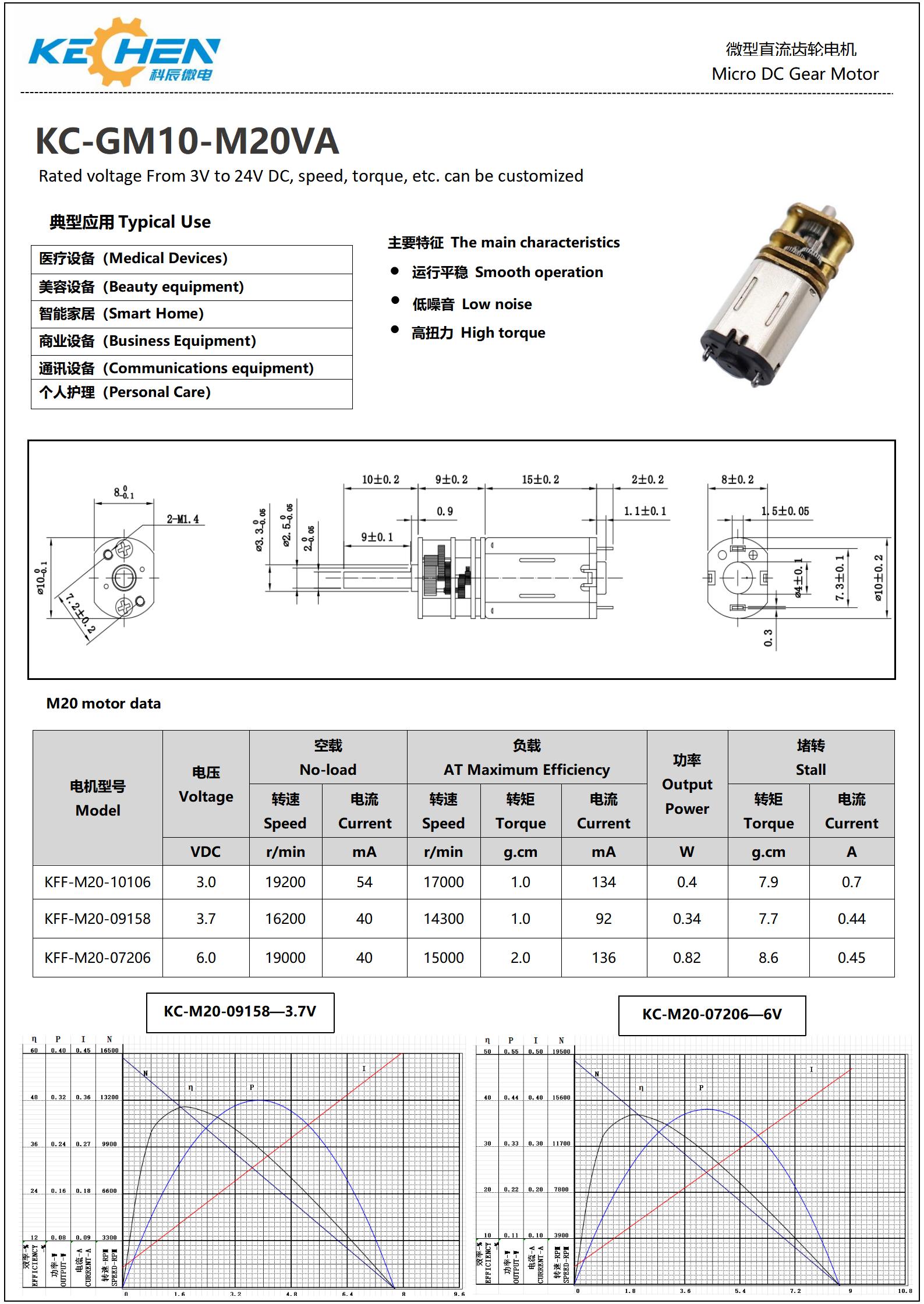

Product dimensional drawing
Gearbox with motor Data:
GM10-M20VA-3.0V
Reduction 54 75 98 100 158 186 218 250 258
Length(mm) 9 9 9 9 9 9 9 9 9
Rated speed(rpm) 250 180 137 135 85 72 61 54 52
Rated torque(kg.cm) 0.03 0.04 0.05 0.06 0.09 0.11 0.13 0.15 0.15

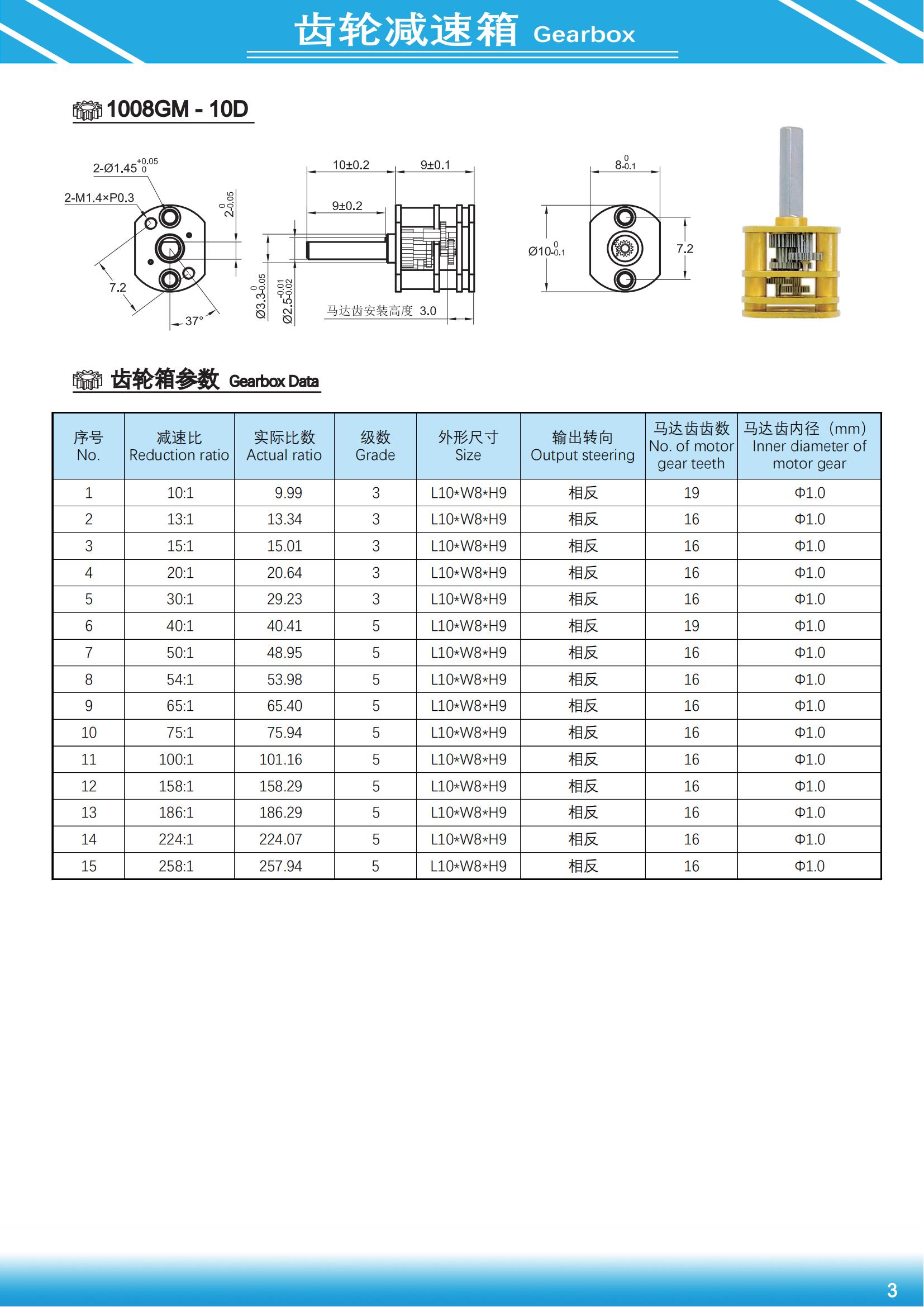

Product detailed drawing
Recommend Products
Recommended Product 1
Recommended Product 2
Motor raw materials
High-quality motor raw materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Manufacturing Capability Profile
Manufacturing workshop profile
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, the team has adhered to the concept of "people-oriented, pioneering and innovative spirit". Following years of rapid development, it has built a young, pragmatic, professional, and efficient work team, utilizing advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from global clients.
Certifications
Certifications display
Application Scenario
Application scenarios
Global Market Distribution
Market distribution map 1
Market distribution map 2
Frequently Asked Questions
What are the primary applications for the GM10-M20VA micro metal gearmotor?
This micro motor is widely utilized in medical equipment, smart home systems, commercial intelligent locks, smart switches, smart wear, intelligent robotics, electric tools, and beauty appliances.
What rated voltage options are available for this motor?
The motor supports multiple rated voltage options, including DC 1.5V, 3V, 4.5V, 5V, 6V, 9V, and 12V.
Does this micro metal gearmotor offer feedback options?
Yes, a magnetic encoder is available for applications requiring precise feedback and position control.
What is the shaft configuration of the GM10-M20VA model?
It features a output shaft of Φ2.5mm with a 0.5mm D-cut style to prevent slippage during operation.
What is the Minimum Order Quantity (MOQ) for this product?
The standard Minimum Order Quantity (MOQ) for production is 500 pieces.
