DC Micro Brushed Permanent Magnet Motor Small Metal Gear 24V 3000rpm Spur Gearbox for Electric Bicycle and Robot Applications

Product Description

Products Description

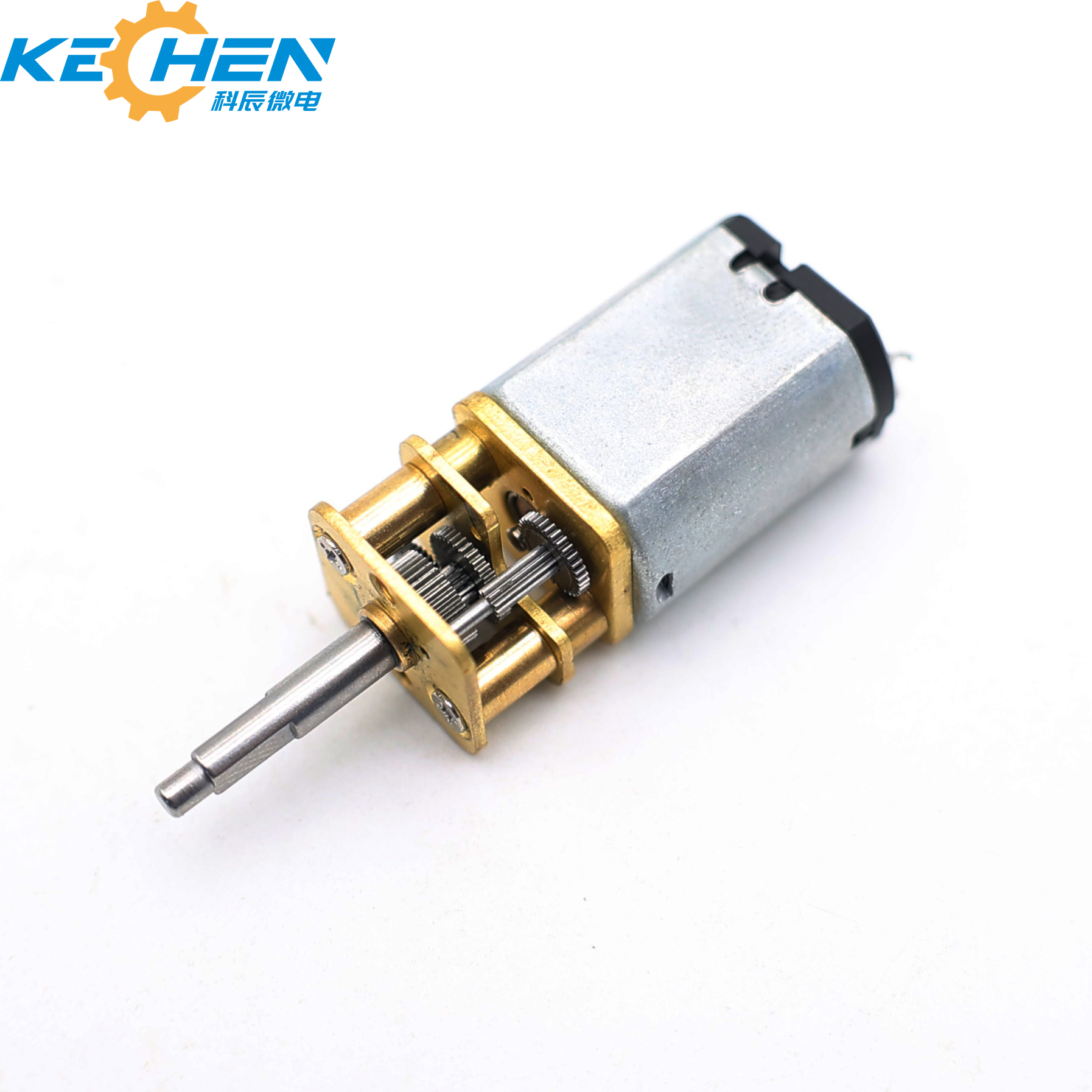

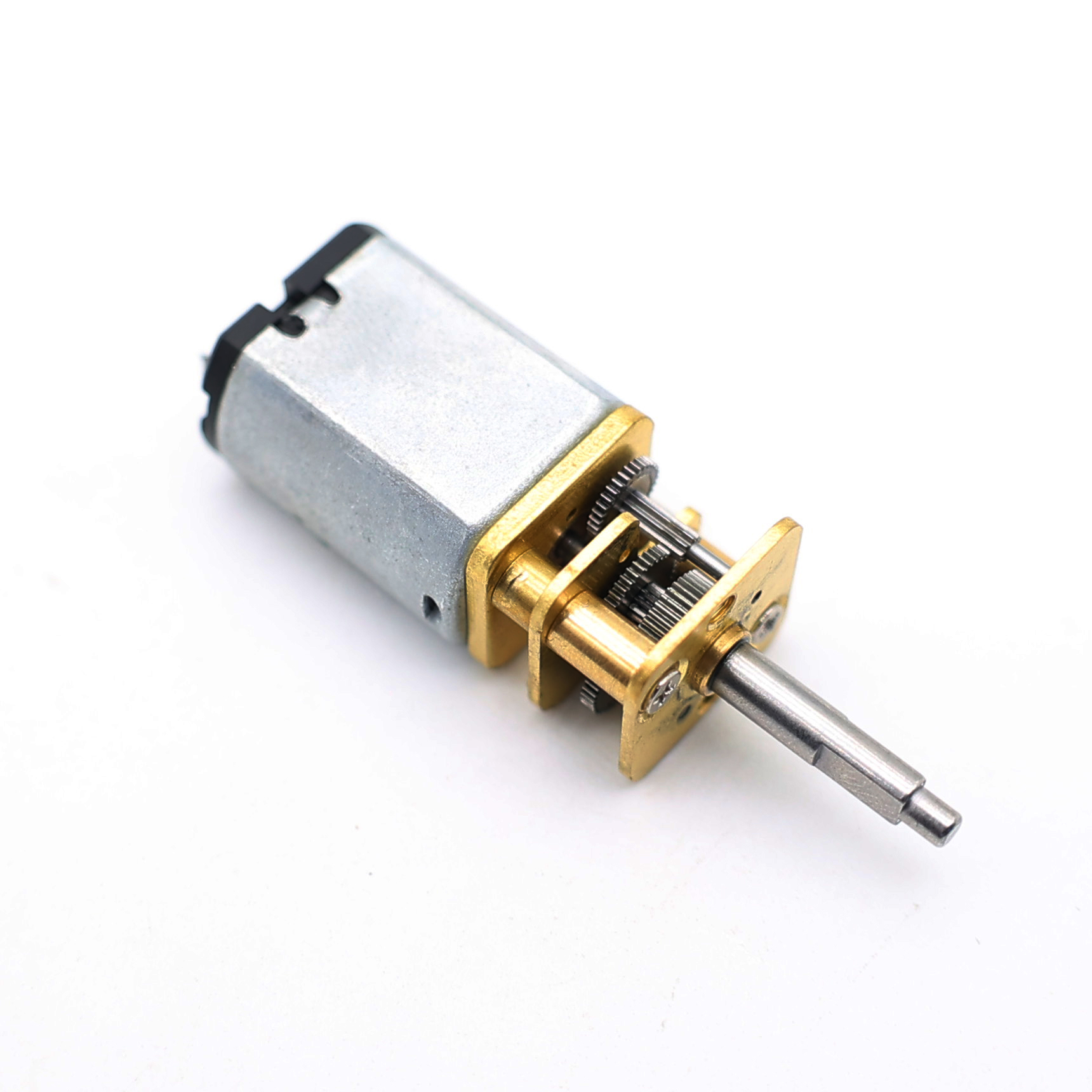

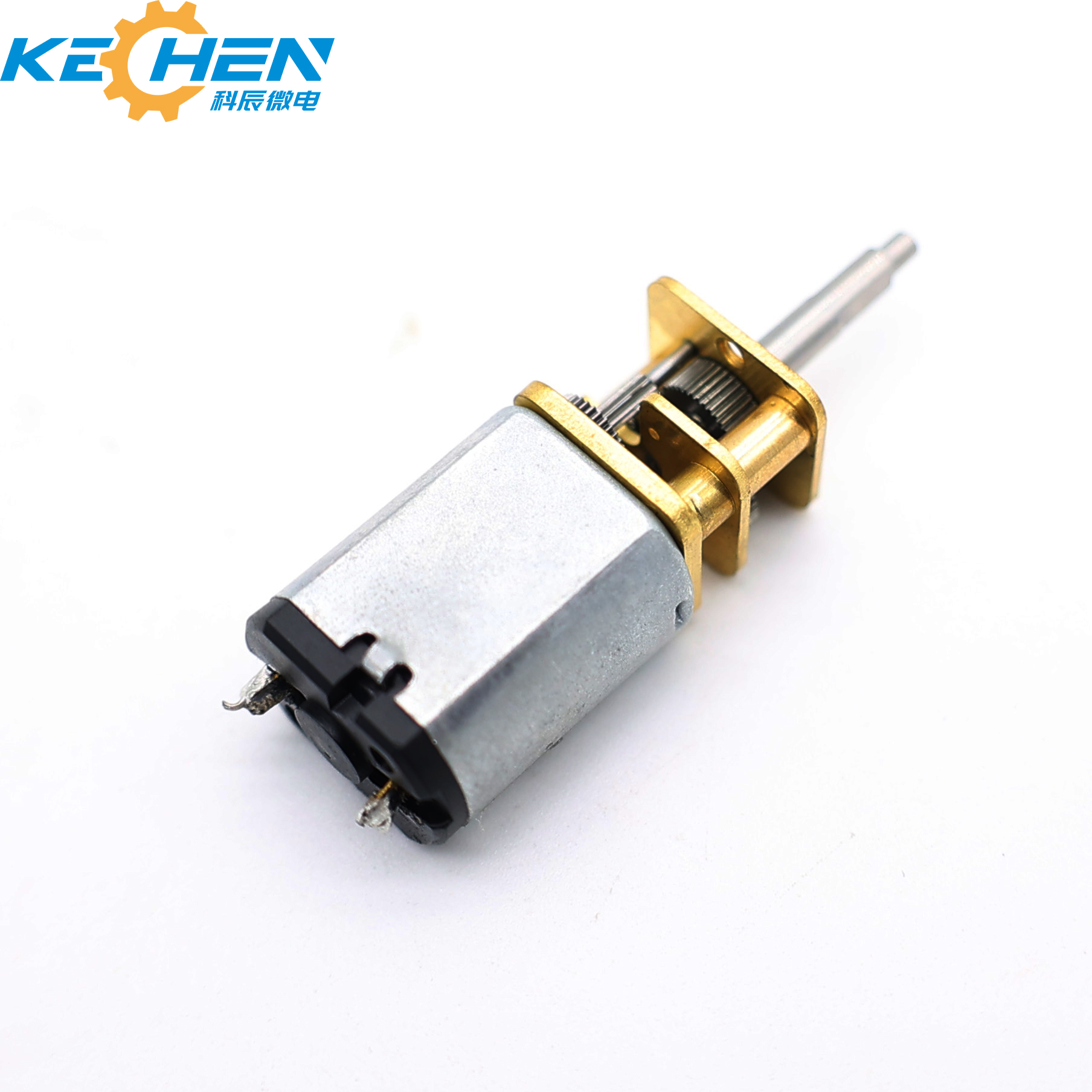

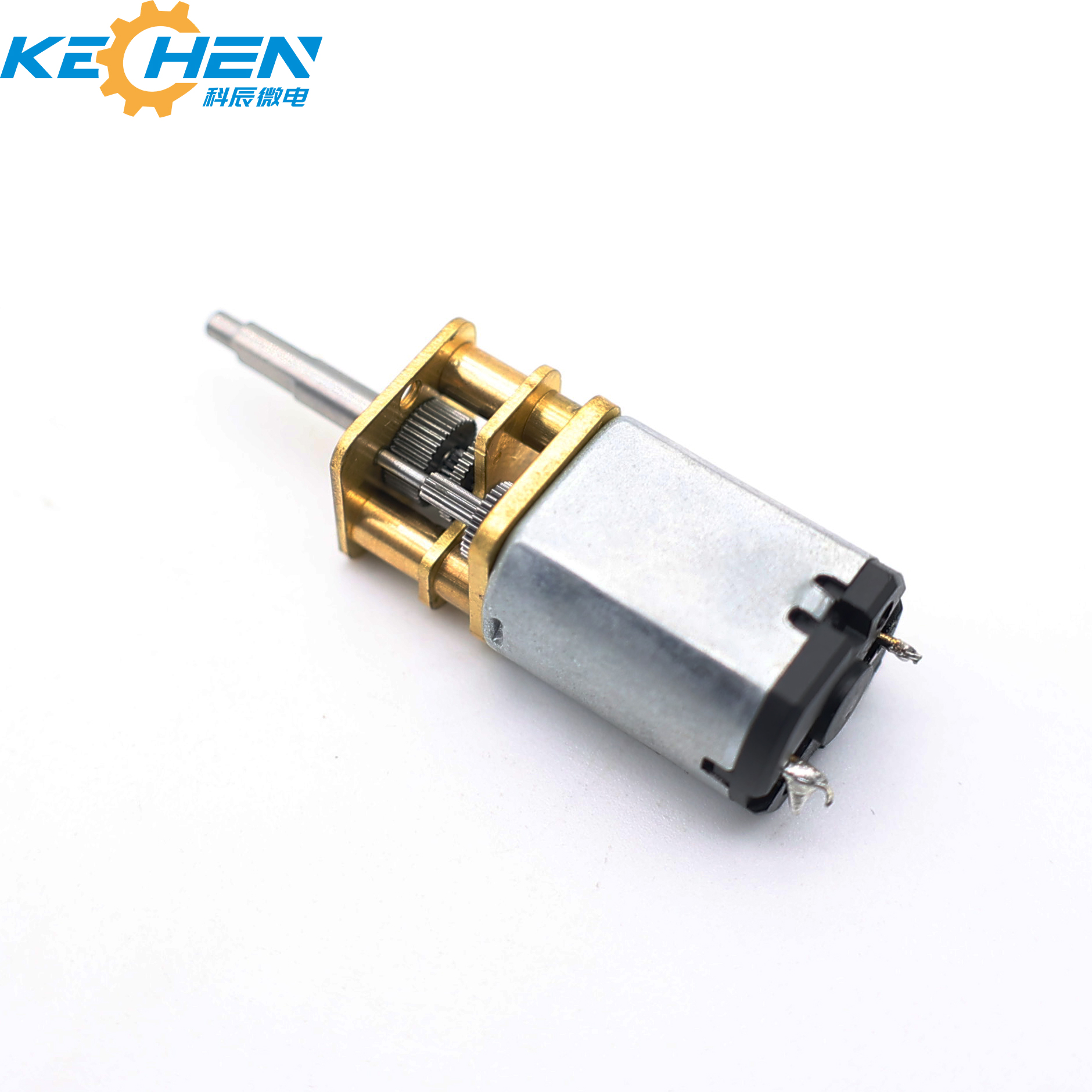

GM13-030 Spur Gear Motor
GM13-030 13mm DC Spur Gear Motor
Main features:
  • Model: GM13-030
  • Gearbox: 13 mm metal spur gear reducer
  • Rated Voltage: DC 3V, 4.5V, 5V, 6V, 9V, 12V, 24V
  • Rated Torque: Max. 2.0Kgf-cm
  • Size: Φ13 * L TBD
  • Shaft: Φ3mm D-cut 0.5mm, M3, M4, custom
  • Encoder: Magnetic encoder available
  • Commutation: Carbon brush / Graphite brush / Metal brush
  • Construction: Micro Permanent Magnet iron cored DC electric motor
  • MOQ: 500 pcs
Motor Drawing Spec
GM13-030PB-08315-3.0V Gearbox with Motor Data
Reduction Ratio 6 20 52 85 118 170 215 250 297
Length (mm) 11 11 11 11 11 11 11 11 11
No-load speed (rpm) 567 170 65 40 29 20 16 14 11
Rated speed (rpm) 268 80 31 19 14 9 7 6 5
Rated torque (kg.cm) 0.02 0.07 0.16 0.26 0.30 0.43 0.54 0.63 0.74
Stalling Torque (kg.cm) 0.05 0.13 0.30 0.48 0.56 0.81 1.02 1.18 1.41
GM13-030PB-09230-12.0V Gearbox with Motor Data
Reduction Ratio 52 85 118 170 215 250 297 360 1000
Length (mm) 11 11 11 11 11 11 11 11 13.2
No-load speed (rpm) 394 241 174 121 95 82 69 57 21
Rated speed (rpm) 338 207 149 104 82 70 59 49 18
Rated torque (kg.cm) 0.16 0.26 0.30 0.43 0.54 0.63 0.74 0.90 1.5
Stalling Torque (kg.cm) 1.10 1.80 2.09 3.00 3.80 4.42 5.25 6.36 10.60

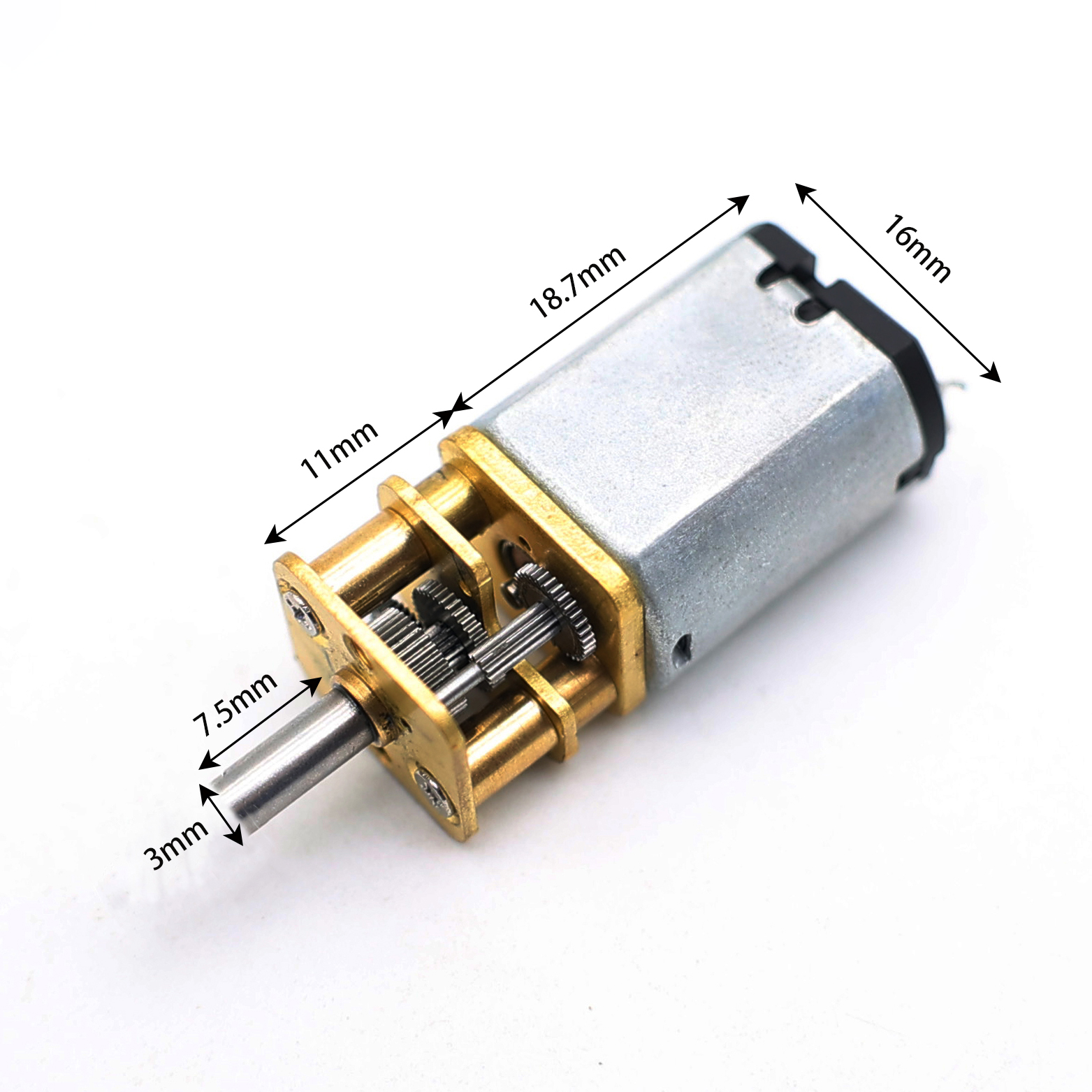

Motor Dimensions Graph
Recommend Products
Recommend Product 1
Recommend Product 2
Recommend Product 3
Recommend Product 4
Motor raw materials
Motor Raw Materials details
Production Equipment
Production Facility 1
Production Facility 2
Production Facility 3
Company Profile
Company Office View
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Quality Certifications
Application Scenario
Application Scenarios Display
Global Market Distribution
Global Market Map
Market Distribution Chart
Frequently Asked Questions (FAQ)
What are the main applications of the GM13-030 spur gear motor?
This micro motor is widely utilized in medical equipment, commercial intelligent locks, smart home appliances, smart grid infrastructure, 5G applications, intelligent communication devices, security systems, and various robotics projects.
What shaft configuration options are available?
The standard shaft is a Φ3mm D-cut 0.5mm. We also offer M3 and M4 threaded options, as well as customized shaft dimensions tailored to your application requirements.
Can the motor support speed and position feedback?
Yes, a compatible magnetic encoder is available to provide precise speed and position feedback for applications requiring closed-loop control.
What voltage options are available for the GM13-030 gear motor?
The motor supports multiple rated DC voltages including 3V, 4.5V, 5V, 6V, 9V, 12V, and 24V to suit different power supply configurations.
What is the Minimum Order Quantity (MOQ) for this product?
The minimum order quantity (MOQ) for the GM13-030 spur gear motor is 500 pieces. For custom sample inquiries, please consult our engineering support team.
What commutation options are offered?
You can select Carbon brush, Graphite brush, or Metal brush commutation systems depending on your longevity, cost, and electrical noise requirements.
