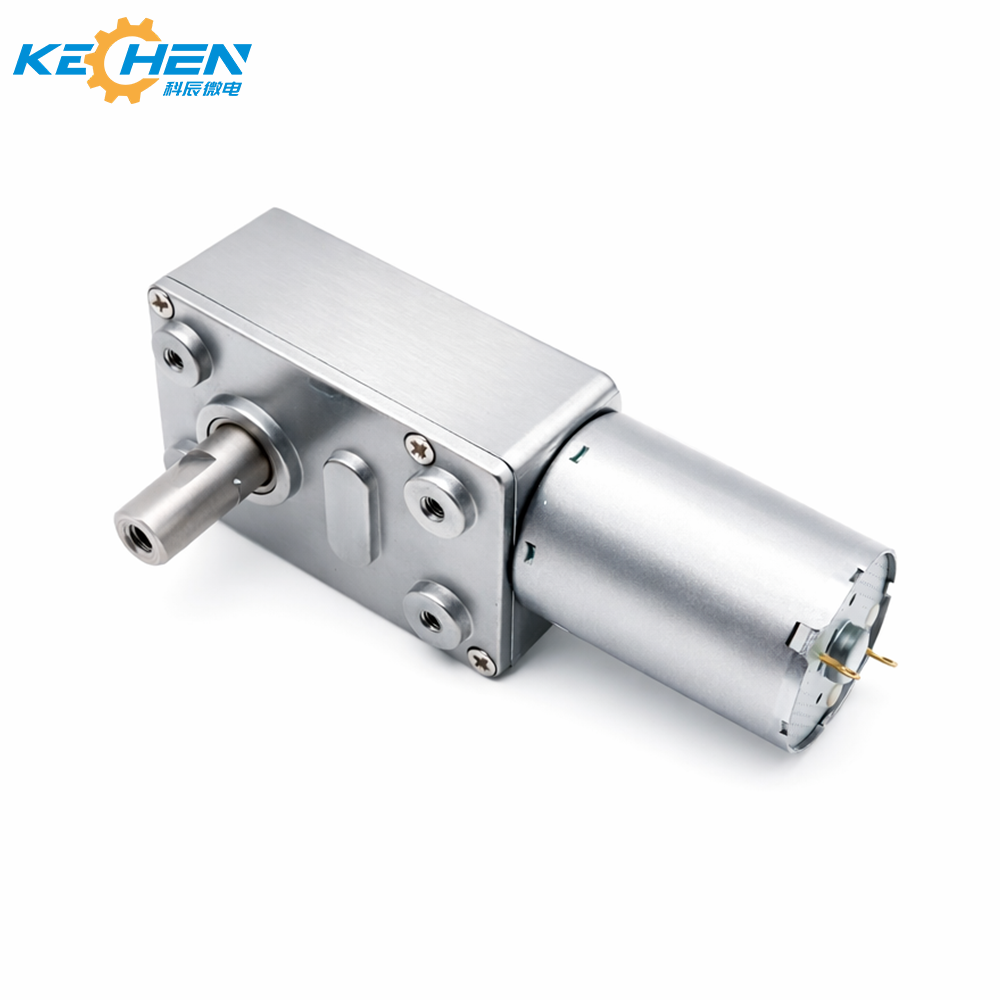

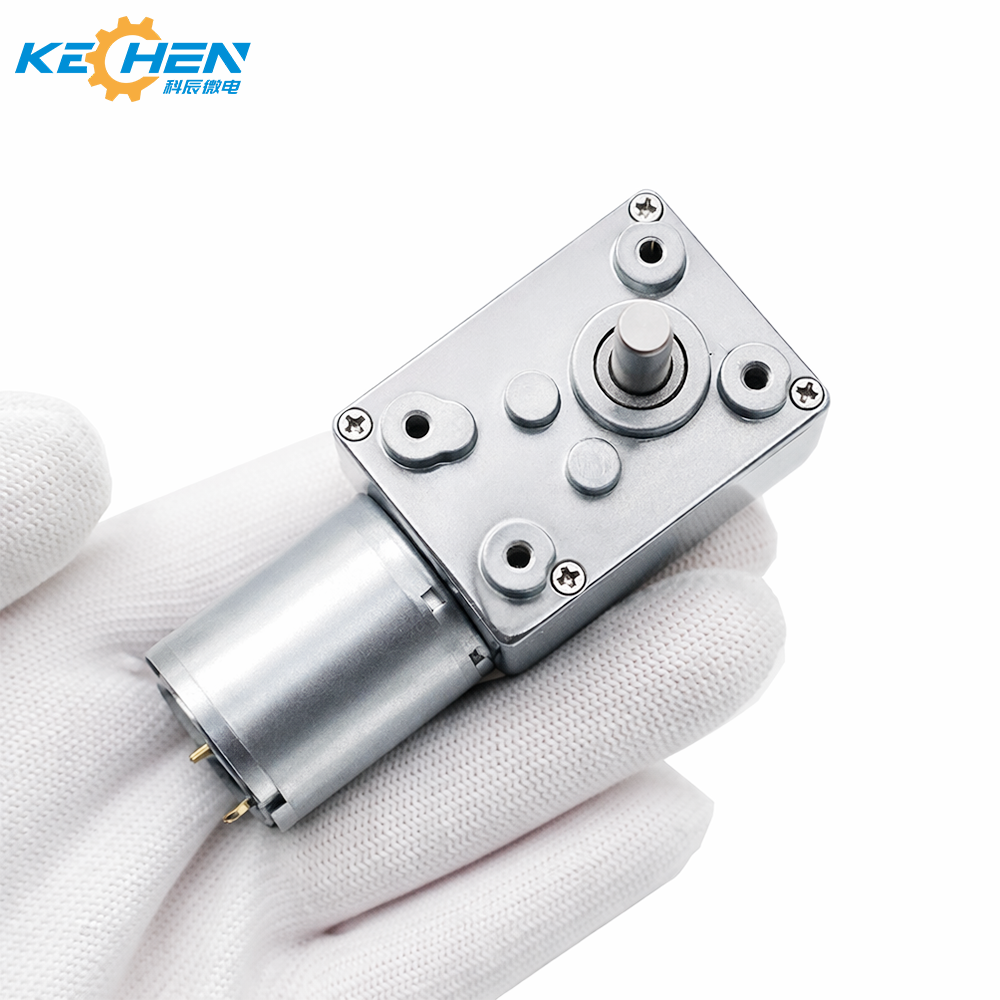

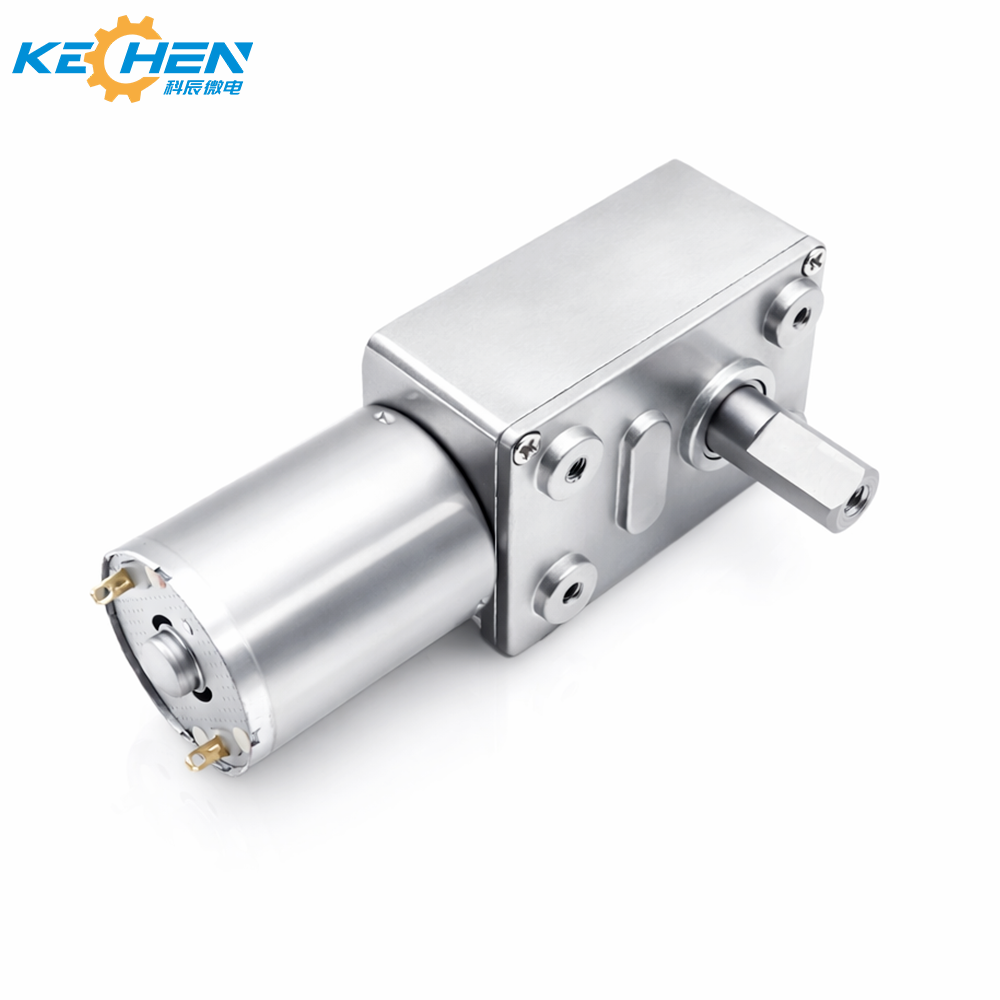

46mm * 32mm Square Gearbox Right Angle Output Shaft 6mm 12v 24v DC Worm Motor Product Type DC Motors

Products Description

GM4632-370 small square worm gearbox carbon brush dc motor

|- Model:GM4632-370
|- Gearbox:metal worm gear reducer;
|- Rated Voltage:DC 6V, 9V, 12V, 24V;
|- Rated Torque:Max. 50 Kgf-cm ;

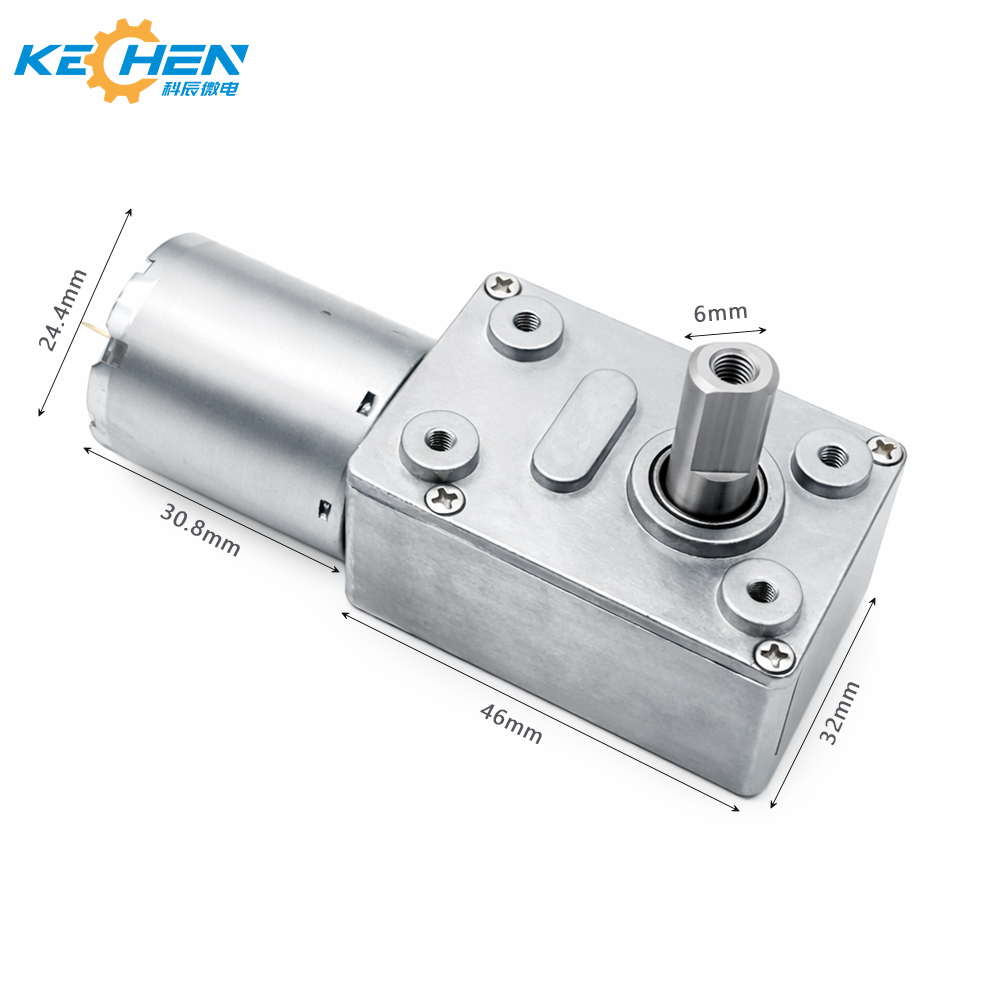

|- Size:46mm * 32mm square gearbox, right angle output shaft.
|- Shaft:right angle driveshaft, Φ6mm, custom;
|- Commutation:Carbon brush/Graphite brush;
|- Construction:Permanent Magnet;
|- Encoder:Magnetic/Optical encoder.
|- MOQ:100 pcs;

Motor Technical Data

Model	Voltage	No-load		AT Maximum Efficiency			Output Power	Stall
	Voltage	Speed	Current	Speed	Torque	Current	Output Power	Torque	Current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
370-12560	8.0	2400	15	1970	16	69	0.55	90	0.32
370-18260	12.0	7900	50	6820	32.7	320	3.84	240	2.0
370-10800	24.0	5100	15	4310	26.3	82	1.97	170	0.45

Gear Motor Technical Data - GM4632-370-18260

Reduction	37.3	150	250	324	600	972	1700	2900
Length(mm)	46	46	46	46	46	46	46	46
No-load speed(rpm)	211.8	52.6	31.6	24.4	13.2	8.1	4.7	2.7
Rated speed(rpm)	182.8	45.4	27.3	21.1	11.4	7.0	4.0	2.5
Rated torque(kg.cm)	0.73	2.9	4.9	6.4	10.0	10.0	10.0	10.0
Stall Torque (kg.cm)	5.37	15	15	15	15	15	15	15

Gear Motor Technical Data - GM4632-370-10800

Reduction	37.3	150	250	324	600	972	1700	2900
Length(mm)	46	46	46	46	46	46	46	46
No-load speed(rpm)	136.7	34.0	20.4	15.7	8.5	5.3	3.0	2.0
Rated speed(rpm)	115.6	29.0	17.2	13.3	7.0	4.4	2.5	2.0
Rated torque(kg.cm)	0.59	2.73	3.95	5.11	9.47	10.0	10.0	10.0
Stall Torque (kg.cm)	3.8	15	15	15	15	15	15	15

Recommend Products

Motor Raw Materials

Production Equipment

Certifications

Application Scenario

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	Intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush,Electric tool,Electric toy car,Electric curtain.
Smart Home	Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door lock,Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

Global Market Distribution

FAQ

What are the main advantages of a worm gear DC motor like the GM4632-370?

The GM4632-370 features a right-angle output shaft design combined with a worm gear reducer. This configuration provides high torque output, self-locking capabilities, and a compact size that is ideal for space-constrained installations.

Is the output shaft customizable?

Yes, we support customization for the output shaft. The standard configuration is a Φ6mm right angle driveshaft, but the dimensions, shapes, and mounting specifications can be tailored to meet your specific requirements.

Can this motor run on different voltages?

Yes, the GM4632-370 series can be ordered with rated voltages of DC 6V, 9V, 12V, or 24V. Please check the corresponding technical data sheets to select the optimal model matching your system voltage.

Does this model support encoder installation?

Yes. The motor structure can be equipped with either magnetic or optical encoders, allowing for precise speed measurement and positioning feedback in automated systems.

What is the Minimum Order Quantity (MOQ) for this product?

The standard Minimum Order Quantity (MOQ) for production runs of the GM4632-370 worm gear motor is 100 pieces. For bulk customizations or sample trials, please contact our team.

What typical applications use this worm gear motor?

This motor is widely used in medical equipment (like urine analyzers), business machines, smart home devices (like intelligent window openers and door locks), electric tools, food processing machines, and servicing robotics.
