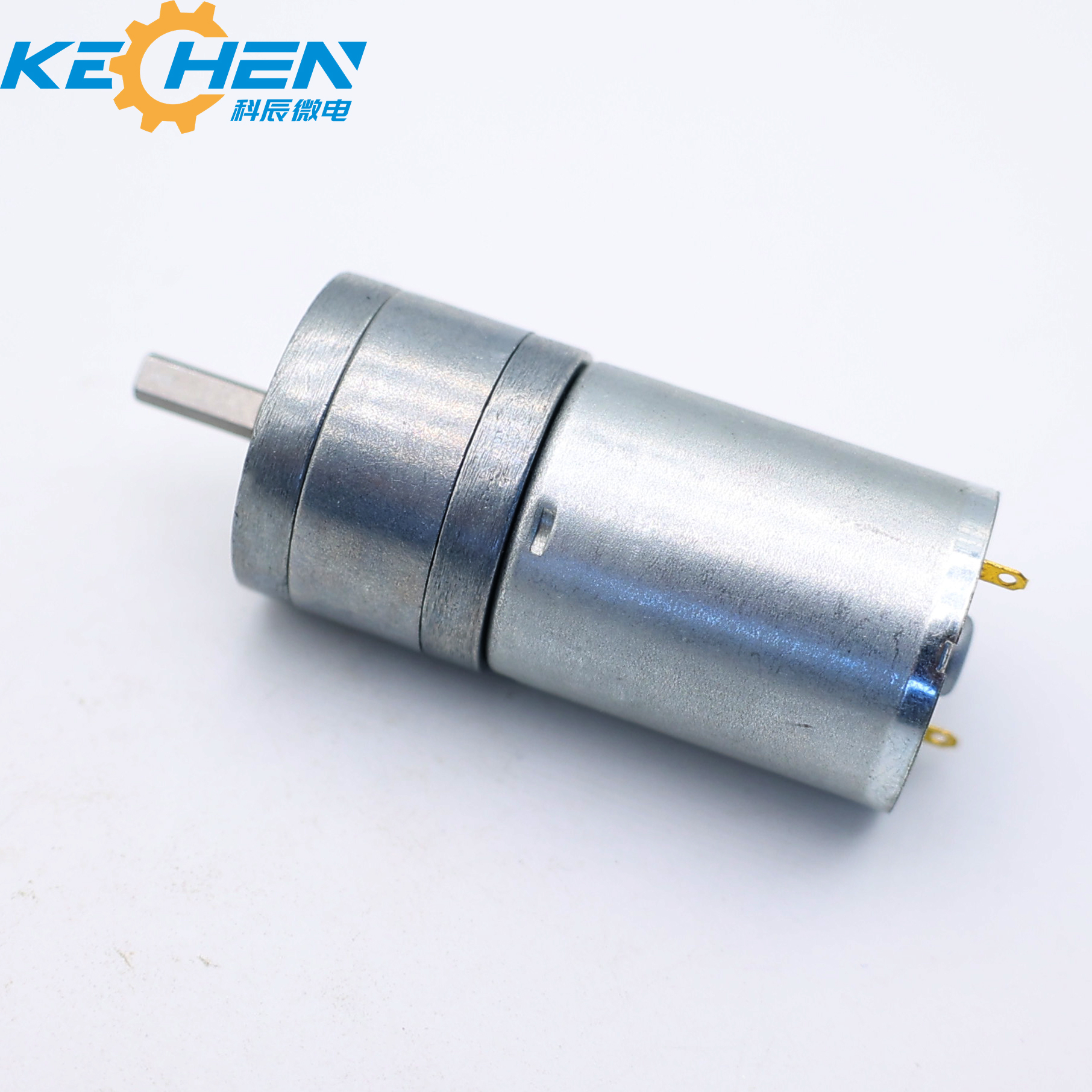

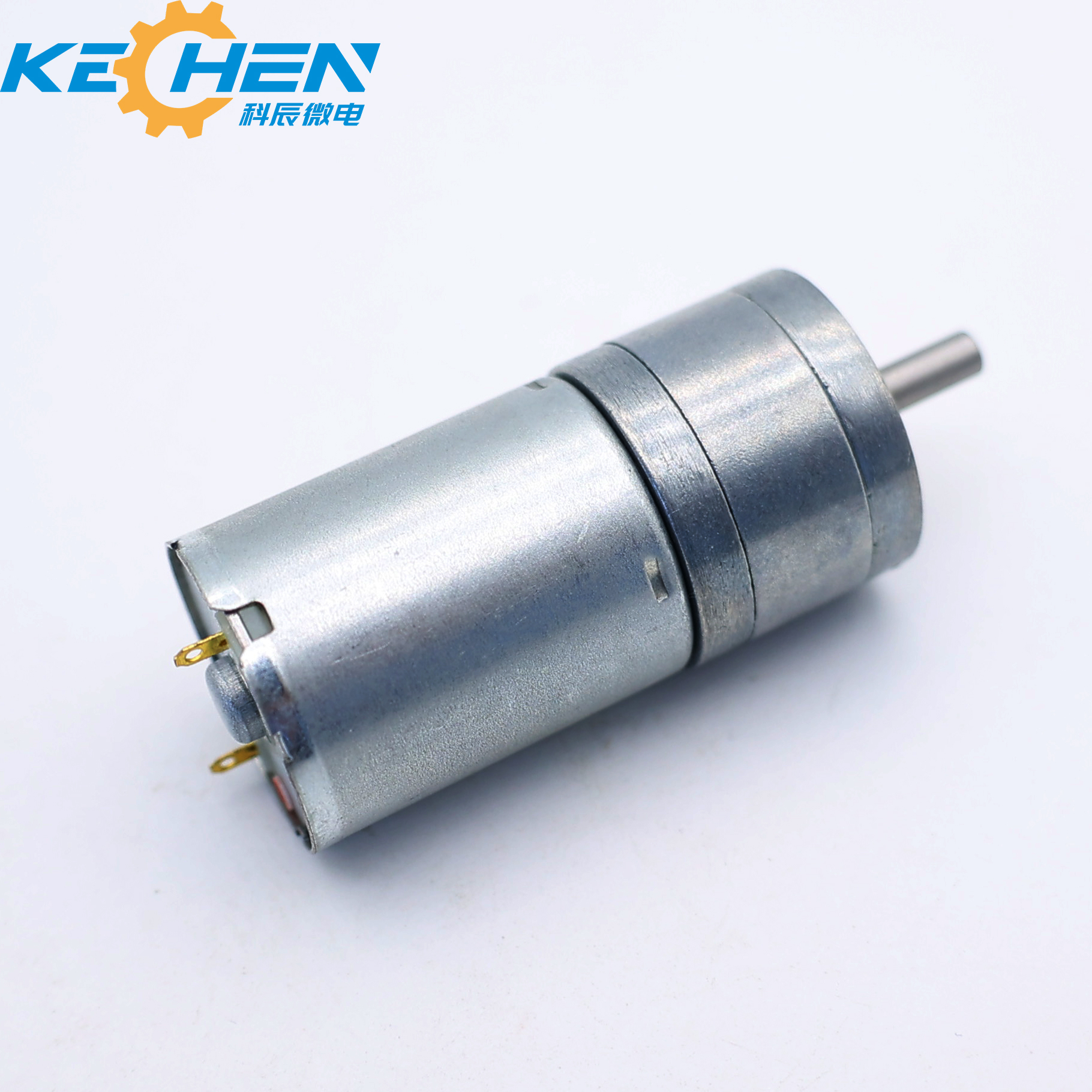

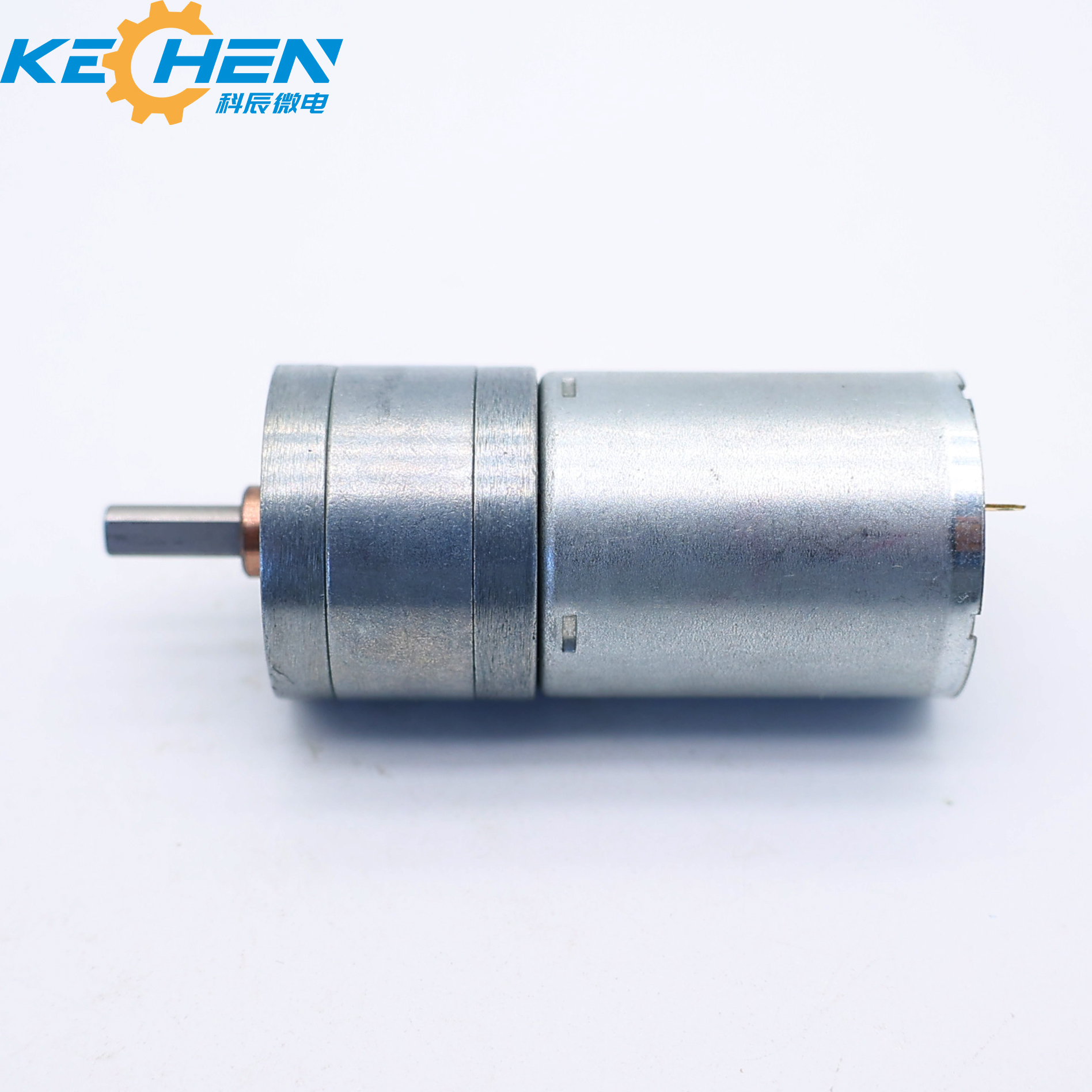

25mm Geared DC Motor Permanent Magnet 3-24V Carbon Brush 5-200RPM 4mm Shaft Diameter ISO/CE Certified Smart Home Home Appliance

Products Description

Model: GM25-370 micro metal gearmotor
Gearbox: 25 mm metal spur gear reducer
Rated Voltage: DC 3V, 4.5V, 5V, 6V, 9V, 12V, 24V
Rated Torque: Max. 5Kgf-cm

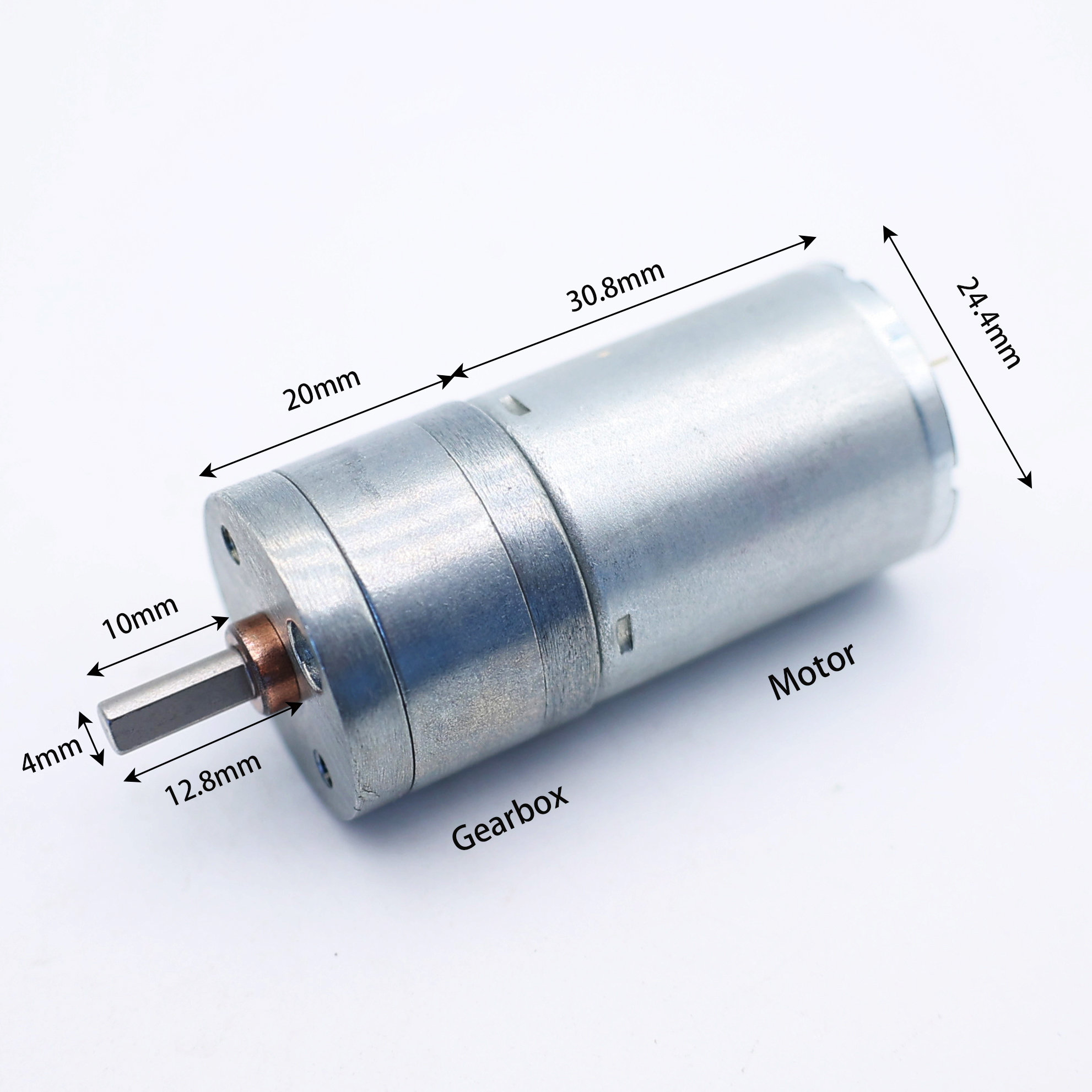

Size: Φ25 * L TBD

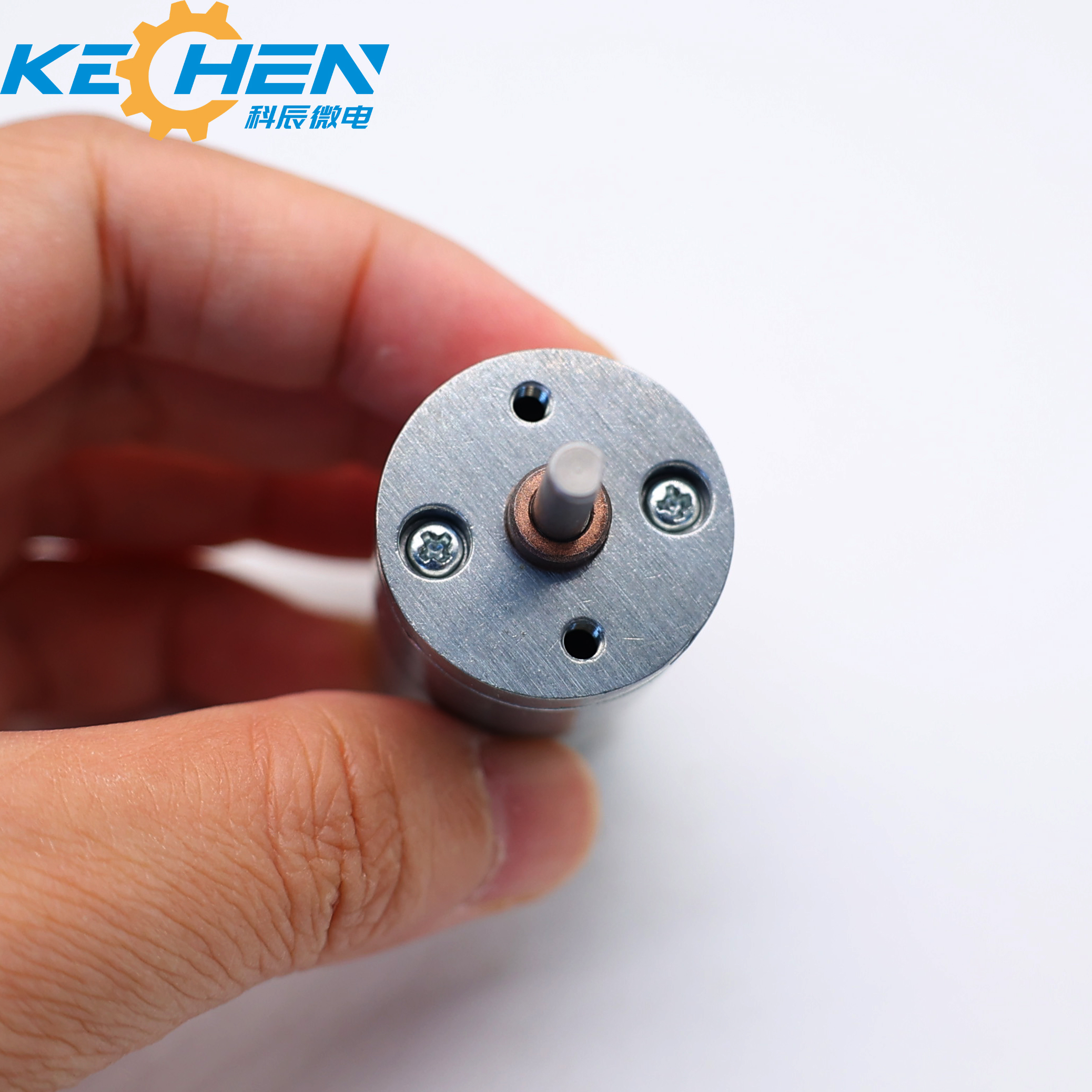

Shaft: Φ4mm D-cut 0.5mm, custom
Encoder: magnetic encoder available
Commutation: Carbon brush / Graphite brush / Metal brush
Construction: micro Permanent Magnet iron cored dc electric motor
MOQ: 500 pcs

Technical Specifications

Gearbox with motor Data:
GM25-370SH-24118-5.0V
Reduction	10	35.5	59	78	103	130	172	226	286
Length(mm)	19	21	23	23	23	25	25	25	27
No-load speed(rpm)	665	187	113	85	65	51	39	29	23
Rated speed(rpm)	580	163	98	74	56	45	34	26	20
Rated torque(kg.cm)	0.14	0.36	0.47	0.62	0.82	0.78	1.03	1.36	1.14
Stalling Torque (kg.cm)	1.10	2.78	3.69	4.88	6.45	6.10	8.07	10.61	8.95
GM25-370SH-11220-24.0V
Reduction	59	78	103	130	172	226	286	378	500
Length(mm)	23	23	23	25	25	25	27	27	27
No-load speed(rpm)	231	174	132	105	79	60	48	36	27
Rated speed(rpm)	210	159	120	95	72	55	43	33	25
Rated torque(kg.cm)	0.47	0.62	0.82	0.78	1.03	1.36	1.14	1.51	2.0
Stalling Torque (kg.cm)	5.35	7.07	9.34	8.84	11.70	15.37	12.97	17.14	22.67

Recommend Products

Motor raw materials

Production Equipment

Company Profile

Manufacturing workshop and team overview

Our company was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Application Scenario

Global Market Distribution

Frequently Asked Questions

Q1: What are the main applications of the GM25-370 gearmotor?

A: The GM25-370 micro metal gearmotor is widely used in medical equipment, smart home appliances, commercial intelligent locks, automated switches, 5G communication systems, AI robotics, power tools, and various precision transmission designs.

Q2: Can the voltage and output shaft specification be customized?

A: Yes, the rated voltage can be designed to match DC 3V, 4.5V, 5V, 6V, 9V, 12V, or 24V. The output shaft configuration, including shape (D-cut, round) and custom lengths, is fully customizable based on customer specifications.

Q3: Is there a magnetic encoder option available for this motor?

A: Yes, we provide compatible magnetic encoders for the GM25-370 gearmotor series to achieve precise position and speed feedback controls.

Q4: What brush materials are used in the construction of the motor?

A: Depending on application lifespan and load requirements, the commutation structure can be configured with Carbon brushes, Graphite brushes, or Metal brushes.

Q5: What is the Minimum Order Quantity (MOQ) for production?

A: The standard minimum order quantity (MOQ) for this micro metal gearmotor model is 500 pieces. For bulk orders, custom testing and specification setups are fully supported.

Q6: How do I select the right reduction ratio for my design?

A: Select the reduction ratio based on your target RPM and torque requirements. Higher reduction ratios provide more output torque (up to 5Kgf-cm maximum) with lower speeds, as detailed in our technical specification data sheets.
