Commutation: Carbon brush / Graphite brush / Metal brush
Construction: Micro Permanent Magnet iron cored DC electric motor
MOQ: 500 pcs
Gearbox with Motor Data: GM13-050SH-11155-3V
Reduction
6
20
52
85
118
170
215
250
297
Length (mm)
11
11
11
11
11
11
11
11
11
No-load speed (rpm)
675
203
78
48
34
24
19
16
14
Rated speed (rpm)
517
155
60
36
26
18
14
12
10
Rated torque (kg.cm)
0.02
0.07
0.16
0.26
0.30
0.43
0.54
0.63
0.74
Stalling Torque (kg.cm)
0.10
0.30
0.67
1.09
1.26
1.81
2.29
2.66
3.17
Gearbox with Motor Data: GM13-050SH-08285-24V
Reduction
52
85
118
170
215
250
297
360
1000
Length (mm)
11
11
11
11
11
11
11
11
13.2
No-load speed (rpm)
352
215
155
108
85
73
62
51
18
Rated speed (rpm)
327
200
144
100
79
68
57
47
17
Rated torque (kg.cm)
0.16
0.26
0.30
0.43
0.54
0.63
0.74
0.90
1.50
Stalling Torque (kg.cm)
2.20
3.59
4.15
5.98
7.57
8.80
10.45
12.67
21.12
Recommend Products
Motor Raw Materials
Production Equipment
Certifications
Application Scenario
Global Market Distribution
Frequently Asked Questions
What are the primary applications of the GM13-050 gear motor?
This micro DC spur gear motor is widely used in medical equipment, optical iris technology, financial security devices, intelligent communication systems, AI robots, smart locks, electric tools, and beauty apparatuses.
Can the output shaft be customized?
Yes, standard shaft configurations include Φ3mm D-cut, M3, and M4 threads, but length, shape, and threading can be tailored to meet your specific project requirements.
Does this micro motor support feedback control?

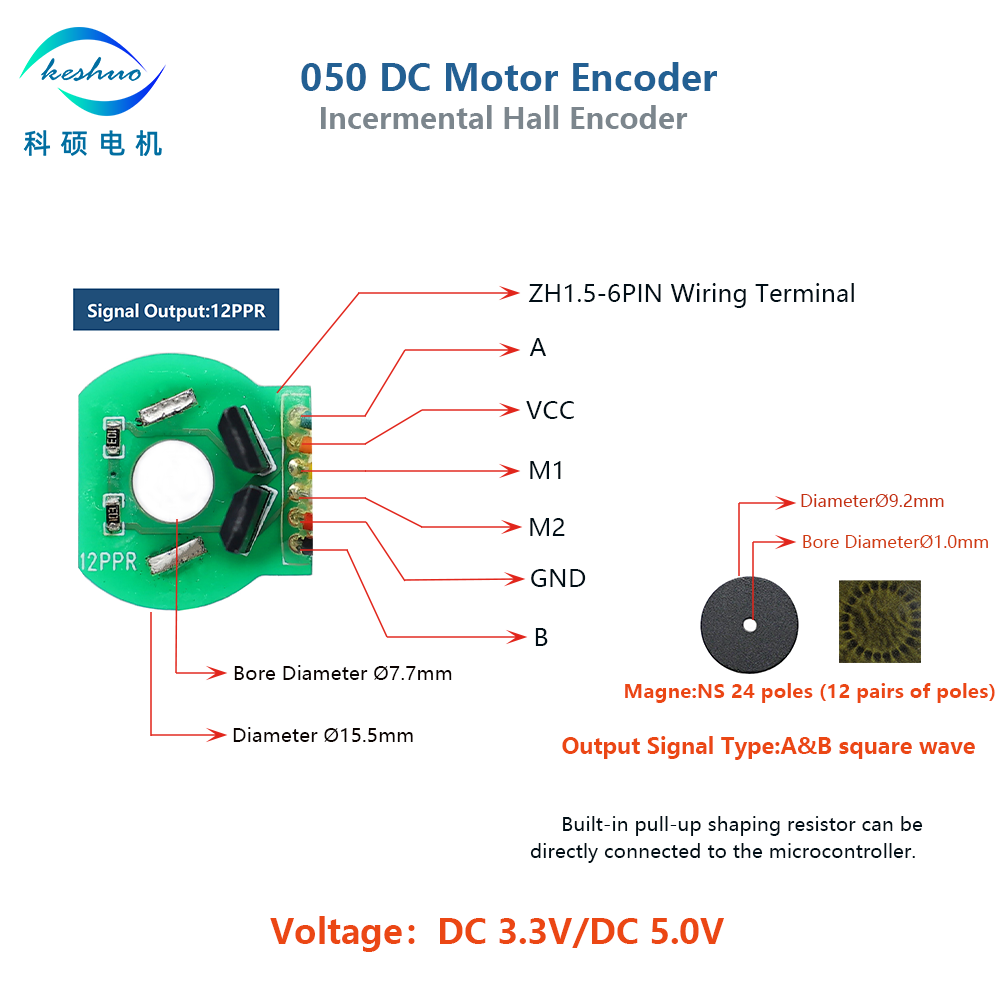

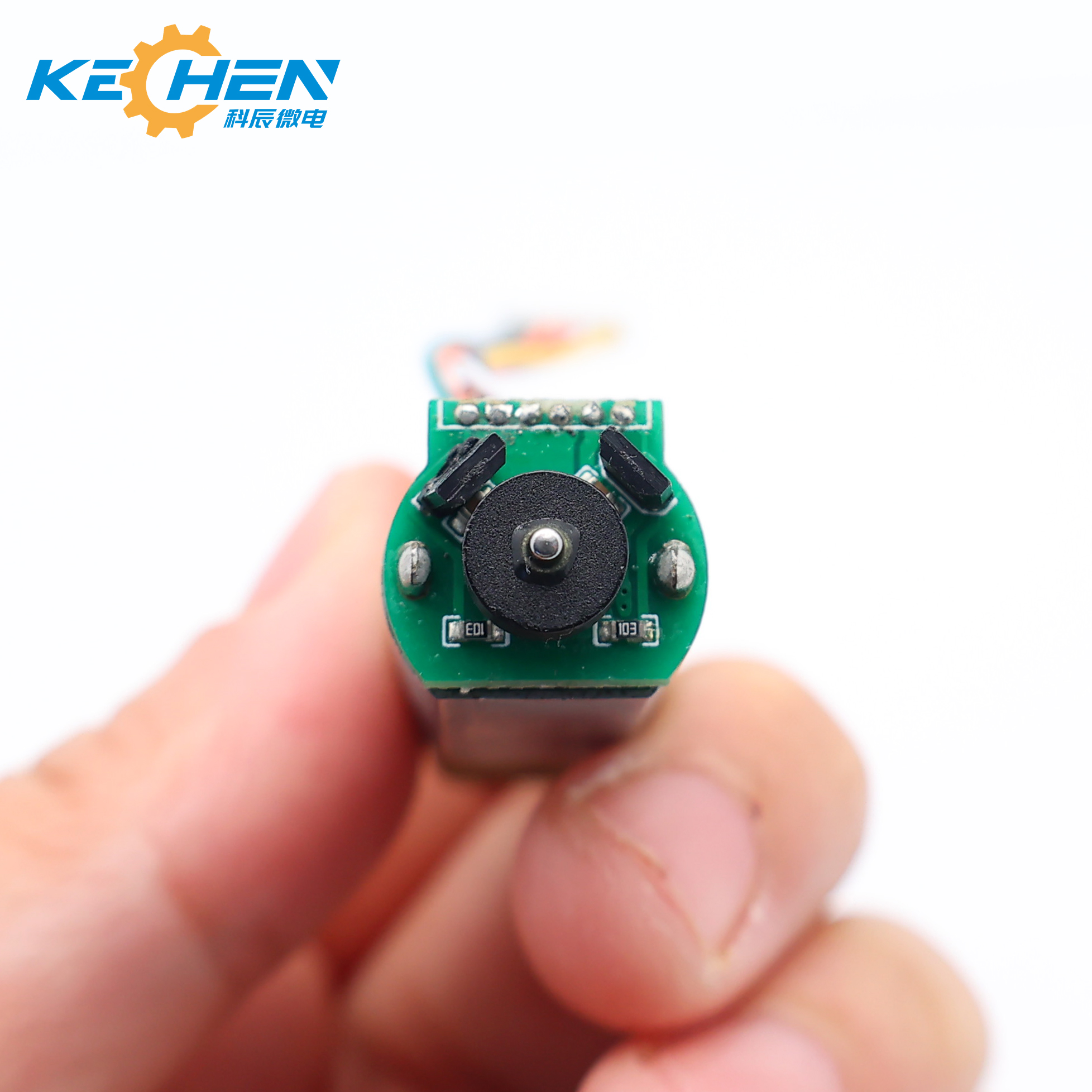

Yes, an optional magnetic encoder can be integrated with the GM13-050 motor to provide precise speed and position feedback.
What commutation options are available for this motor?
Depending on your operational lifetime and torque requirements, we provide carbon brush, graphite brush, or metal brush configurations.
What is the Minimum Order Quantity (MOQ) for production?
The standard Minimum Order Quantity (MOQ) is 500 pieces per order. Feel free to contact our sales team to discuss sample evaluations prior to bulk production.
