| GM1812-N20-11135-3.0V | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 | Value 6 | Value 7 | Value 8 | Value 9 |
| Reduction | 42 | 80 | 105 | 121 | 158 | 230 | 302 | 346 | 453 |
| Length (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| No-load Speed (rpm) | 267 | 140 | 107 | 93 | 71 | 49 | 37 | 32 | 25 |
| Rated Speed (rpm) | 229 | 120 | 91 | 79 | 61 | 42 | 32 | 28 | 21 |
| Rated Torque (kg.cm) | 0.05 | 0.10 | 0.13 | 0.15 | 0.19 | 0.23 | 0.30 | 0.35 | 0.45 |
| Stalling Torque (kg.cm) | 0.35 | 0.67 | 0.88 | 1.02 | 1.33 | 1.61 | 2.11 | 2.42 | 3.17 |
| GM1812-N20-05600-12.0V | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 | Value 6 | Value 7 | Value 8 | Value 9 |
| Reduction | 105 | 121 | 158 | 230 | 302 | 346 | 453 | 692 | 906 |
| Length (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| No-load Speed (rpm) | 219 | 190 | 146 | 100 | 76 | 66 | 51 | 33 | 25 |
| Rated Speed (rpm) | 198 | 172 | 132 | 90 | 69 | 60 | 46 | 30 | 23 |
| Rated Torque (kg.cm) | 0.13 | 0.15 | 0.19 | 0.23 | 0.30 | 0.35 | 0.45 | 0.69 | 0.91 |
| Stalling Torque (kg.cm) | 1.32 | 1.52 | 1.98 | 2.40 | 3.16 | 3.62 | 4.74 | 7.23 | 9.47 |

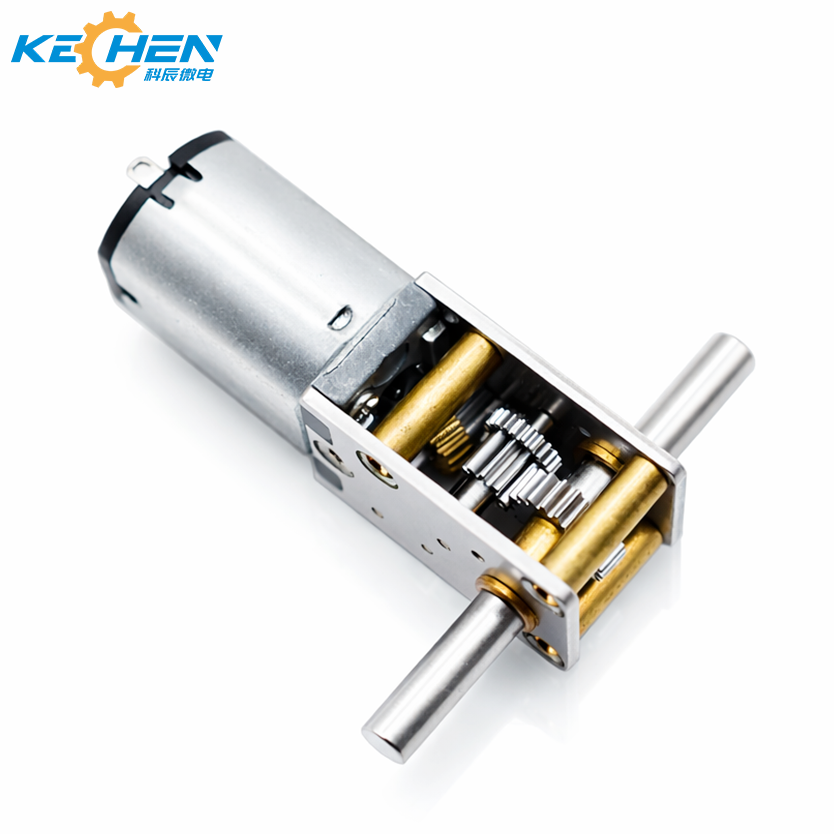

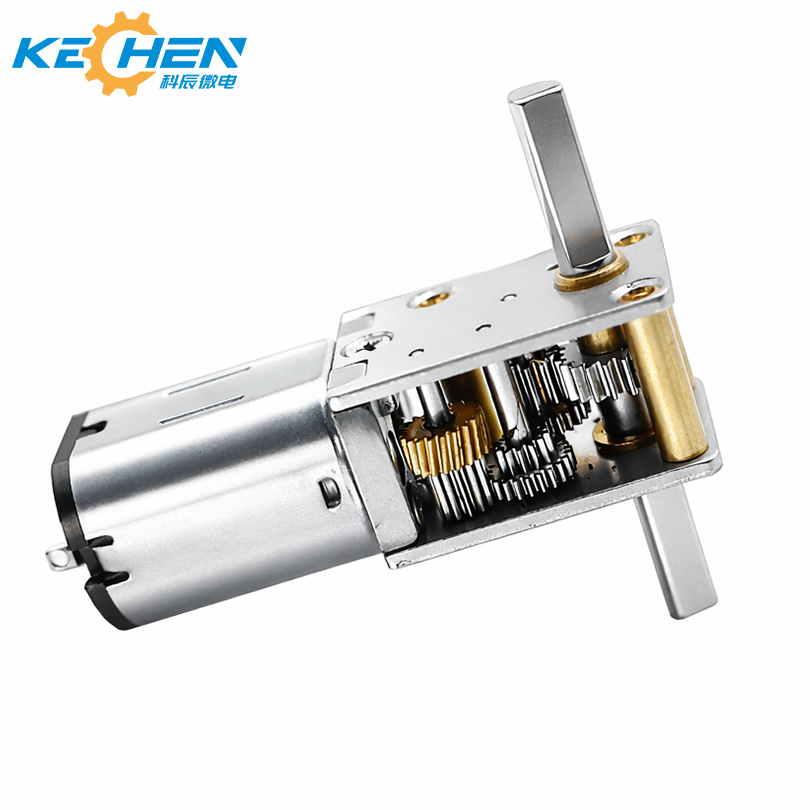

A right angle worm gearmotor offers a highly compact design, making it ideal for tight spaces. It also provides self-locking features, preventing backdriving, while delivering high torque output at low speeds.

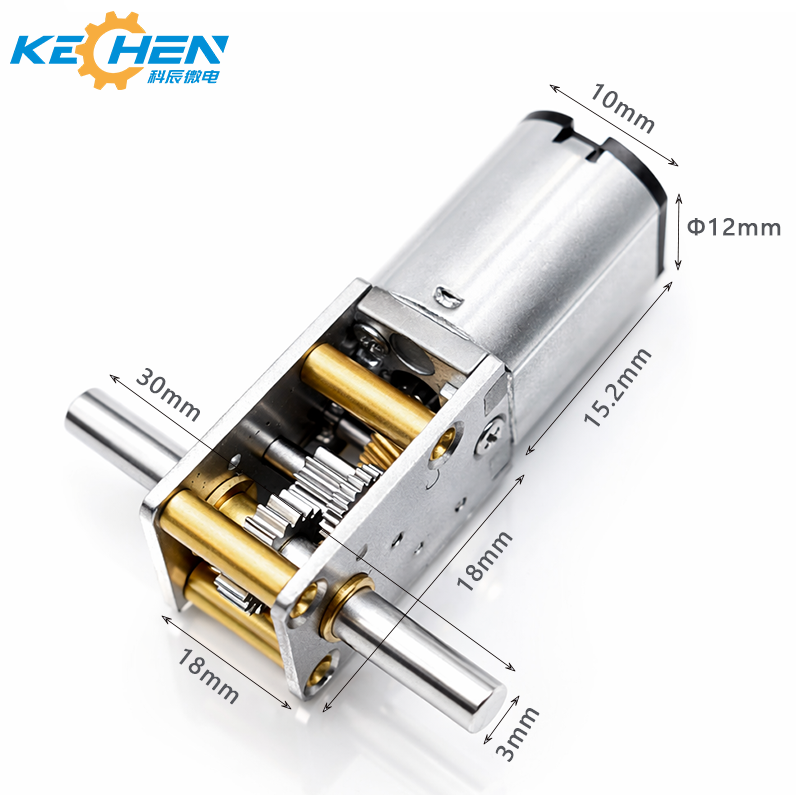

Yes. The standard configuration features a right angle 90° driveshaft with a Φ3mm D-cut. However, customization options including O-shape, M3, M4, or specific custom dimensions are available to meet your project specifications.
The GM1812-N20 worm gearmotor supports a wide range of rated voltages, including DC 1.5V, 3V, 6V, 9V, 12V, and 24V, ensuring compatibility with various power input configurations.
This compact metal worm gearbox configuration can deliver a maximum rated torque of up to 3 kgf-cm, depending on the chosen reduction ratio and operating voltage.

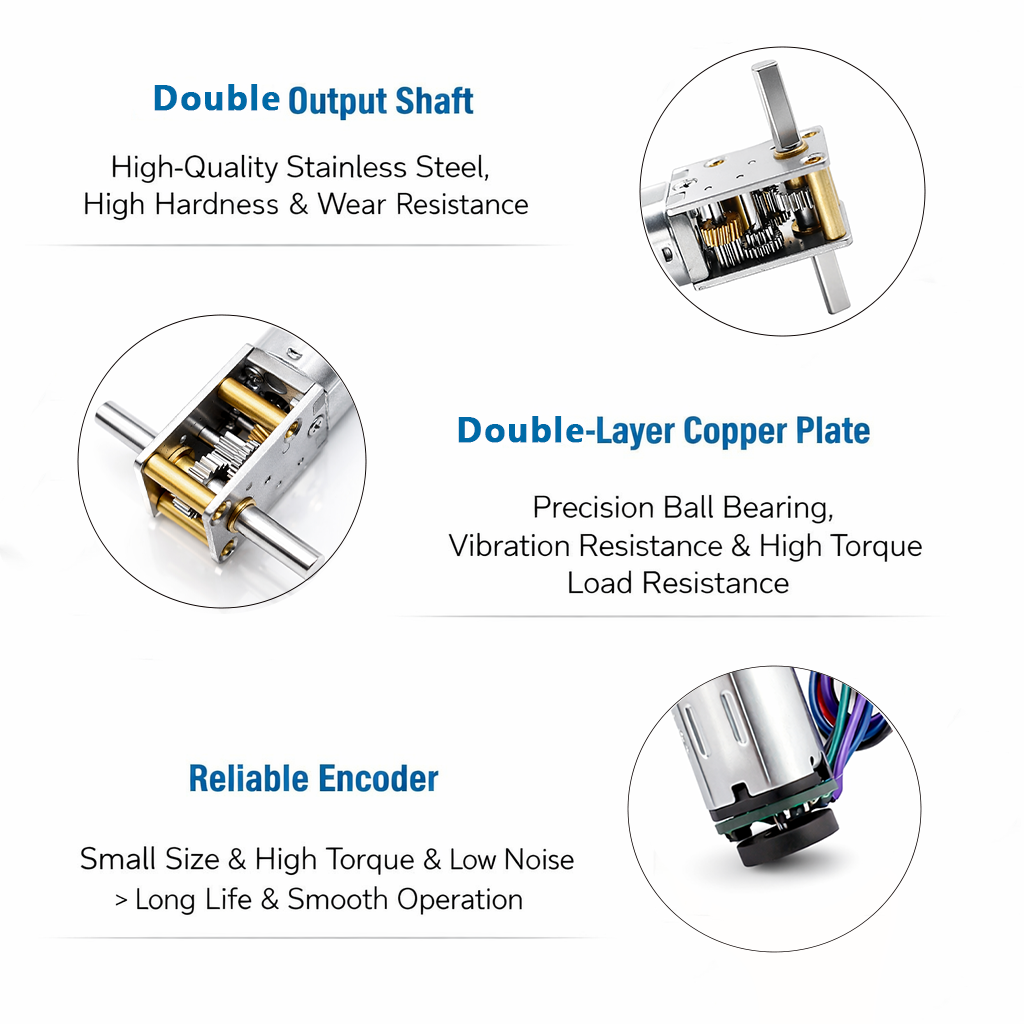

Yes, the GM1812-N20 motor can be equipped with integrated magnetic encoders offering resolutions of 3ppr, 7ppr, or 12ppr for precise speed and position control.
The standard Minimum Order Quantity (MOQ) for this model is 500 pieces. Please contact our support team for bulk inquiries or customization options.
