Brea Tech Micro Motor
1 / 5
| Model | Voltage (V) |
Start voltage (V) |
No-load | Starting torque (Kg.cm) |
Stall | ||
|---|---|---|---|---|---|---|---|
| Speed (r/min) | Current (mA) | Speed (r/min) | Current (A) | ||||
| KC-555PH-4560 | 12.0 | 0.7 | 7597 | 337 | 2.7 | 7039 | 1.7 |
| KC-555PH-2968 | 24.0 | 0.9 | 6989 | 229 | 2.8 | 6055 | 1.8 |
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, and more.
Adhering to the concept of "people-oriented, pioneering and innovative spirit", the enterprise has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency.

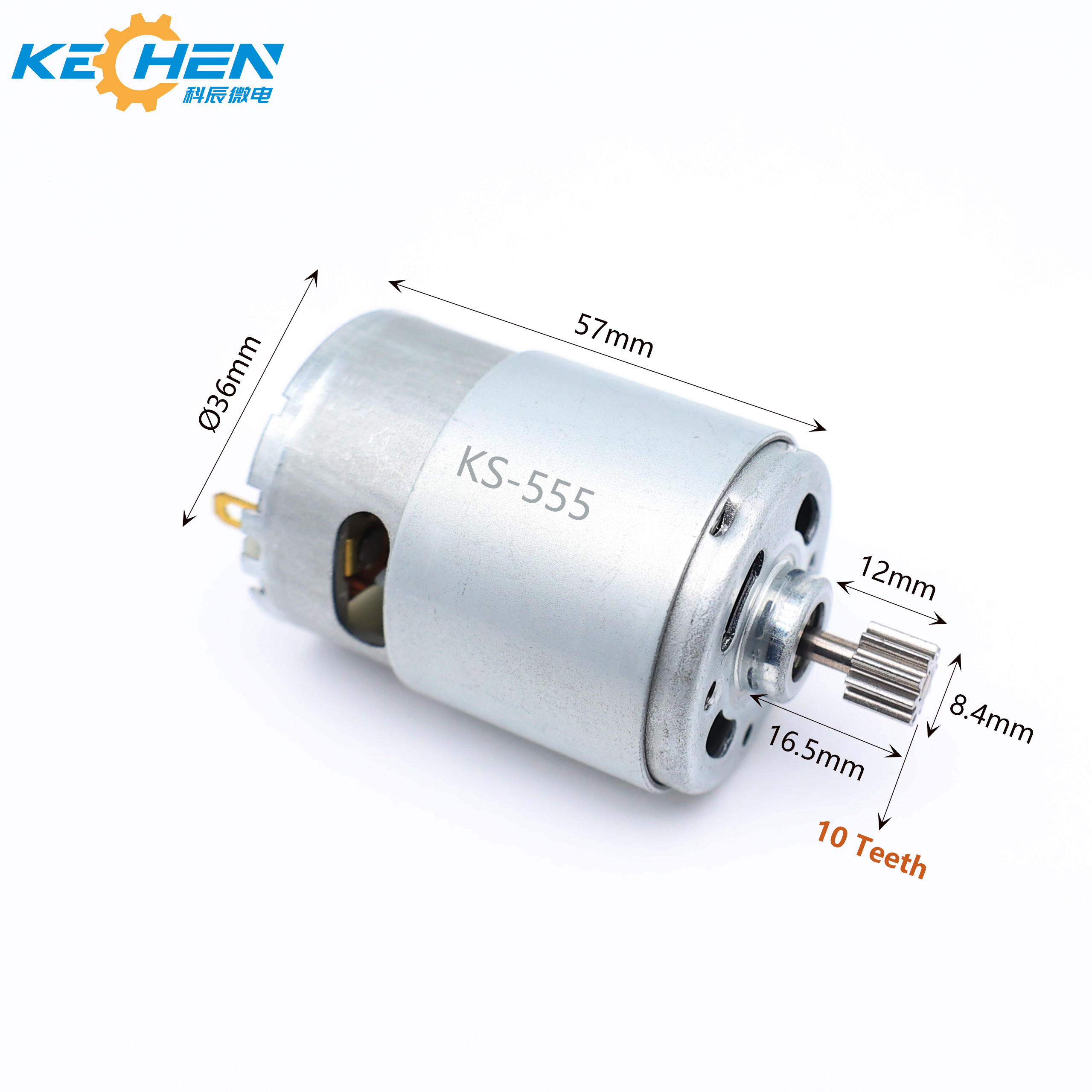

The KC-555 DC motor has a diameter of 35.8*57mm, a shaft diameter of 3.175mm, an operating voltage range of 3.6 to 24 VDC, and a no-load speed capability between 3000 and 25000 rpm.
Yes, both the shaft length and shape can be fully customized according to customer specifications and project requirements.
It can be assembled with 32mm and 36mm planetary gearboxes, as well as 37mm spur gearboxes, to meet different torque and speed requirements.
Yes, the motor can be manufactured with a double shaft to support magnetic encoders with configurations of 2ppr, 7ppr, and 11ppr.
These micro motors are widely utilized in medical equipment, smart home appliances, smart locks, financial security devices, intelligent robots, 5G applications, automotive electronics, and power tools.
Yes, the KC-555 DC motor series is fully compliant with ROHS environmental protection standards.
