12V 24V Grill Motor 24v 12v DC Motor 37GB-555 Geared 24V Brushless DC Gear Motor

Product Description

Products Description

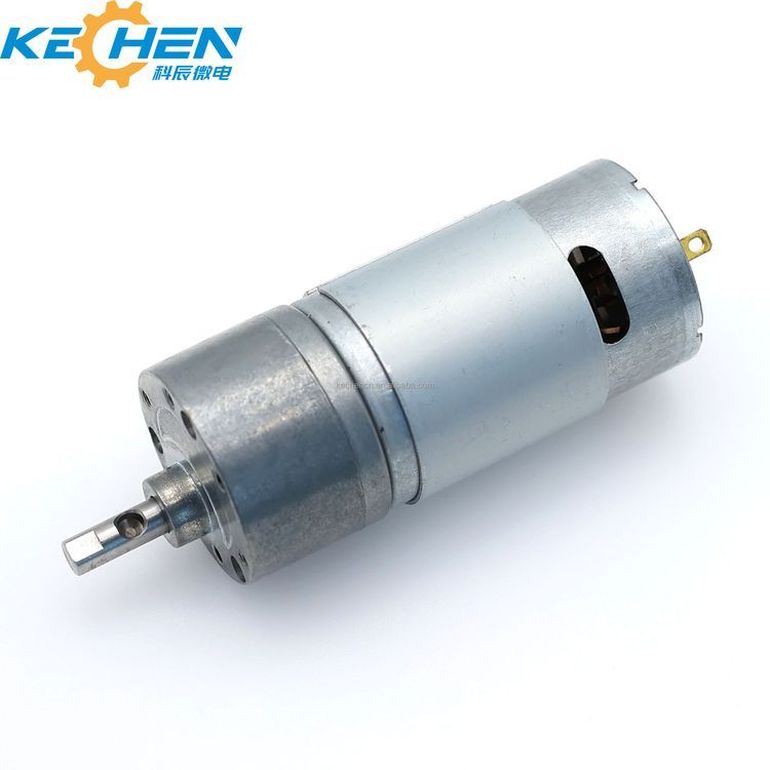

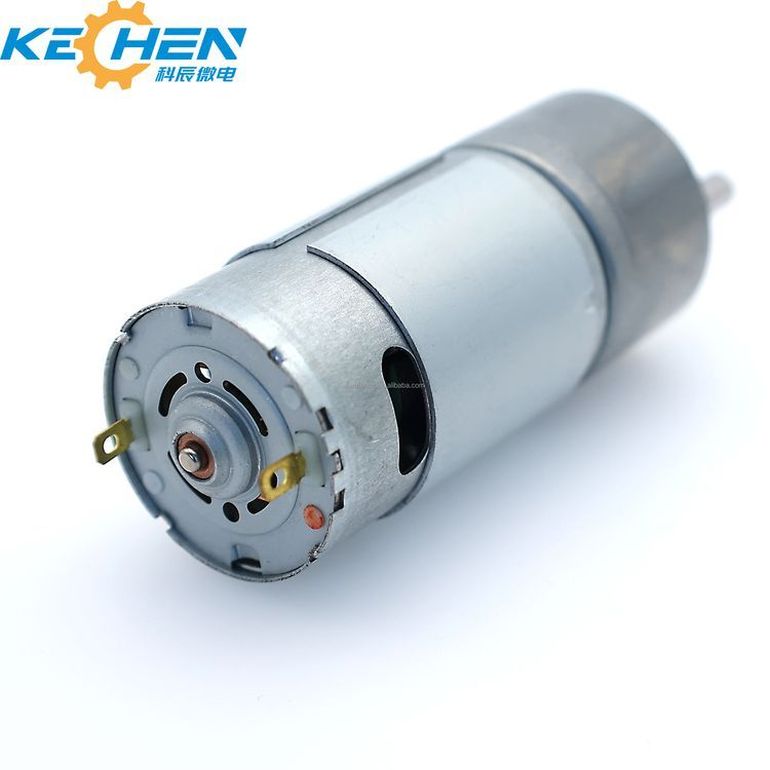

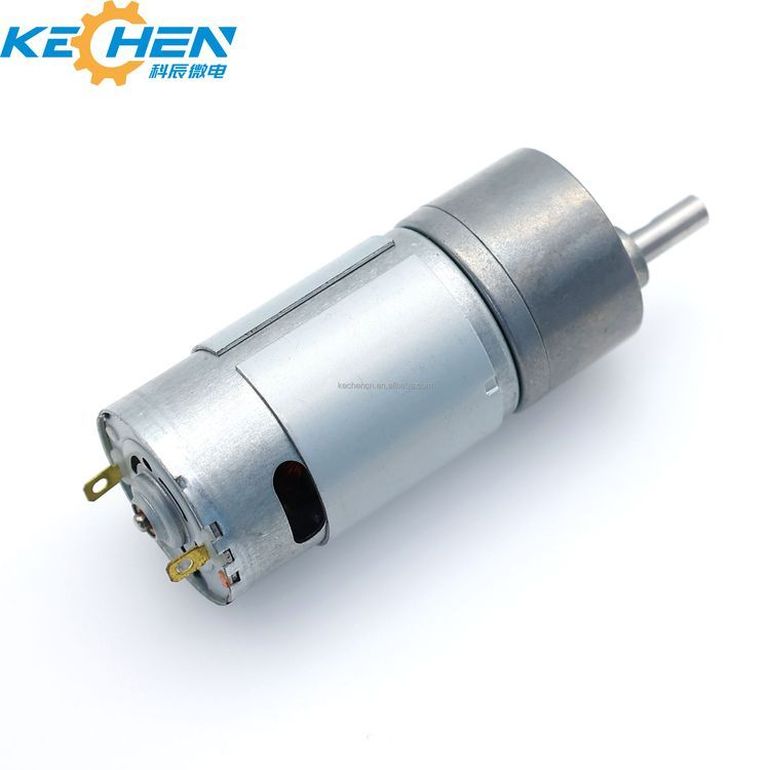

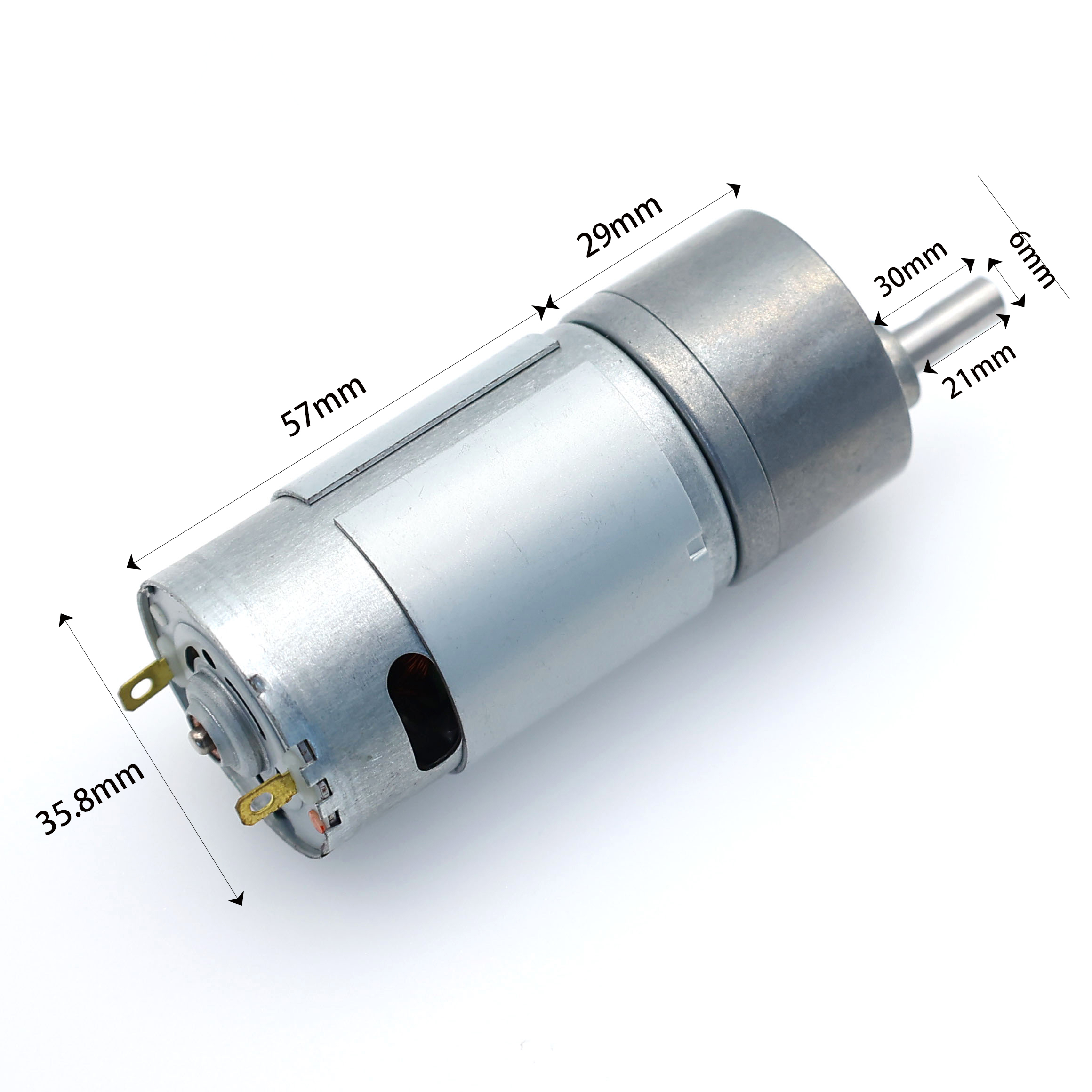

GM37-555 Small DC geared motor
GM37-555 Small DC geared motor
Main features:
  • Model: GM37-555 micro metal gearmotor
  • Gearbox: 37 mm metal spur gear reducer with parallel shaft
  • Rated Voltage: DC 3V, 4.5V, 5V, 6V, 9V, 12V, 24V
  • Rated Torque: Max. 30Kgf-cm
  • Size: Φ37 * L TBD
  • Shaft: Φ6mm D-cut 0.5mm, custom
  • Encoder: magnetic encoder available
  • Commutation: Carbon brush/Graphite brush
  • Construction: micro Permanent Magnet iron cored dc electric motor
  • MOQ: 500 pcs

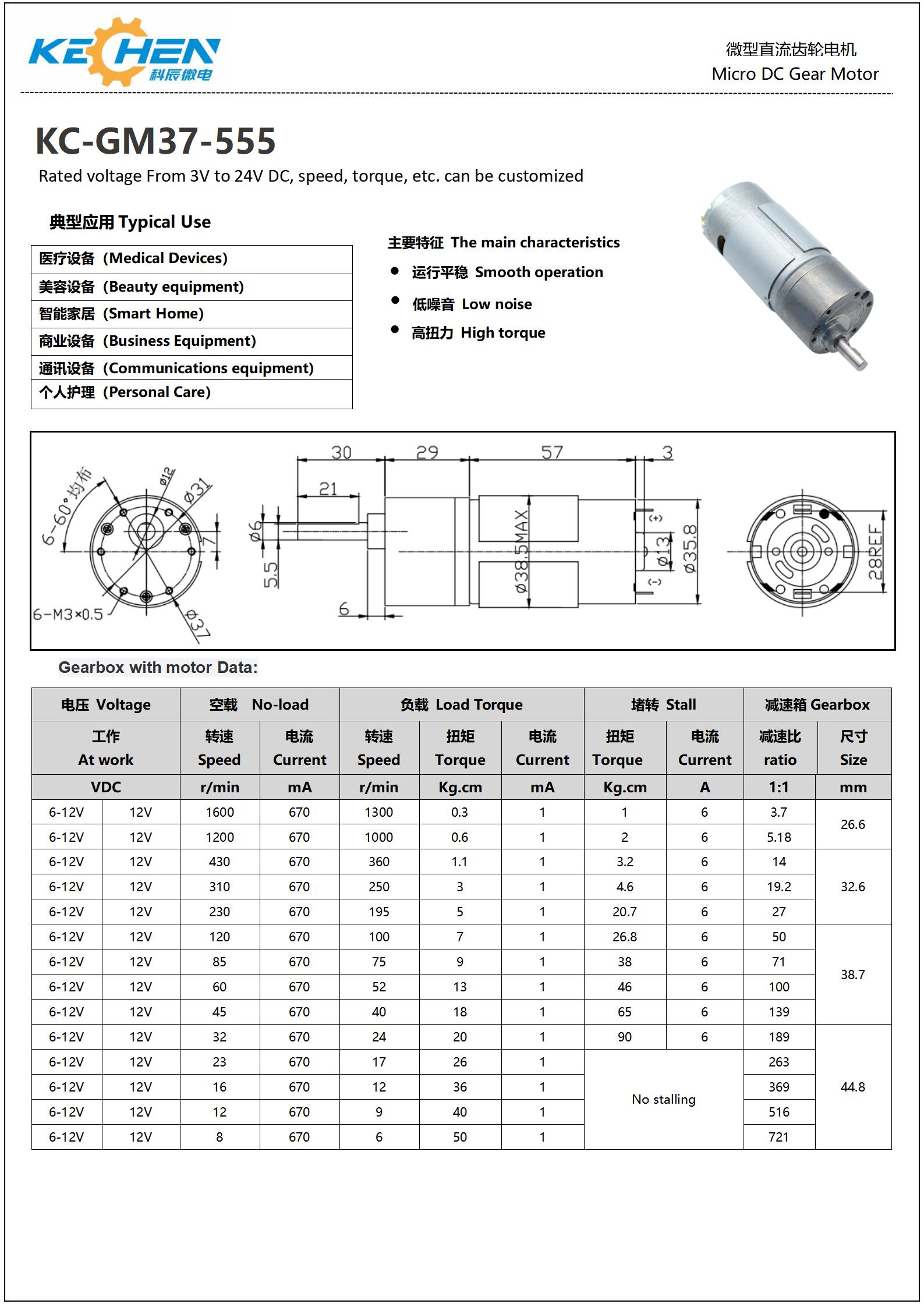

Product Specification Details

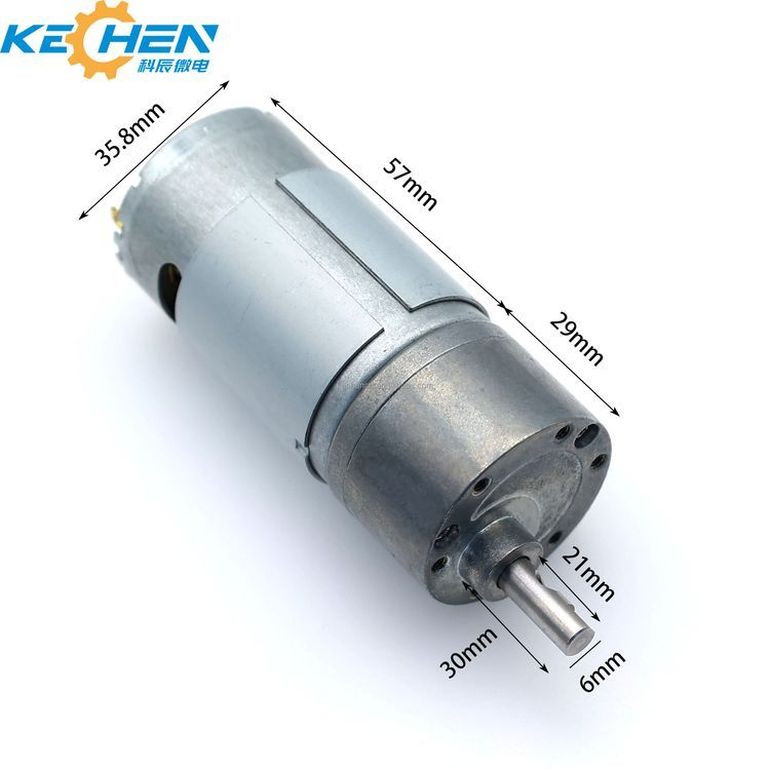

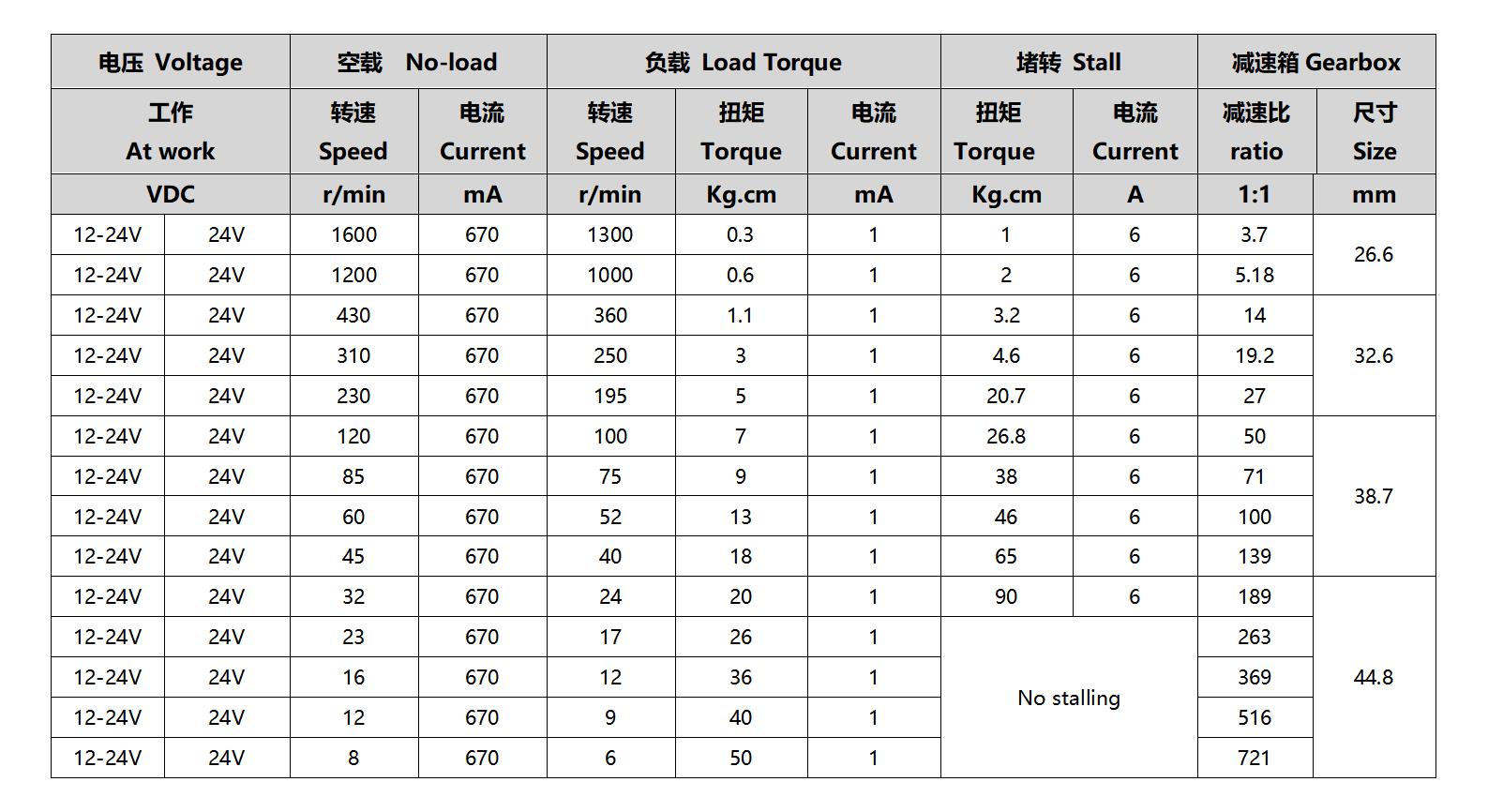

Product Structure Dimensions

Recommend Products

Recommended Motor 1
Recommended Motor 2

Motor raw materials

Motor Components and Raw Materials

Production Equipment

Manufacturing Machine 1
Manufacturing Machine 2
Quality Inspection Equipment

Profile

Enterprise Showroom
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Quality Management System Certificate

Application Scenario

Motor Application Scenarios
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market Map
Factory Production Line Overview

Frequently Asked Questions

Q1: What are the main specifications of the GM37-555 DC Geared Motor?
The GM37-555 motor features a 37 mm metal spur gear reducer with a parallel shaft. It operates on rated voltages ranging from DC 3V to 24V, provides a maximum rated torque of up to 30Kgf-cm, and has a standard Φ6mm D-cut shaft.
Q2: Can the shaft configuration of the micro metal gearmotor be customized?
Yes, we offer customization options for the shaft layout. While the standard option features a Φ6mm D-cut (0.5mm) shaft, customized dimension requests can be accommodated according to your engineering requirements.
Q3: What types of applications are these micro DC geared motors best suited for?
These motors are highly versatile and widely used in medical equipment (like sphygmomanometers), business machines (3D printers, copiers), electric powered equipment (electric tools), smart home automation (intelligent door locks, window openers), food/beverage appliances, and servicing robotics.
Q4: Is an encoder option available for this DC motor?
Yes, magnetic encoder support is available for integration with the GM37-555 micro gearmotor for applications requiring precise position and speed control.
Q5: What is the Minimum Order Quantity (MOQ) for placing an order?
The standard Minimum Order Quantity (MOQ) for our GM37-555 micro metal gearmotors is 500 pieces per order.
