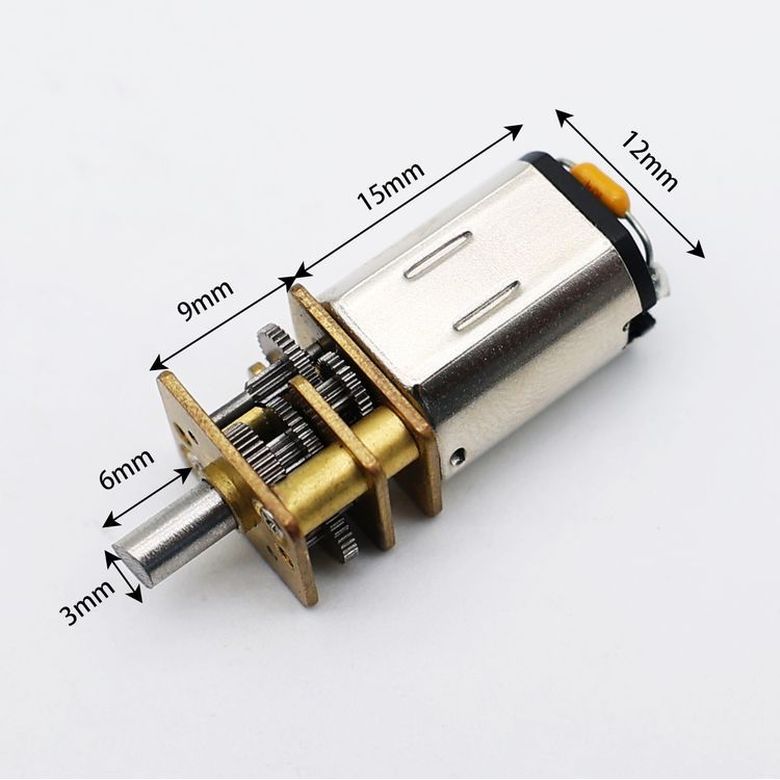

in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
1 / 5
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use
in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use

in Stock Mini Micro DC Motor Permanent Magnet 3V6V12V 1000rpm Speed for Robot Use

Send Inquiry

Product Description

Products Description

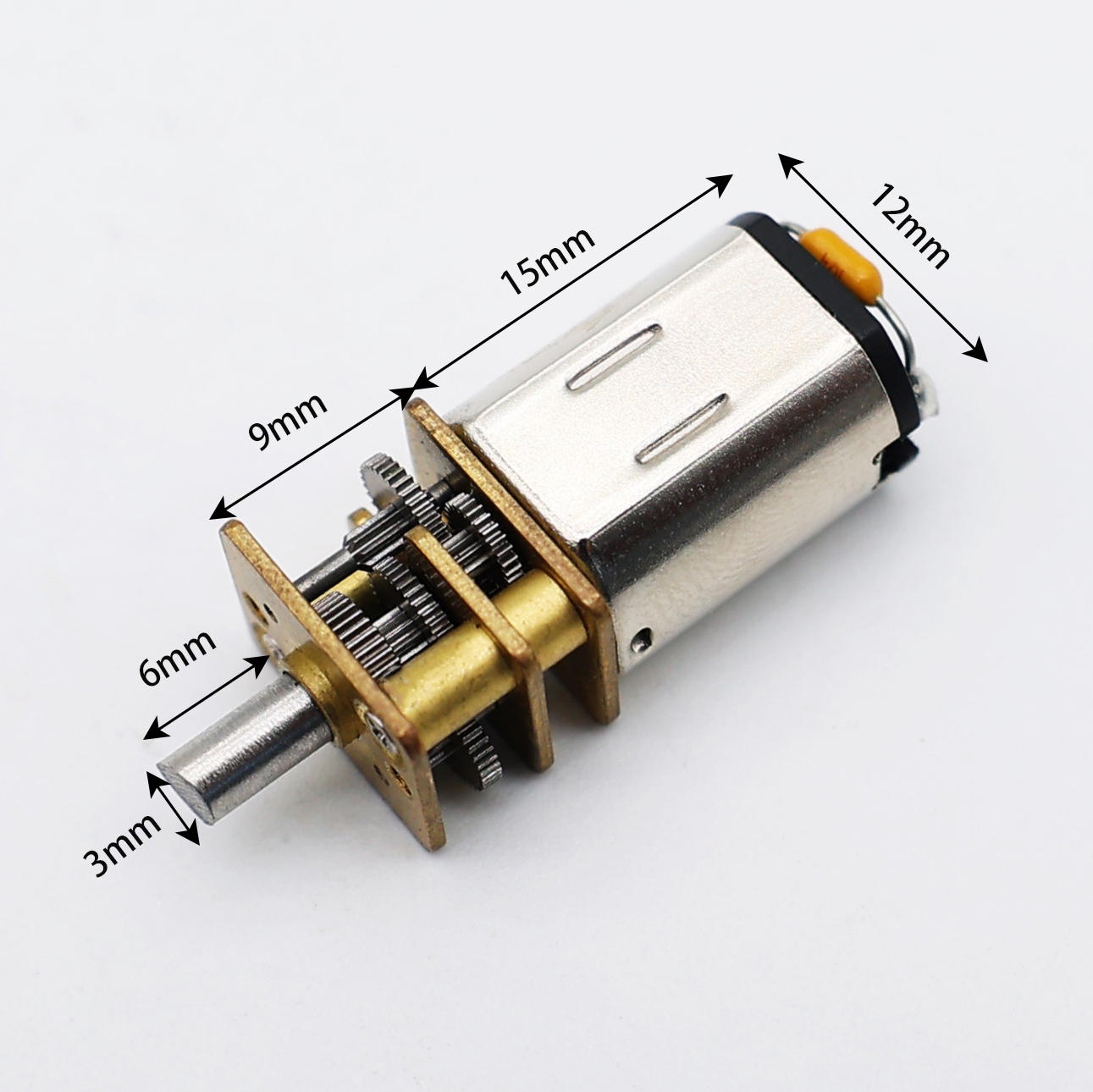

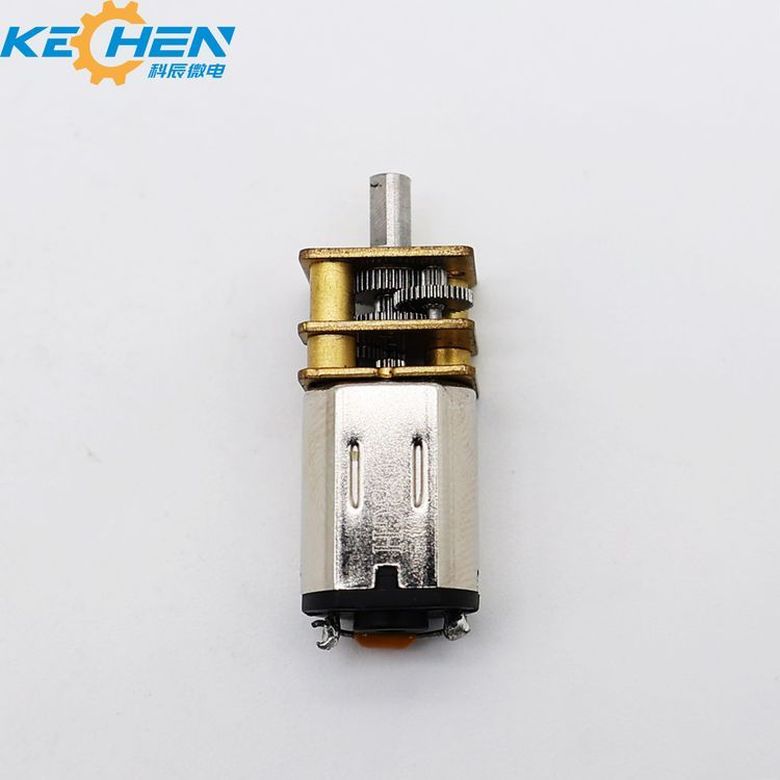

12mm small spur gear dc motor
12mm small spur gear dc motor
  • Model: GM12-N20VA Pololu micro metal gearmotor equivalent
  • Gearbox: metal spur gear reducer
  • Rated Voltage: DC 1.5V, 3V, 6V, 9V, 12V, 24V
  • Rated Torque: Max. 1.5kgf-cm
  • Size: Φ12mm * L TBD
  • Shaft: concentric driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom
  • Commutation: Carbon brush/Graphite brush
  • Construction: Permanent Magnet iron cored motor
  • Encoder: Magnetic encoder 3ppr/7ppr
  • MOQ: 500 pcs

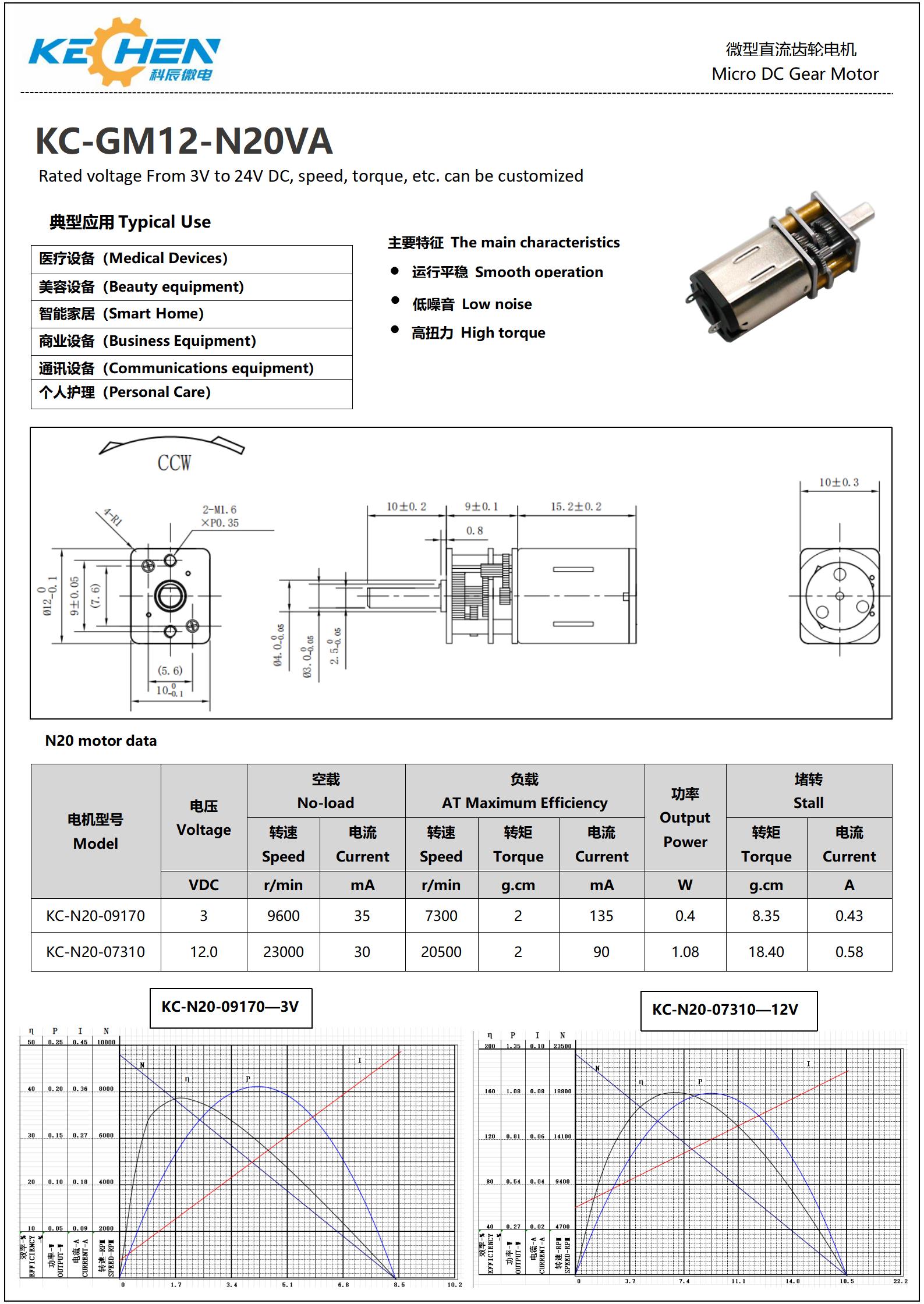

Motor Details
Gearbox with motor Data
GM12-N20-09170-3.0V
Reduction 10 30 50 100 150 210 250 298 330
Length(mm) 9 9 9 9 9 9 9 9 9
No-load speed(rpm) 960 320 192 96 64 46 38 32 29
Rated speed(rpm) 730 243 146 73 49 35 29 24 22
Rated torque(kg.cm) 0.02 0.04 0.06 0.12 0.15 0.21 0.25 0.30 0.33
Stalling Torque (kg.cm) 0.07 0.18 0.25 0.50 0.63 0.88 1.04 1.24 1.38
GM12-N20-07310-12.0V
Reduction 50 100 150 210 250 298 330 380 1000
Length(mm) 9 9 9 9 9 9 9 9 12
No-load speed(rpm) 460 230 153 110 92 77 70 61 23
Rated speed(rpm) 410 205 137 98 82 69 62 54 21
Rated torque(kg.cm) 0.06 0.12 0.15 0.21 0.25 0.30 0.33 0.38 0.60
Stalling Torque (kg.cm) 0.55 1.10 1.38 1.93 2.30 2.74 3.04 3.50 5.52
Motor Dimensional Drawing
Recommend Products

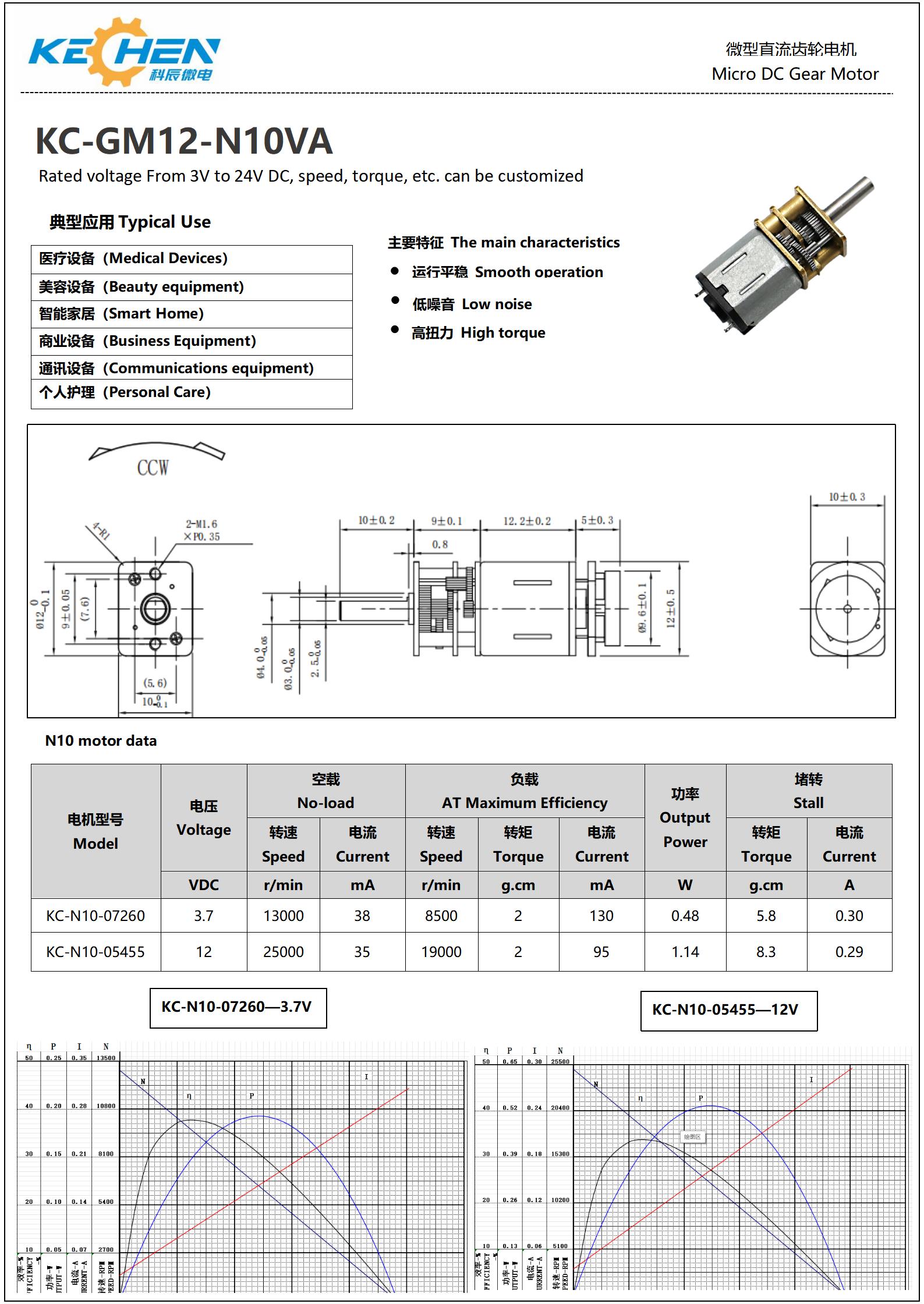

Recommend Product 1

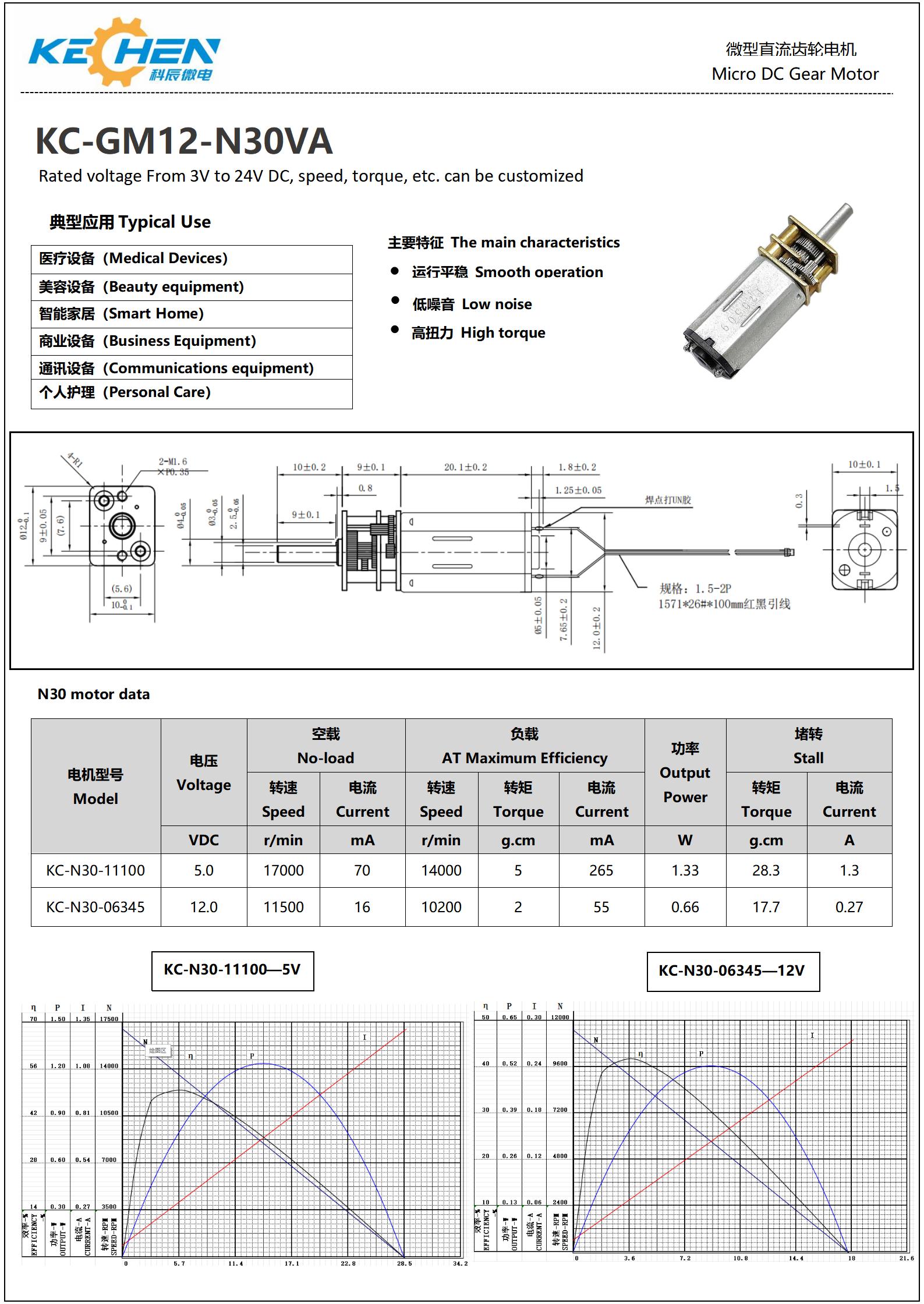

Recommend Product 2
Recommend Product 3
Recommend Product 4
Motor raw materials
Motor raw materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Factory Office
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. These micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, and beauty tools. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". Following over eleven years of rapid development, it has built a young, pragmatic, professional, and efficient team, utilizing advanced production facilities, efficient management, and excellent quality to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from global customers.
Certifications
Certifications Grid
Application Scenario
Application Scenarios
Global Market Distribution
Market Graph
Global Network
Frequently Asked Questions
What are the primary applications of the GM12-N20 gear motor?
This micro motor is widely integrated into medical equipment, automated smart locks, AI robotics, precision testing systems, and consumer smart home appliances.
Is customized shaft configuration available for this motor?
Yes, we support extensive shaft customizations, including concentric driveshafts, Φ3mm D-cuts, O-type, M3/M4 threads, and specific length modifications.
What rated voltage options are standard for the GM12-N20 series?
The standard configurations support DC 1.5V, 3V, 6V, 9V, 12V, and 24V inputs, which can be optimized based on your target operational speeds.
Does the micro gear motor support encoder integration?
Yes, it supports integration with magnetic encoders (3ppr/7ppr) for precise positioning feedback and speed control.
What is the Minimum Order Quantity (MOQ)?
The minimum order quantity for custom and standard configurations of the GM12-N20 gear motor is 500 pieces.
