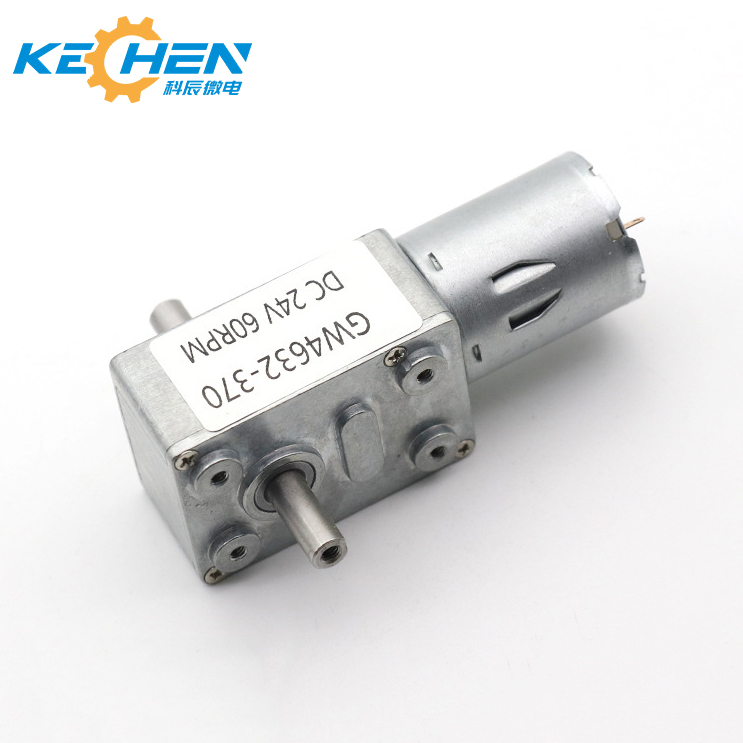

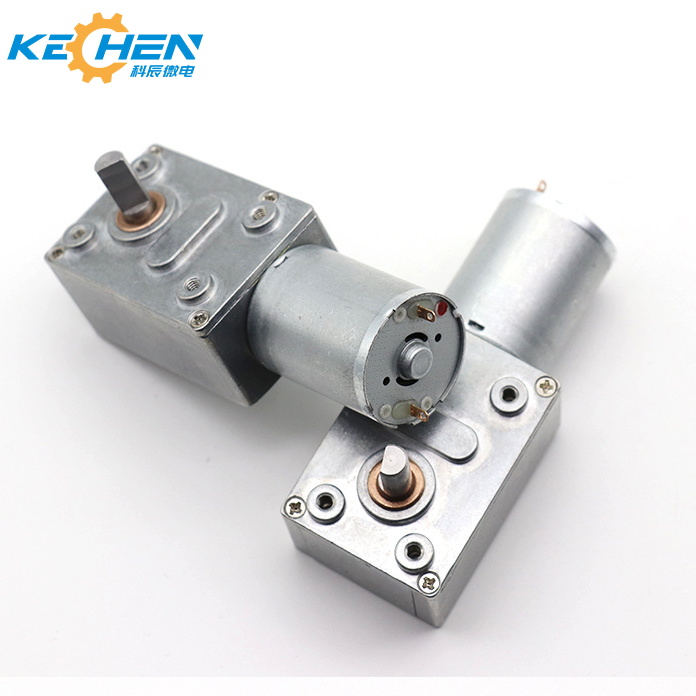

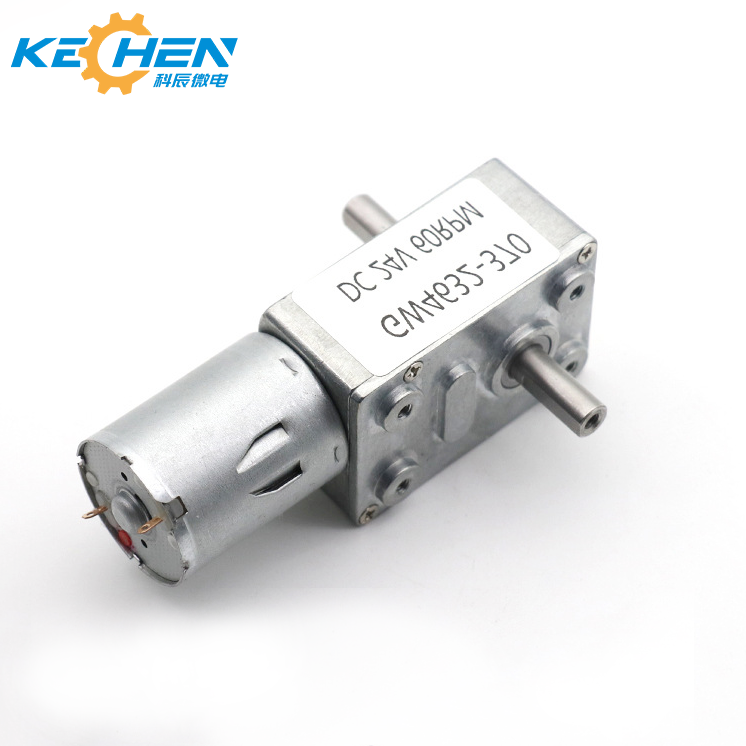

GM3246-370 High Torque 12v/24v DC Motor Worm Gearbox Brush Commutation Permanent Magnet Construction 6mm Micro Reduction Motor

Product Description

Products Description
Product Overview

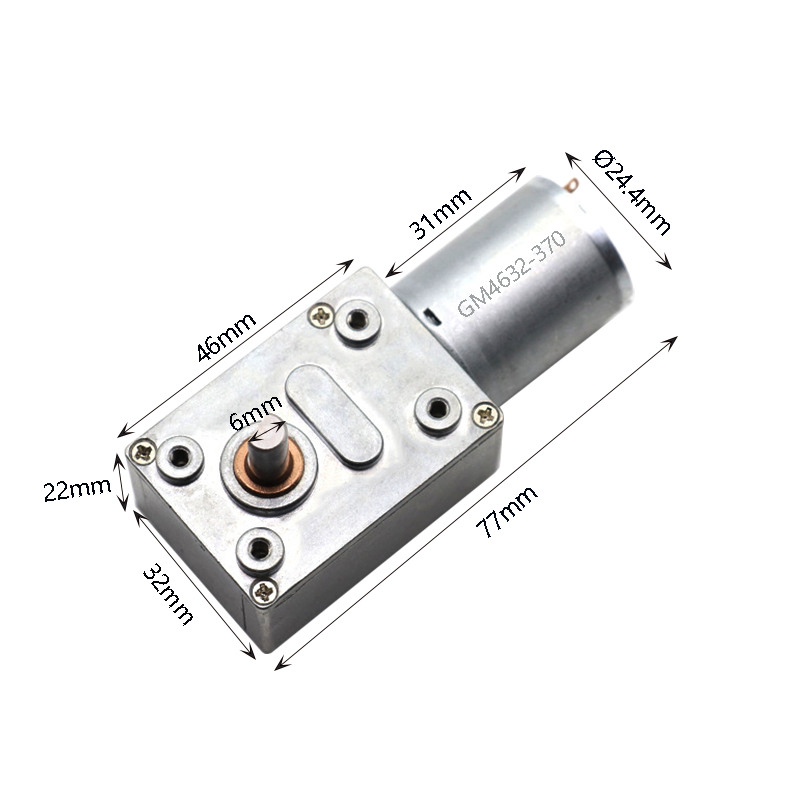

Product Technical Dimensions
GM4632-370 Small Worm Gearbox Carbon Brush DC Motor
  • Model: GM4632-370; RF-370, RK-370 dc motor with worm wheel gearbox reducer.
  • Gearbox: Metal worm gear reducer;
  • Rated Voltage: DC 6V, 9V, 12V, 24V;
  • Rated Torque: Max. 50 Kgf-cm ;
  • Size: 46mm * 32mm square gearbox, right angle output shaft.
  • Shaft: Right angle driveshaft, Φ6mm, custom;
  • Commutation: Carbon brush/Graphite brush;
  • Construction: Permanent Magnet;
  • Encoder: Magnetic/Optical encoder.
  • MOQ: 100 pcs;

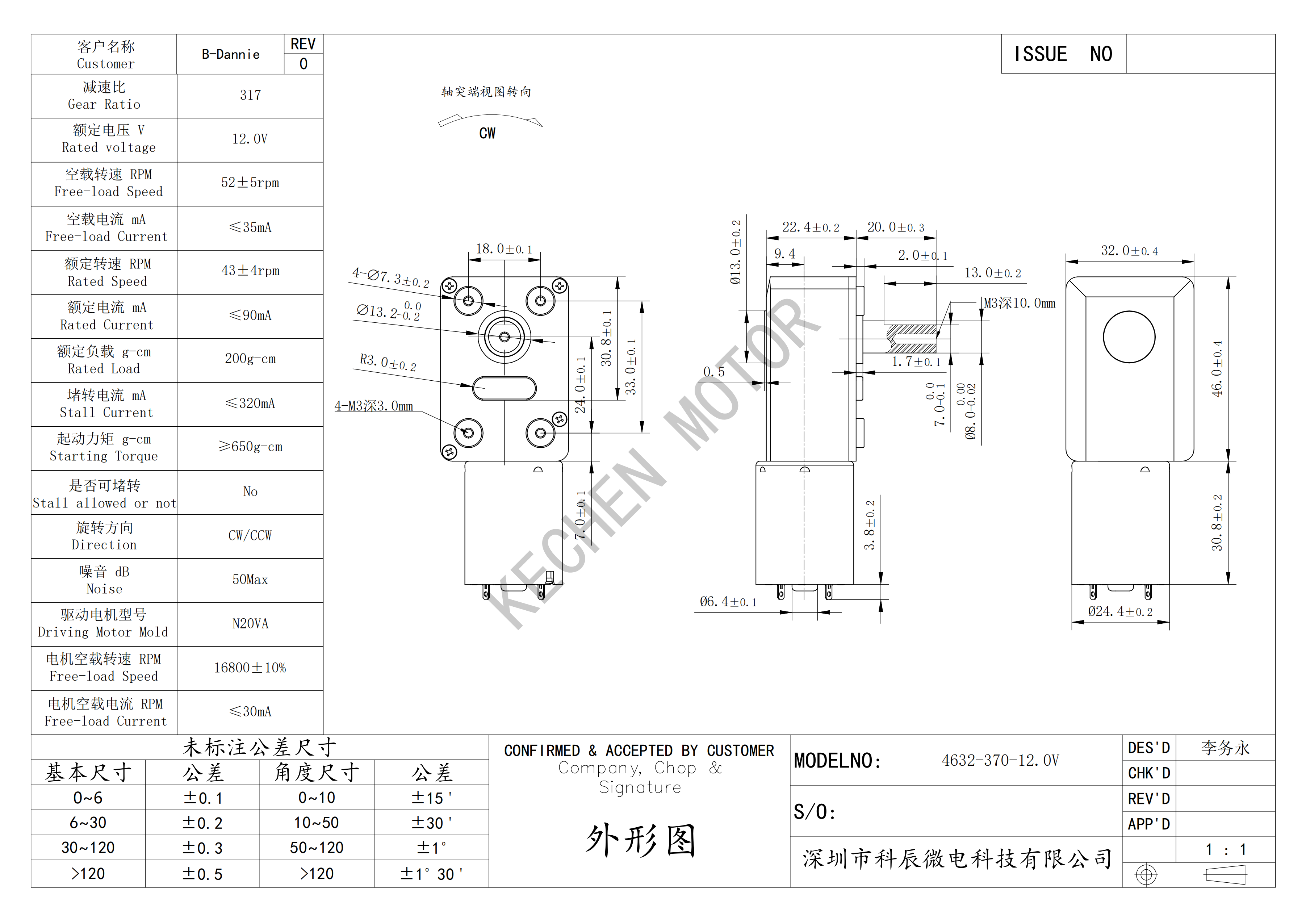

Performance Chart

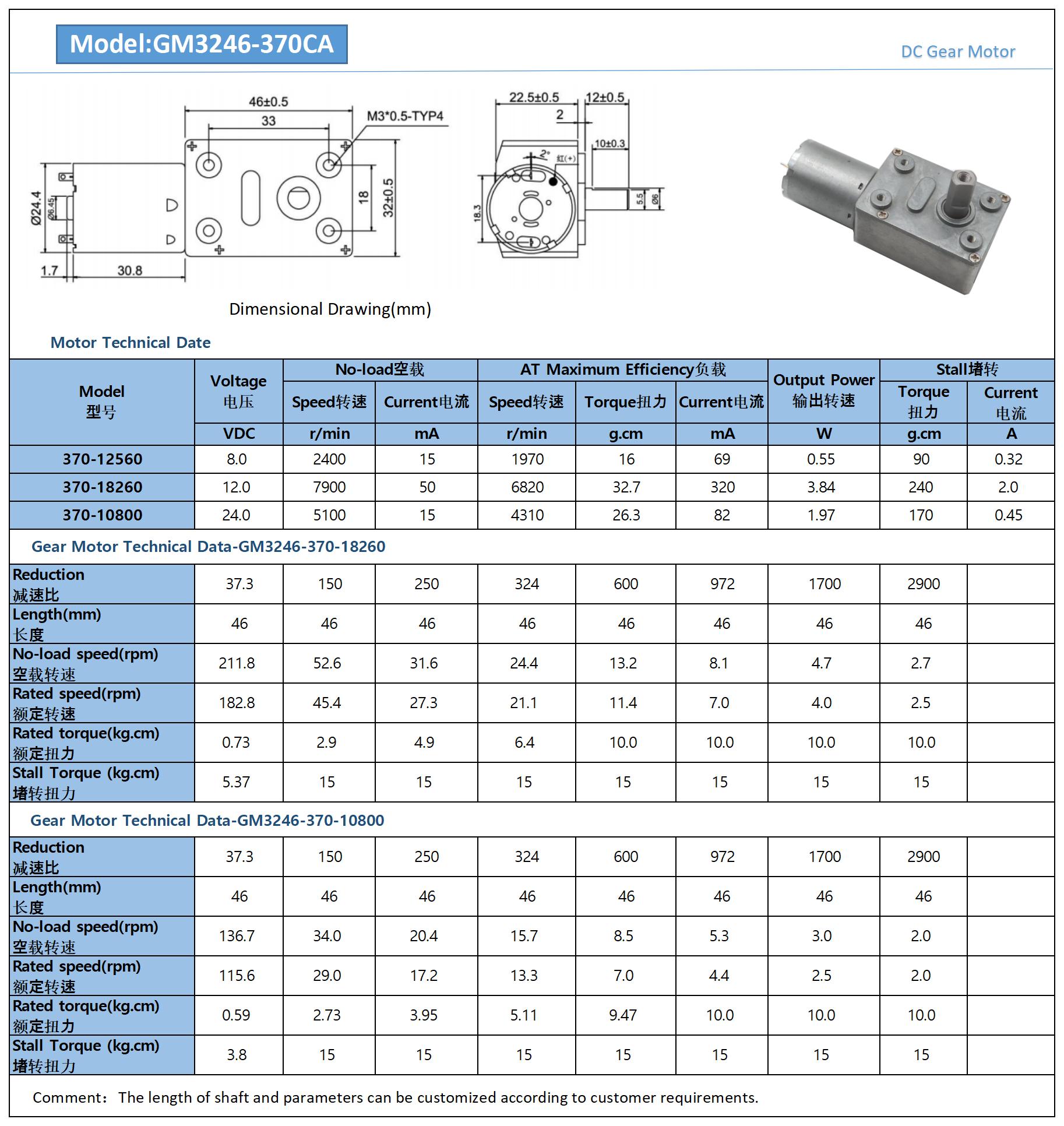

Structural Assembly
Recommend Products
Recommend Products Guide
Motor Raw Materials
Motor Raw Materials Breakdown
Production Equipment
Machinery 1
Machinery 2
Machinery 3
Company Profile
Manufacturing Facility
Our manufacturing facility was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products of the facility include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Certificates and Compliance Documents
Application Scenario
Application Overview Diagrams
Application Category Detailed Systems & Devices
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.

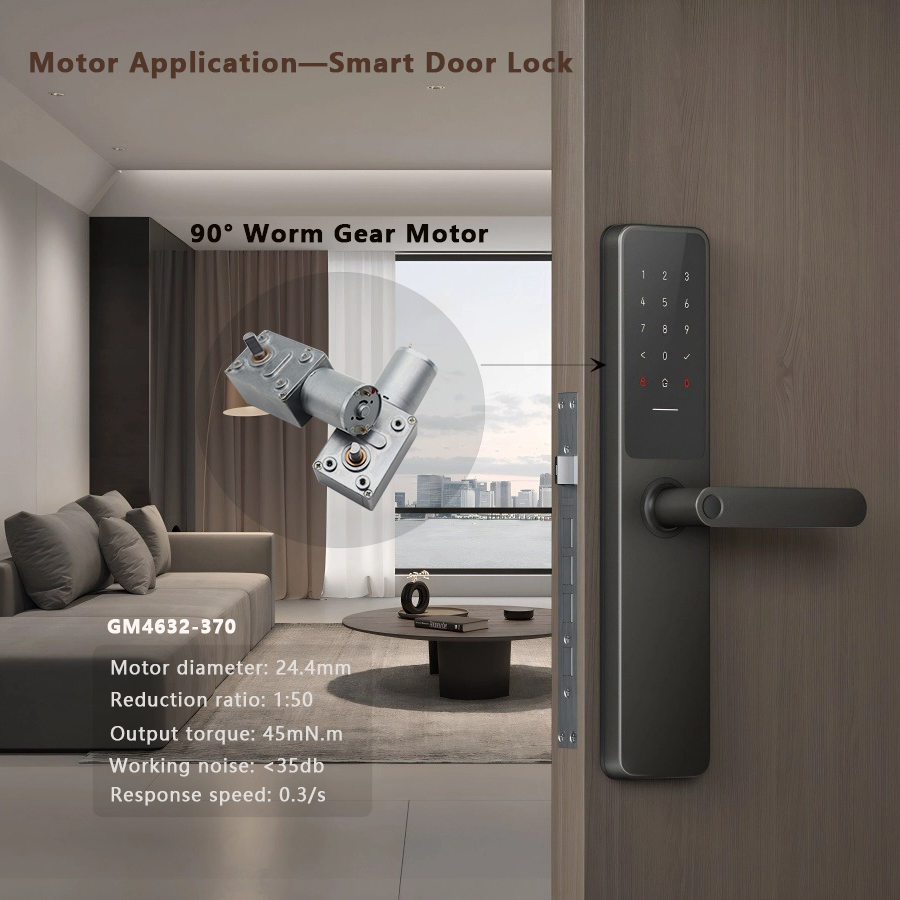

Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map
Market Share Data
Quality Standard Graphics
Frequently Asked Questions (FAQ)
What are the main advantages of the GM4632-370 worm gearbox DC motor?
It features a durable metal worm gear reducer with high torque capacity (up to 50 Kgf-cm), a compact square right-angle output shaft design, and configuration flexibility supporting multiple voltage ratings from 6V to 24V.
Is customization available for the output shaft?
Yes, the standard 6mm right-angle output driveshaft can be fully customized based on client requirements to match specific assembly and application needs.
What feedback control systems are supported by these motors?
The motor can be equipped with either magnetic or optical encoders for accurate speed and positioning feedback control.
What is the Minimum Order Quantity (MOQ) for orders?
The standard Minimum Order Quantity (MOQ) for production runs of the GM4632-370 motor is 100 pieces.
In which industries are these micro motors primarily applied?
These micro motors are widely utilized in medical equipment, smart home appliances (like window openers and intelligent locks), commercial automation, service robotics, office equipment, and personal care products.
