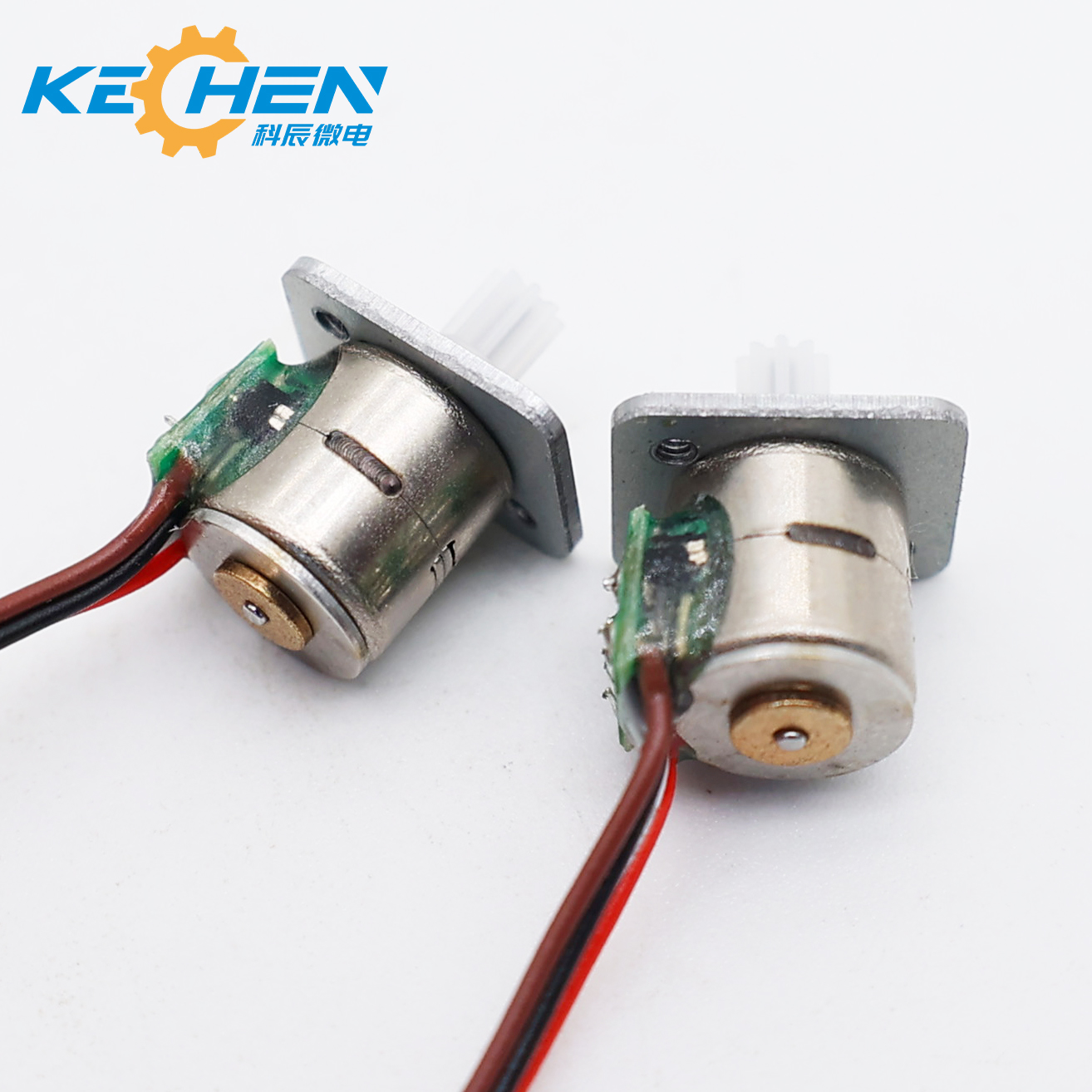

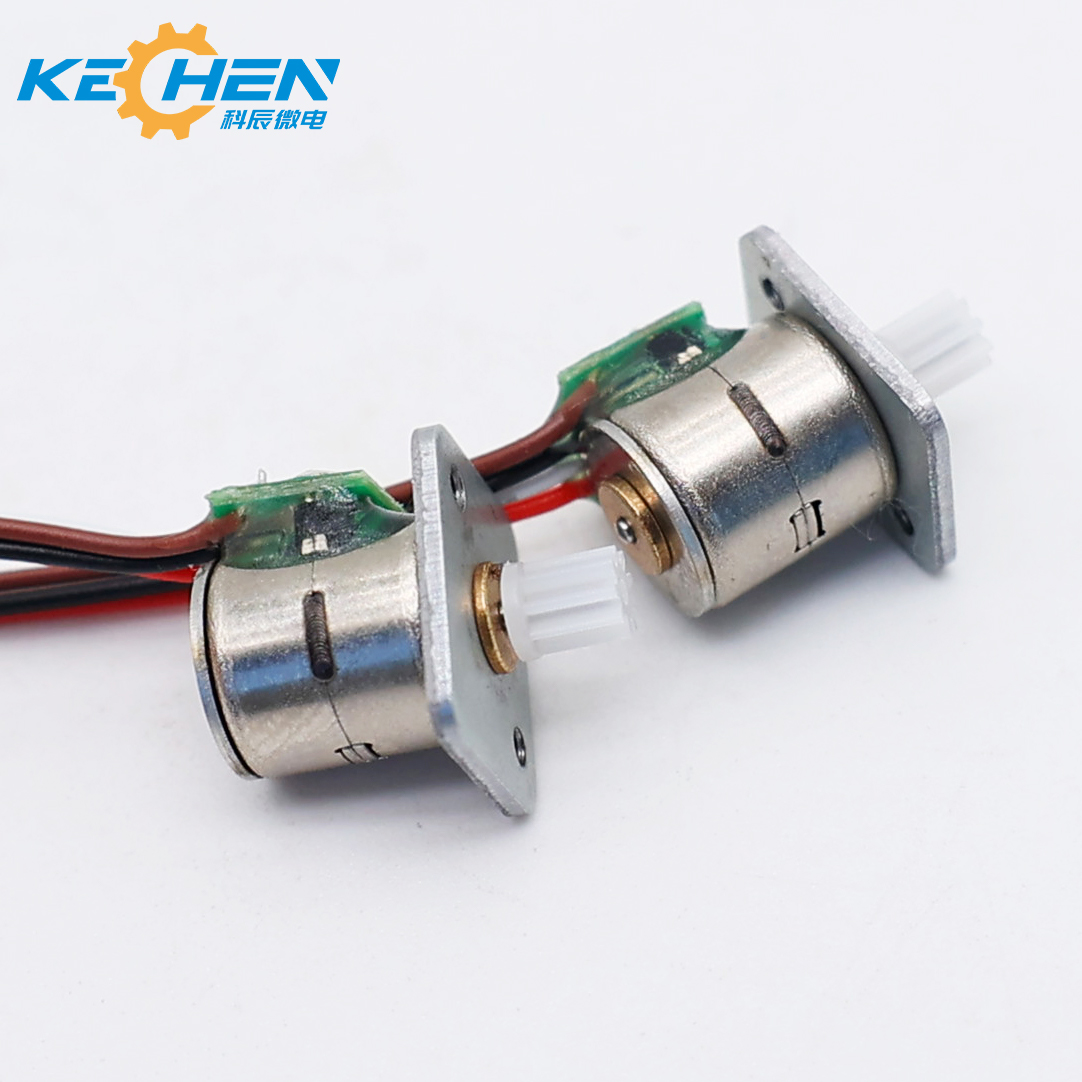

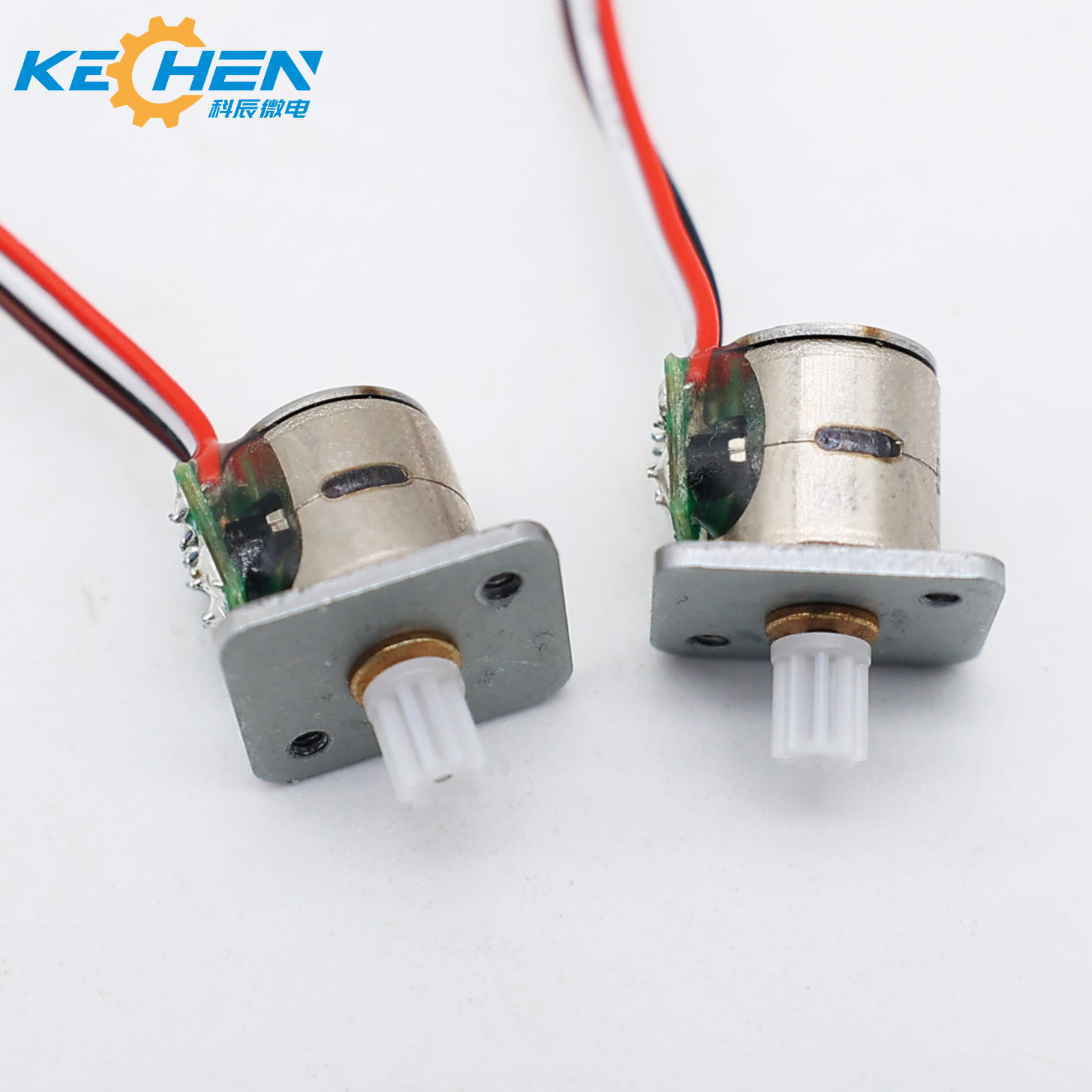

Customized 8by Micro Mini Stepper Motor Small Permanent Magnet Design for Air Pump

Product Description

Products Description

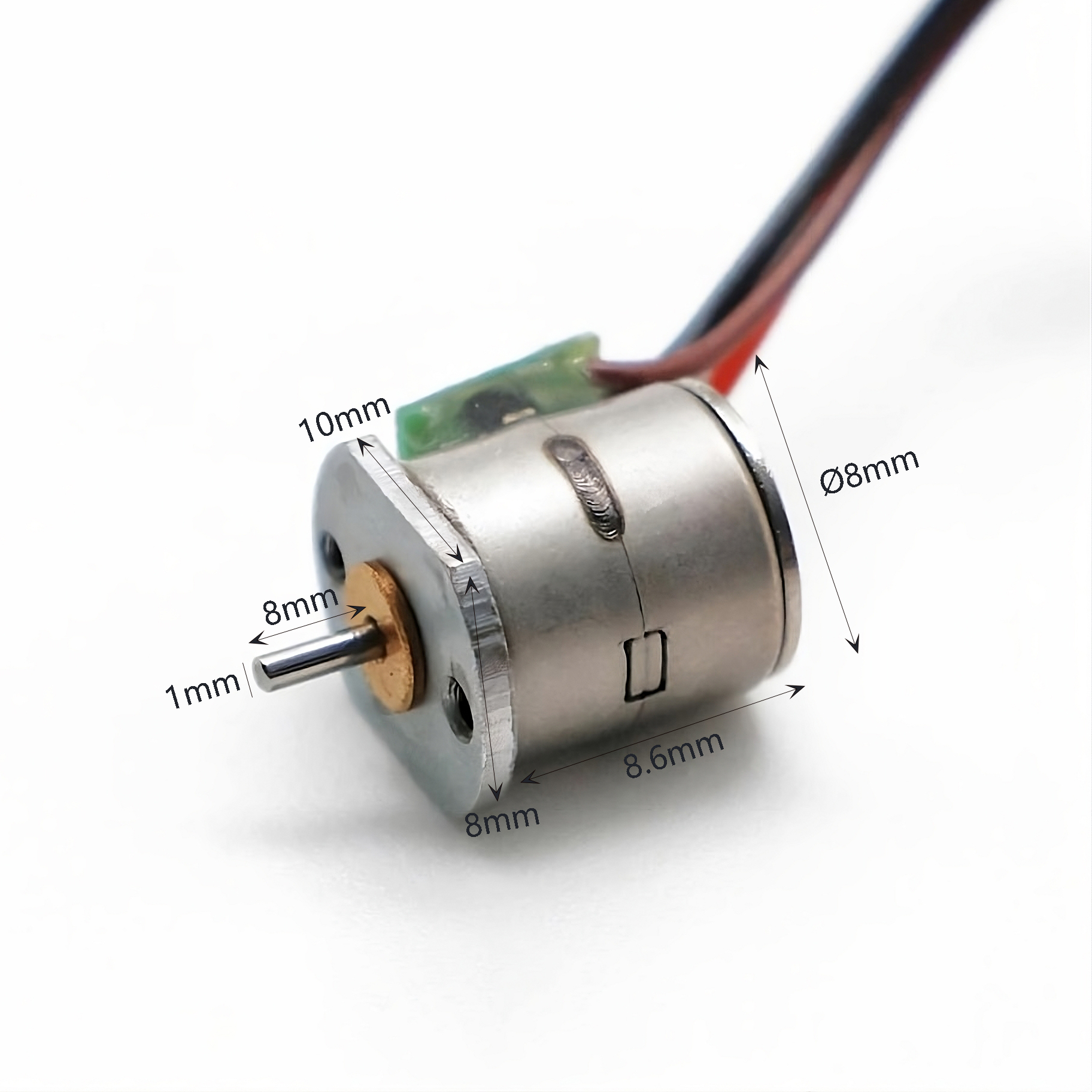

Product Description Image 1
Product Description Image 2
Model Step angle Excitation Mode Rated Voltage Resistance Phase Current Phase Detent Torque Holding Torque Insulation resistance
degree V Ω mA gf.cm gf.cm
08BY2510-N 18 2-2 Phase 3.7 10 300 5.0 10.0 300VDC
50MΩ↑
08BY2520-N 18 2-2 Phase 3.3 20 120 5.0 8.0
08BY2540-N 18 2-2 Phase 3 40 62.5 5.0 7.0
Motor Technical Data (800PPS)

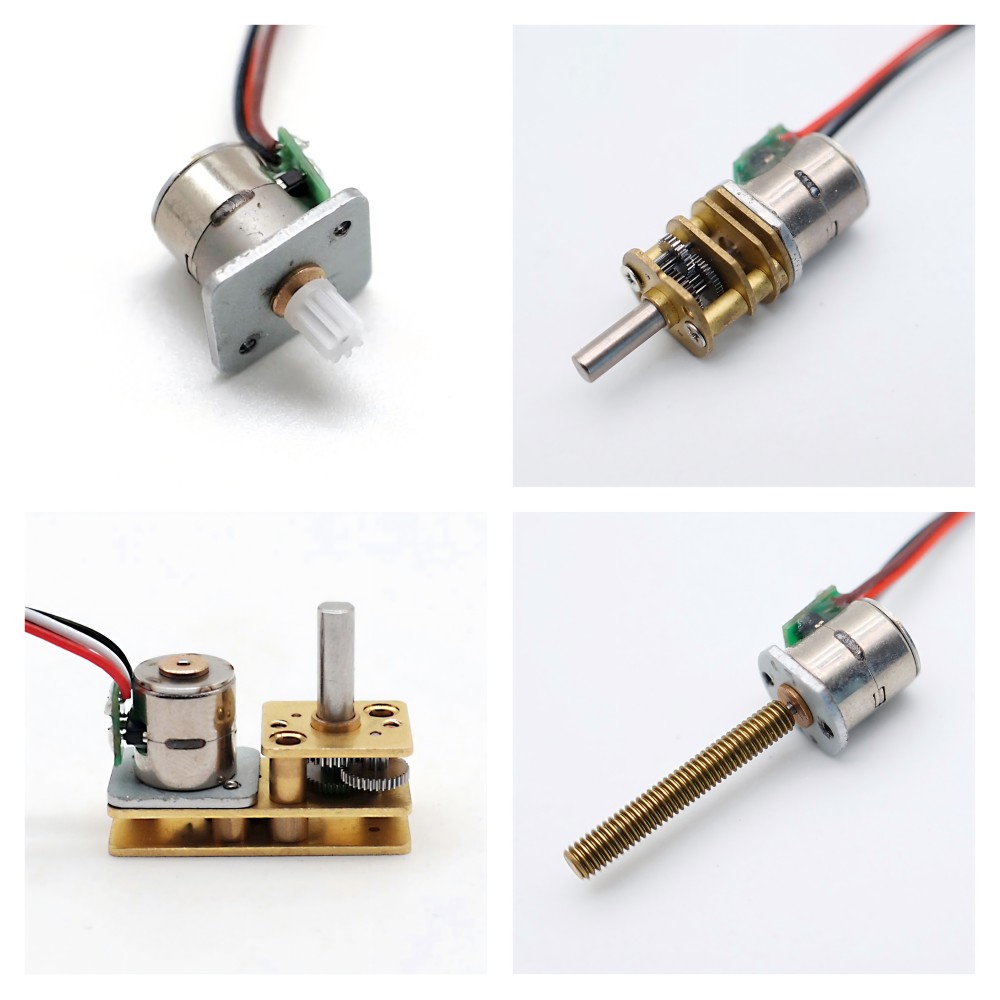

Recommend Products

Recommend Products

Motor raw materials

Motor raw materials

Production Equipment

Production Equipment 1 Production Equipment 2 Production Equipment 3

Company Profile

Factory Overview
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". With years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Certifications Document

Application Scenario

Application Scenarios

Global Market Distribution

Global Market Map
Enterprise Graphics

Frequently Asked Questions

Q What are the key technical applications for these micro stepper motors?
These micro motors are extensively implemented in high-precision fields such as medical analysis devices, financial security mechanisms, AI robotics, smart home installations, intelligent lock systems, and various automated tools.
Q What step angle and excitation mode do the 08BY series motors support?
The motors are designed with a precise 18-degree step angle and operate under a reliable 2-2 phase excitation mode for stable electrical indexing.
Q What are the typical operating voltage choices for different models?
Depending on your selection, rated voltage options include 3.7V (for Model 08BY2510-N), 3.3V (for Model 08BY2520-N), and 3.0V (for Model 08BY2540-N).
Q How is the insulation resistance performance verified?
Each motor is qualified to maintain a high insulation resistance of 50MΩ or higher under a test condition of 300VDC, ensuring operational safety.
Q What is the torque holding capability of these micro motors?
The series provides a holding torque ranging from 7.0 gf.cm up to 10.0 gf.cm, depending on the phase resistance and configuration parameters of the specific model.
