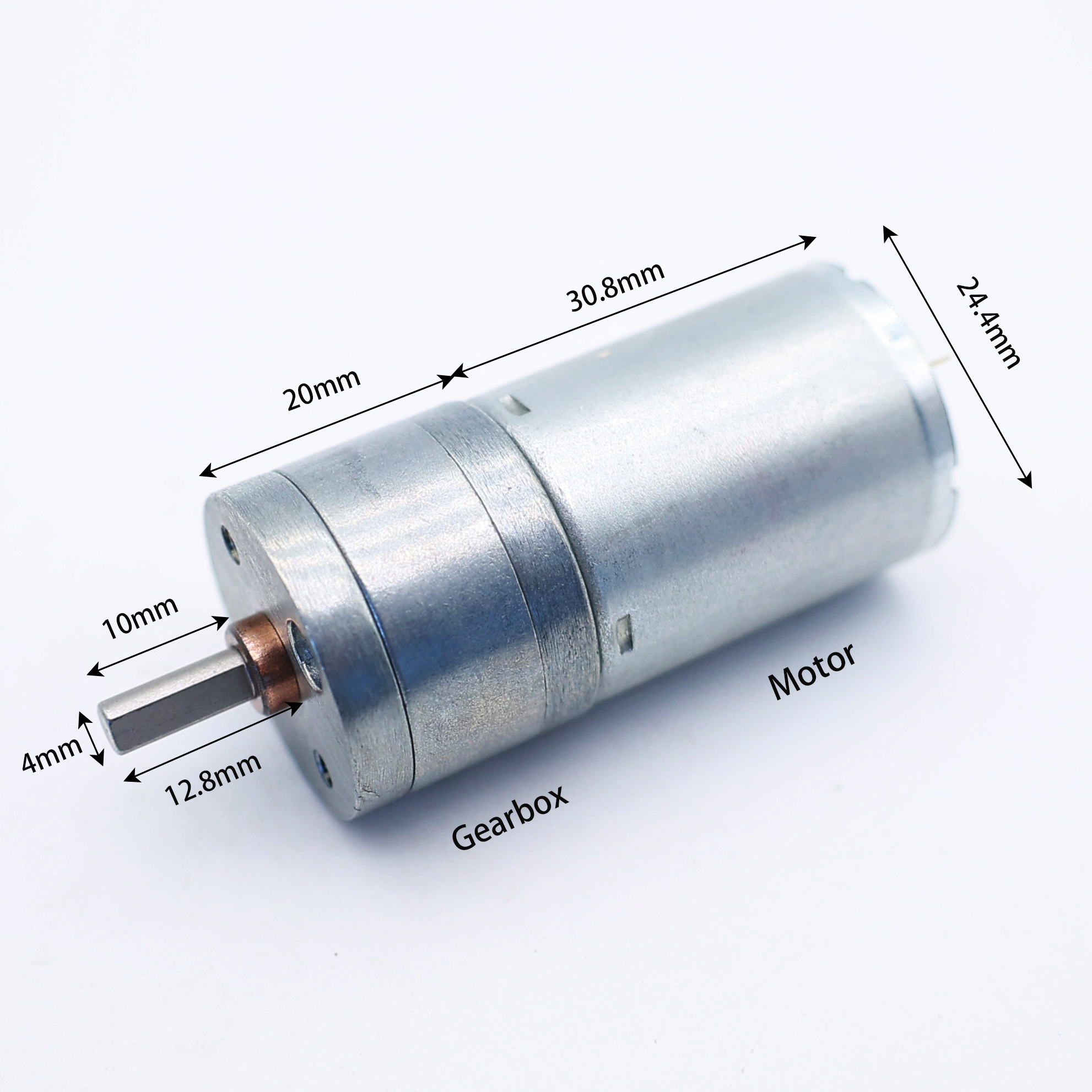

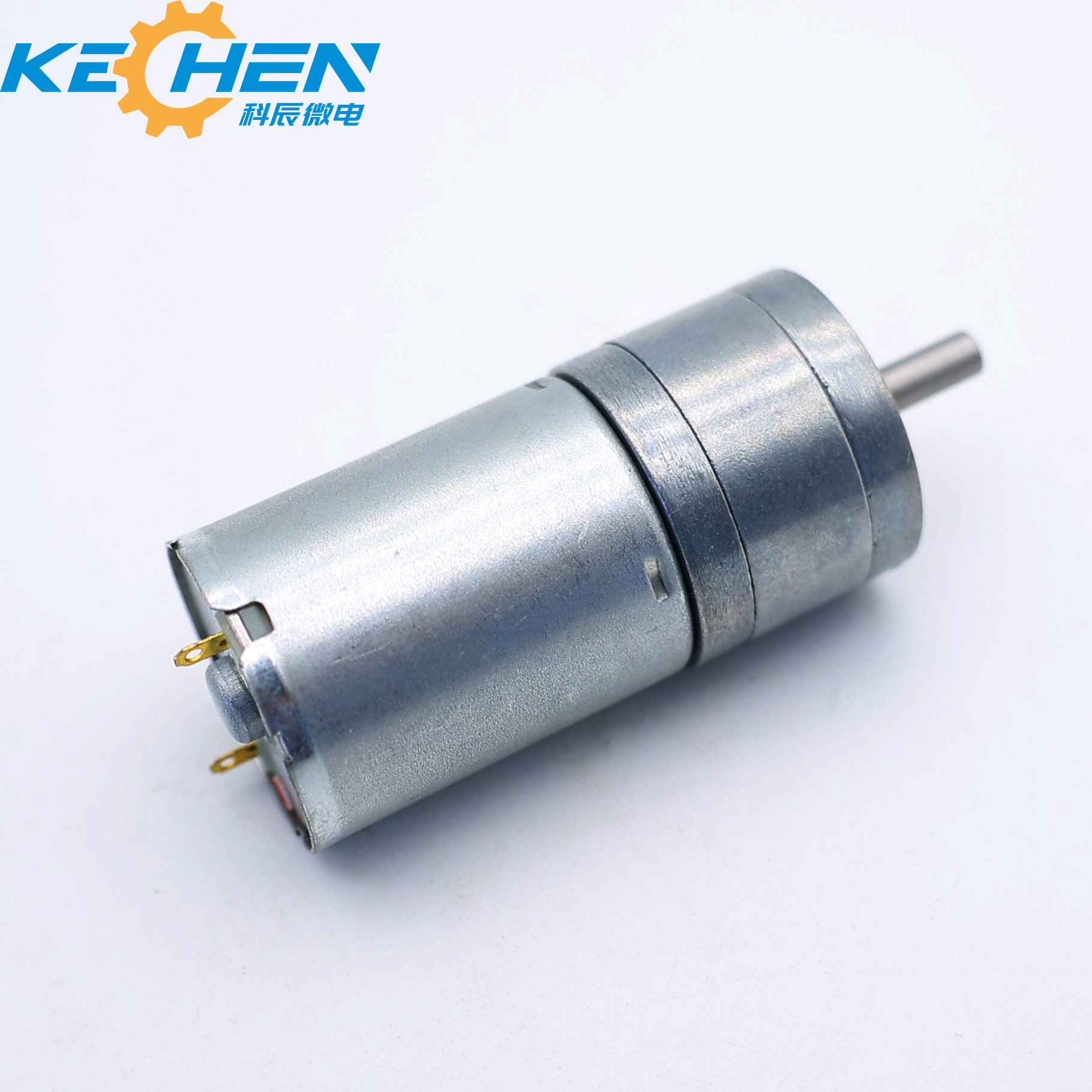

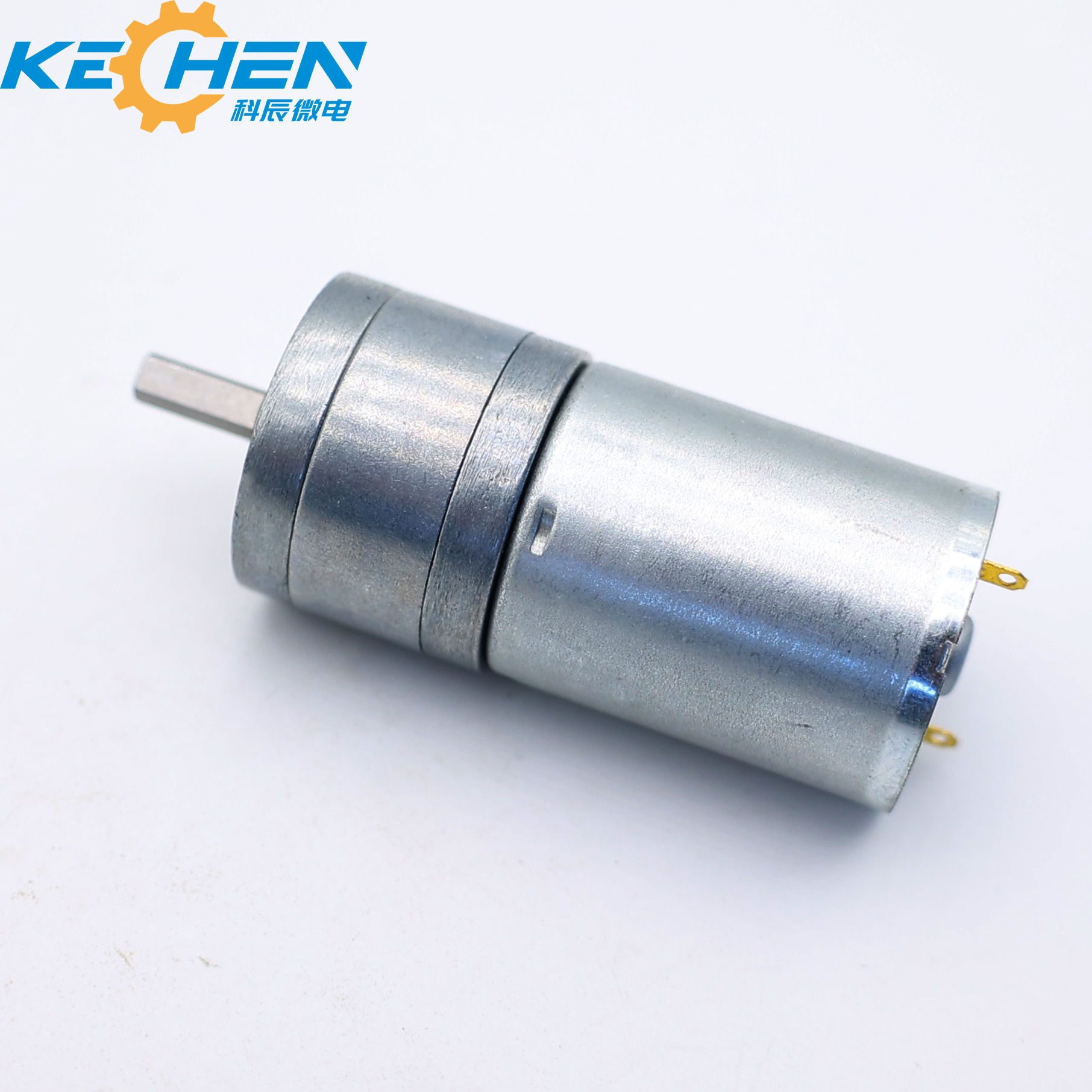

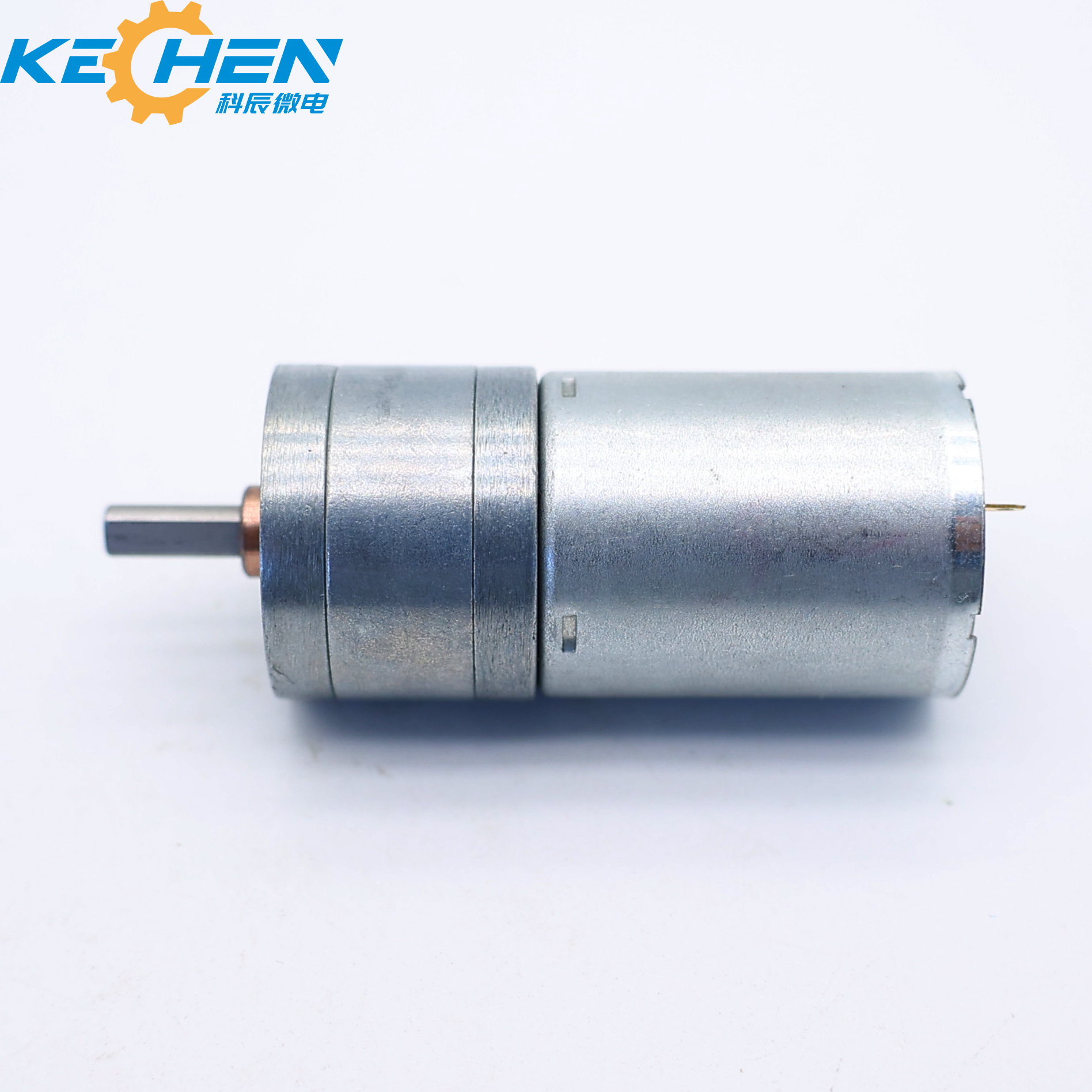

Customized 24.4mm GM25-370 Robot Sumo Micro Gear Motor with Permanent Magnet for Smart Home

Product Description

Products Description

GM25-370 micro metal gearmotor

Main Features:

  • Model: GM25-370 micro metal gearmotor
  • Gearbox: 25 mm metal spur gear reducer
  • Rated Voltage: DC 3V, 4.5V, 5V, 6V, 9V, 12V, 24V
  • Rated Torque: Max. 5Kgf-cm
  • Size: Φ25 * L TBD

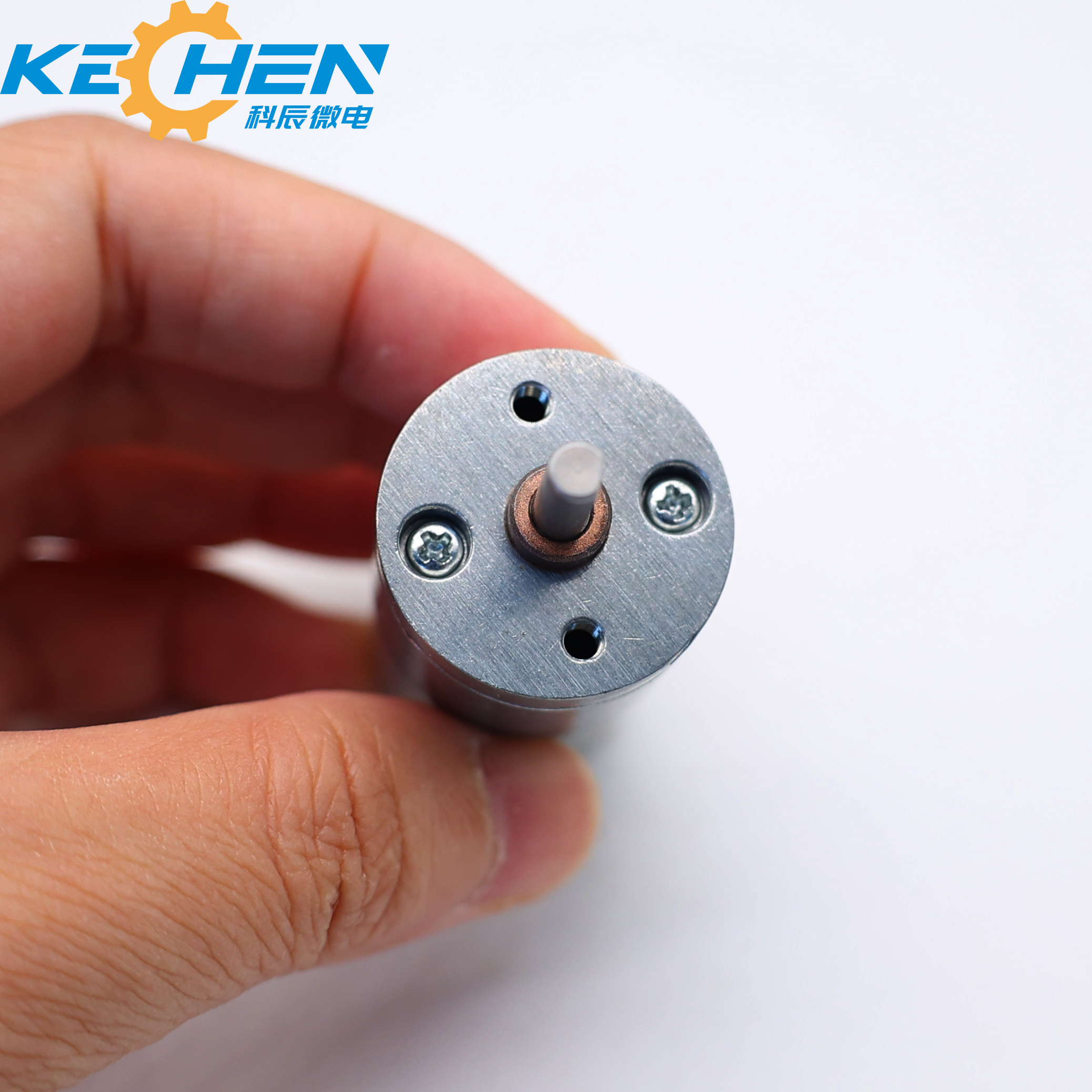

  • Shaft: Φ4mm D-cut 0.5mm, custom
  • Encoder: Magnetic encoder available
  • Commutation: Carbon brush / Graphite brush / Metal brush
  • Construction: Micro Permanent Magnet iron cored DC electric motor
  • MOQ: 500 pcs

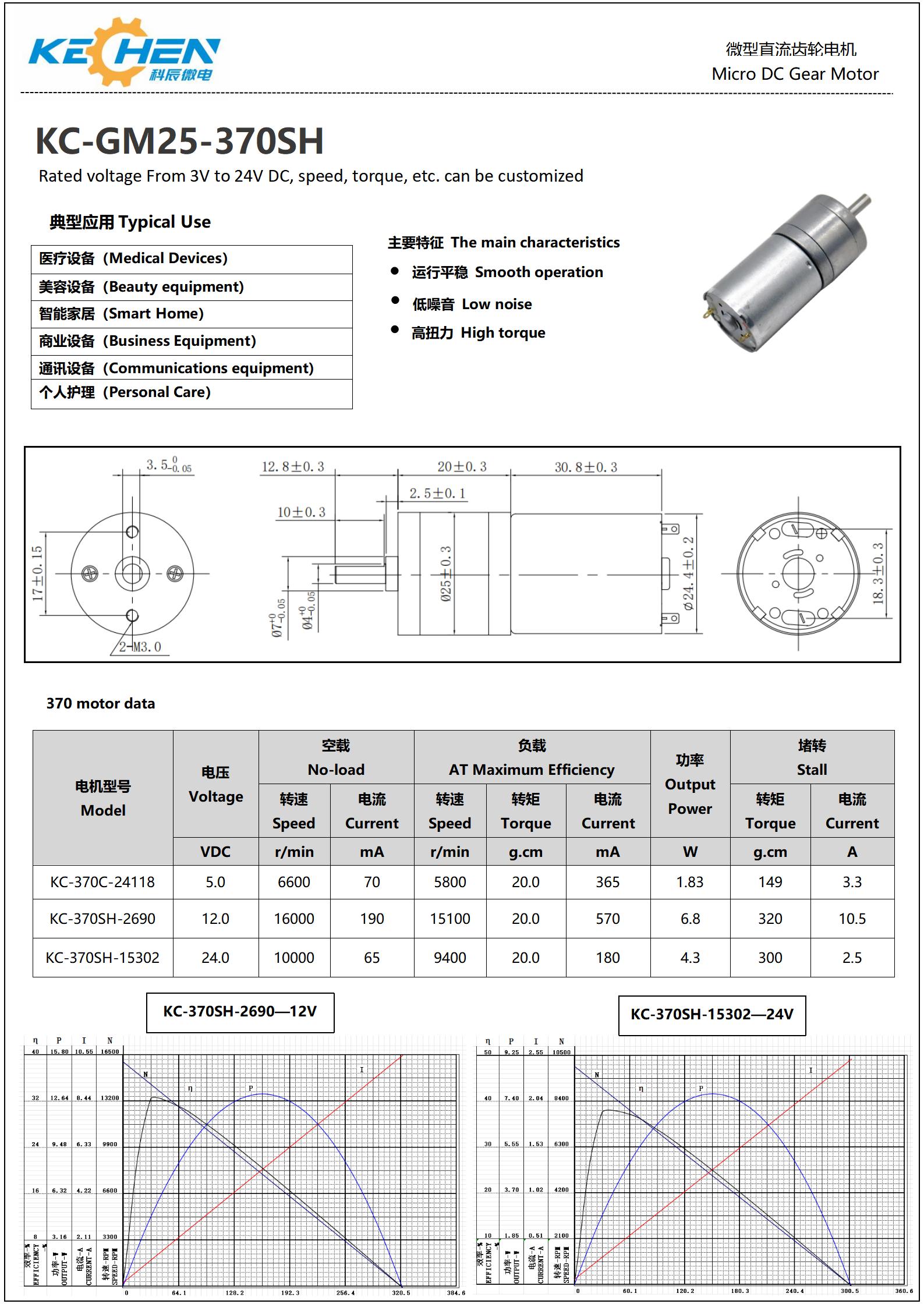

GM25-370 dimensional drawing

Gearbox with Motor Data

GM25-370SH-24118-5.0V
Reduction 10 35.5 59 78 103 130 172 226 286
Length(mm) 19 21 23 23 23 25 25 25 27
No-load speed(rpm) 665 187 113 85 65 51 39 29 23
Rated speed(rpm) 580 163 98 74 56 45 34 26 20
Rated torque(kg.cm) 0.14 0.36 0.47 0.62 0.82 0.78 1.03 1.36 1.14
Stalling Torque(kg.cm) 1.10 2.78 3.69 4.88 6.45 6.10 8.07 10.61 8.95
GM25-370SH-11220-24.0V
Reduction 59 78 103 130 172 226 286 378 500
Length(mm) 23 23 23 25 25 25 27 27 27
No-load speed(rpm) 231 174 132 105 79 60 48 36 27
Rated speed(rpm) 210 159 120 95 72 55 43 33 25
Rated torque(kg.cm) 0.47 0.62 0.82 0.78 1.03 1.36 1.14 1.51 2.0
Stalling Torque(kg.cm) 5.35 7.07 9.34 8.84 11.70 15.37 12.97 17.14 22.67

Recommend Products

Recommend Products

Motor Raw Materials

Motor raw materials illustration

Production Equipment

Profile

Factory Office
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Adhering to the concept of "people-oriented, pioneering and innovative spirit", rapid development has built a young, pragmatic, professional, and efficient team. With advanced production facilities, efficient management, excellent quality, and high-quality services, customer needs are fully met for continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning continuous recognition.

Certifications

Product Certifications

Application Scenario

Application Scenarios

Global Market Distribution

Frequently Asked Questions (FAQ)

What are the primary applications for the GM25-370 gearmotor?
This micro metal gearmotor is widely used in intelligent communication, smart home designs, medical equipment, commercial intelligent locks, smart medicine cabinets, outdoor devices, electric tools, and intelligent robotics due to its compact size and high torque output.
Can the motor shaft configuration be customized?
Yes, we support customizable shaft configurations. The standard configuration features a Φ4mm D-cut 0.5mm shaft, but we can customize the dimensions and shape to meet your specific requirements.
Is a magnetic encoder available for the GM25-370?
Yes, a compatible magnetic encoder can be provided with the motor to support speed and position feedback controls in precise application scenarios.
What rated voltage options are supported?
The GM25-370 micro metal gearmotor supports a wide spectrum of rated voltages, including DC 3V, 4.5V, 5V, 6V, 9V, 12V, and 24V.
What is the Minimum Order Quantity (MOQ) for these micro motors?
The standard Minimum Order Quantity (MOQ) for the GM25-370 series micro DC gearmotor is 500 pcs.
What kind of brushes are used in the construction of the motor?
The motors can be customized with carbon brushes, graphite brushes, or metal brushes depending on the electrical performance and life expectancy requirements of your specific application.
