Brea Tech Micro Motor
1 / 5

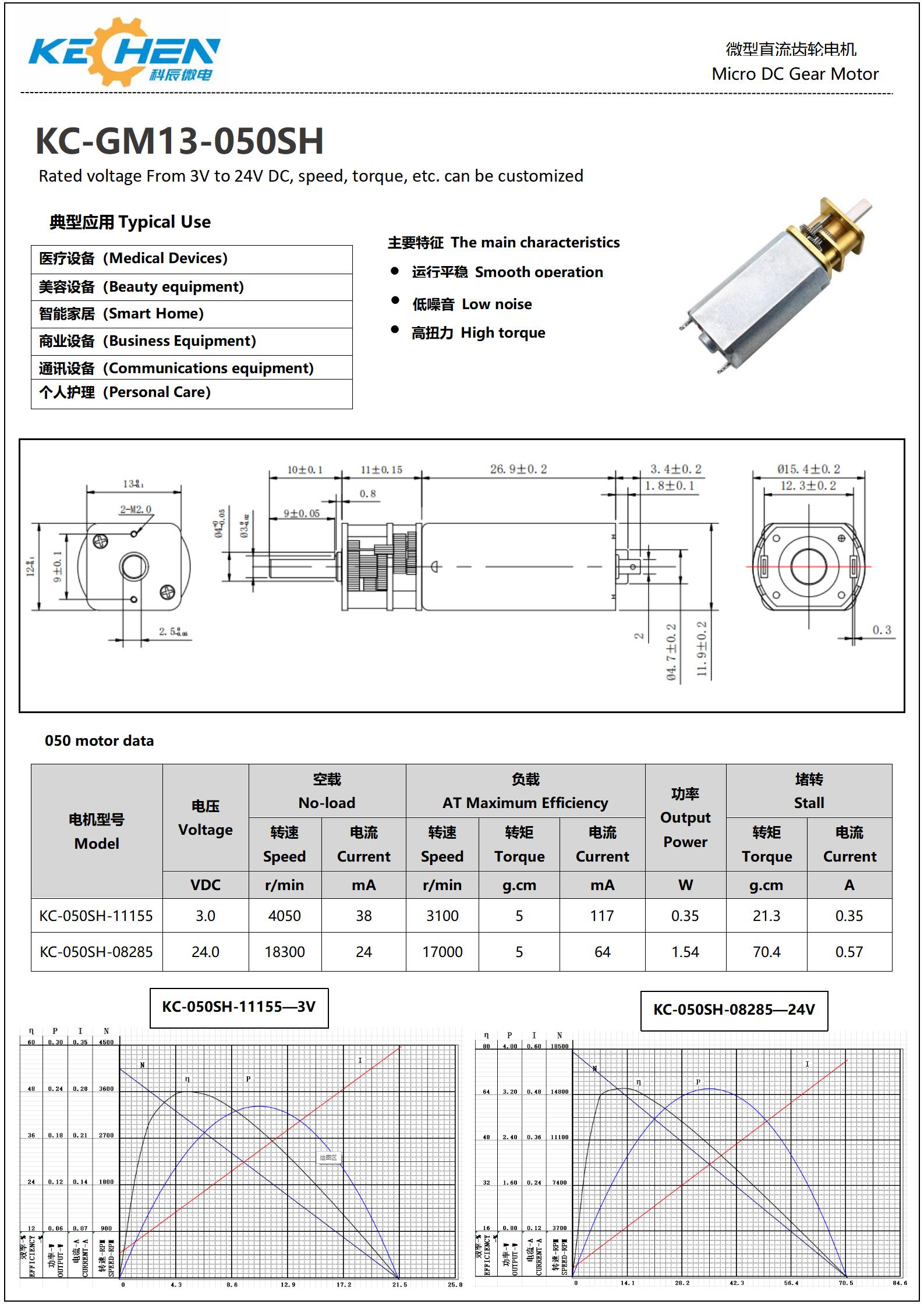

| GM13-050SH-11155-3V Specifications | |||||||||
| Reduction | 6 | 20 | 52 | 85 | 118 | 170 | 215 | 250 | 297 |
| Length (mm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| No-load speed (rpm) | 675 | 203 | 78 | 48 | 34 | 24 | 19 | 16 | 14 |
| Rated speed (rpm) | 517 | 155 | 60 | 36 | 26 | 18 | 14 | 12 | 10 |
| Rated torque (kg.cm) | 0.02 | 0.07 | 0.16 | 0.26 | 0.30 | 0.43 | 0.54 | 0.63 | 0.74 |
| Stalling Torque (kg.cm) | 0.10 | 0.30 | 0.67 | 1.09 | 1.26 | 1.81 | 2.29 | 2.66 | 3.17 |
| GM13-050SH-08285-24V Specifications | |||||||||
| Reduction | 52 | 85 | 118 | 170 | 215 | 250 | 297 | 360 | 1000 |
| Length (mm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 13.2 |
| No-load speed (rpm) | 352 | 215 | 155 | 108 | 85 | 73 | 62 | 51 | 18 |
| Rated speed (rpm) | 327 | 200 | 144 | 100 | 79 | 68 | 57 | 47 | 17 |
| Rated torque (kg.cm) | 0.16 | 0.26 | 0.30 | 0.43 | 0.54 | 0.63 | 0.74 | 0.90 | 1.50 |
| Stalling Torque (kg.cm) | 2.20 | 3.59 | 4.15 | 5.98 | 7.57 | 8.80 | 10.45 | 12.67 | 21.12 |
The facility was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since its establishment, the team has adhered to the concept of "people-oriented, pioneering and innovative spirit". After rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
This micro gear motor is widely used in medical equipment, smart home solutions (such as commercial intelligent locks and smart switches), financial security systems, 5G communication systems, AI robotics, smart wear, and various electric tools.

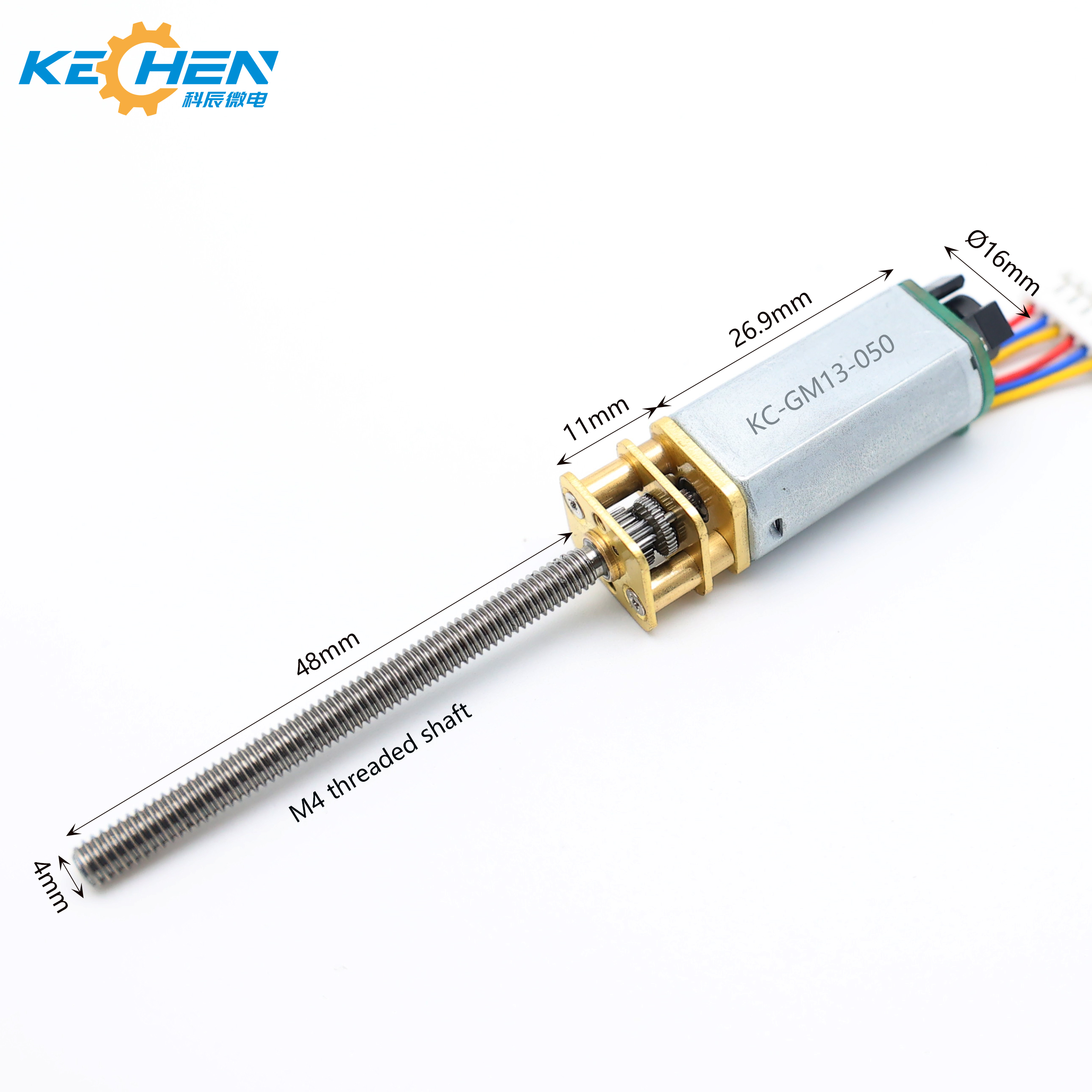

Yes, customization options are available. The shaft can be customized with variations such as D-cut (0.5mm), standard round, M3, or M4 threading. Additionally, the rated voltage can be configured across DC 3V, 4.5V, 5V, 6V, 9V, 12V, and 24V options depending on your specifications.
The GM13-050 series can deliver a maximum rated torque of up to 2.3 Kgf-cm, depending on the gearbox reduction ratio selected and the operating configuration.

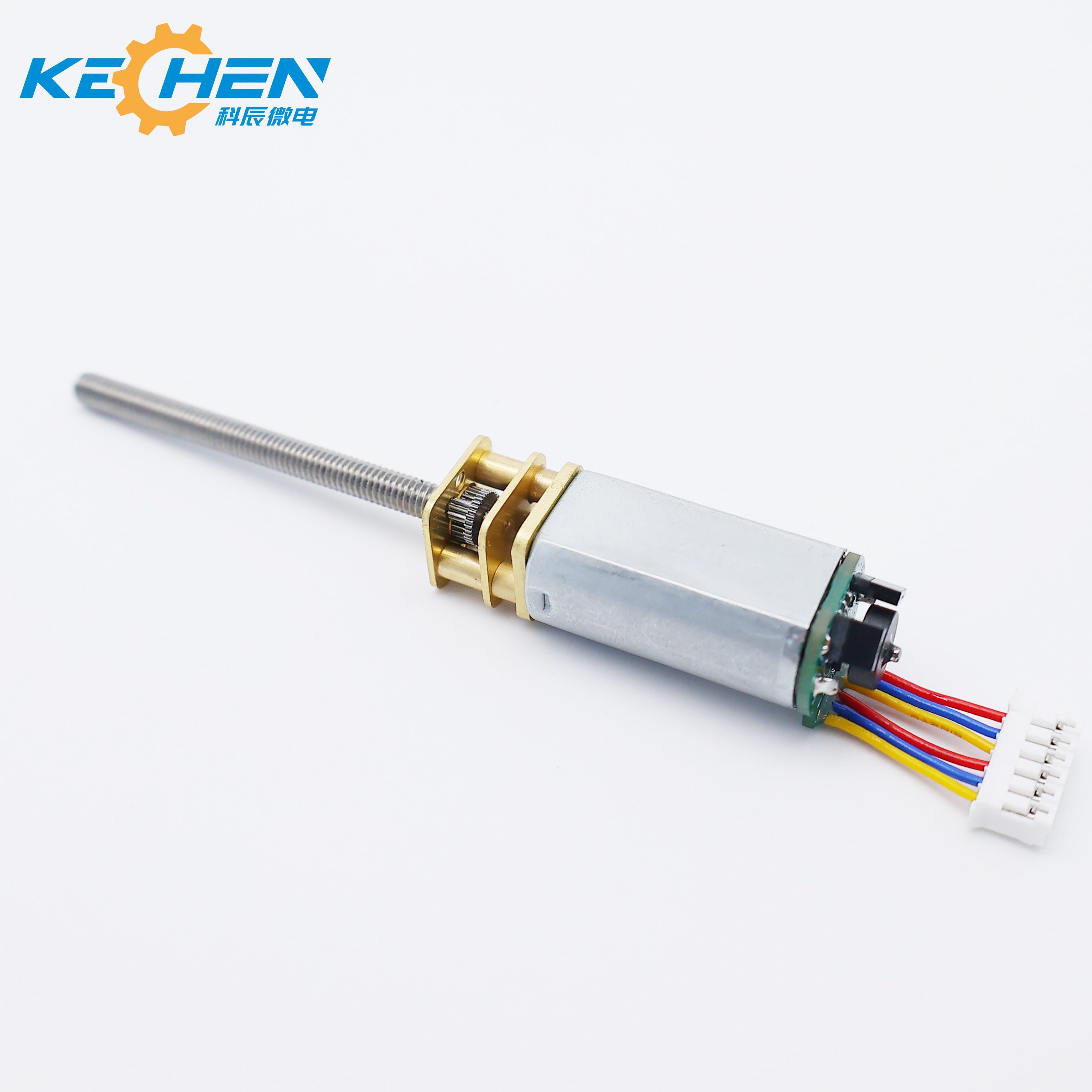

Yes, the GM13-050 motor is fully compatible with magnetic encoders, which can be integrated into the unit for precise speed and position control feedback.
We support multiple commutation structures based on your lifespan and cost requirements, including carbon brush, graphite brush, and metal brush variations.
The standard Minimum Order Quantity (MOQ) for production runs of the GM13-050 gear motor is 500 pieces per batch.
