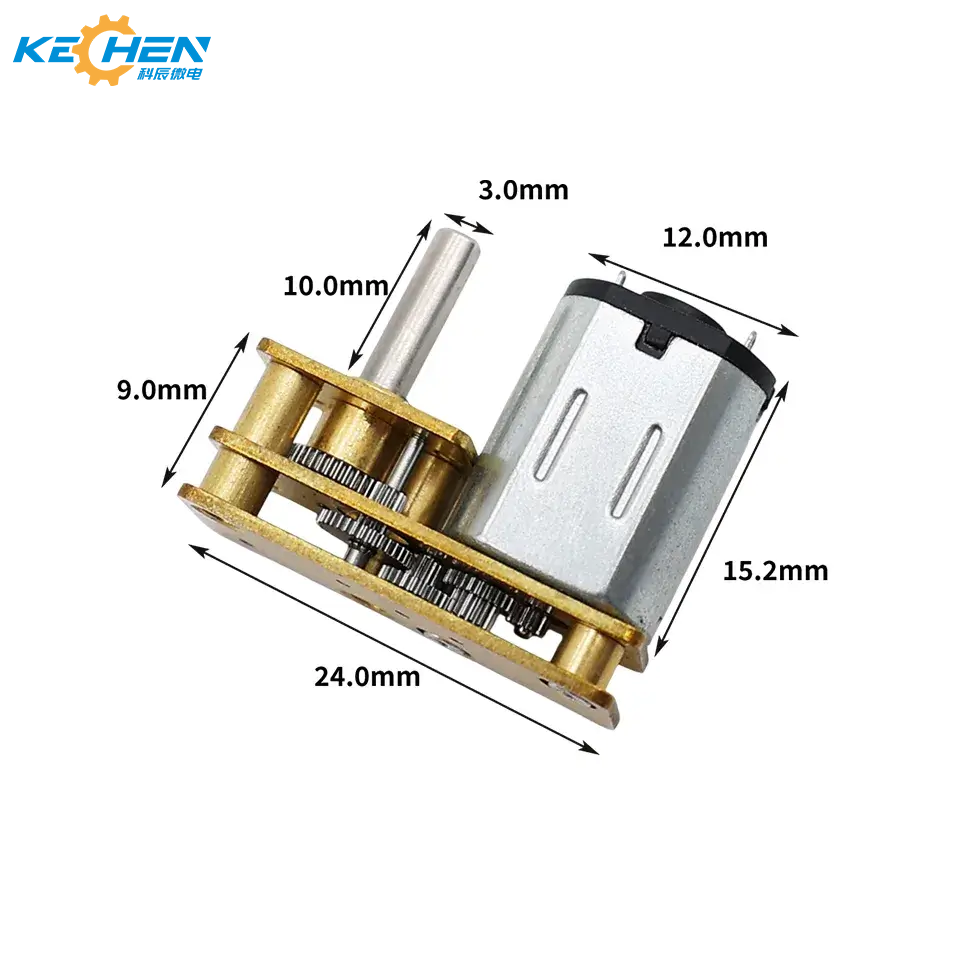

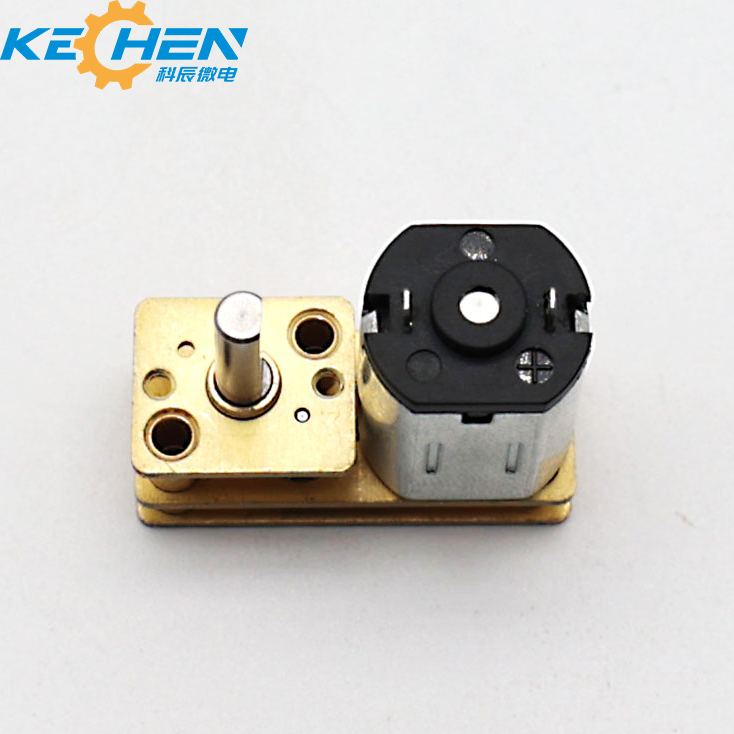

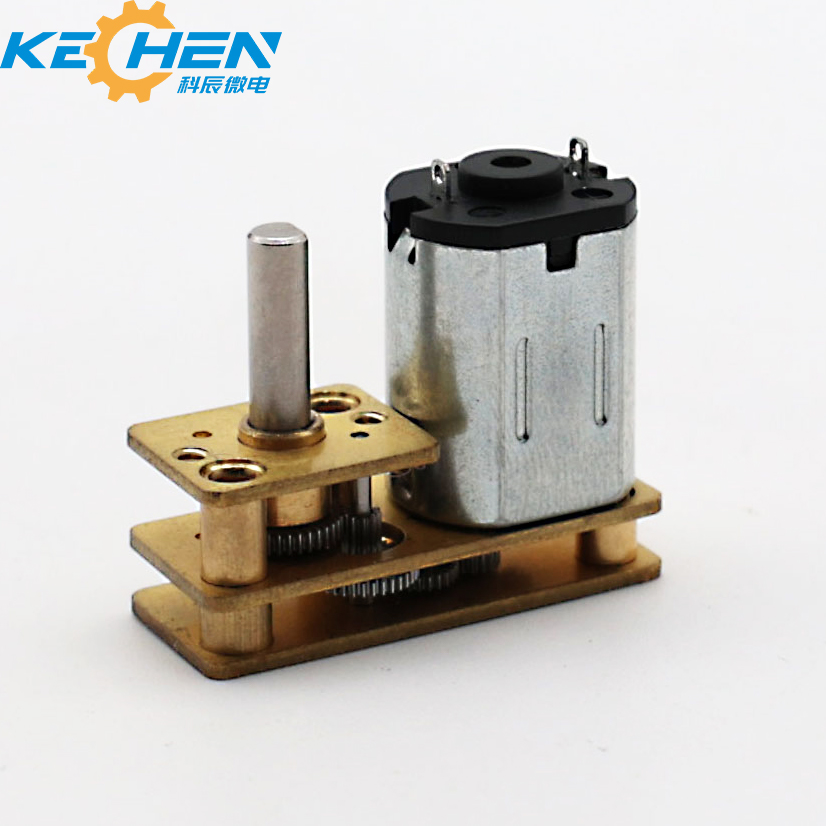

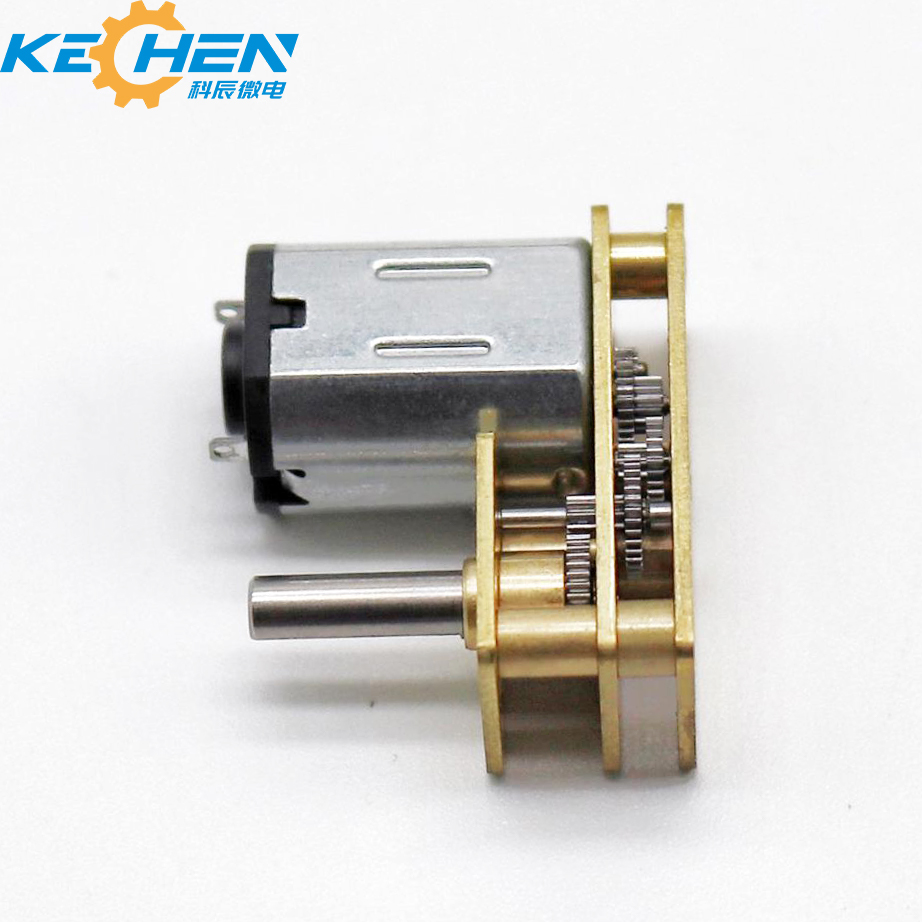

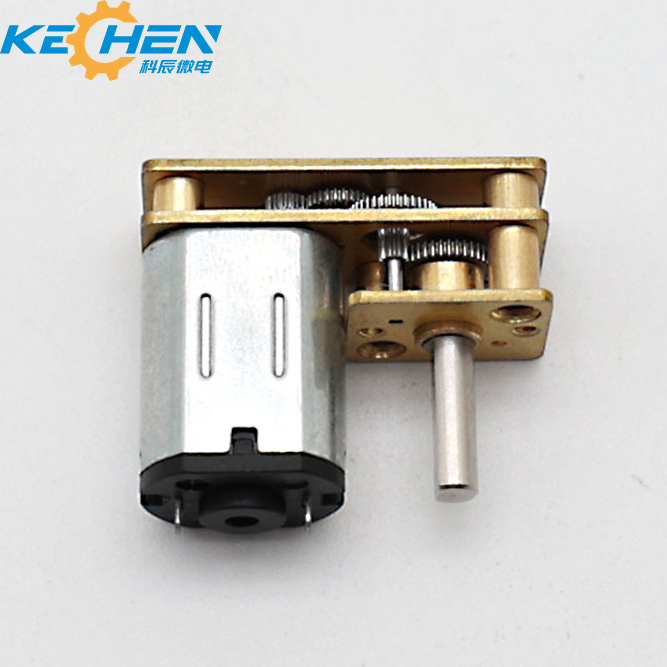

12V Smart Toilet Micro DC Reduction N20 Motor Sensor Water Valve Permanent Magnet Brush Commutation Home Appliance Rated Voltage

Product Description

Products Description
Product Layout Diagram

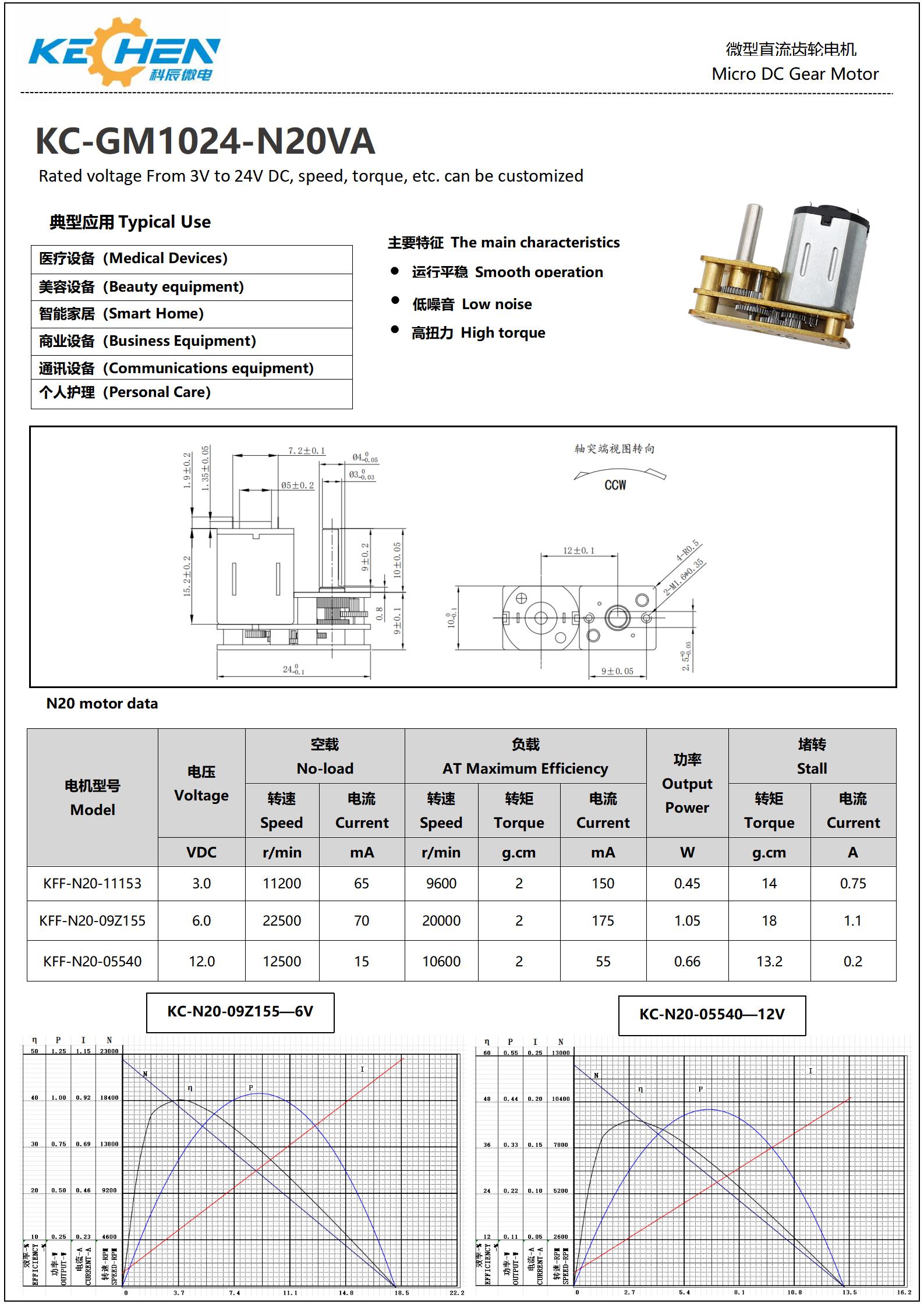

Product Technical Drawing
Gearbox with motor Data: GM1024-N20-09Z155-6.0V
Reduction 10 30 50 100 150 218 250 298 350
Length(mm) 9 9 9 9 9 9 9 9 9
No-load speed(rpm) 2250 750 450 225 150 103 90 76 64
Rated speed(rpm) 2000 667 400 200 133 92 80 67 57
Rated torque(kg.cm) 0.02 0.04 0.06 0.12 0.12 0.17 0.2 0.24 0.28
Stalling Torque (kg.cm) 0.14 0.32 0.54 1.08 1.08 1.57 1.8 2.15 2.52
GM1024-N20-05540-12.0V
Reduction 50 100 168 210 250 298 380 500 2000
Length(mm) 9 9 9 9 9 9 9 9 12
No-load speed(rpm) 250 125 74 60 50 42 33 25 6.3
Rated speed(rpm) 212 106 63 50 42 36 28 21 5.3
Rated torque(kg.cm) 0.06 0.12 0.13 0.17 0.2 0.24 0.3 0.4 0.8
Stalling Torque (kg.cm) 0.39 0.79 0.88 1.11 1.32 1.57 2.0 2.63 5.26
Recommend Products
Recommended Motor Product 1
Recommended Motor Product 2
Motor raw materials
Raw Materials Details
Production Equipment
Production Facility 1
Production Facility 2
Production Facility 3
Company Profile
Enterprise Workspace
Enterprise Presentation
Factory Internal View
Our high-tech enterprise was established in August 2009. It integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Our facility is located in Guangdong Province. Since establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have built a group of young, pragmatic, professional, and efficient work teams, equipped with advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from global customers.
Certifications
Product Quality Certifications
Application Scenario
Application Overview
Industry Application Details
Medical equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map 1
Global Market Map 2
Global Shipping Layout
Frequently Asked Questions
What types of micro motors do you manufacture?
We specialize in a wide range of precision micro motors, including precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Can the gearbox parameters be customized?
Yes, our gearbox reduction ratios, lengths, and specs (like speed and torque) can be selected and optimized based on your specific application and design requirements.
In which industries are your micro motors commonly used?
Our motors are widely utilized in medical equipment, smart home appliances, business machines (like 3D printers and robots), electrical power equipment, food and beverage machines, and automation robotics.
Do your products comply with international quality and safety certifications?
Yes, our production facilities and systems are fully certified, ensuring all micro motor products conform to global safety and quality control standards.
Do you support global shipping and distribution?
Yes, we support global distribution and supply chains, delivering high-performance micro motors to engineering and manufacturing clients worldwide.
