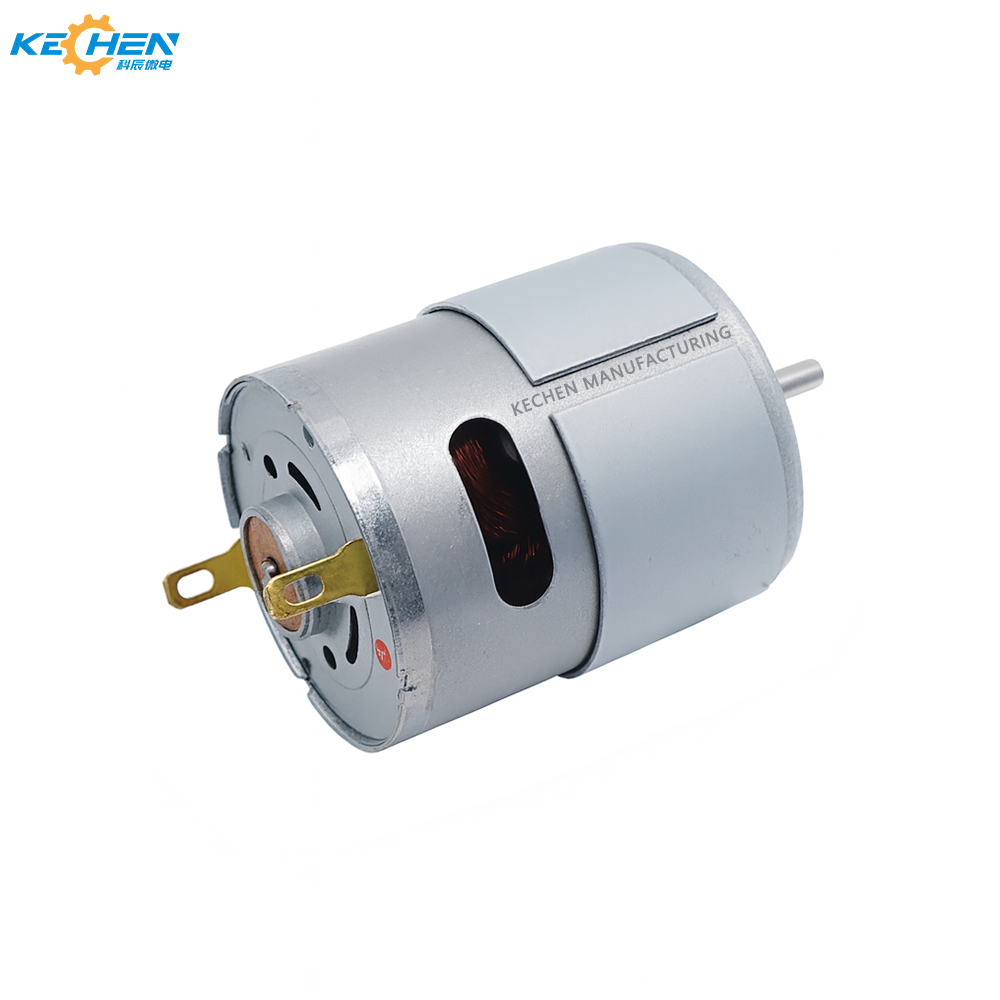

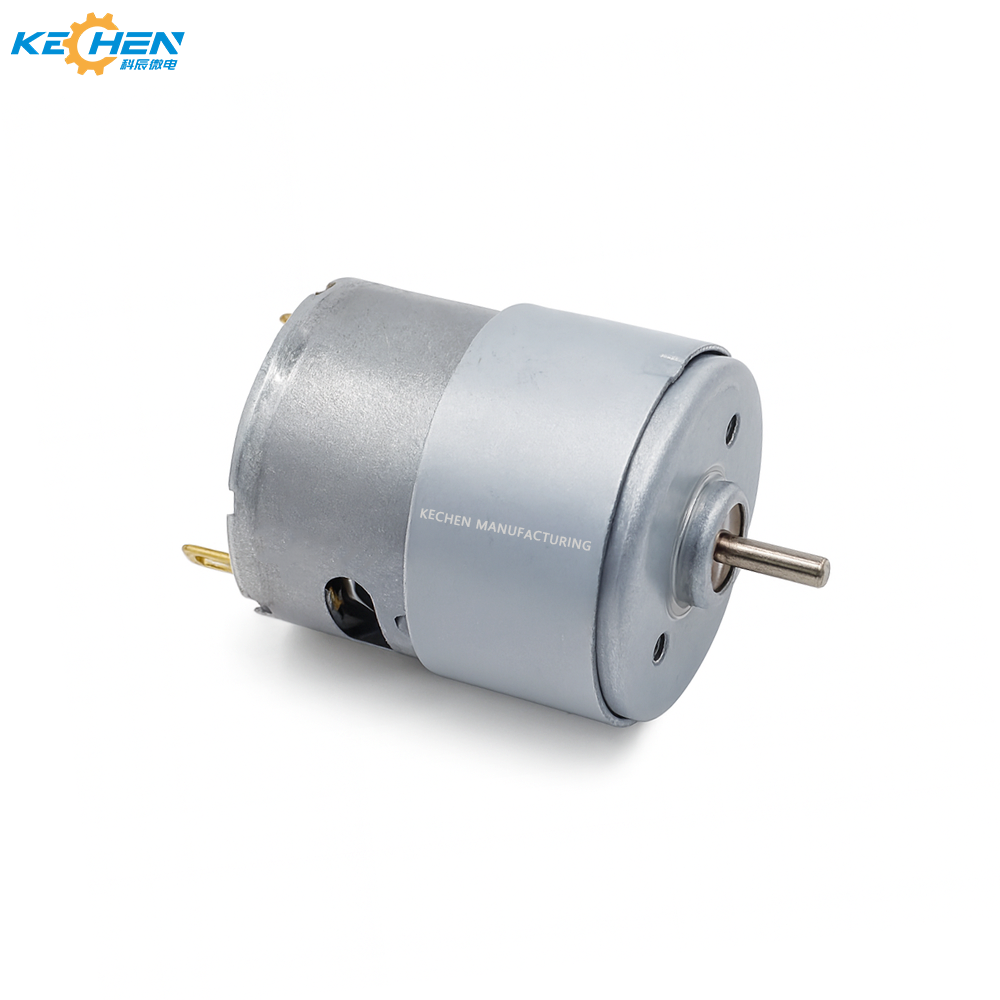

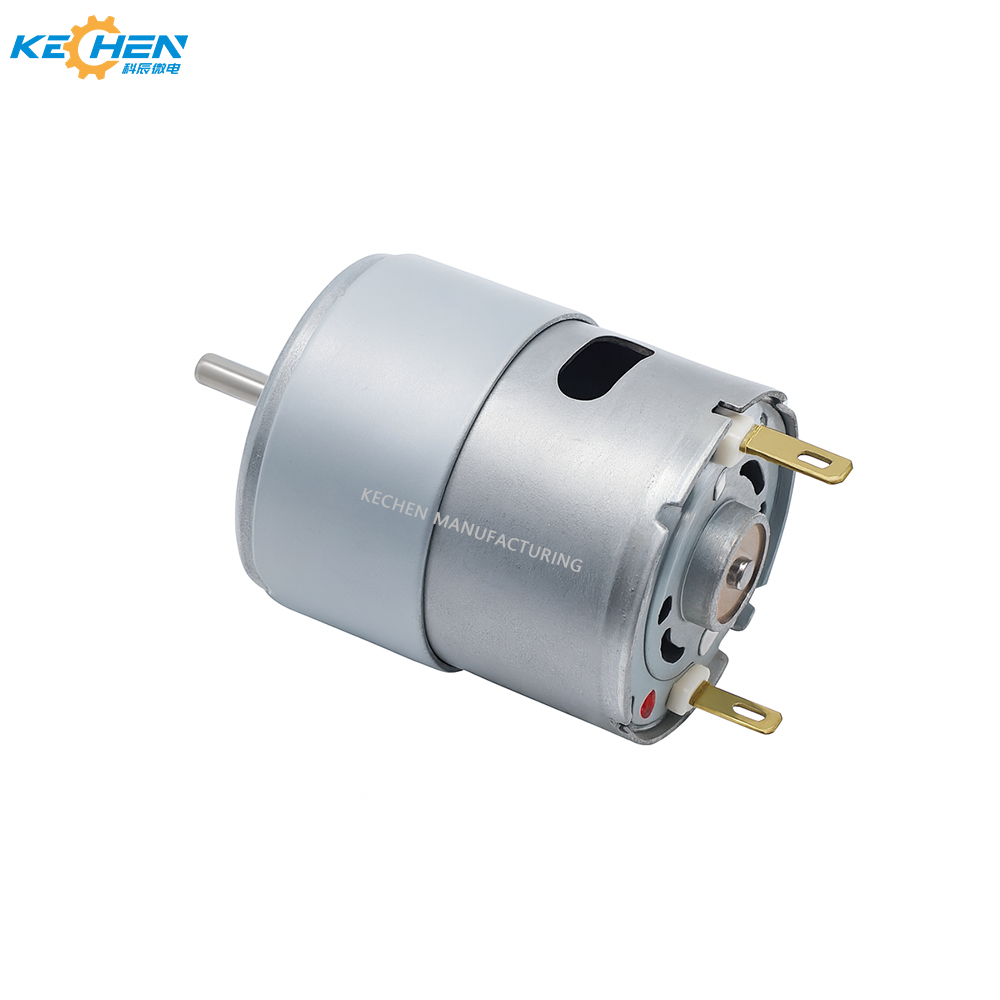

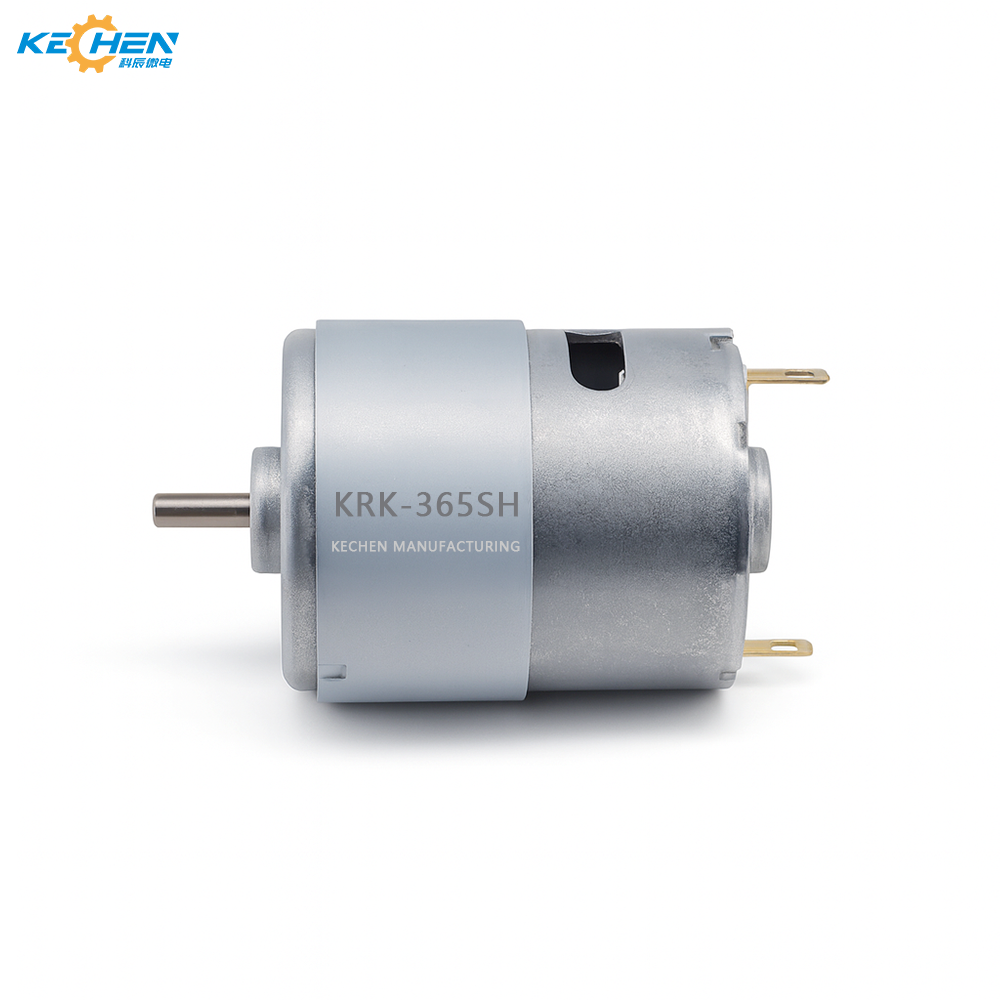

RS 365 12V Brushed DC Micro Motor 385 for Water Pump Home Appliance 3000-30000 RPM

Product Description

Company Profile
365 27.7mm small dc motor
365 27.7mm small dc motor
  • Model Number: KC-365

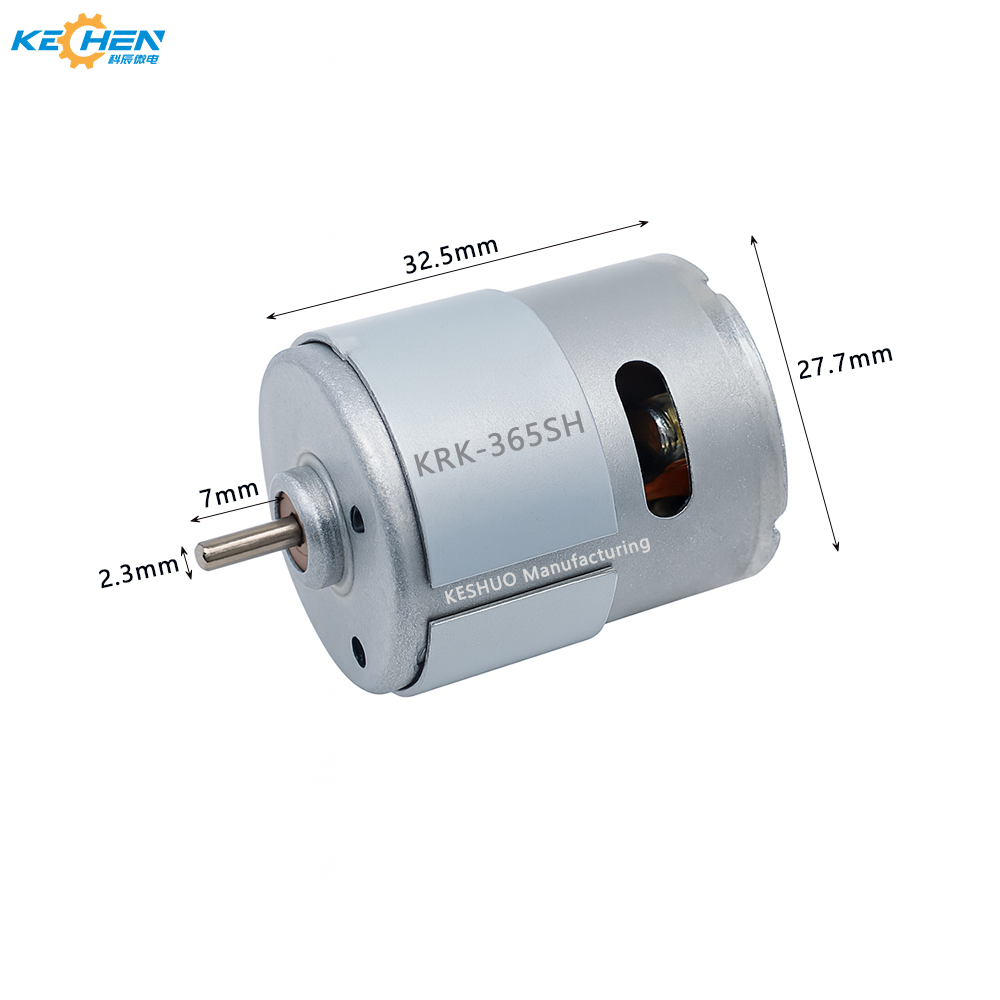

  • Shell Stator Size: Φ27.7 * L 32.6 mm (Φ 1.09 inch * 1.286 inch)
  • Shaft: Φ2.3mm (0.09 inch), D shape, etc.
  • Shaft length: Free customization
  • Rated Output Power: Up to 30W
  • Rated Voltage: DC 1.5V - 24V
  • Rated Torque: Up to 100 gf·cm (9.8 mN·m)
  • Construction: Permanent Magnet
  • Commutation: Carbon brush
  • Rotation: Clockwise/counter-clockwise rotation (CW & CCW)
Products Description
Products Description
Recommend Products
Recommend Product 1
Recommend Product 2
Motor raw materials
Motor raw materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Company overview

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications
Certifications
Application Scenario
Application Scenario Banner
Category Applications
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market 1
Global Market 2
Global Market 3
Frequently Asked Questions
What is the voltage range supported by these micro DC motors?
Our micro DC motors support a rated voltage range from DC 1.5V to 24V, allowing compatibility with various power configurations and applications.
Can the shaft dimensions and configurations be customized?
Yes. We offer free customization options for shaft lengths, shapes (such as D-shaped shafts), and other custom modifications based on your engineering design requirements.
What are the typical applications for these micro motors?
These motors are widely integrated into medical equipment, business machines (like 3D printers and scanners), smart home devices (like coffee machines and robotic vacuum cleaners), and various robotic systems.
Do you support bidirectional rotation for your DC motors?
Yes, our DC motors support both clockwise (CW) and counter-clockwise (CCW) rotation directions, offering high flexibility for different mechanism requirements.
What standards and quality control systems are followed?
Our manufacturing process uses advanced production facilities and strict quality management protocols. Our products are fully certified, meeting high durability and efficiency guidelines for global market distribution.
