Brea Tech Micro Motor
1 / 5

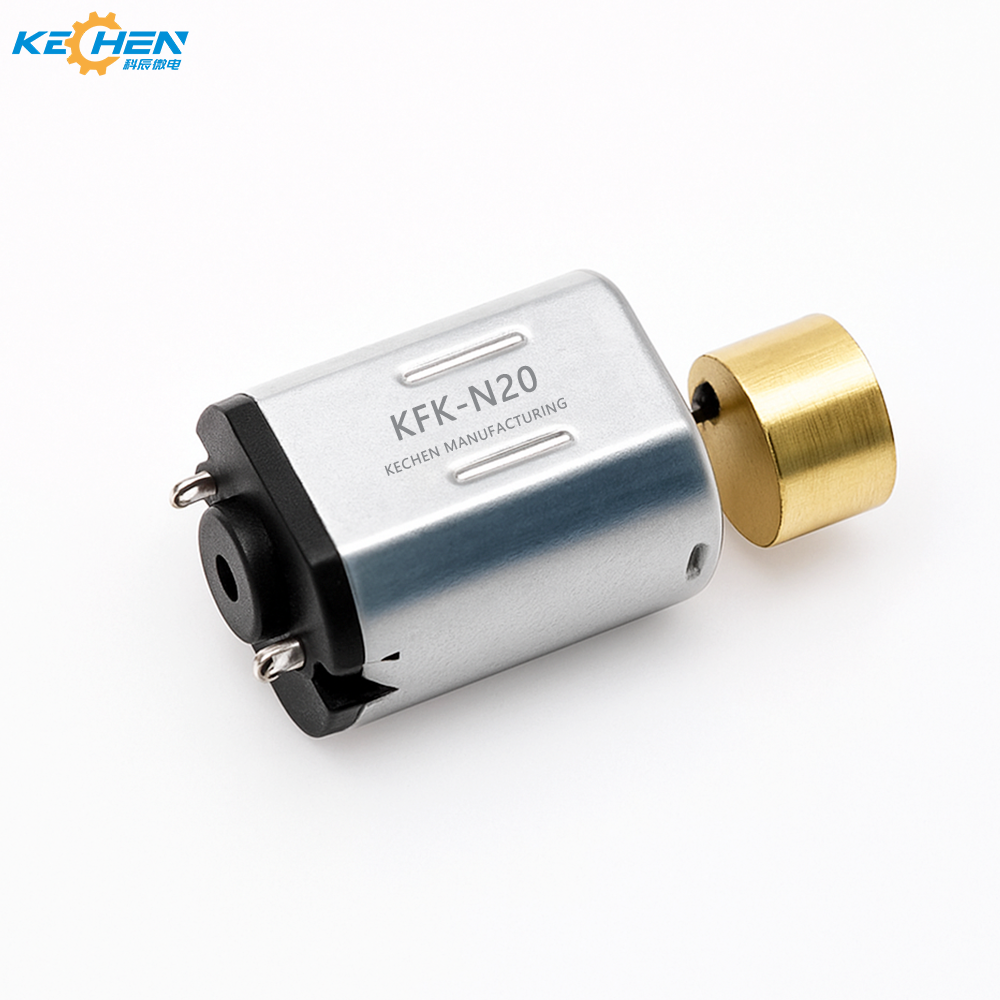

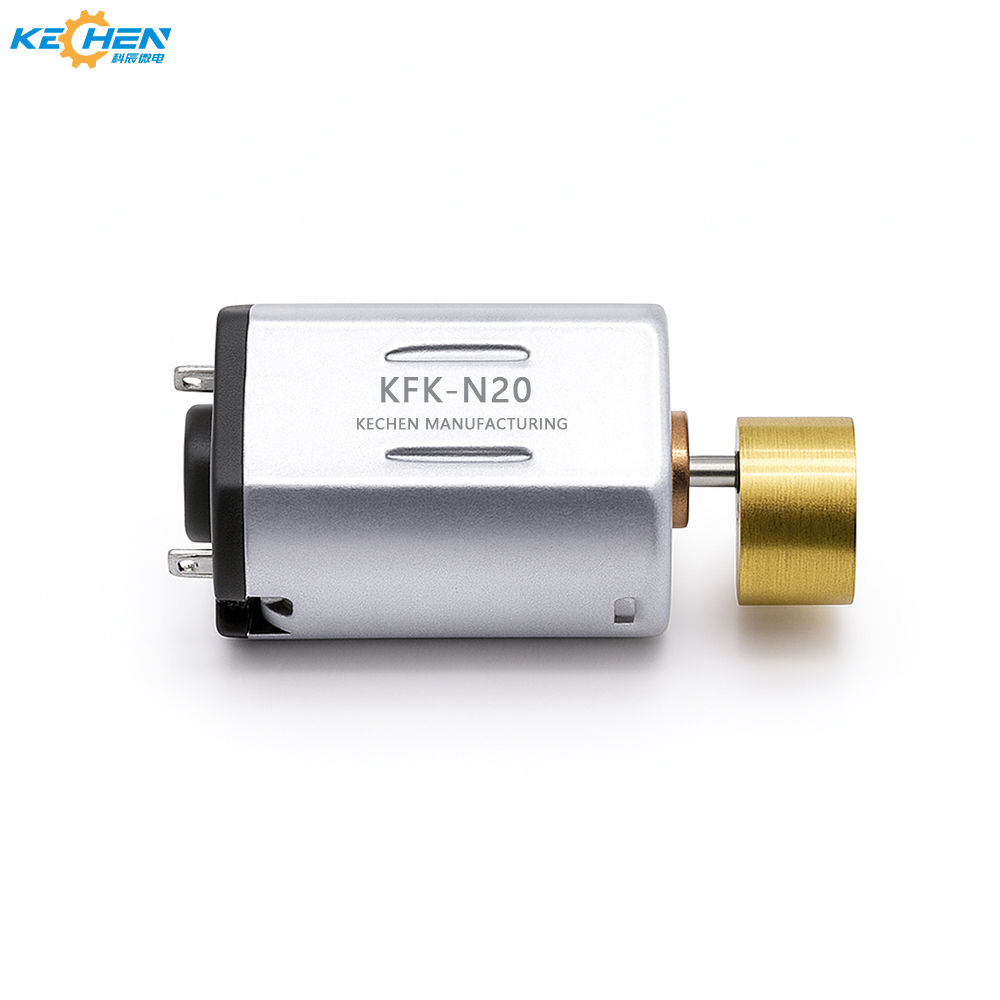

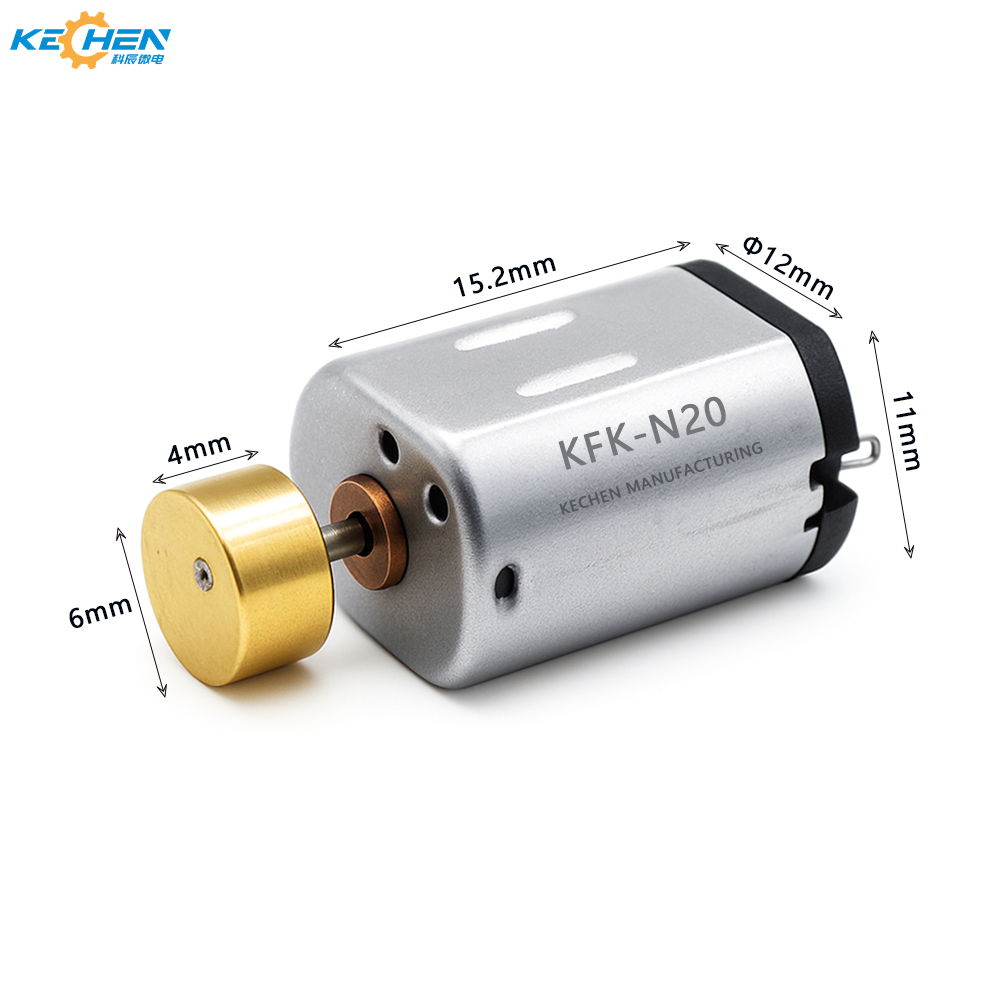

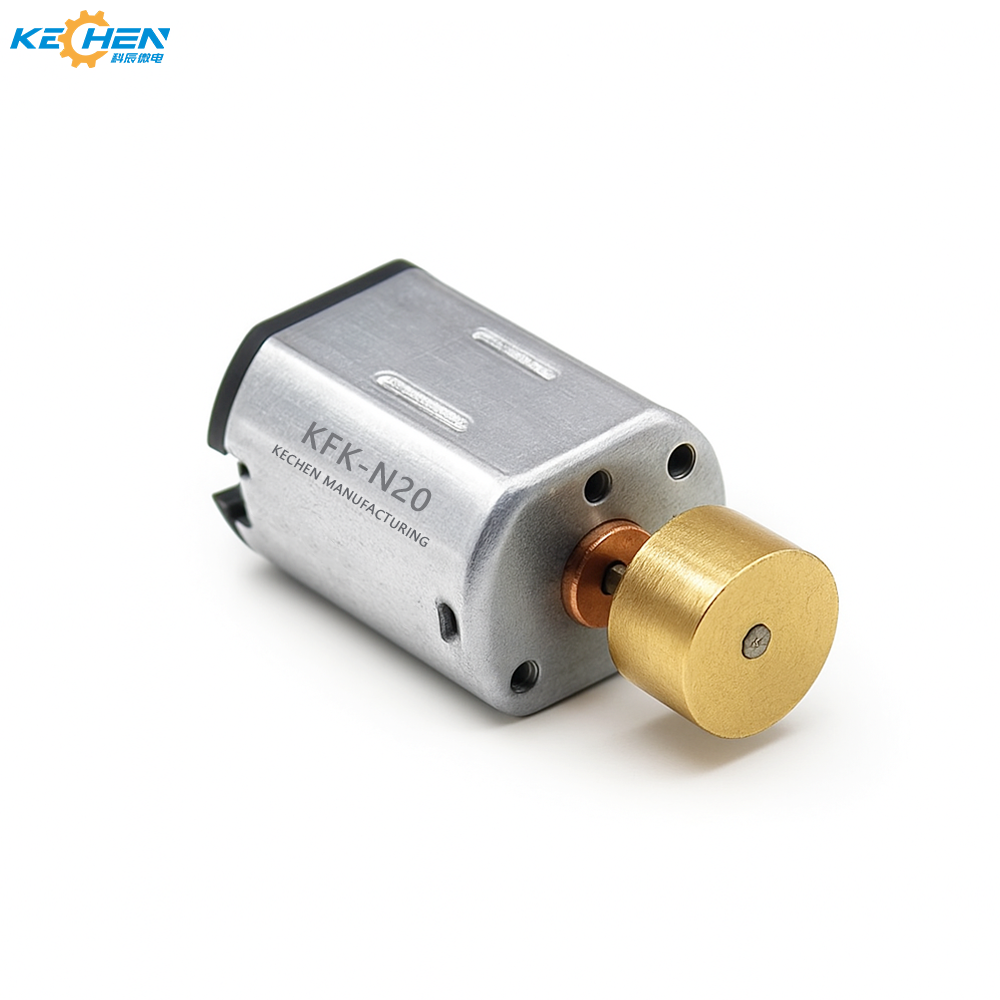

| N20 DC Vibration Motor Specifications | |
|---|---|
| Operating voltage | 3V–12V DC |
| No-load current | 60–120 mA (3V) / 50–90 mA (6V) |
| No-load speed | 6500–15000 RPM |
| Stalled rotor current | 450–900 mA (3V) / 250–600 mA (6V) |
| Eccentric block diameter | 6–8 mm is commonly used |
| Vibration acceleration | 0.8–1.5 g (depending on eccentric block size and voltage) |
| Vibration intensity | moderate to strong vibration |
| Noise | ≤ 50–60 dB (at 10 cm) |
| Lifespan | 100–300 hours |
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain.
Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
