KECHEN MOTOR High-Performance 030 Series Small 16mm Diameter Vibration Motors 1.5V-24V DC for Massager & Beauty Instrument

Product Description

Products Description

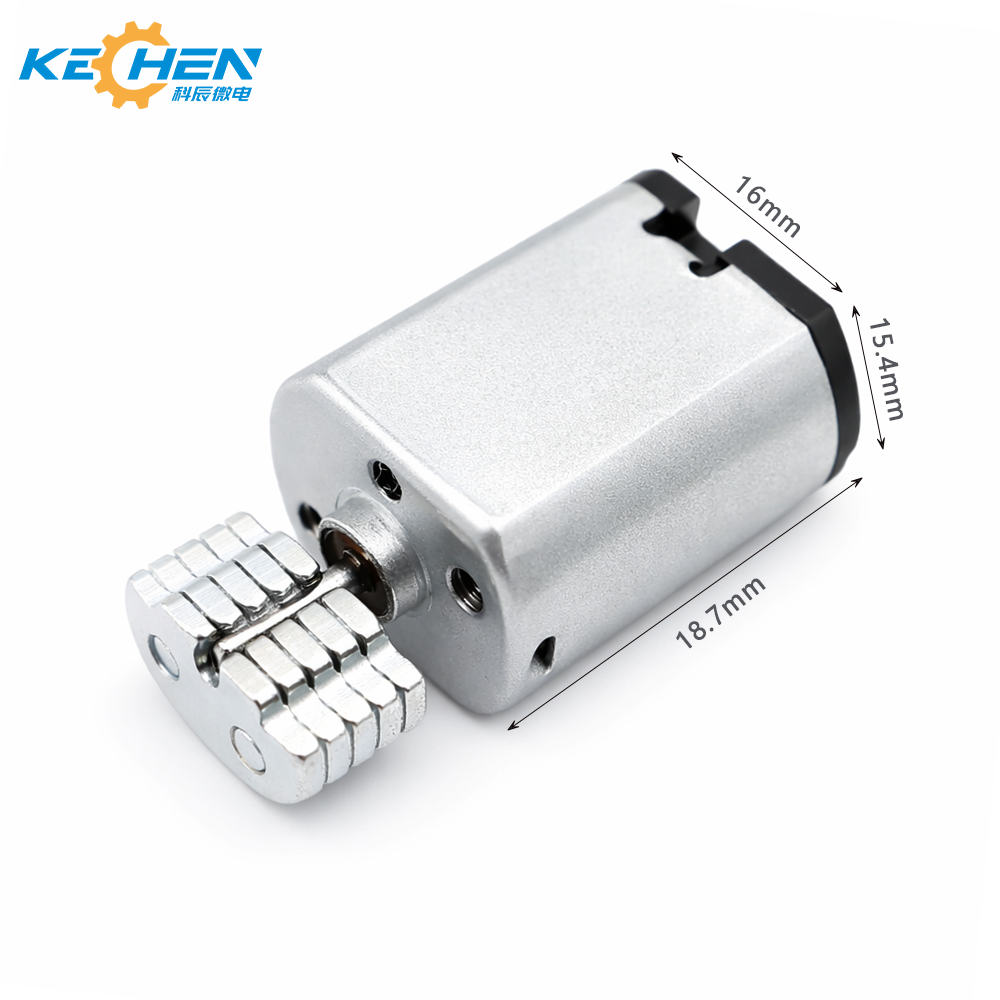

030 Carbon Brushed Micro DC Motor Specifications
030 Carbon Brushed Micro DC Motor
  • Model KC-030PA
  • Motor Type Brushed DC Motor
  • Voltage Range 1.5V-12VDC
  • Speed 2500rpm-35000rpm
  • Torque 2g.cm-15g.cm
  • Shaft OD Φ1.5mm
  • Rotation Direction CW / CCW
  • Bearing Bushing
  • Typical Applications RC toys, electric lock, smart home electronics, E-toothbrush, Massager, beauty instrument

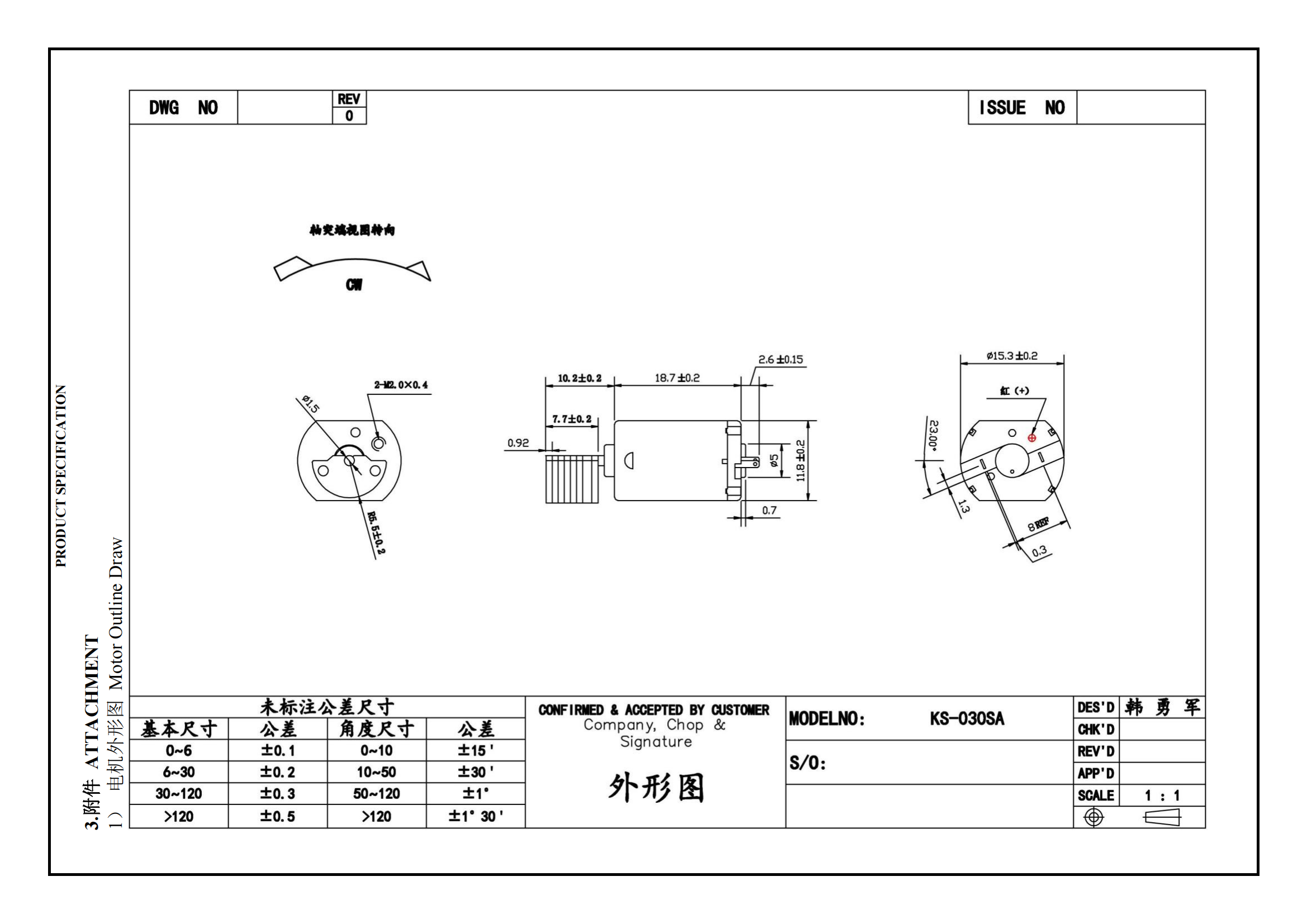

Product Technical Dimensions

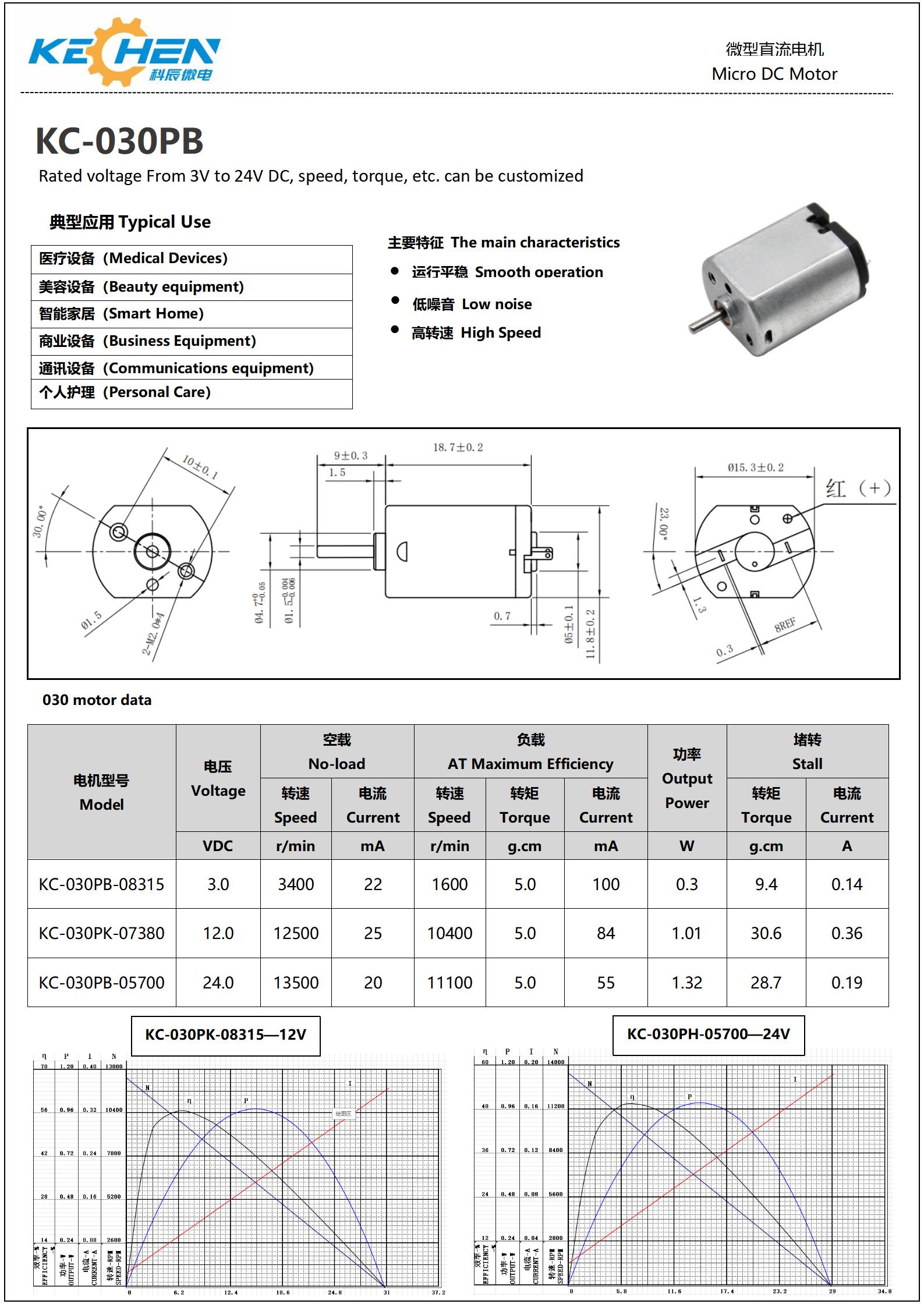

Product Performance Graph

Recommend Products

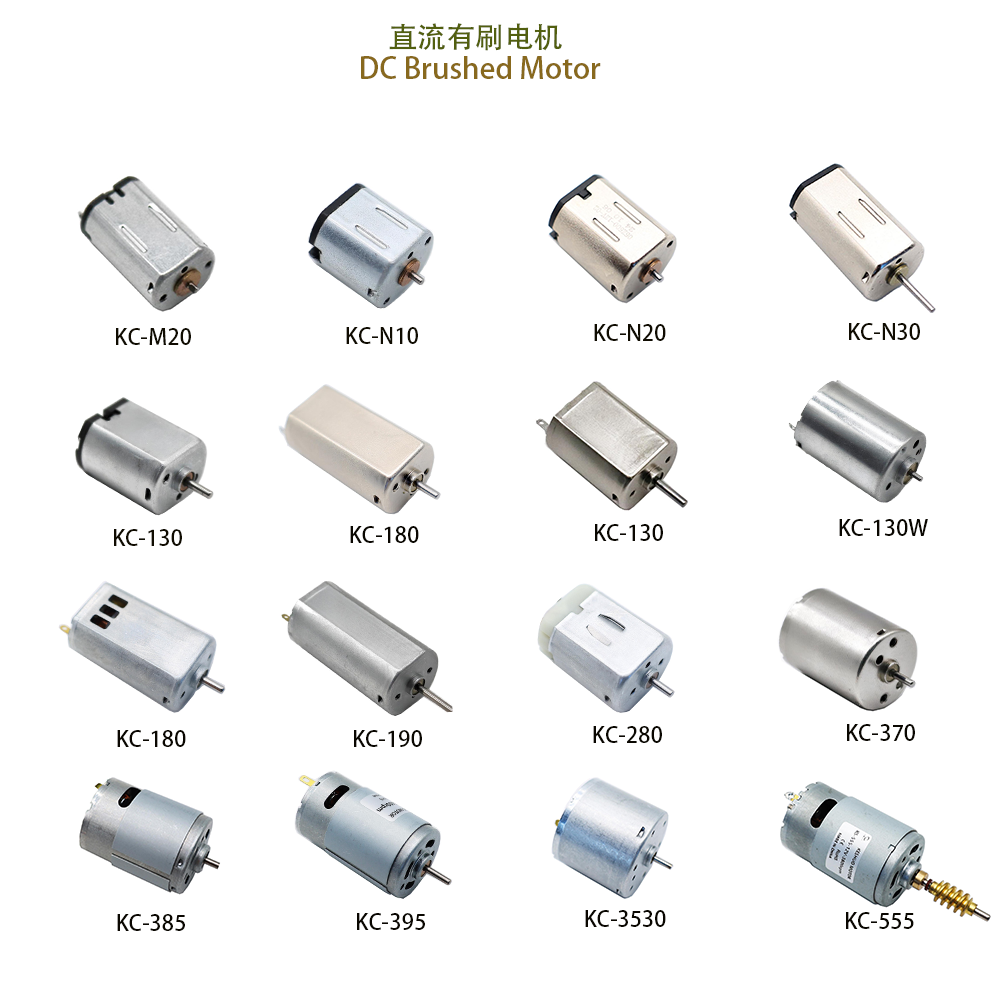

Recommended Product Alternative 1
Recommended Product Alternative 2

Motor raw materials

High Quality Motor Raw Materials

Production Equipment

Advanced Production Equipment 1
Advanced Production Equipment 2
Advanced Production Equipment 3

Company Profile

We are a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Manufacturing Workshop Facility

Certifications

Quality Standard Certifications

Application Scenario

Application Scenario Overview
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market Share Map
Export Statistics Distribution
Global Shipping Banner

Frequently Asked Questions

What are the typical applications for the 030 carbon brushed micro DC motor?
This motor is widely used in RC toys, electric smart locks, smart home electronics, electric toothbrushes, beauty instruments, personal massagers, and other micro-sized electronic gadgets.
What is the operating voltage range for this brushed DC motor?
The operating voltage ranges from 1.5V DC up to 12V DC, which makes it highly adaptable to various portable battery-operated systems.
What are the speed and torque ratings for model KC-030PA?
The motor features a speed range from 2,500 rpm up to 35,000 rpm, and a torque rating ranging from 2 g.cm to 15 g.cm, depending on the configured operating voltage and load.
Does the motor support reversible rotation?
Yes, it supports both Clockwise (CW) and Counter-Clockwise (CCW) rotation directions, which can be easily switched by reversing the input polarity.
What types of bearings and shafts are used in this product?
The motor is built with a standard high-durability bushing bearing and a shaft outer diameter (OD) of Φ1.5mm.
What other customized micro motor models do you offer?
In addition to brushed DC motors, we design and supply stepper motors, reduction motors, planetary reduction motors, and brushless micro motors suited for diverse industrial and consumer product applications.
