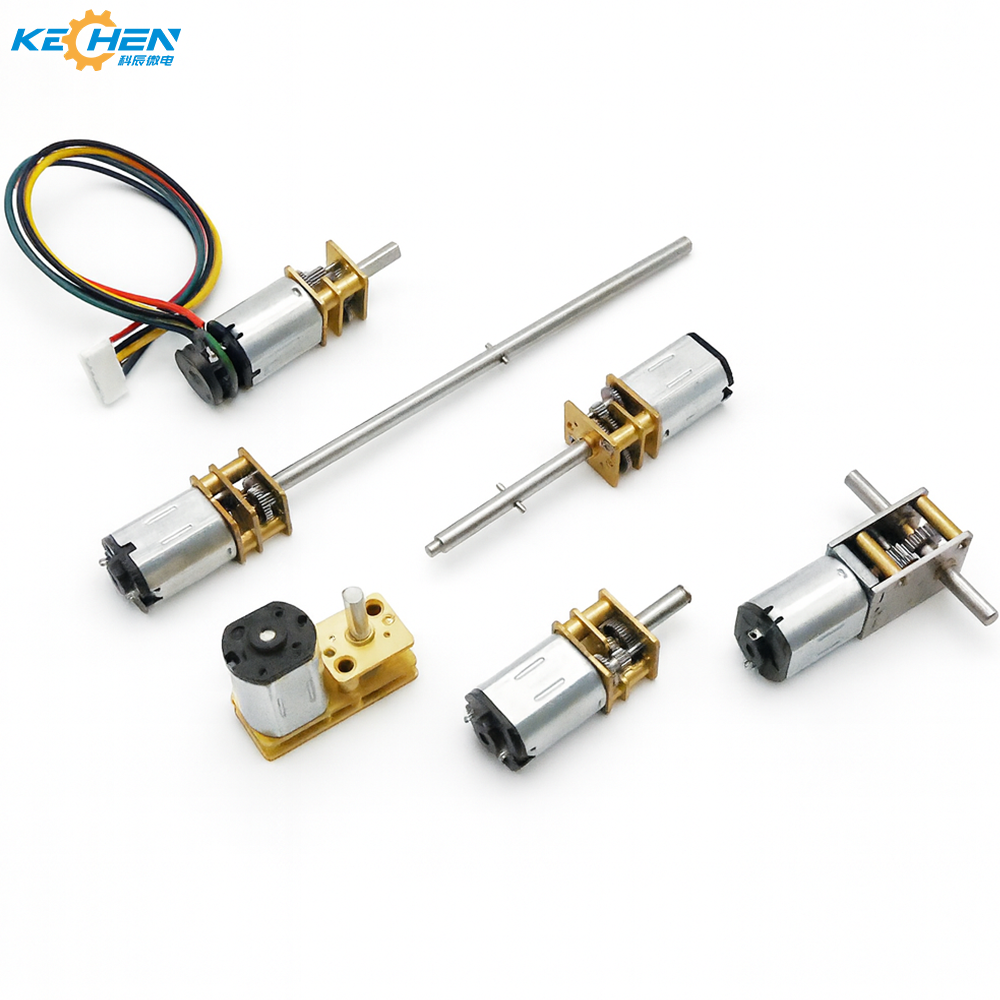

N20 12mm 12V Brush Permanent Magnet Worm Gear Motor Dual Shaft Mini DC High Torque Reversible Turbo Geared Smart Home Appliance

Products Description

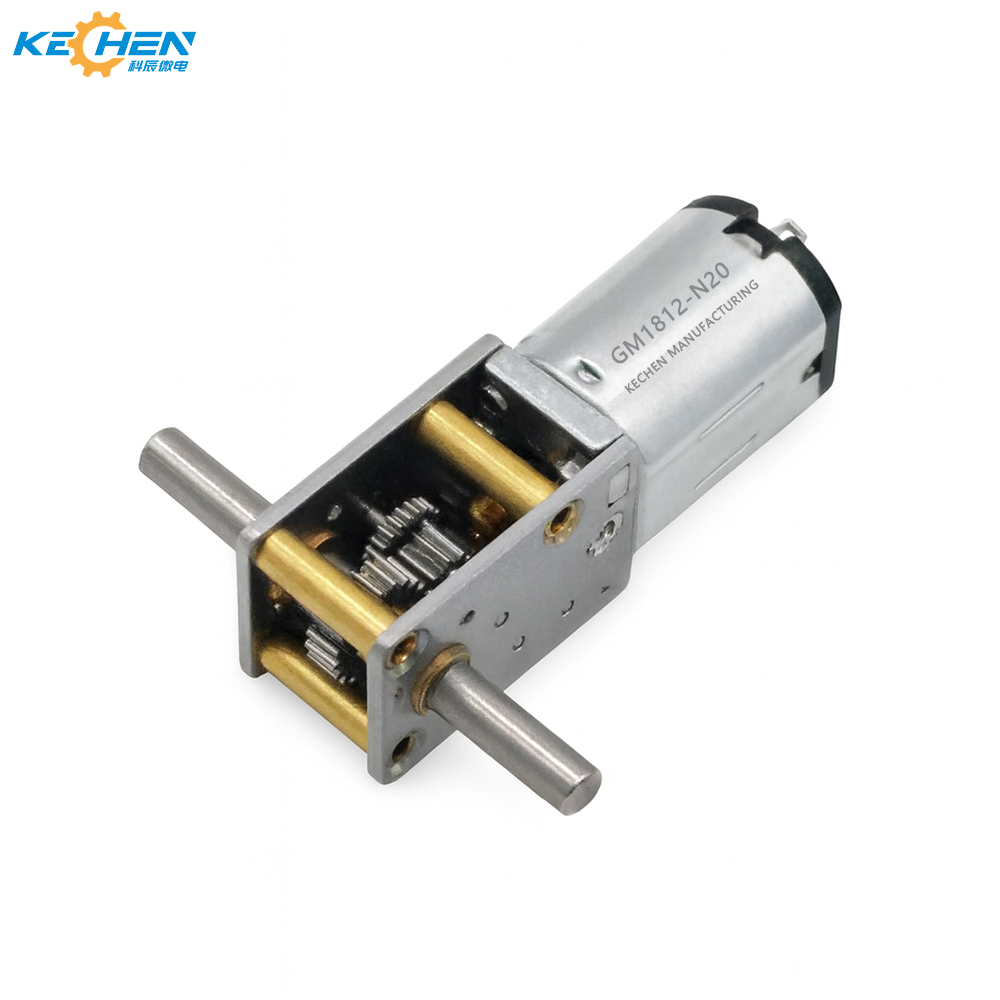

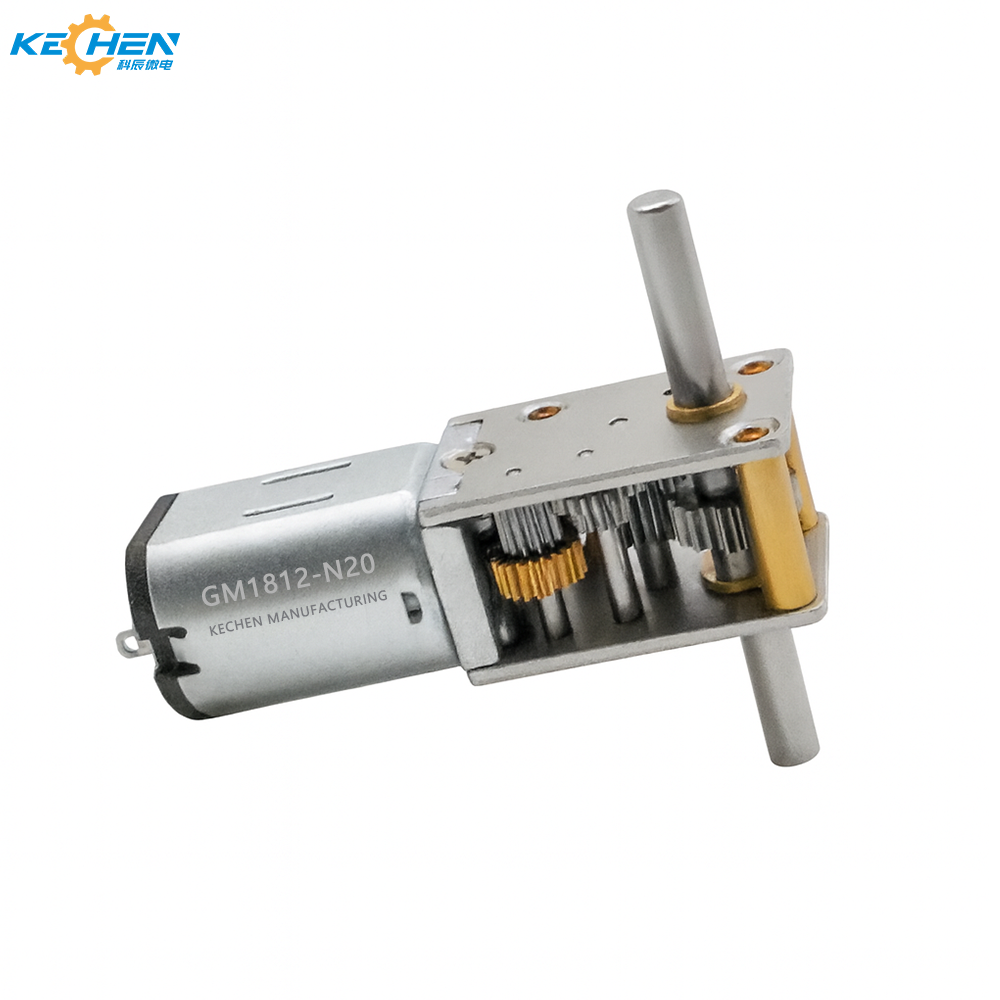

GM1812-N20 dc right angle worm geargearmotor

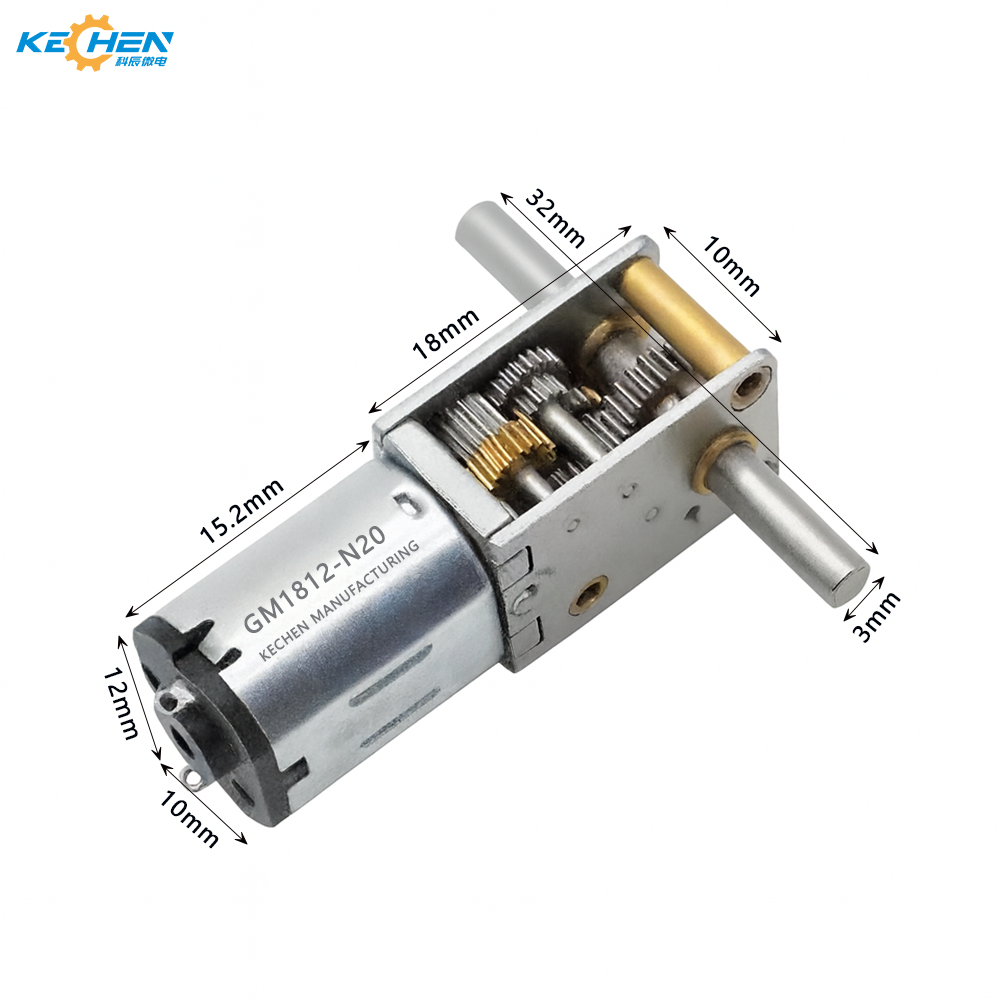

Motor diameter	12mm
Rated Voltage	3V-12V
Rated Torque	Max. 3 kgf-cm
Shaft	right angle 90°driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom
Shaft type	Dual output shaft

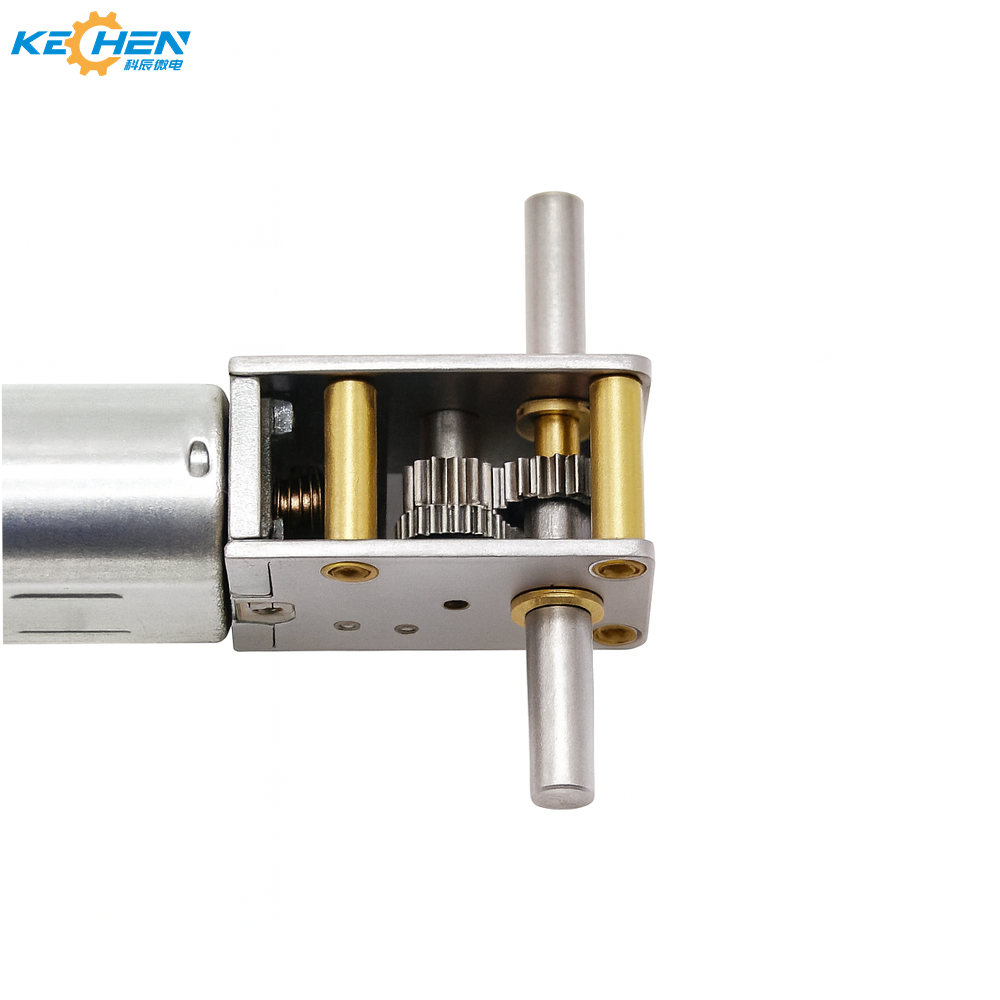

Structure	N20 motor integrated with compact metal worm gearbox
Gearbox	metal worm gear reducer
Commutation	Carbon brush/precious metal brush
Encoder	3ppr, 7ppr, 12ppr

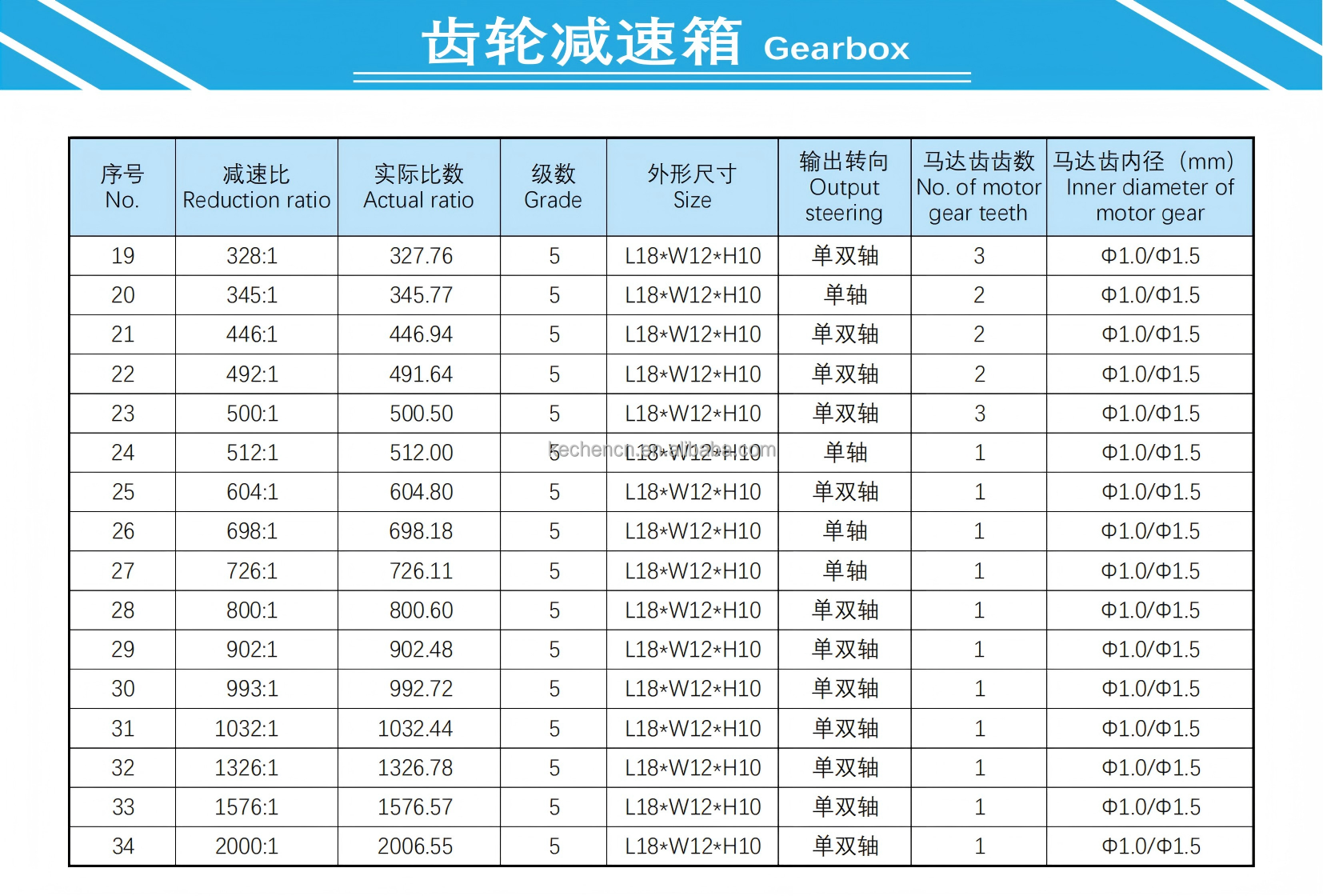

Reduction ratio	42:1, 118:1, 236:1, 302:1, 603:1, 1016:1
Construction	Permanent Magnet iron cored motor
MOQ	100 pcs

Gearbox with motor Data

GM1812-N20-11135-3.0V

Parameter	42	80	105	121	158	230	302	346	453
Length (mm)	10	10	10	10	10	10	10	10	10
No-load speed (rpm)	267	140	107	93	71	49	37	32	25
Rated speed (rpm)	229	120	91	79	61	42	32	28	21
Rated torque (kg.cm)	0.05	0.10	0.13	0.15	0.19	0.23	0.30	0.35	0.45
Stalling Torque (kg.cm)	0.35	0.67	0.88	1.02	1.33	1.61	2.11	2.42	3.17

GM1812-N20-05600-12.0V

Parameter	105	121	158	230	302	346	453	692	906
Length (mm)	10	10	10	10	10	10	10	10	10
No-load speed (rpm)	219	190	146	100	76	66	51	33	25
Rated speed (rpm)	198	172	132	90	69	60	46	30	23
Rated torque (kg.cm)	0.13	0.15	0.19	0.23	0.30	0.35	0.45	0.69	0.91
Stalling Torque (kg.cm)	1.32	1.52	1.98	2.40	3.16	3.62	4.74	7.23	9.47

GM1812-N20 DC Geared Motor—Applications

1. Smart Home Devices

Smart Door Lock Opening/Closing Drive Smart Curtain/Roller Blind Drive Automatic Aroma Diffuser Smart Camera Rotation Module Automatic Clothes Drying Rack Transmission Mechanism

2. Medical and Health Devices

Portable Nebulizers Insulin/Drug Pumps Internal Transmission Mechanisms for Home Blood Pressure Monitors Automatic Actuators for Medical Testing Equipment

3. Small Robots and Toys

Smart Toy Robot Joint Drives Mini Automatic Line Following Vehicles STEM Maker Education Vehicles Miniature Robotic Arm Actuators

4. Automation and Office Equipment

Vending Machine Dispensing/Opening Mechanisms Miniature Valve Adjustment Devices Miniature Conveyor Mechanism Drives Automatic Card Dispensers

5. Automotive and Security Equipment

Miniature Central Lock Actuators Vehicle Vent Guide Vane Adjustment Miniature Camera Angle Adjustment Module

Recommend Products

Motor raw materials

Production Equipment

Company Profile

Certifications

Application Scenario

Global Market Distribution

FAQ

How to select a suitable motor?

If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Do you have customized service for your standard motors?

Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Can I have samples for testing first?

Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

How do you make sure motor quality?

We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

What's your lead time?

Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.

What's the minimum order quantity?

Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.
