Brea Tech Micro Motor
1 / 5
| Motor type | PM stepper gear motor |

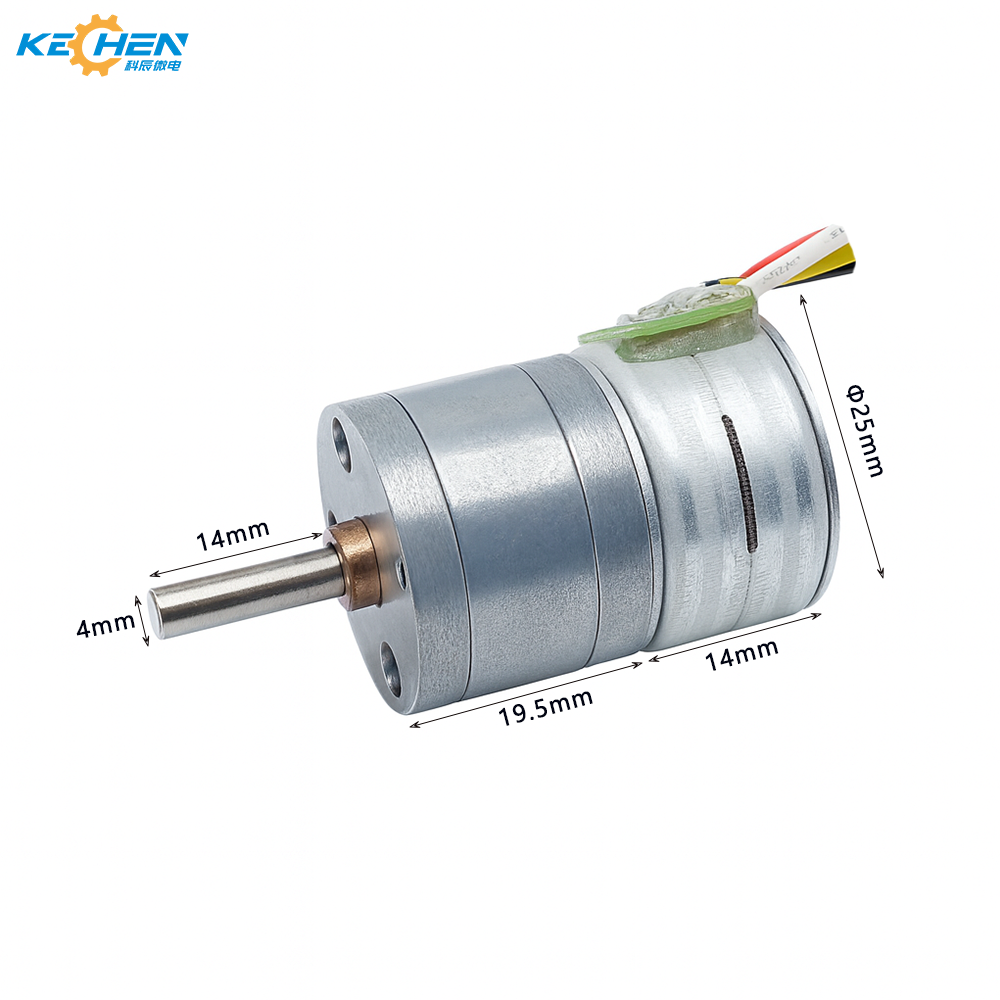

| Motor diameter | 25mm |
| Shaft diameter | 4mm |
| Rated Voltage | 5V-12V |
| gear ratio | 4.4 : 1/9.3 : 1/15 : 1/20 : 1/34 : 1/44.9 : 1/57 : 1/74.8 : 1/98.8 : 1/125 : 1 |
| Phases | 2-phase (4-wire/Bipolar) |
| Step Angle | 7.5° / step |
| Phase Resistance | 10 Ω/20 Ω/30 Ω/40 Ω (±10%) |
| Current per Phase | 200-300 mA |
| Inductance | 7.5 mH/phase |
| Drive Rate / Frequency Range) | 300 PPS – 1300 PPS |
| Max response freq | 1300 PPS |
| Max start freq | 800 PPS |
| Applicable temperature | -10°C ～ +55°C |
| drive mode | Bipolar drive |
| Line sequence | A+A-B+B- |
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
The current manufacturing range includes Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors. Custom specifications can be provided upon request.
If you have motor pictures, technical drawings, or detailed requirements such as voltage, speed, torque, motor dimensions, working mode, life expectancy, and target noise levels, please share them with us to receive a tailored recommendation.
Yes, custom modifications can be made for voltage, speed, torque, and shaft dimensions/shapes. Options for additional cables, connectors, capacitors, or EMC protection are also fully supported.
Yes, individual design solutions can be developed to meet specific client needs. Please note that custom development projects may incur mold and engineering design fees.
Strict inspection procedures are maintained: incoming materials are verified against signed samples and blueprints, and both in-process and final pre-shipment inspections are conducted to ensure product conformity.
Typically, standard products require 25-30 days, while custom designs may take slightly longer. Lead times can be adjusted flexibly based on specific order quantities and requirements.
