| GMP16-030 Planetary Gear Motor Specifications | |
| Model | GMP16-030 |
| Motor diameter | 15.4mm |
| Rated Voltage | 3V, 5V, 6V, 9V, 12V, 24V |
| Rated Torque | Max. 3.5 Kgf-cm |
| Shaft | Φ3mm D-cut 0.5mm, custom |
| Commutation | Carbon brush/Graphite brush |
| Encoder | 3ppr/7ppr/12ppr |
| No-load speed | 10-2500rpm |
| No-load current | 0.08-0.16A |
| Power | 1.6-1.8W |
| Weight | 35g |
| Certificate | ISO9001/ISO13485/IATF16949/CE/REACH/ROHS |
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |

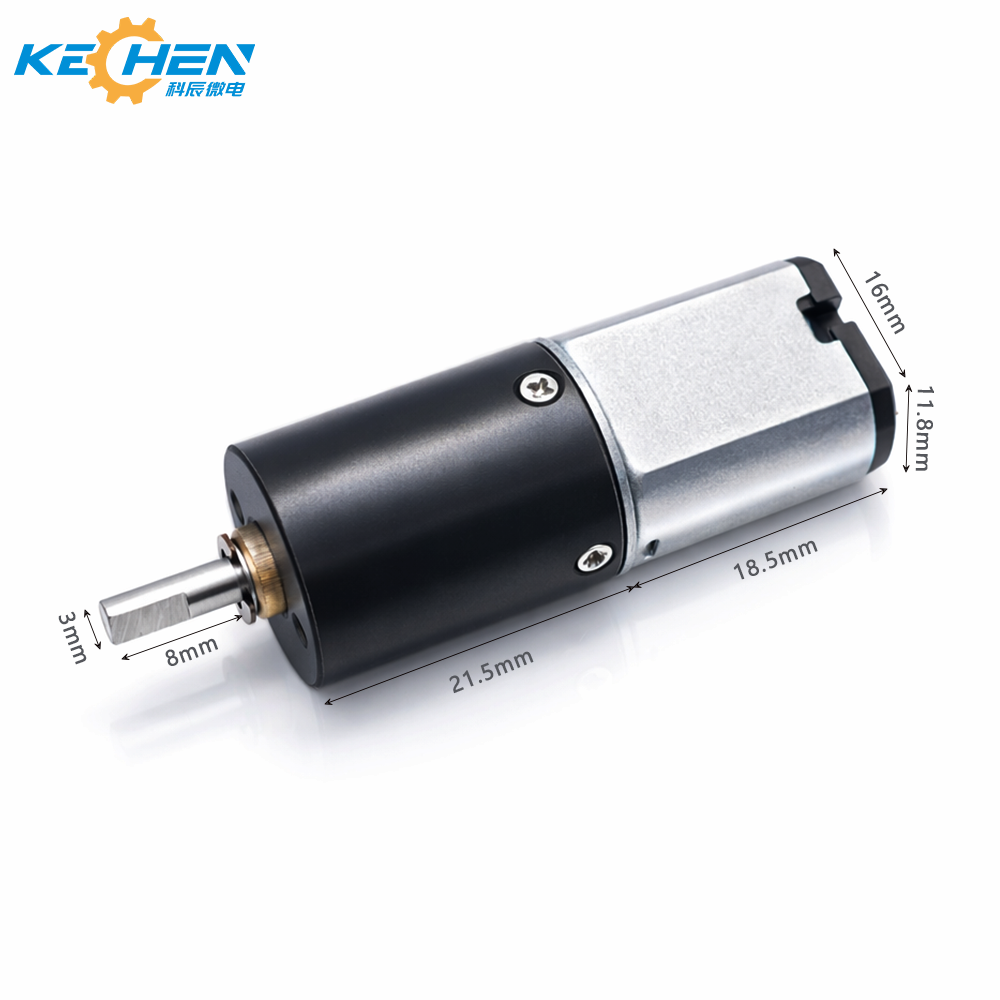

The outer diameter of the GMP16-030 planetary gear motor is 15.4mm, which makes it highly suitable for applications requiring miniature design footprints.
This planetary gear motor supports multiple rated voltage configurations, including 3V, 5V, 6V, 9V, 12V, and 24V.
Yes, while the standard configuration features a Φ3mm D-cut (0.5mm) shaft, we can support custom shaft designs depending on your application requirements.
Yes, this model supports integrated encoders with specifications of 3ppr, 7ppr, or 12ppr, allowing for precise speed and position control.
The planetary gear motor meets rigorous quality standards and is certified for ISO9001, ISO13485, IATF16949, CE, REACH, and ROHS compliance.
