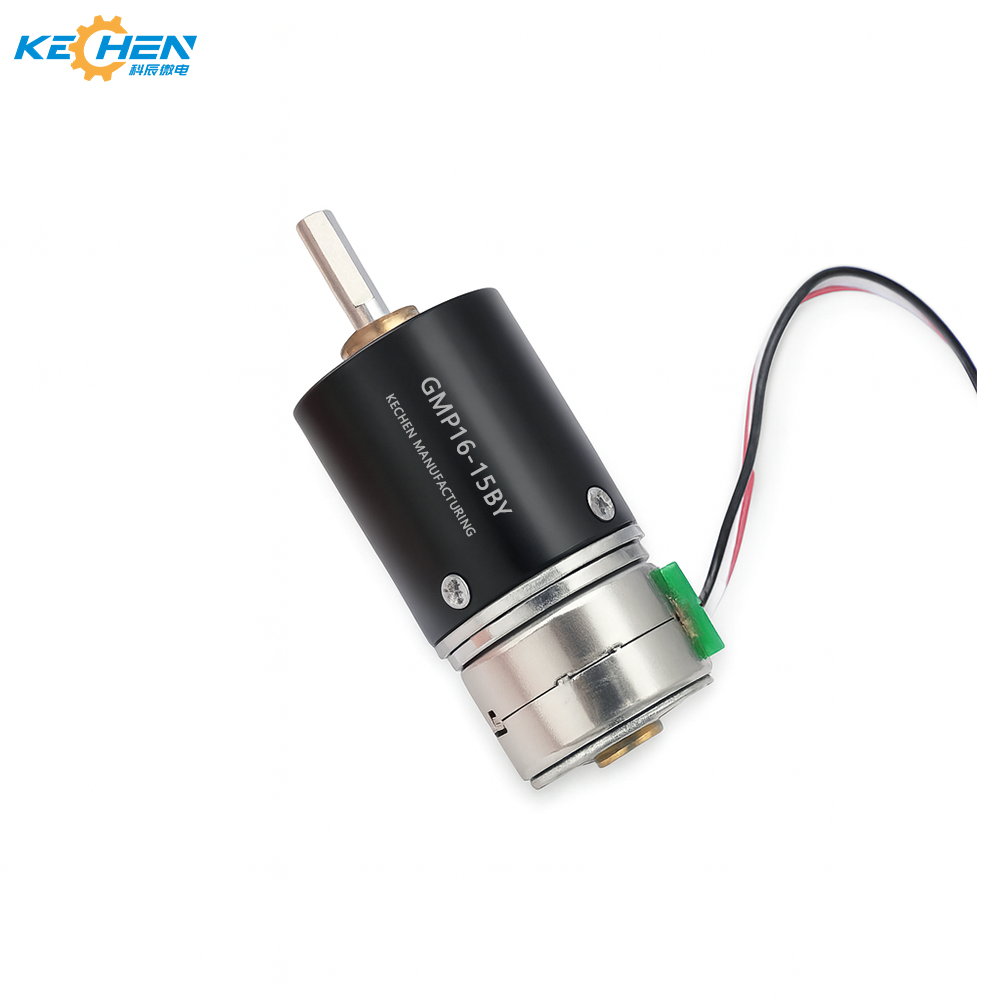

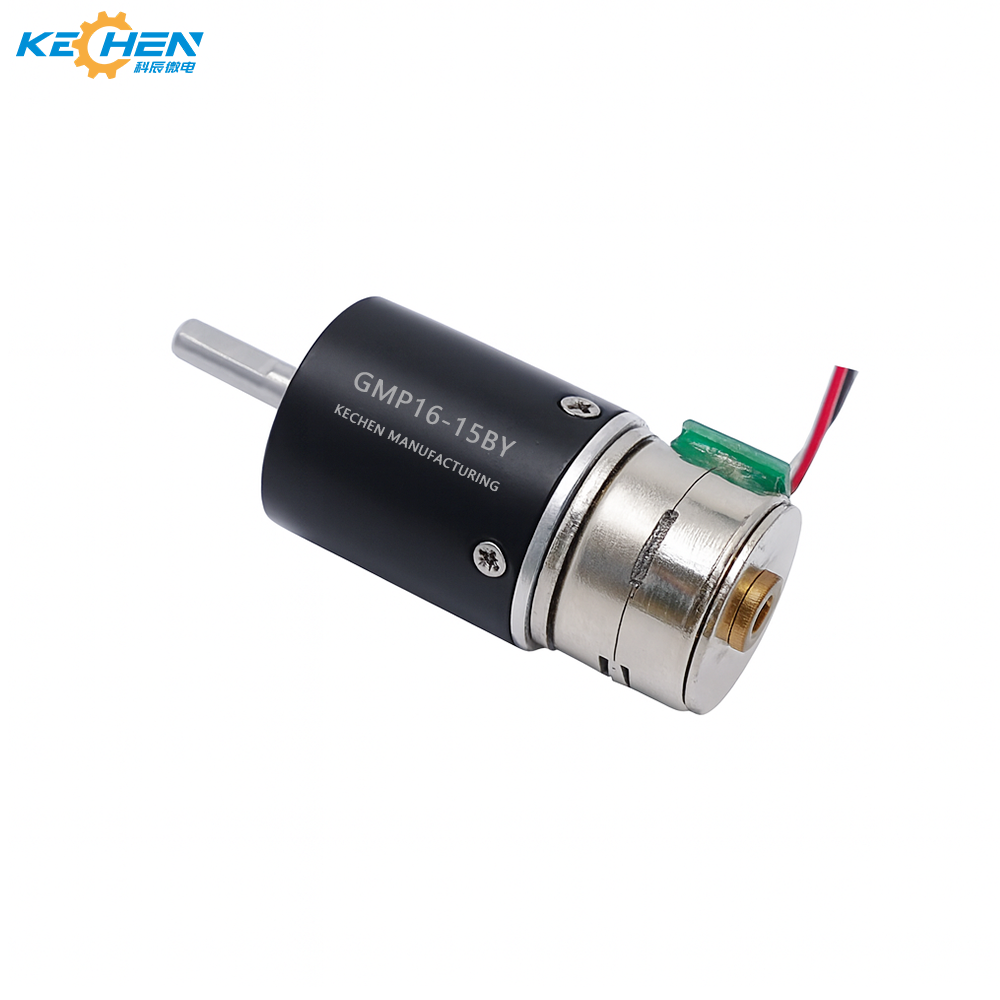

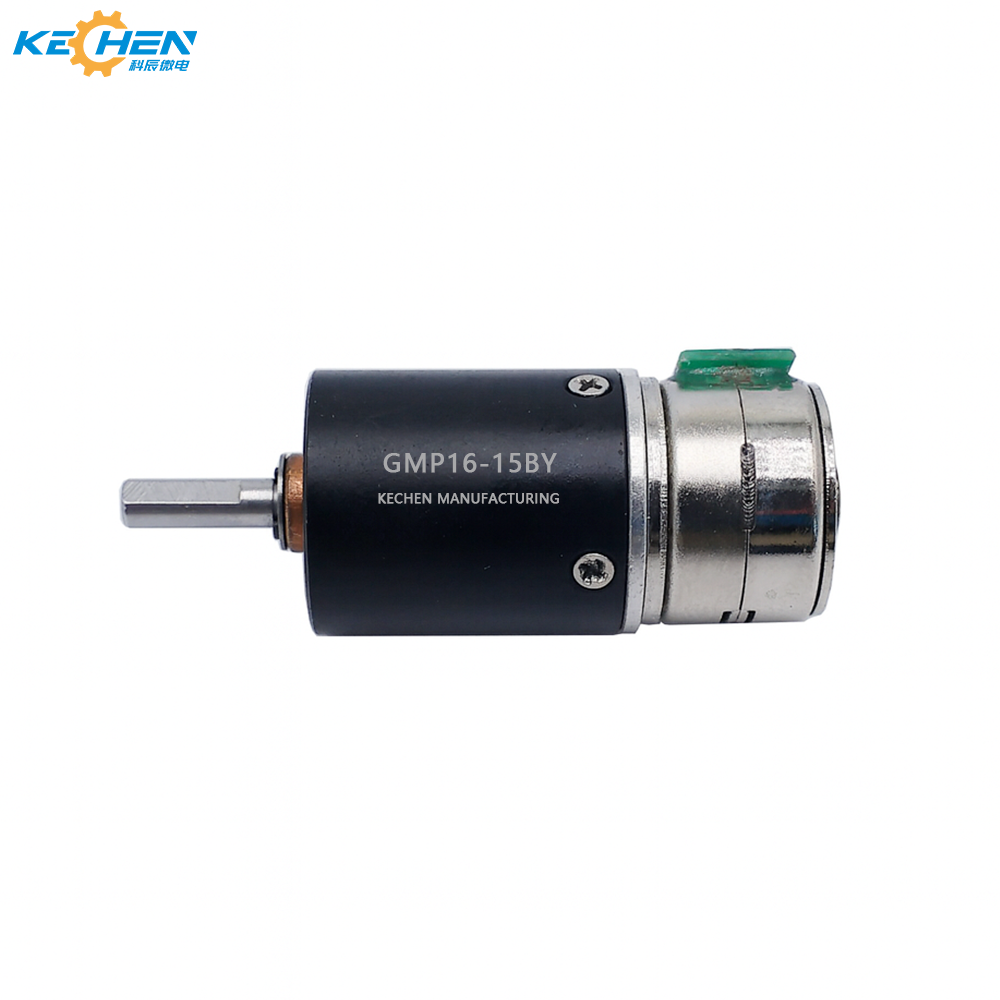

High Quality GMP16-15BY 15mm Planetary Gear Stepper Motor Precise Mini Stepper Gear Motor for Smart Devices

Product Description

Products Description
GMP16-15BY Stepper Motor Specifications
Motor model GMP16-15BY
Motor Type 15.0mm PM Stepper Motor
Motor Dimensions Φ15.0mm x 11mm
Rated Voltage 5.0 V DC
Phases 2-phase, 4-wire
Step Angle 18° / step
Gear Ratio 16:1 / 29:1 / 53:1 / 72:1 / 104:1 / 231:1 / 284:1 / 561:1 / 690:1 / 850:1 / 1014:1
Coil Resistance 10 Ω - 40Ω / phase (±10%)
Pull-out Torque MORE THAN 180g AT 700pps
OPERATING TEMPERATURE RANGE −0 ~ +55 °C
Final Output Step Angle 0.34 °/STEP
Line sequence A+A-B+B-
Terminal model 1.25 / 1.5 / 2.0 / 2.54

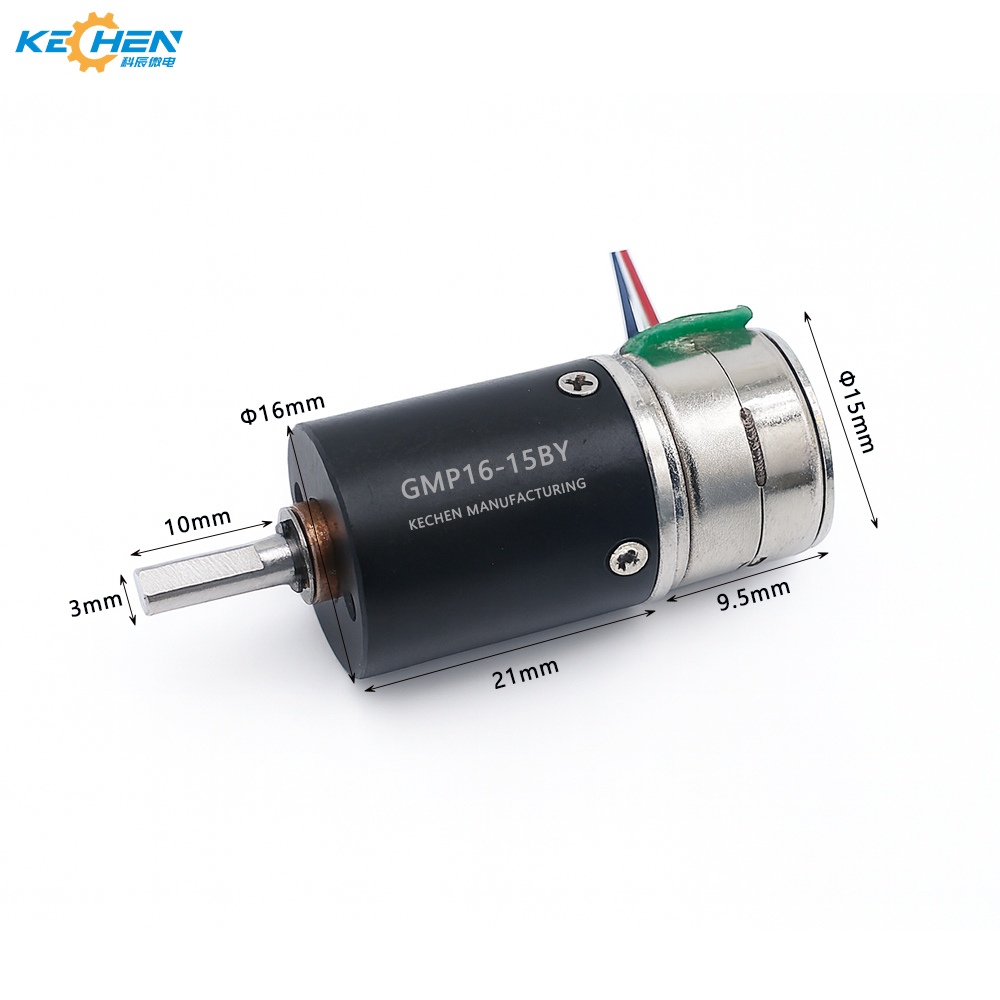

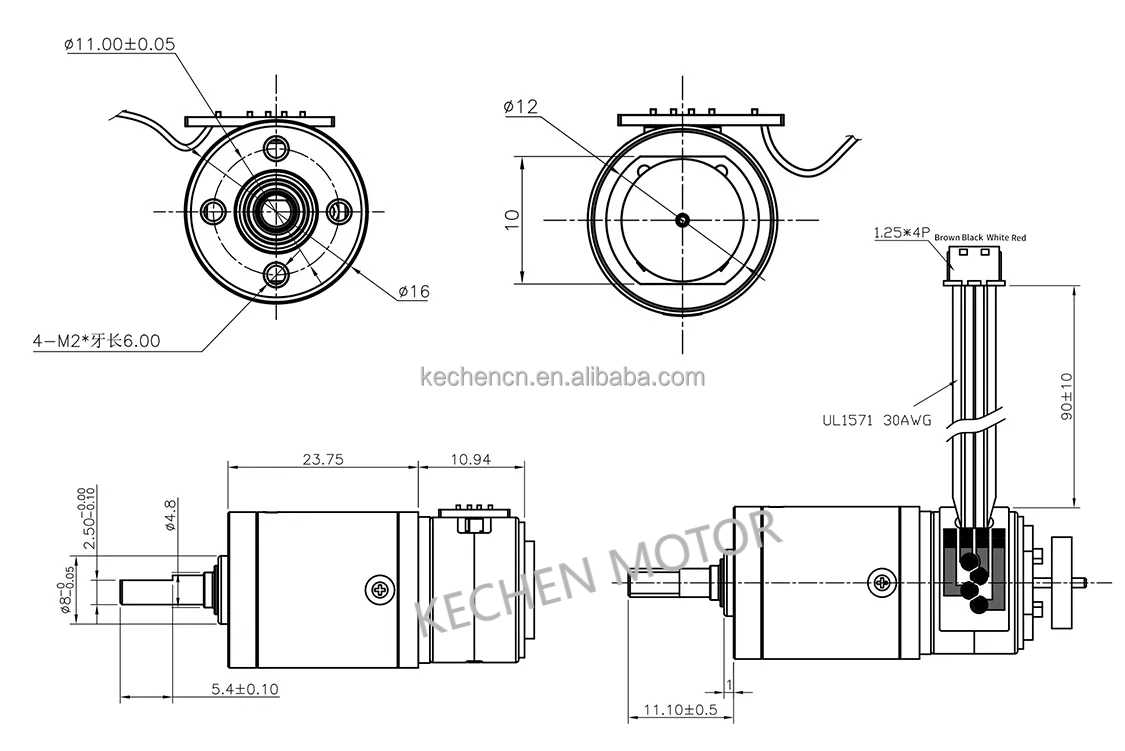

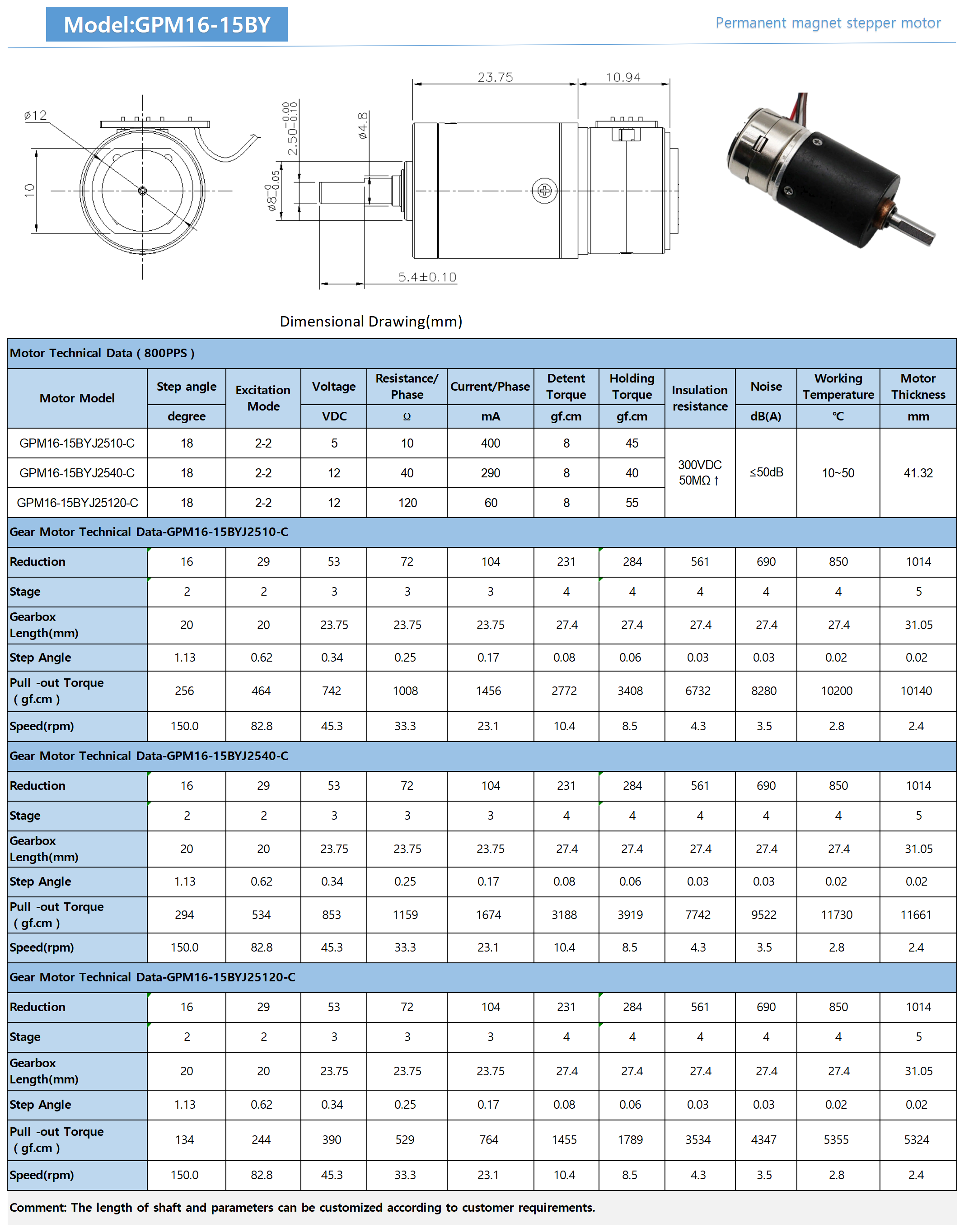

Motor Spec 1 Motor Spec 2 Motor Spec 3 Motor Spec 4
Recommend Products
Recommend Product
Motor raw materials
Motor Raw Materials

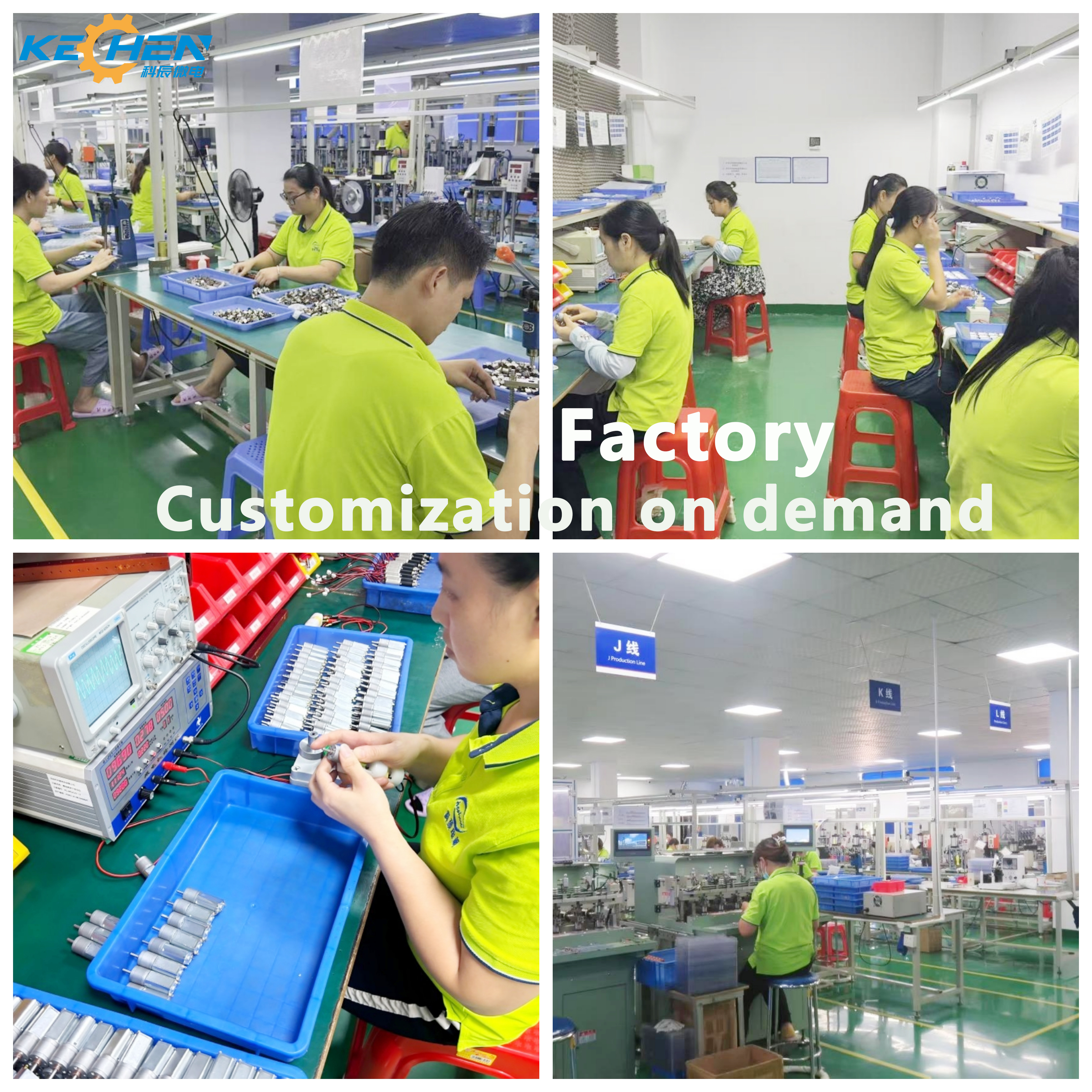

Production Equipment
Production Equipment 1 Production Equipment 2 Production Equipment 3
Company Profile
Our enterprise was established in August 2017. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products of the company include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, the company has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Company Facility 1 Company Facility 2 Company Facility 3
Certifications
Certifications Document
Application Scenario
Application Overview
Industry Category Specific Applications
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market 1 Global Market 2 Global Market 3
Frequently Asked Questions
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend a suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, capacitors or EMC, we can make it too.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirming the required motor specs, we will quote and provide a proforma invoice for samples. Once we receive the payment, we will proceed with the samples accordingly.
Q: How do you make sure of motor quality?
A: We have our own inspection procedures: for incoming materials, we check against signed samples and drawings to ensure quality; for the production process, we conduct in-process tour inspections and a final inspection to guarantee qualified products before shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard products require 25-30 days, and slightly longer for customized products. We are very flexible with the lead time depending on the specific orders.
Q: What certifications do you have?
A: We currently hold CE, ROSH, ISO13485, IATF16949, and REACH certifications.
