| GMP24-25BY Stepper Motor Specifications | |
|---|---|
| Motor model | GMP24-25BY |
| Motor Type | 25mm PM Stepper Motor |

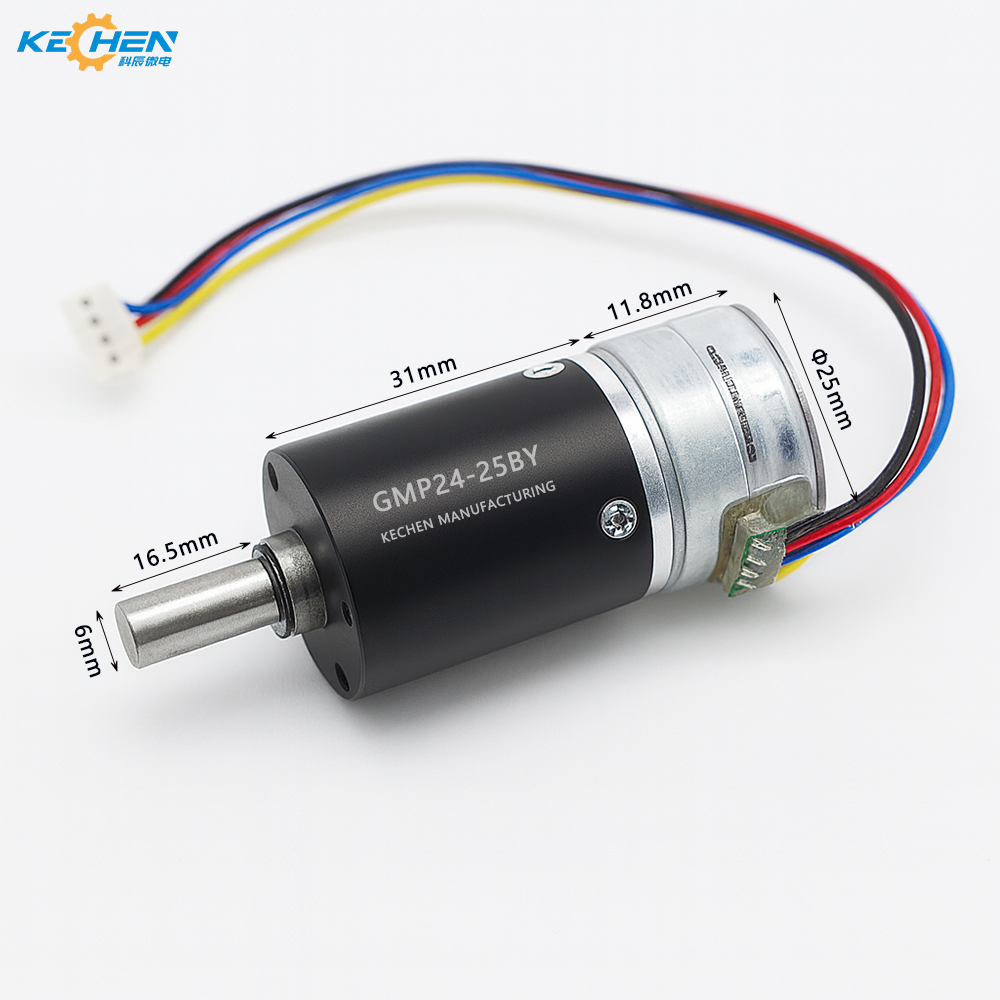

| Motor Dimensions | Φ25mm x 11.8mm |
| Rated Voltage | 5.0 V/12.0 DC |
| Phases | 2-phase, 4-wire |
| Step Angle | 7.5° / step |
| Gear Ratio | 4:1/16:1/20:1/22:1/27.5:1/64:1/80:1/88:1/100:1/5125:1/138:1/151:1/256:1/320:1/352:1/400:1/500:1/550:1/625:1/688:1/756:1/832:1 |
| Coil Resistance | 10 Ω-40 Ω/phase (±10%) |
| OPERATING TEMPERATURE RANGE | -0 ~ +55 °C |
| Line sequence | A+A-B+B- |
| Terminal model | 1.25/1.5/2.0/2.54 |
| Encoder | 3ppr/7ppr/12ppr |
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
