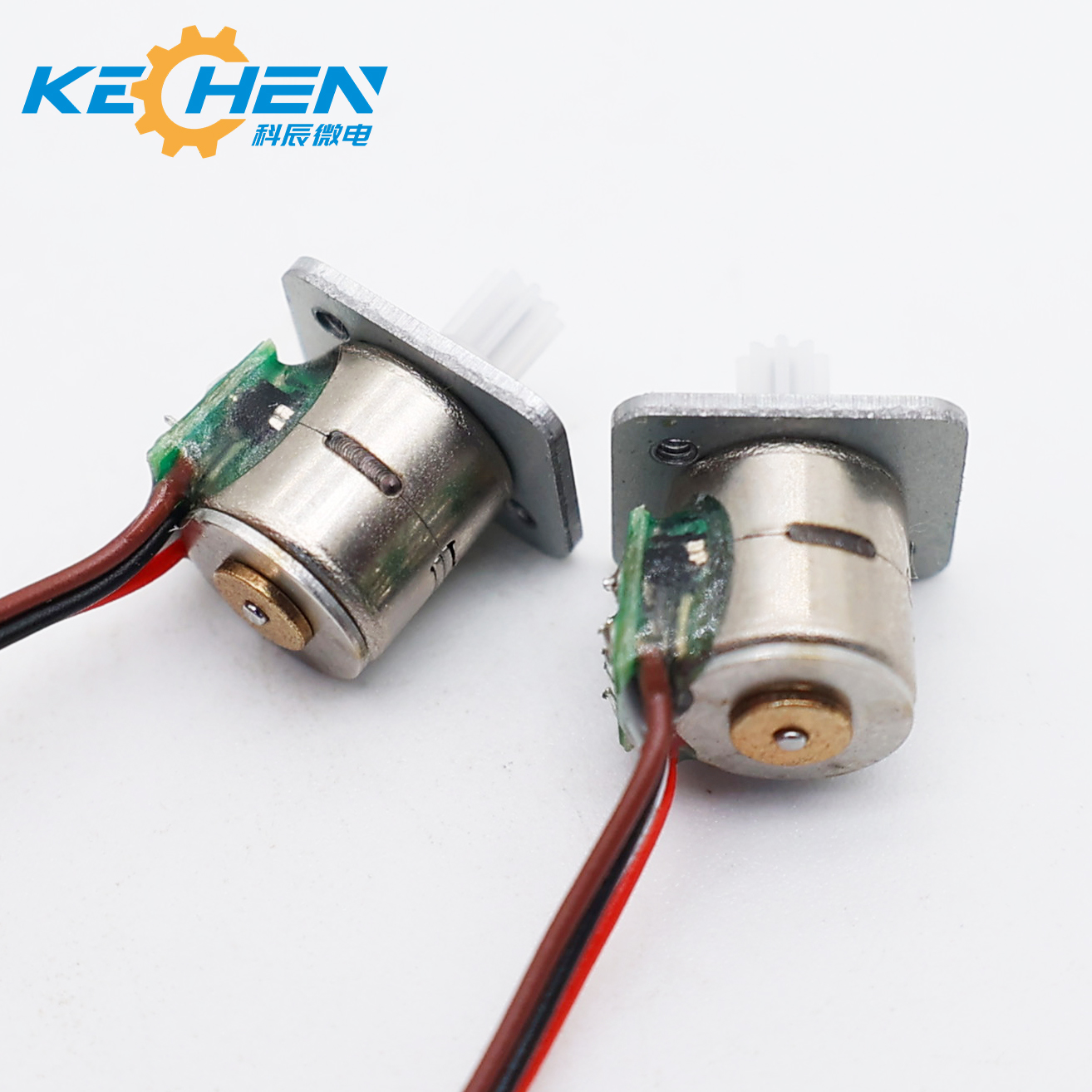

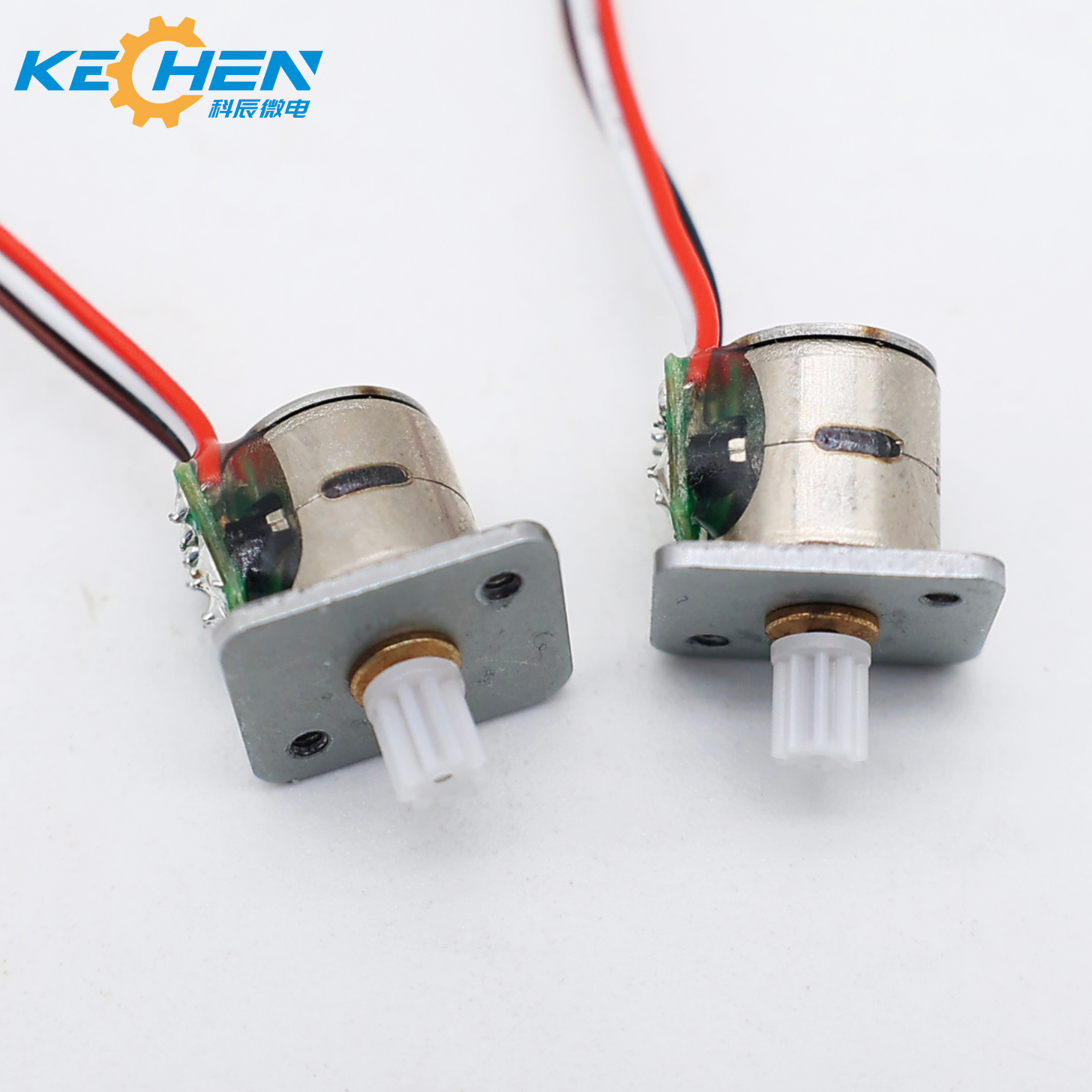

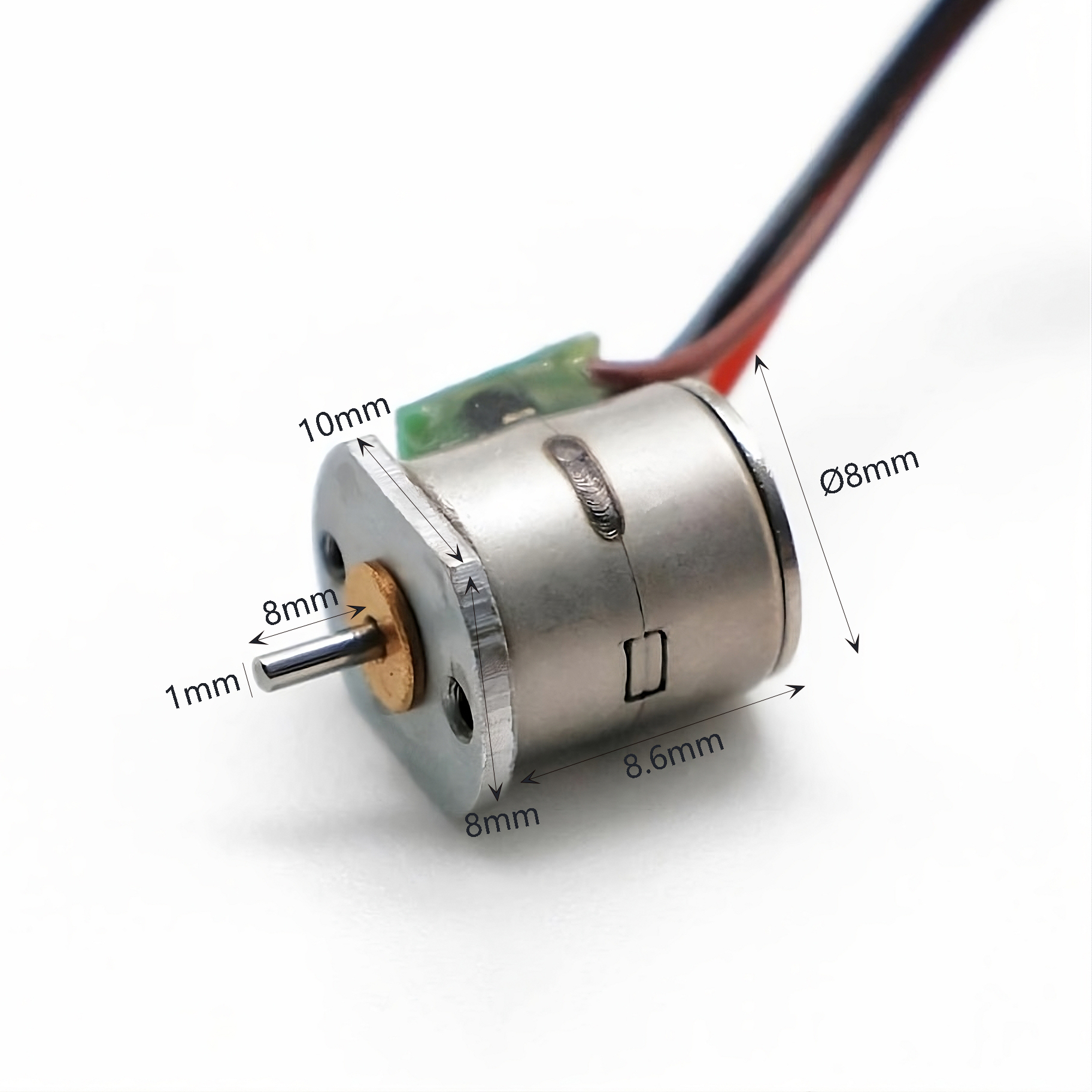

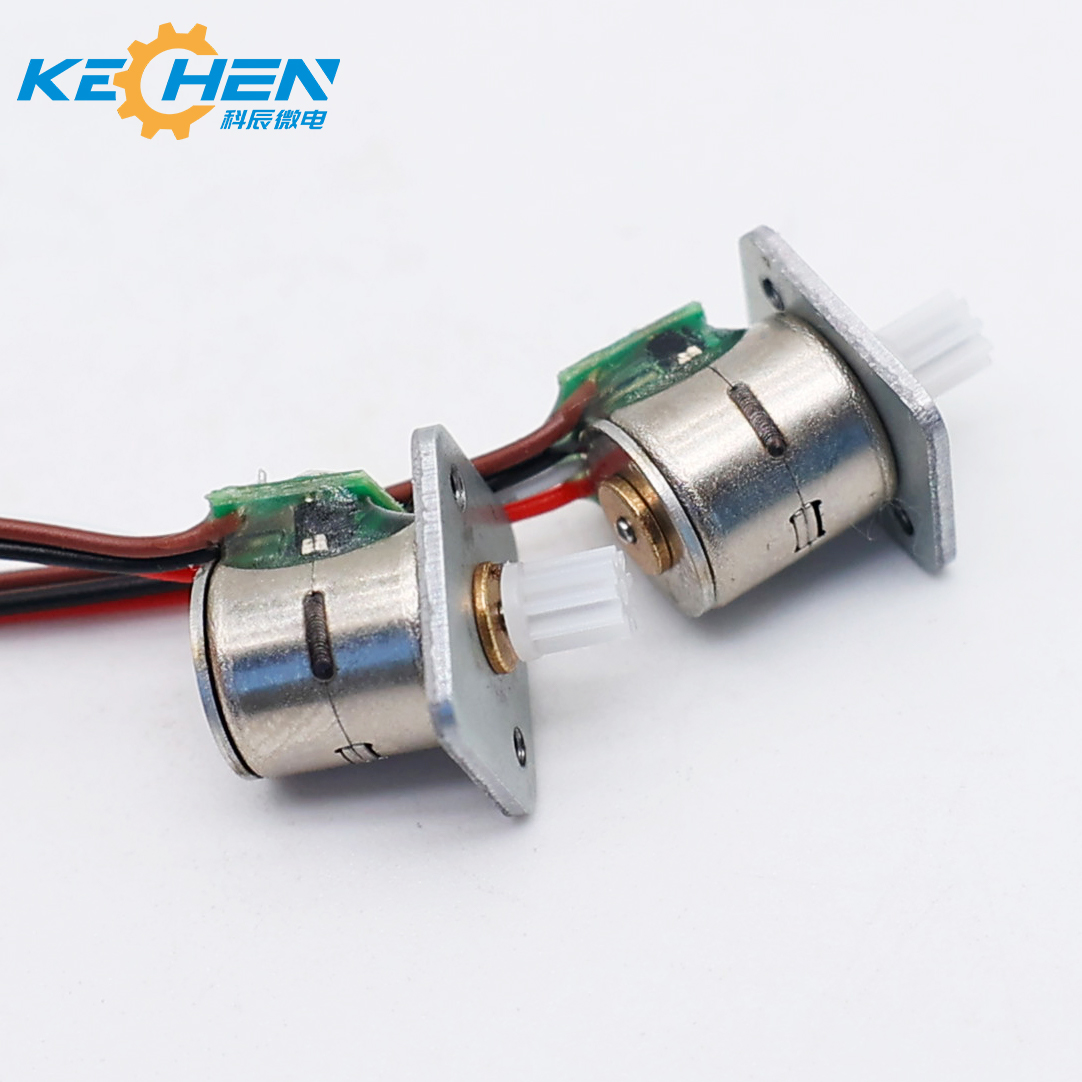

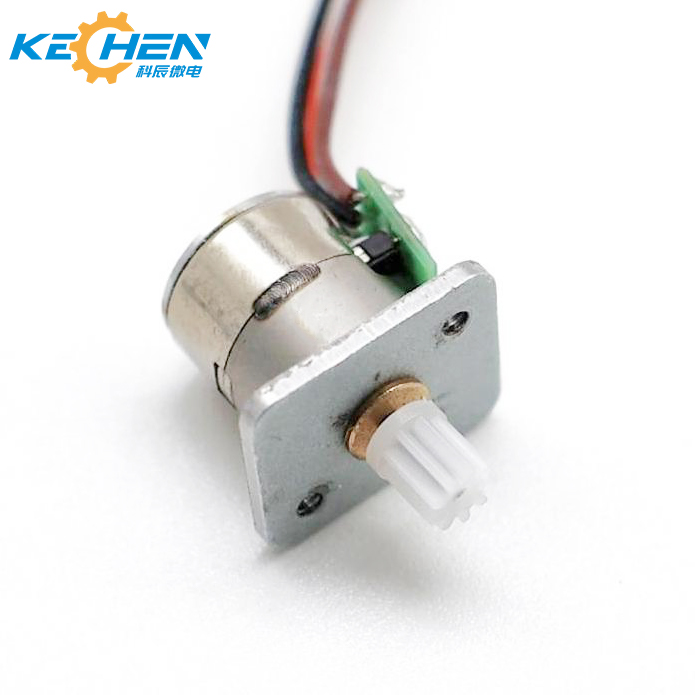

8mm Mini Stepper Motor 3.7v 5v with Plastic Gear ISO 13485 Quality Management System Type Permanent Magnet

Product Description

Products Description

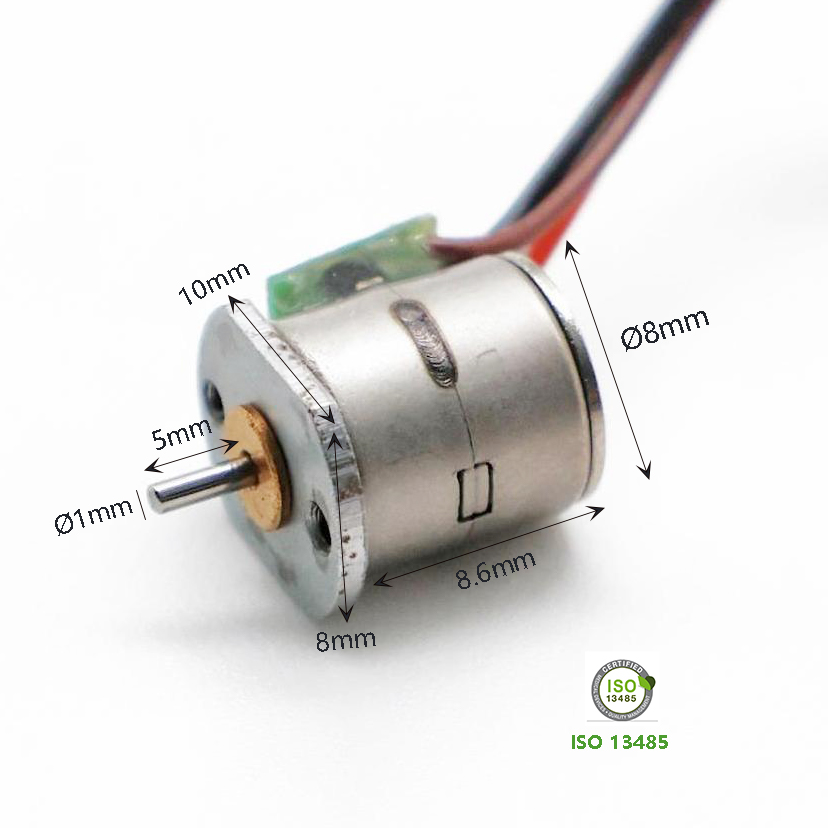

Product View 1

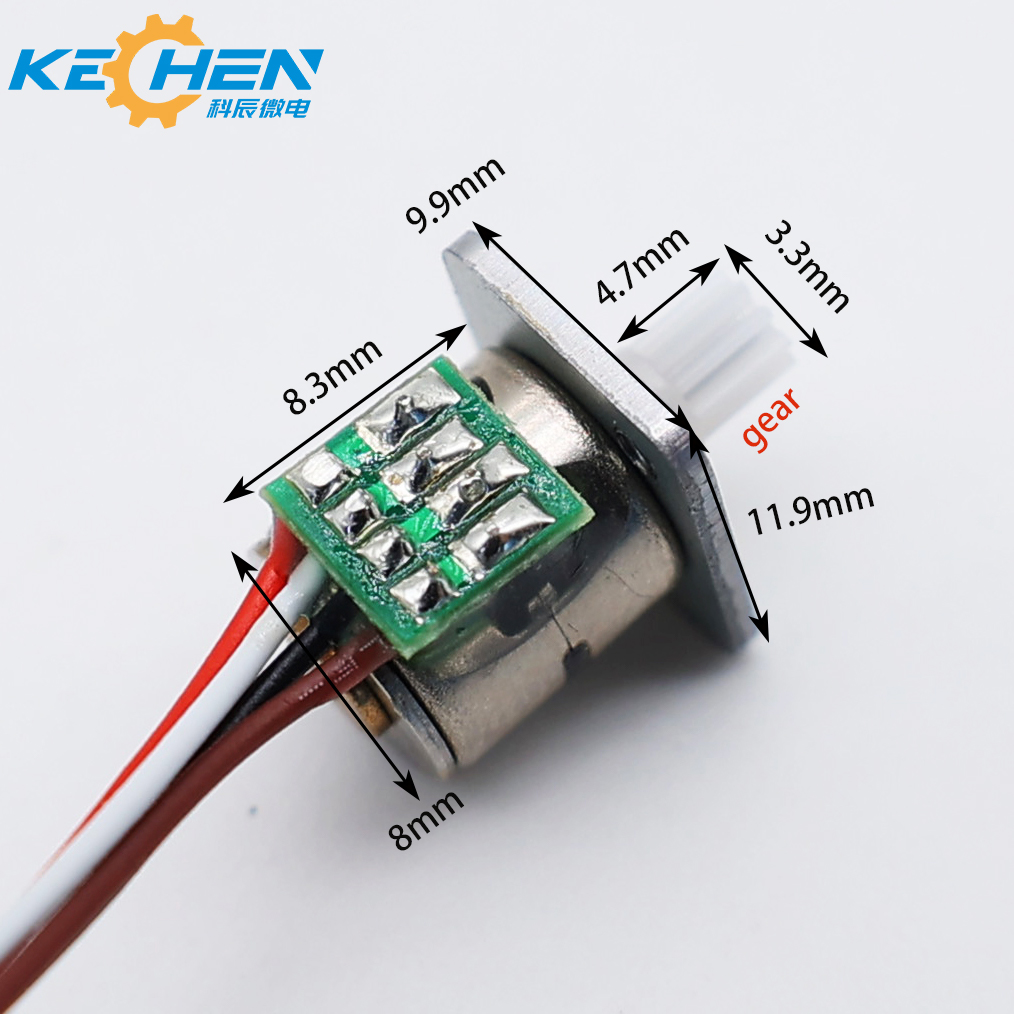

Product View 2

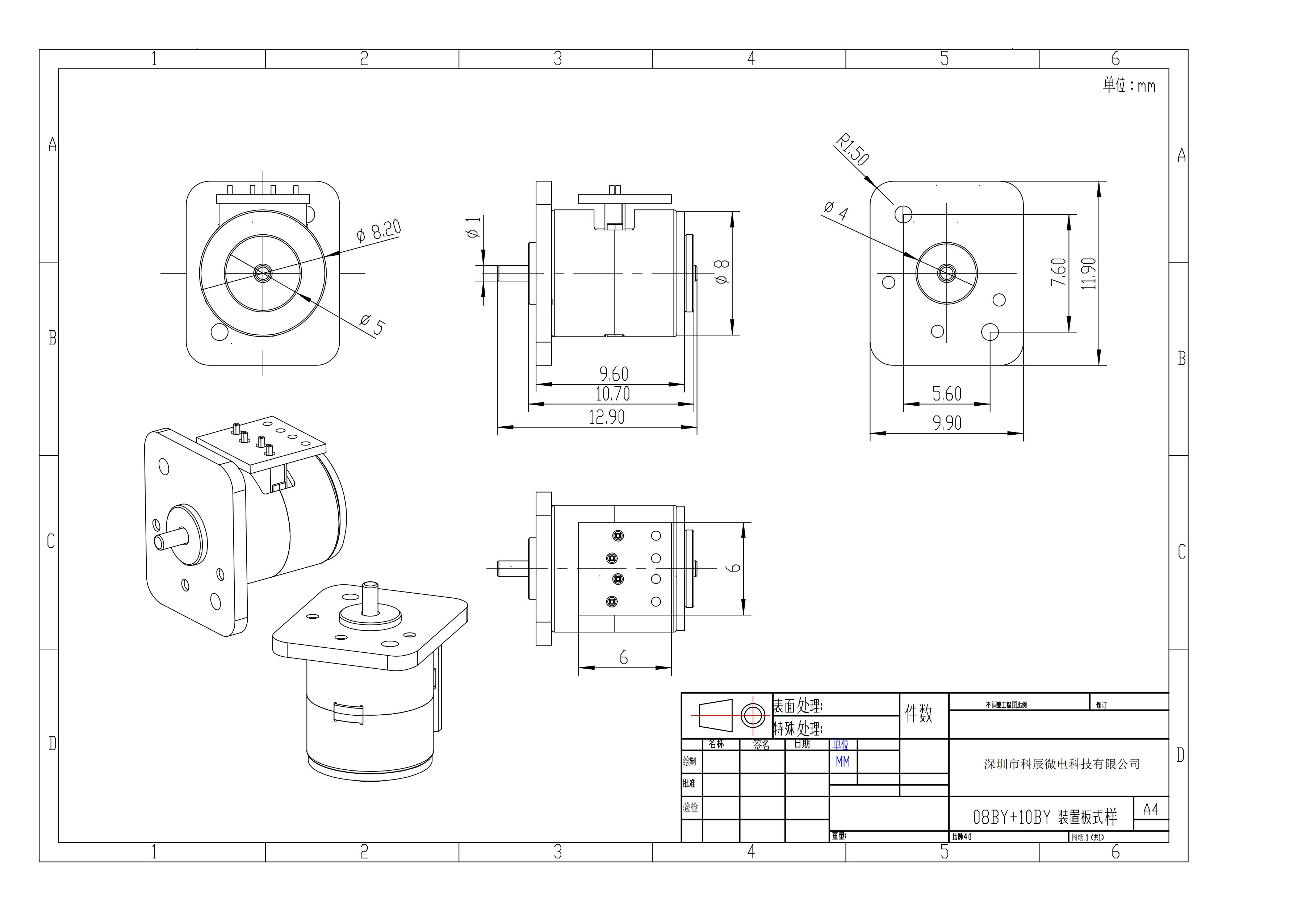

Product View 3
Model Step angle(degree) Excitation Mode Rated Voltage Resistance Phase Current Phase Detent Torque Holding Torque Insulation resistance
V Ω mA gf.cm gf.cm
08BY2510-N 18 2-2 Phase 3.7 10 300 5.0 10.0 300VDC
50MΩ↑
08BY2520-N 18 2-2 Phase 3.3 20 120 5.0 8.0
08BY2540-N 18 2-2 Phase 3 40 62.5 5.0 7.0
Motor Technical Data (800PPS)
Recommend Products
Recommend Products
Motor raw materials
Motor raw materials
Production Equipment
Equipment 1
Equipment 2
Equipment 3
Company Profile
Factory Overview
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Certifications
Application Scenario
Application Scenario
Global Market Distribution
Global Market Distribution Map Market Statistics
Frequently Asked Questions (FAQ)
What are the typical applications for these micro stepper motors?
These micro stepper motors are widely used in precision fields such as medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, smart home devices, commercial intelligent locks, smart wear, intelligent robots, and beauty tools.
What excitation mode do the 08BY series motors support?
All listed models (08BY2510-N, 08BY2520-N, and 08BY2540-N) operate using the 2-2 Phase excitation mode, which provides a balance of efficient performance and reliable positioning control.
What is the step angle of these stepper motors?
The motors feature a standard step angle of 18 degrees, allowing for precise control and incremental positioning in miniature mechanics.
What is the insulation resistance specification?
The motors are designed to support a rated insulation resistance of 50MΩ or higher under 300VDC conditions, ensuring electrical safety and stability during operation.
How do the holding torque values differ between the models?
The holding torque differs based on resistance configurations: Model 08BY2510-N features a holding torque of 10.0 gf.cm, Model 08BY2520-N features 8.0 gf.cm, and Model 08BY2540-N features 7.0 gf.cm.
