12V/24V Right Angle Mini DC Motor 4632-370 Brushed Worm Gear Permanent Magnet Perpendicular Transmission Brush Commutation

Products Description

GM4632-370 small square worm gearbox carbon brush dc motor

✓Model: GM4632-370
✓Gearbox: metal worm gear reducer;
✓Rated Voltage: DC 6V, 9V, 12V, 24V;
✓Rated Torque: Max. 50 Kgf-cm;

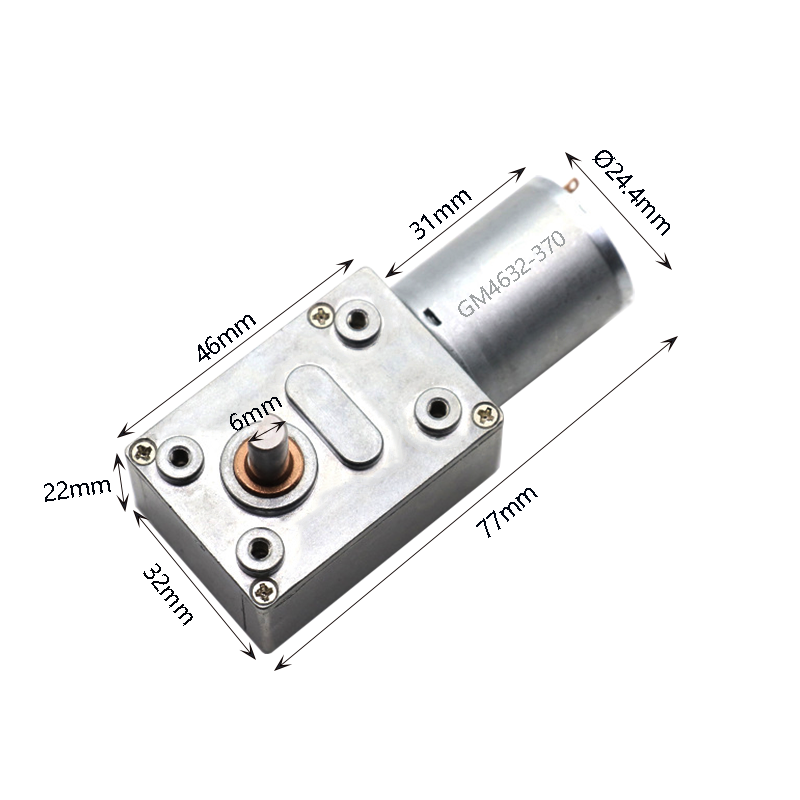

✓Size: 46mm * 32mm square gearbox, right angle output shaft.
✓Shaft: right angle driveshaft, Φ6mm, custom;
✓Commutation: Carbon brush/Graphite brush;
✓Construction: Permanent Magnet;
✓Encoder: Magnetic/Optical encoder.
✓MOQ: 100 pcs;

Motor Technical Data
Model	Voltage (VDC)	No-load		AT Maximum Efficiency			Output Power (W)	Stall
Model	Voltage (VDC)	Speed (r/min)	Current (mA)	Speed (r/min)	Torque (g.cm)	Current (mA)	Output Power (W)	Torque (g.cm)	Current (A)
370-12560	8.0	2400	15	1970	16	69	0.55	90	0.32
370-18260	12.0	7900	50	6820	32.7	320	3.84	240	2.0
370-10800	24.0	5100	15	4310	26.3	82	1.97	170	0.45

Gear Motor Technical Data-GM4632-370-18260
Reduction	37.3	150	250	324	600	972	1700	2900
Length(mm)	46	46	46	46	46	46	46	46
No-load speed(rpm)	211.8	52.6	31.6	24.4	13.2	8.1	4.7	2.7
Rated speed(rpm)	182.8	45.4	27.3	21.1	11.4	7.0	4.0	2.5
Rated torque(kg.cm)	0.73	2.9	4.9	6.4	10.0	10.0	10.0	10.0
Stall Torque (kg.cm)	5.37	15	15	15	15	15	15	15

Gear Motor Technical Data-GM4632-370-10800
Reduction	37.3	150	250	324	600	972	1700	2900
Length(mm)	46	46	46	46	46	46	46	46
No-load speed(rpm)	136.7	34.0	20.4	15.7	8.5	5.3	3.0	2.0
Rated speed(rpm)	115.6	29.0	17.2	13.3	7.0	4.4	2.5	2.0
Rated torque(kg.cm)	0.59	2.73	3.95	5.11	9.47	10.0	10.0	10.0
Stall Torque (kg.cm)	3.8	15	15	15	15	15	15	15

Recommend Products

Motor Raw Materials

Production Equipment

Profile

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, the team has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Application Scenario

Medical Equipment

sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.

Business Machines

Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.

Electric Powered Equipment

Electric toothbrush, Electric tool, Electric toy car, Electric curtain.

Smart Home

Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.

Food and Beverage

Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.

Robotics

Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Frequently Asked Questions

What are the main features of the GM4632-370 gear motor?

This motor features a robust metal worm gear reducer that provides self-locking capability, a high-torque configuration (up to 50 Kgf-cm), and a space-saving right-angle output shaft design.

Can the speed and rotation direction of the motor be adjusted?

Yes, it is a permanent magnet DC motor. The speed can be regulated by adjusting the input voltage or using a PWM controller. You can change the rotation direction simply by reversing the polarity of the power supply.

Are custom shaft options and encoders available?

Yes, the right-angle output shaft can be customized according to your specifications. Additionally, we support the integration of magnetic or optical encoders for accurate speed and position feedback.

What is the standard MOQ for this worm gear motor?

The standard minimum order quantity (MOQ) for the GM4632-370 gear motor series is 100 pieces per order.

What typical applications is this DC gear motor designed for?

Due to its high self-locking capability and compact size, it is widely utilized in smart home appliances (like intelligent window openers and door locks), medical instruments, automated business systems, robotic joints, and conveying units.
