Brea Tech Micro Motor
1 / 5

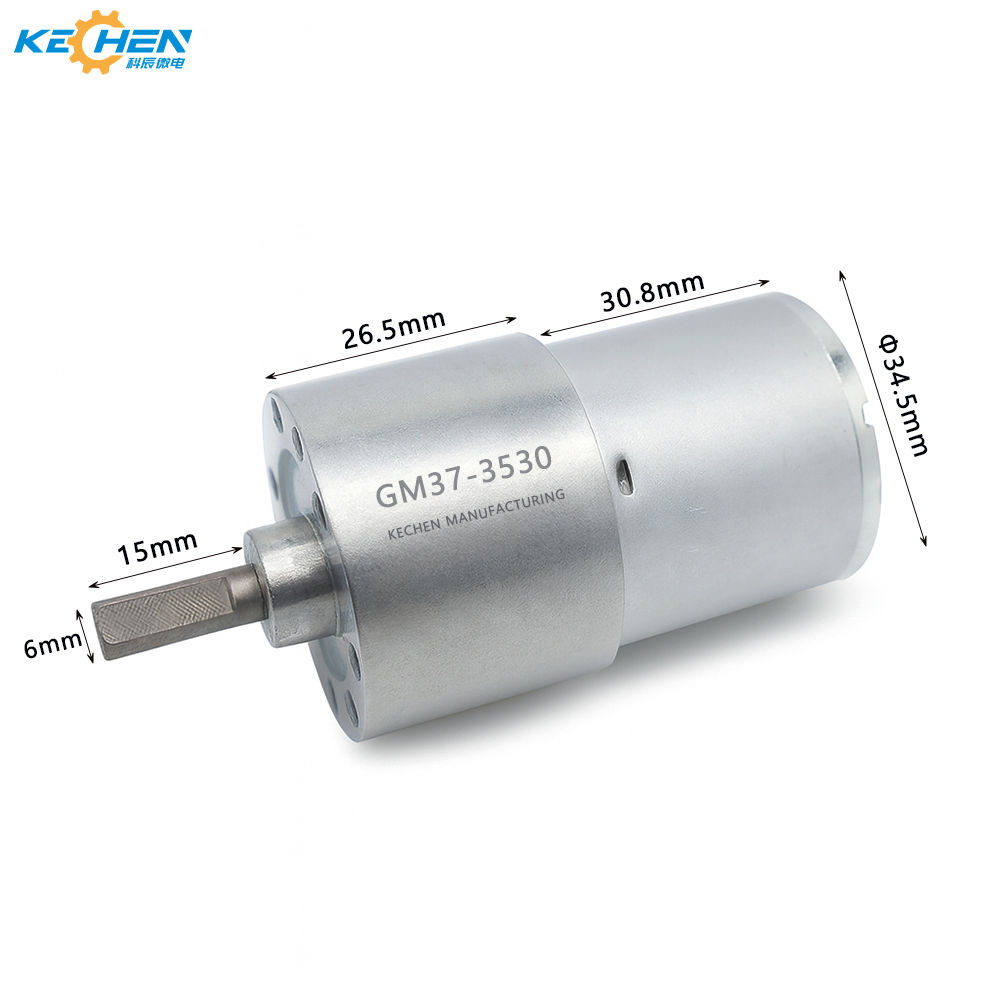

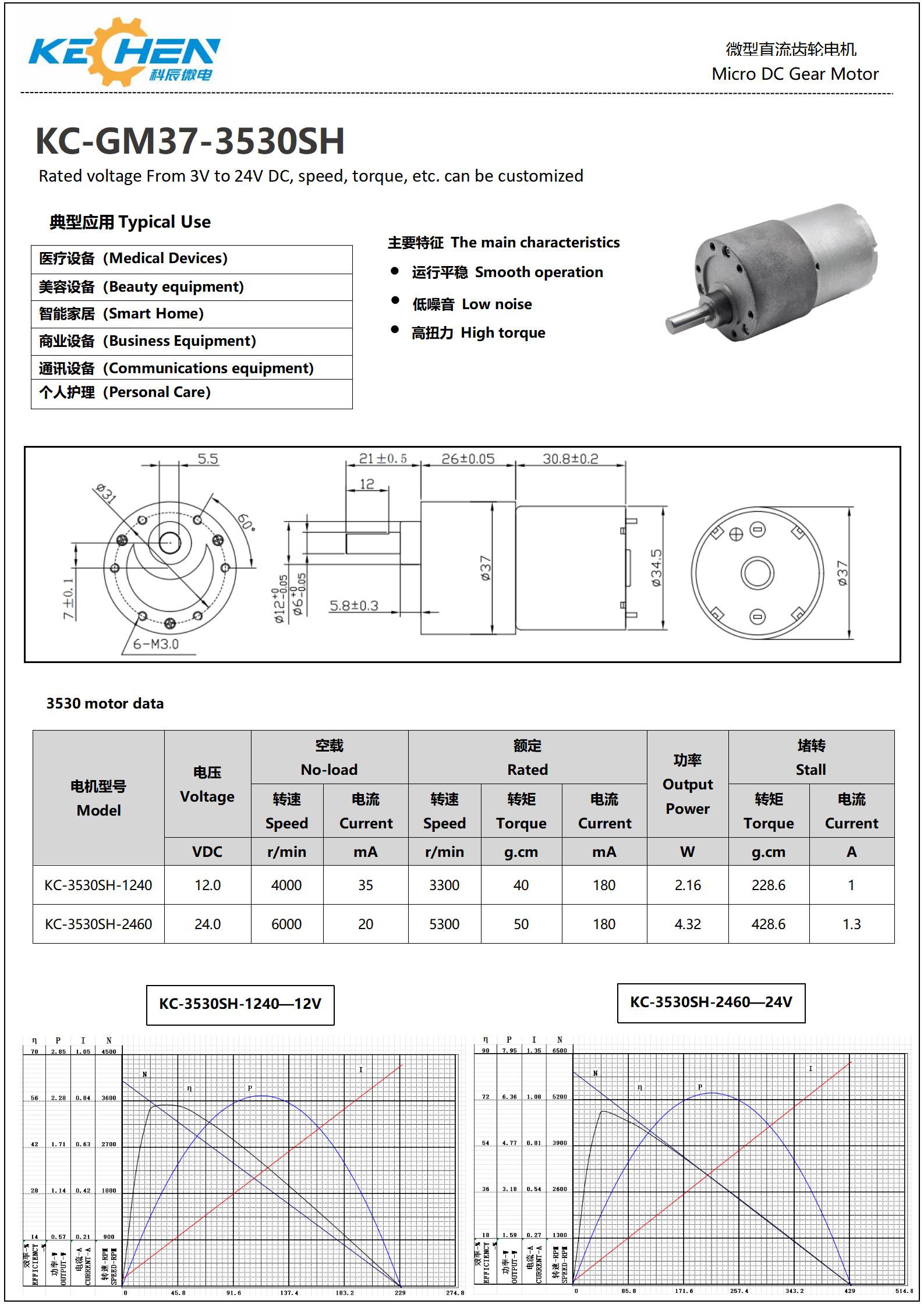

| GM37-3530 DC geared motor specifications | |
|---|---|
| Motor type | Micro DC geared motor |
| Motor diameter | 34.5mm |
| Gearbox diameter | 37mm |
| Gear material of the reduction gear | Powder metallurgy gears/steel gears |
| Rated voltages | 12V DC/24V DC |
| Gear reduction ratios | 6:1, 10:1, 19:1, 30:1, 44:1, 56:1, 90:1, 131:1, 169:1, 270:1, 506:1, 810:1 |
| Rated torque | 0.5-25kg.cm |
| Rated speed | 3-950rpm |
| Shaft | Φ6mm D-cut 0.5mm, custom |
| Suitable Applications | Smart home, automation, robotics, vending machine |
| Weight | 200 g |

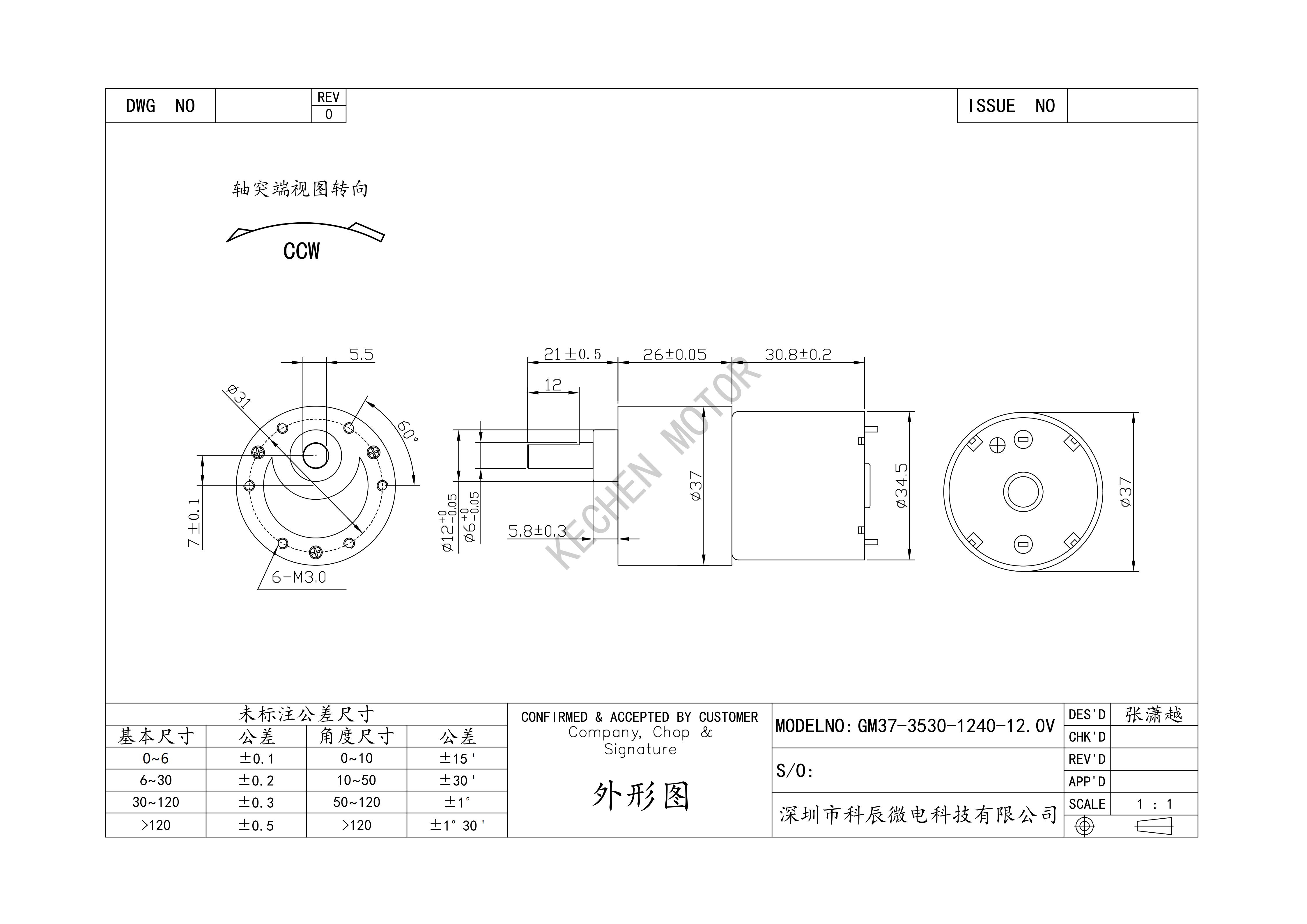

| GM37-3530SH-1240-12.0V | |||||||||
|---|---|---|---|---|---|---|---|---|---|

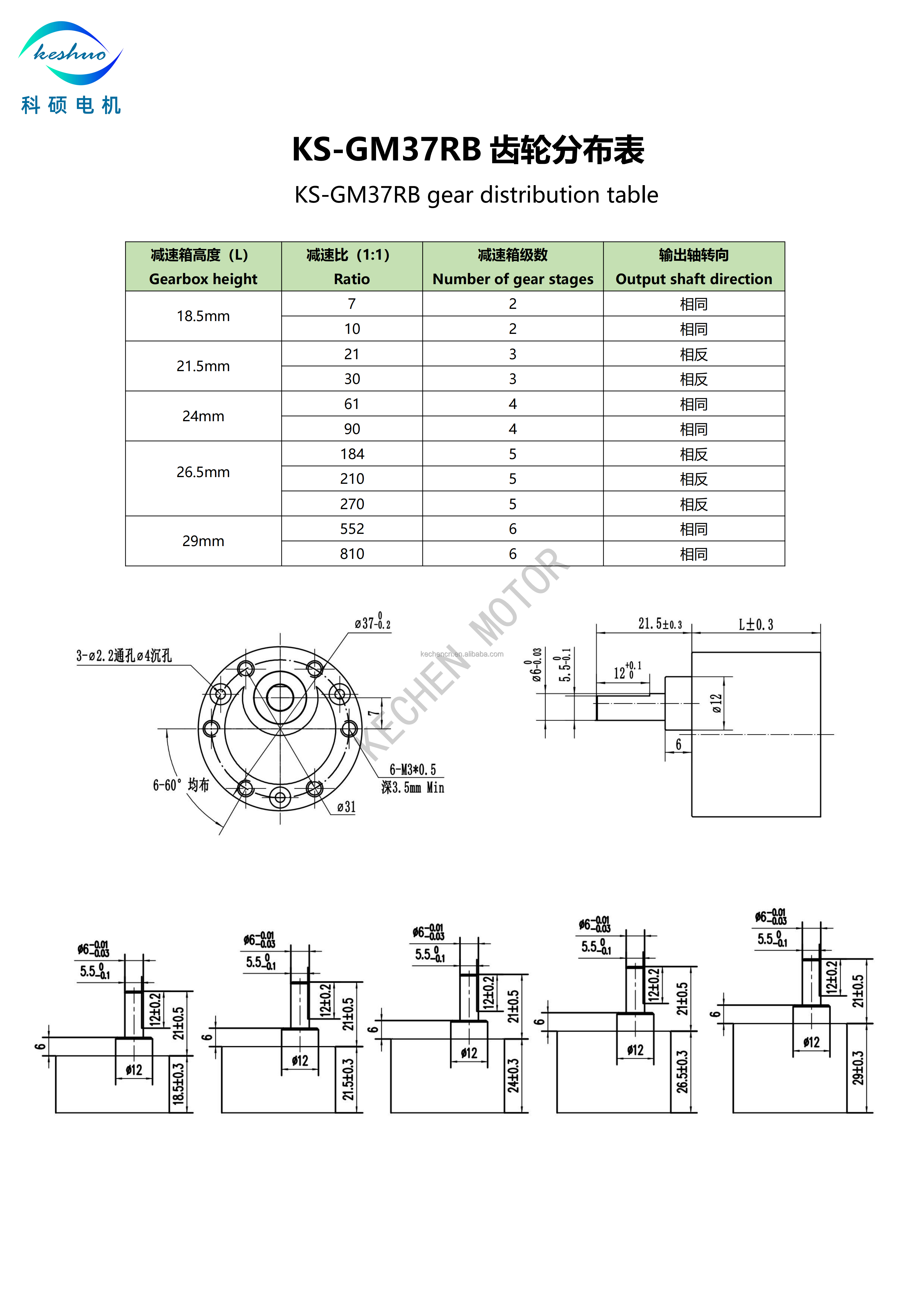

| Reduction | 10 | 30 | 50 | 102 | 150 | 210 | 306 | 450 | 506 |
| Length (mm) | 17.5 | 21 | 23.5 | 26 | 26 | 26 | 28.5 | 28.5 | 28.5 |
| No-load speed (rpm) | 400 | 133 | 80 | 39 | 27 | 19 | 13 | 9 | 8 |
| Rated speed (rpm) | 330 | 110 | 66 | 32 | 22 | 16 | 11 | 7 | 7 |
| Rated torque (kg.cm) | 0.32 | 0.84 | 1.2 | 2.04 | 3.0 | 4.2 | 4.9 | 7.2 | 8.1 |
| Stalling Torque (kg.cm) | 1.83 | 4.8 | 6.86 | 11.66 | 17.14 | 24.00 | 27.98 | 41.14 | 46.26 |
| GM37-3530SH-2460-24.0V | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Reduction | 50 | 102 | 150 | 210 | 306 | 450 | 506 | 630 | 810 |
| Length (mm) | 23.5 | 26 | 26 | 26 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| No-load speed (rpm) | 120 | 59 | 40 | 29 | 20 | 13 | 12 | 10 | 7 |
| Rated speed (rpm) | 106 | 52 | 35 | 25 | 17 | 12 | 10 | 8 | 7 |
| Rated torque (kg.cm) | 1.5 | 2.04 | 3.75 | 5.25 | 6.12 | 9.0 | 10.12 | 12.6 | 16.2 |
| Stalling Torque (kg.cm) | 12.86 | 17.49 | 32.14 | 45 | 52.46 | 77.14 | 86.74 | 108 | 138.9 |
