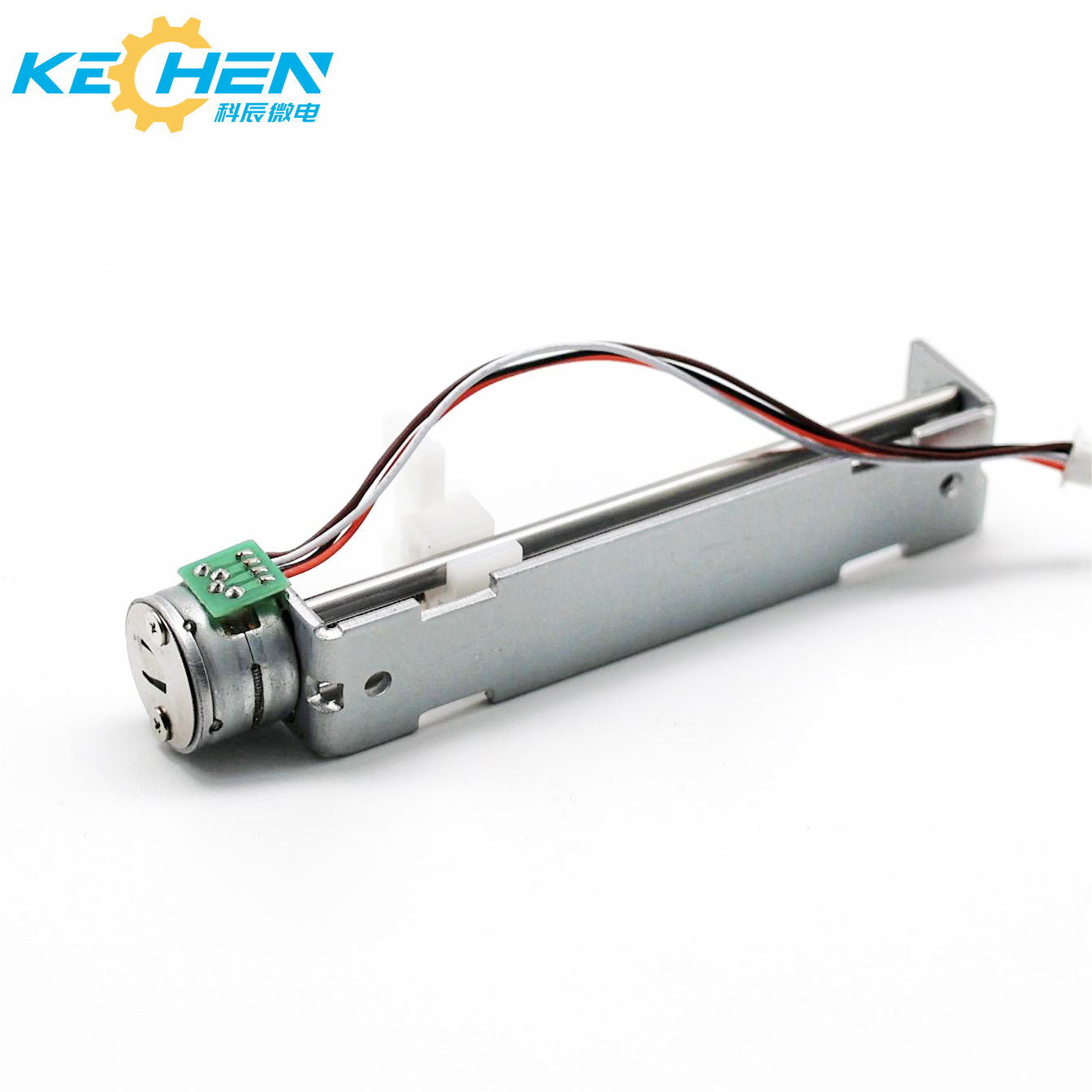

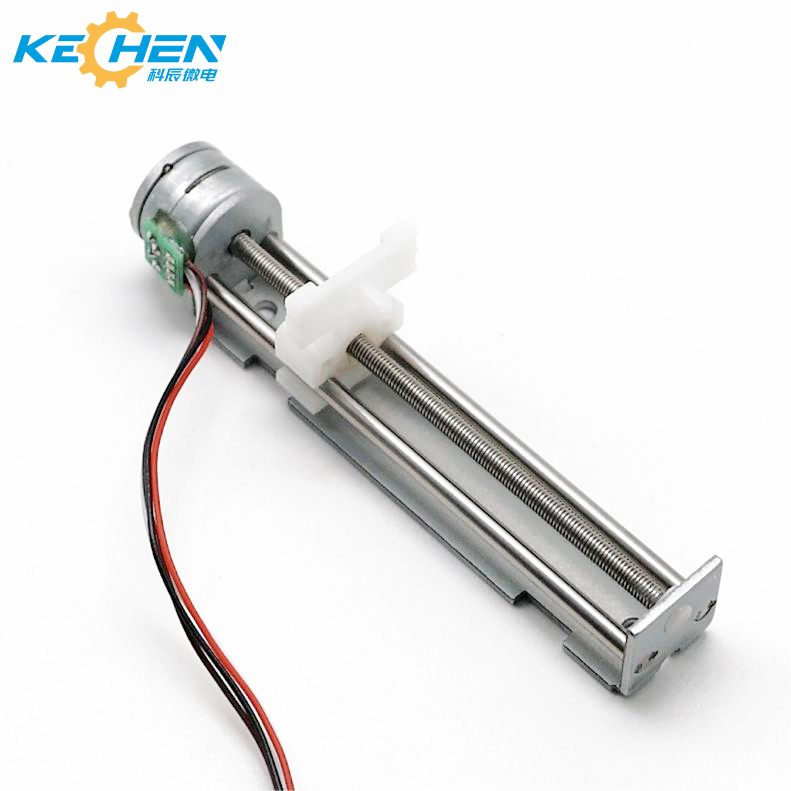

15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
1 / 5
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device
15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device

15mm Permanent Magnet Linear Stepper Motor DC 5V/12V with 77mm Travel Rail Screw 1.5kg.cm Thrust 2-phase for Medical Device

Send Inquiry

Product Description

Products Description
15BY-77 Linear Stepper Motor Specifications
Motor type Permanent-Magnet Linear Stepper
Motor diameter 15mm
Travel guide length 77mm
Phase bipolar / 2-phase
Step Angle 18° / step
Rated Voltage 5V/12V DC
Rated Power 4.6 W
Rated Current 600 mA
Lead Screw (Lead screw pitch) 0.5 mm (“Pitch M3 * P0.5”)
With slider plastic slider
Holding torque 900 g·cm /1000 PPS
Thrust / Pull-out > 700 g.cm
Line sequence A+A-B+B-
Terminal model 1.25/1.5/2.0/2.54
Motor Specification Diagram 1
Motor Specification Diagram 2

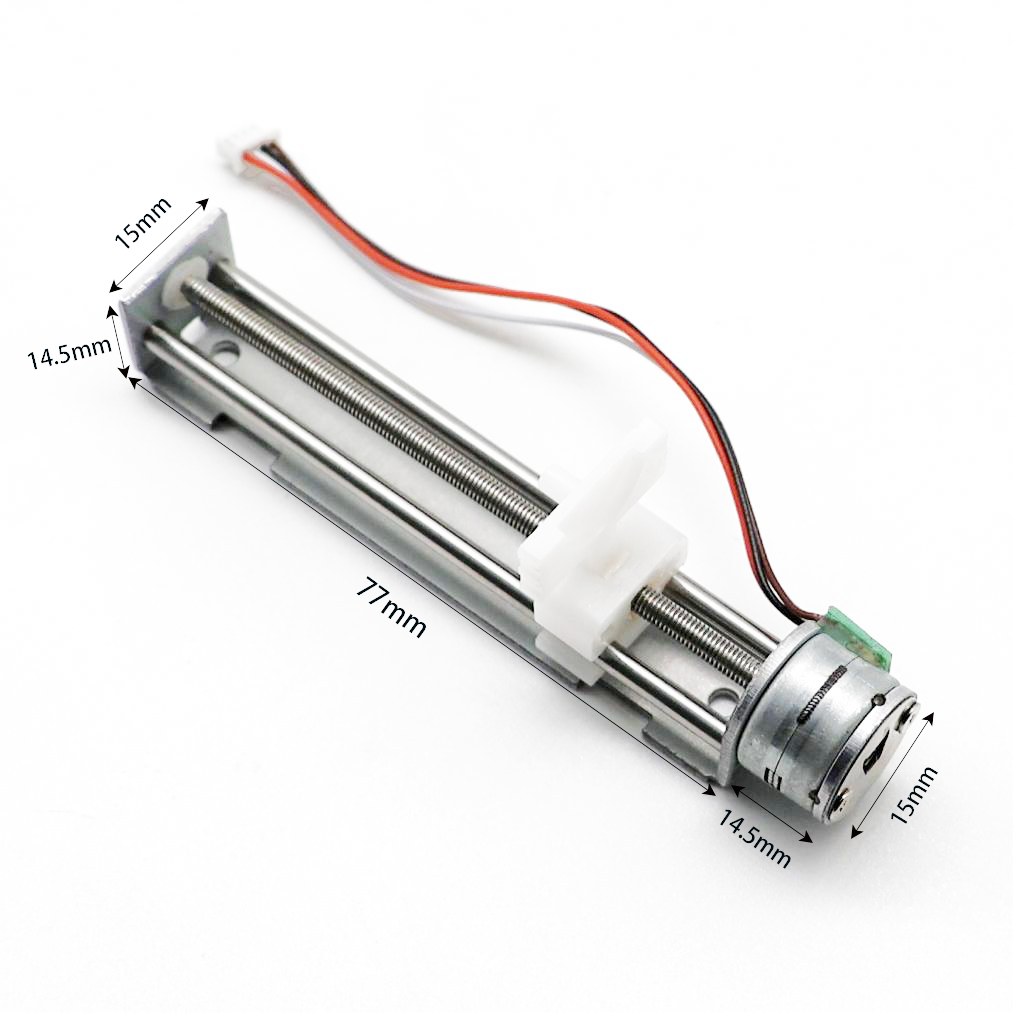

Motor Dimension Details
Motor Connection Details
Recommend Products
Recommended Product 1
Recommended Product 2
Motor raw materials
Motor Raw Materials Details
Production Equipment
Production Facility 1
Production Facility 2
Production Facility 3
Certifications
Quality Certifications
Application Scenario
Application Scenarios Flowchart
Global Market Distribution
Market Distribution Chart
Sales Map
FAQ
Q How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will proceed samples accordingly.
Q How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q What's your lead time?
Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Q What certifications do you have?
We currently have CE, ROSH, ISO13485, IATF16949, and REACH certifications.
