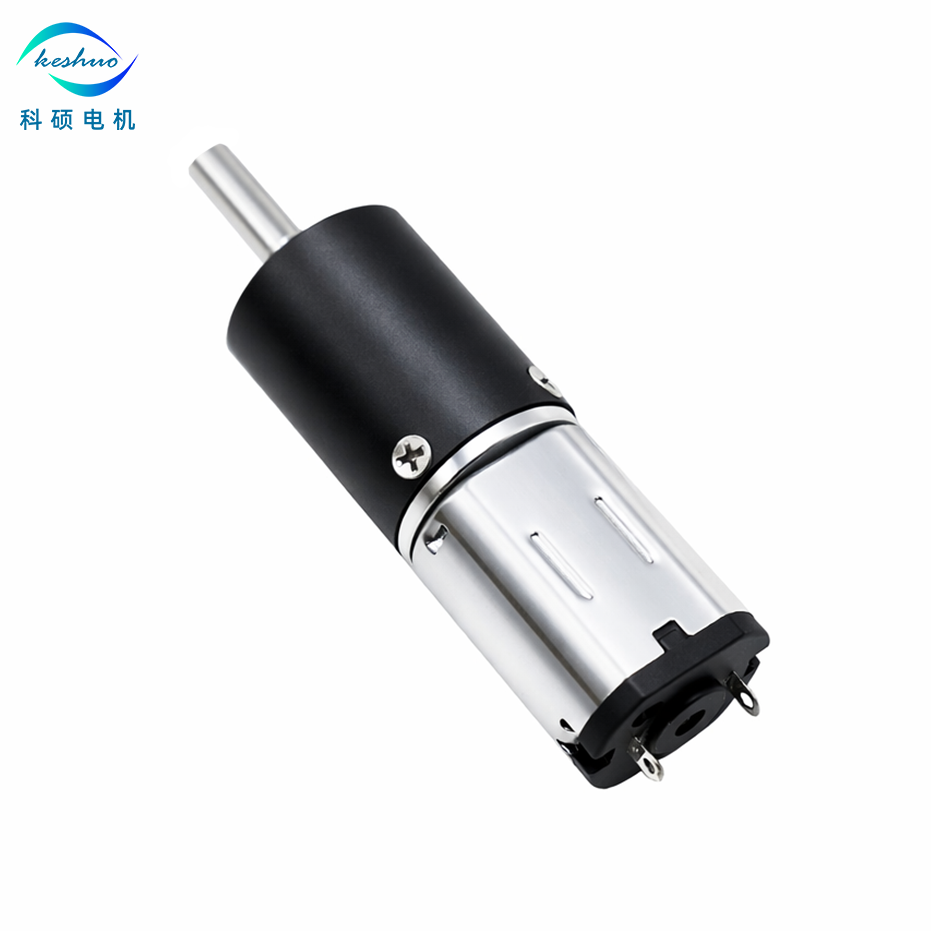

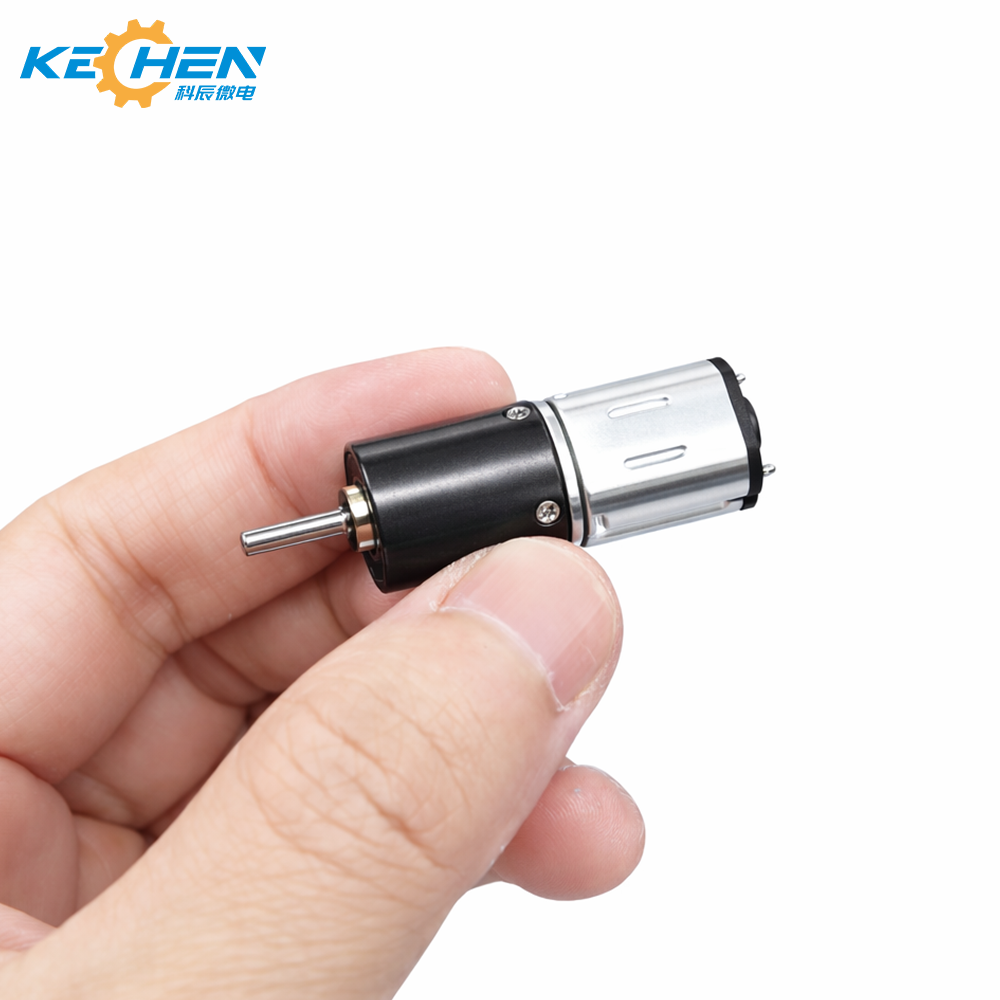

Brea Tech Micro Motor
1 / 5
| Rated voltage | 3 V / 6 V / 9 V / 12 V DC |
| Output torque | 0.02 N·m ~ 0.3 N·m |
| Reduction ratio | 10:1, 20:1, 30:1, 50:1, 100:1... 1000:1 |

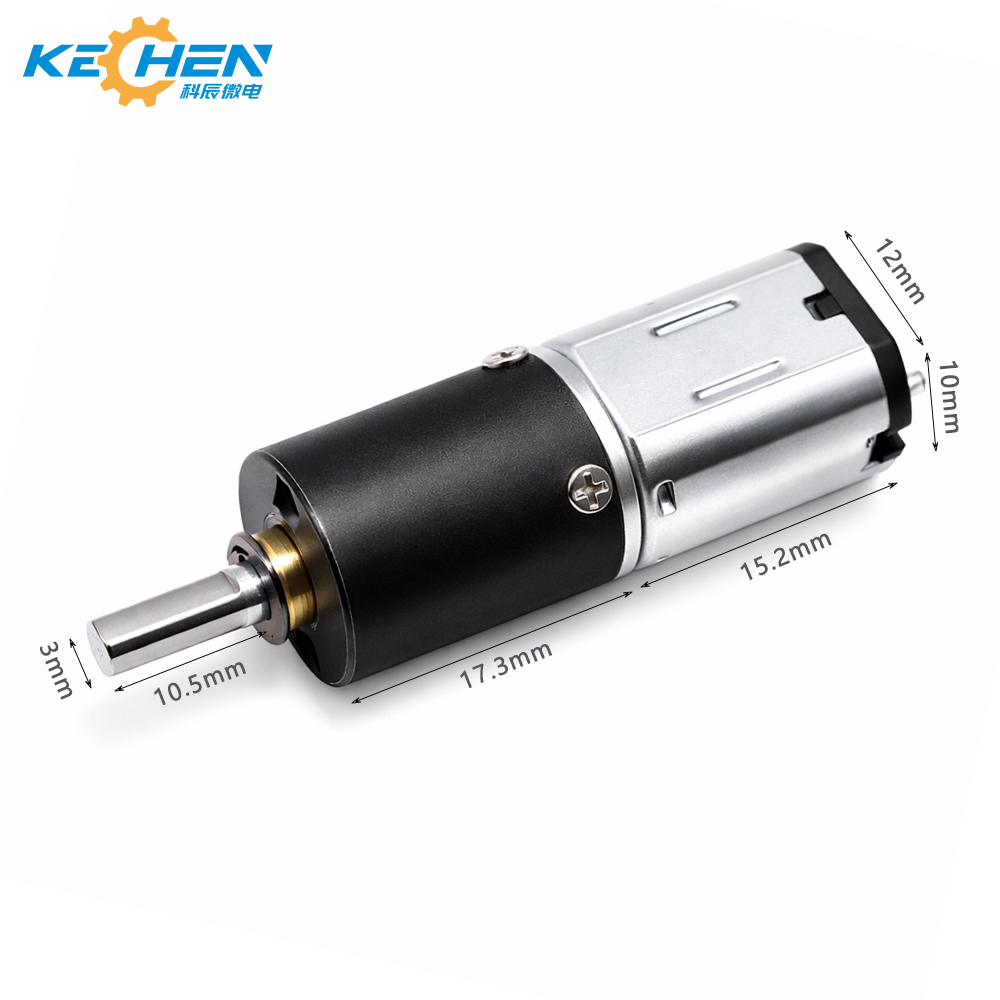

| Shaft diameter | Φ3mm |
| Output speed | 10-2000rpm |
| Typical applications | Smart door locks, medical devices, miniature valves, smart home devices |
| Noise | < 40 dB |
| Encoder | 3ppr / 7ppr / 12ppr |
| Certificate | ISO9001 / IATF16949 / ISO13485 / CE / REACH / RoHS |
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors, and Coreless Motors, etc. You can check the specifications for above motors on our website or email us with your required specifications for suggestions.
If you can provide motor pictures, drawings, or detailed specifications such as voltage, speed, torque, motor size, working mode, expected lifetime, and noise level, we can recommend a suitable motor based on your requirements.
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add connectors, capacitors, EMC suppression, or solder wires/cables to the terminals as requested.
Yes, absolutely. After confirming the required motor specifications, we will quote and provide a proforma invoice for the samples to proceed with sample production.
We follow strict inspection procedures: for incoming materials, we verify them against signed samples and drawings; during production, we conduct in-process inspections and a final inspection to guarantee quality before shipping.
Generally, our standard products require 25-30 days, and customized products may take slightly longer. We are very flexible with the lead time and adjust based on specific orders.
