Spurmini Brush Metal DC 3-12V High Speed Geared Motor KC-M20 10mm for Lock

Send Inquiry

Product Description

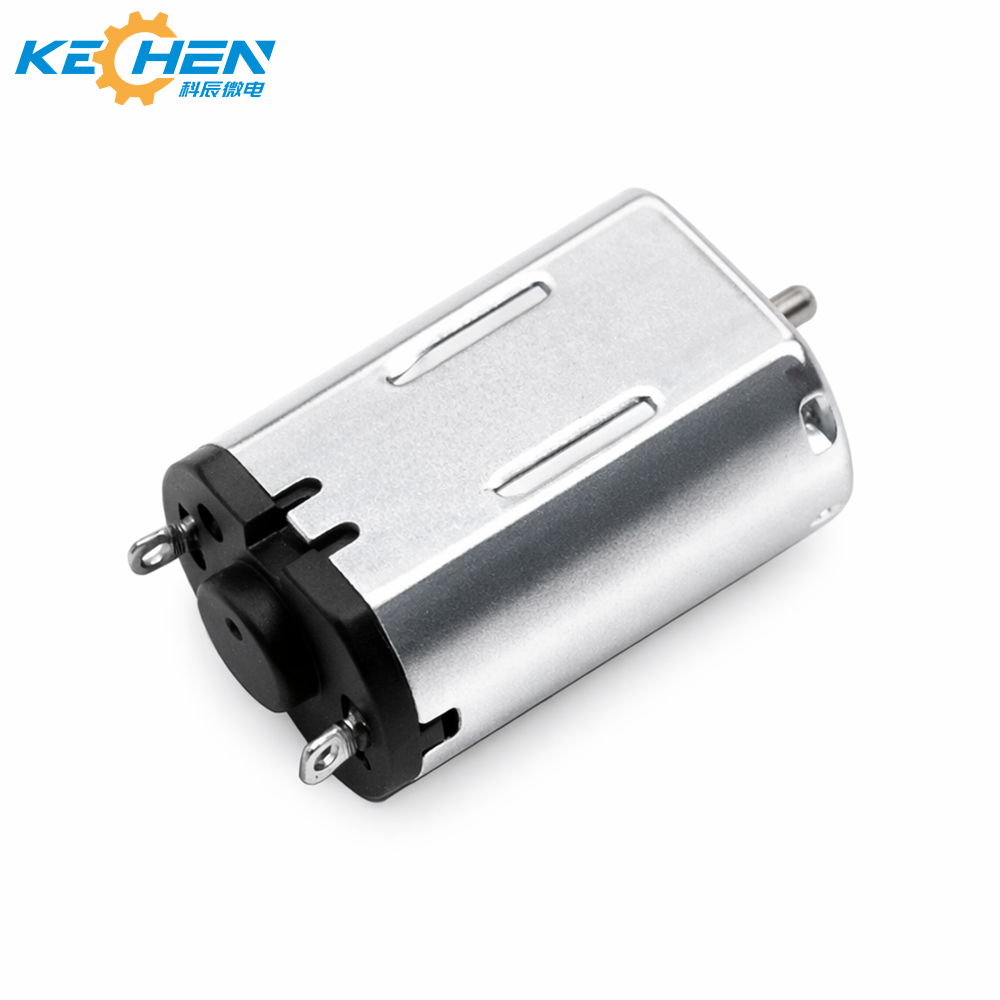

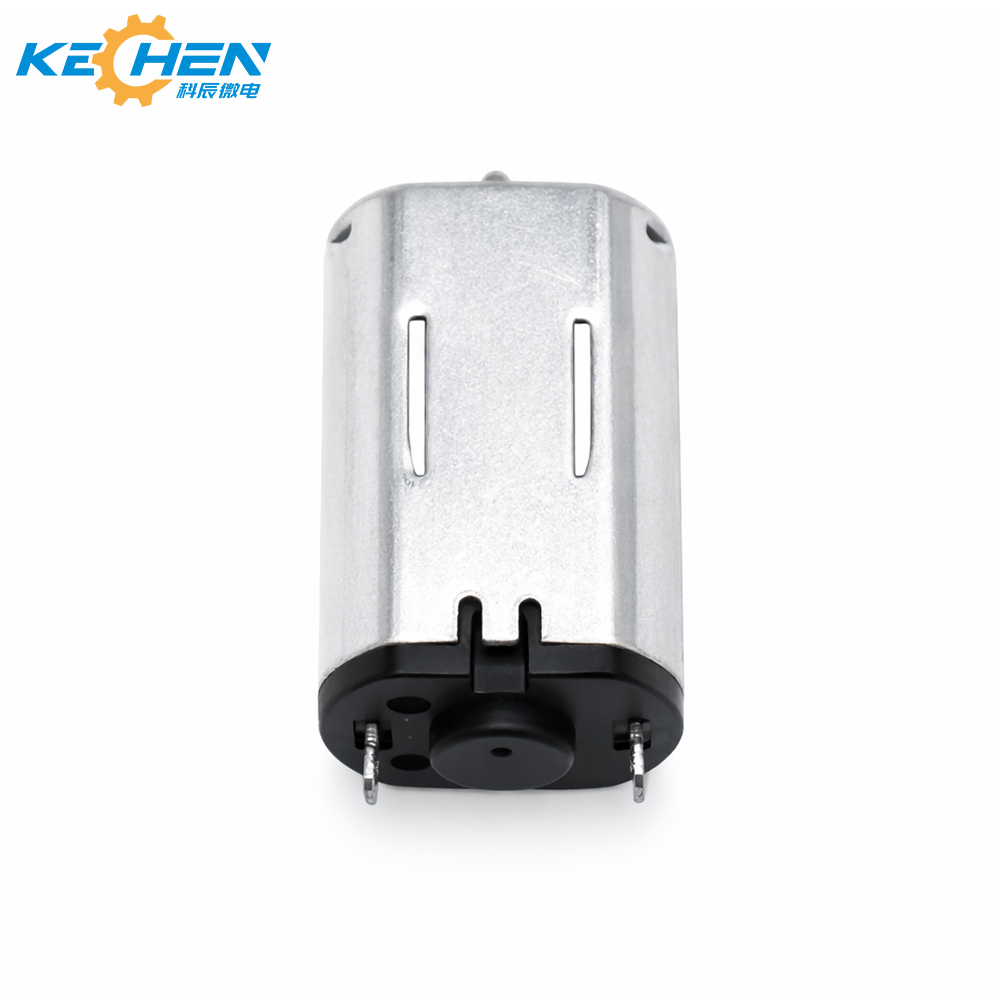

M20VA Brushed Micro DC Motor

■Model Number: KC-M20VA

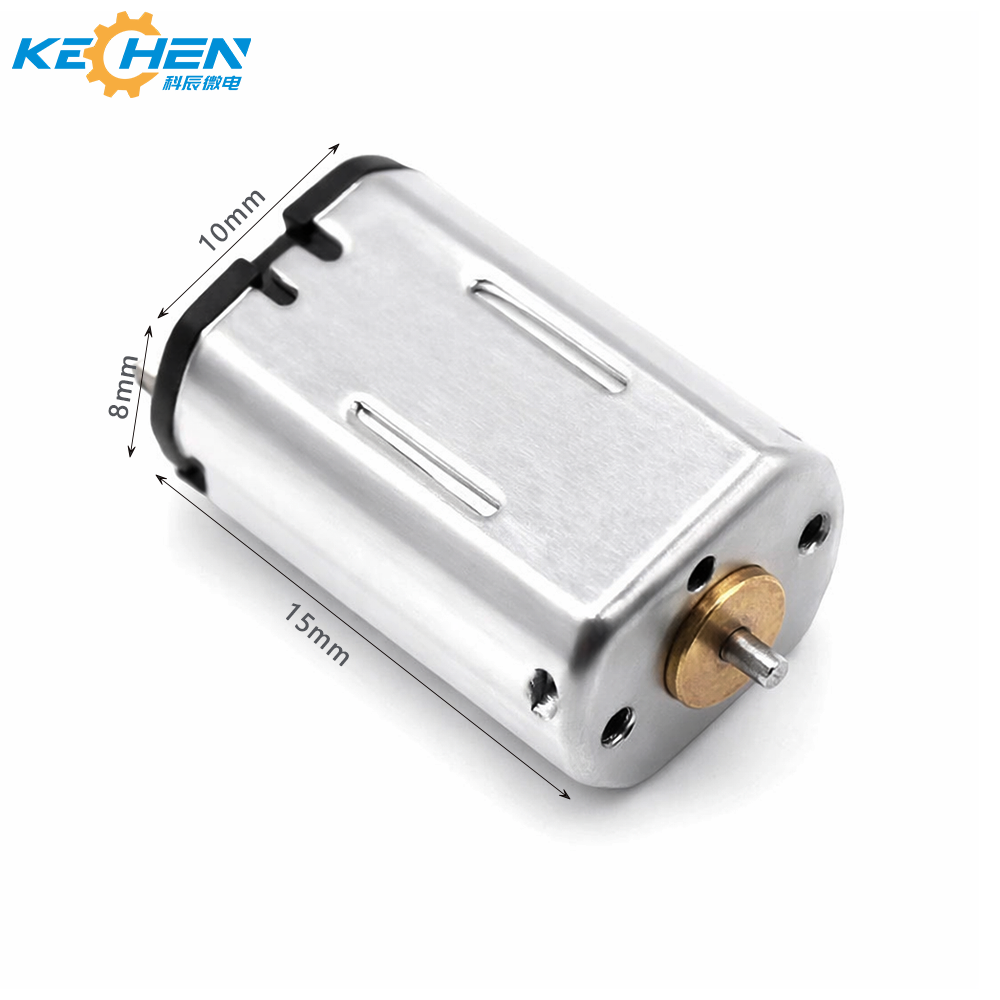

■Shell Stator Size: Φ10 * L 15 mm (Φ 0.394 inch * 0.59 inch)
■Shaft: Φ1.0mm (0.0393 inch), D shape, etc.
■Shaft Length: Free customization
■Rated Output Power: Up to 1W
■Rated Voltage: DC 1.5V - 12V
■Rated Torque: Up to 2gf·cm (0.196 mN·m)
■Construction: Permanent Magnet
■Commutation: Metal/Carbon brush
■Rotation: Clockwise/counter-clockwise rotation (CW & CCW)

Products Description

Recommend Products

Motor Raw Materials

Production Equipment

Profile

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Application Scenario

Category	Applications
Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain.
Smart Home	Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

Global Market Distribution

Frequently Asked Questions

Q1: What are the main applications of the M20VA Brushed Micro DC Motor?

A1: This motor is widely utilized in medical equipment (like sphygmomanometers and air pumps), smart home appliances (such as electric toothbrushes, beauty tools, and smart locks), business machines, and commercial robotics.

Q2: Can the shaft length and shape of this motor be customized?

A2: Yes, we provide free customization services for the shaft length, and can supply D-shape shafts or other configurations tailored to your specific mechanical requirements.

Q3: What range of input voltages does the M20VA motor support?

A3: The motor has a flexible operating voltage range, performing efficiently from DC 1.5V up to 12V depending on your application needs.

Q4: What commutation type is used in the M20VA motor?

A4: It utilizes high-quality metal or carbon brush commutation, designed to ensure stable performance, reliability, and long service life.

Q5: Does the motor support dual-direction rotation?

A5: Yes, the M20VA micro motor is capable of running both clockwise (CW) and counter-clockwise (CCW) directions by reversing the electrical input polarity.
