RS-365 12V 27.7mm High-Speed Stainless Steel DC Motor Explosion-Proof 28mm for Power Tools and Smart Home Use

Products Description

RS-365 27.7mm Small DC Motor

Model Number: KC-365

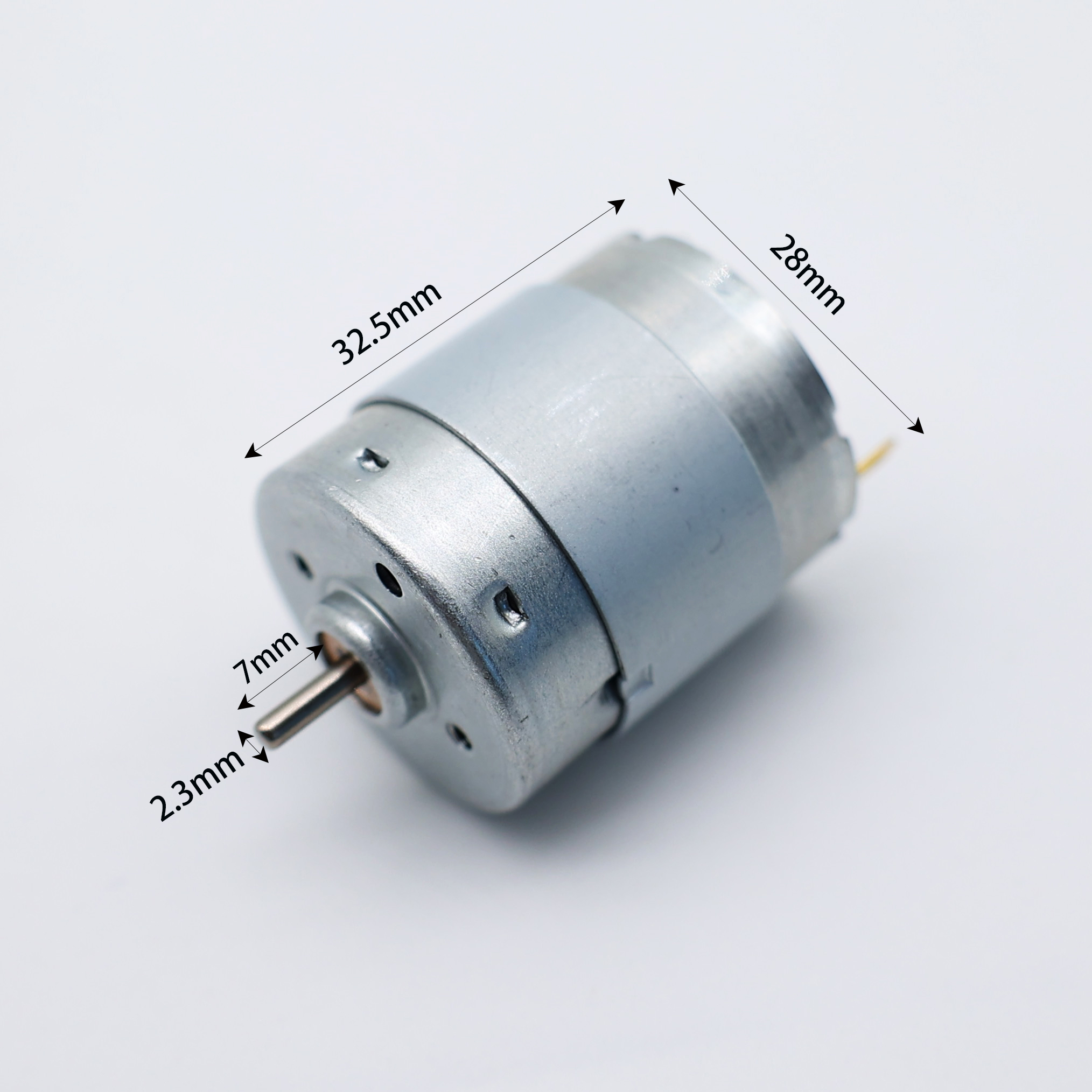

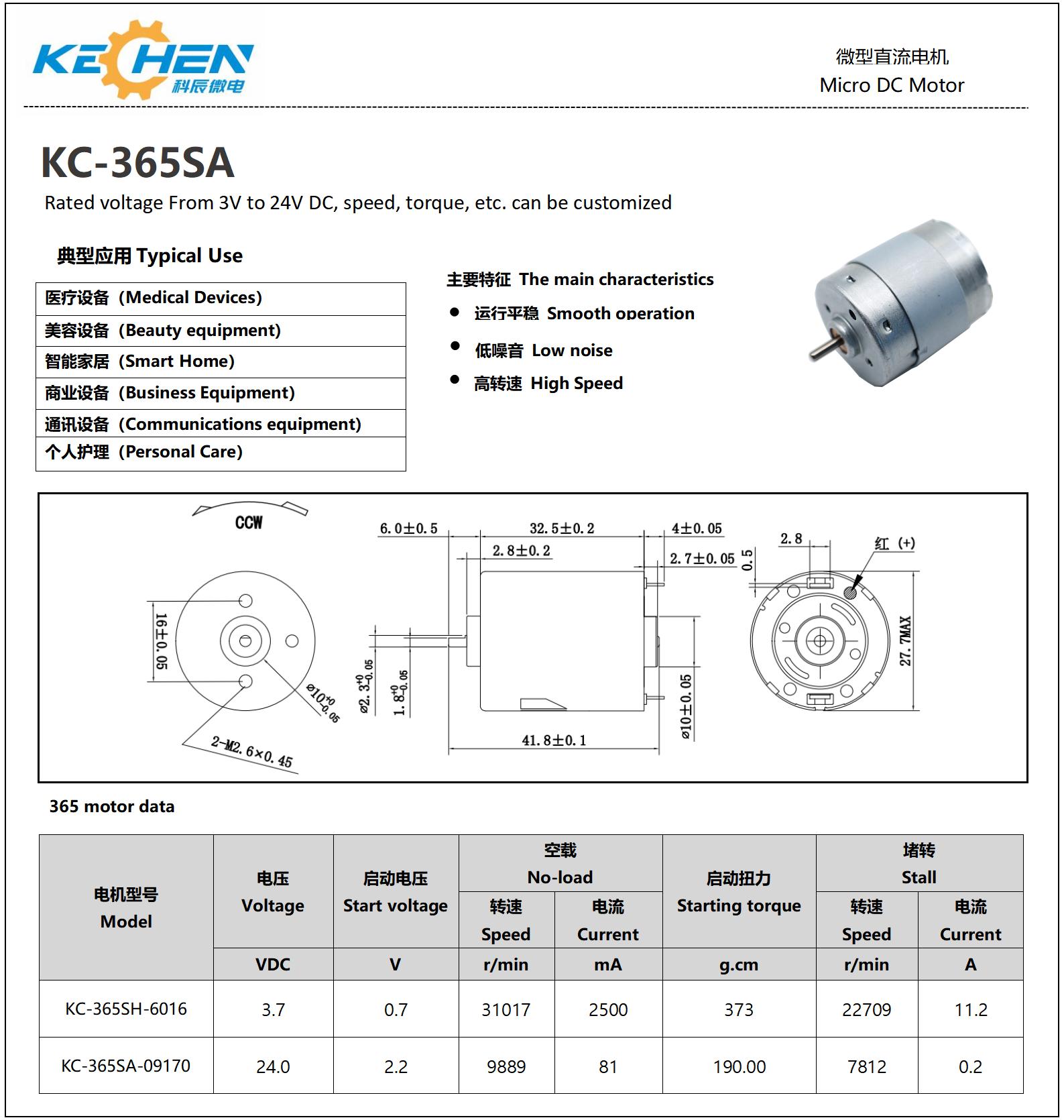

Shell Stator Size: Φ27.7 * L 32.6 mm (Φ 1.09 inch * 1.286 inch)
Shaft: Φ2.3mm (0.09 inch), D shape, etc.
Shaft Length: Free customization
Rated Output Power: Up to 30W
Rated Voltage: DC 1.5V - 24V
Rated Torque: Up to 100 gf-cm (9.8 mN-m)
Construction: Permanent Magnet
Commutation: Carbon brush
Rotation: Clockwise/counter-clockwise rotation (CW & CCW)

Recommend Products

Motor Raw Materials

Production Equipment

Company Profile

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since its establishment, the company has adhered to the concept of "people-oriented, pioneering and innovative spirit". Through rapid development, it has built a group of young, pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from global customers.

Certifications

Application Scenario

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home	Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Frequently Asked Questions

What is the rated voltage range of the RS-365 DC motor?

The RS-365 small DC motor operates within a rated voltage range of DC 1.5V to 24V, making it highly versatile for various electrical applications.

Can the shaft of the KC-365 motor be customized?

Yes, we offer free customization for the shaft length. The standard shaft diameter is 2.3mm (0.09 inch) and is available in D-shape and other configurations to suit your design requirements.

What are the main applications of this micro DC motor?

This micro DC motor is widely used in medical equipment (sphygmomanometers, air pumps), smart home appliances (vacuum cleaners, smart locks), electric tools, business machines, and robotics (service robots, AGV & AMR).

What is the rated output power and torque of the RS-365 motor?

This permanent magnet motor delivers a rated output power of up to 30W and a rated torque of up to 100 gf-cm (9.8 mN-m), providing high efficiency in a compact size.

Does the motor support bi-directional rotation?

Yes, the KC-365 features carbon brush commutation and supports both clockwise and counter-clockwise (CW & CCW) rotation.

Are these micro motors certified for quality?

Yes, the production processes and products strictly adhere to rigorous quality control standards and hold relevant industry certifications to ensure top-tier reliability.
