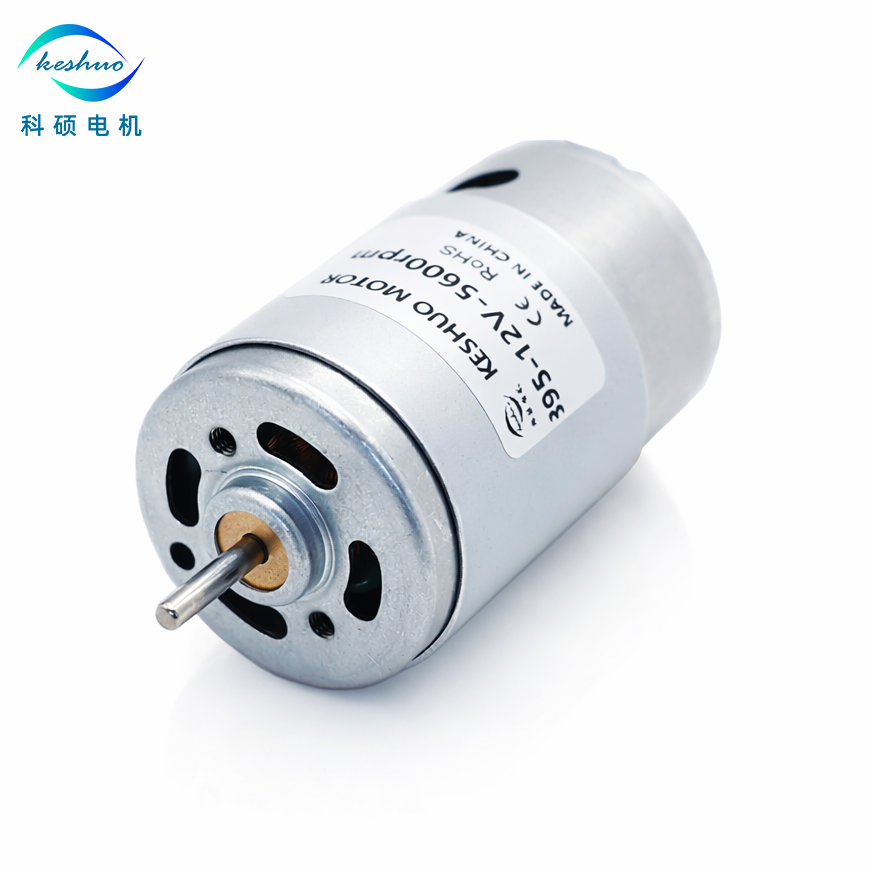

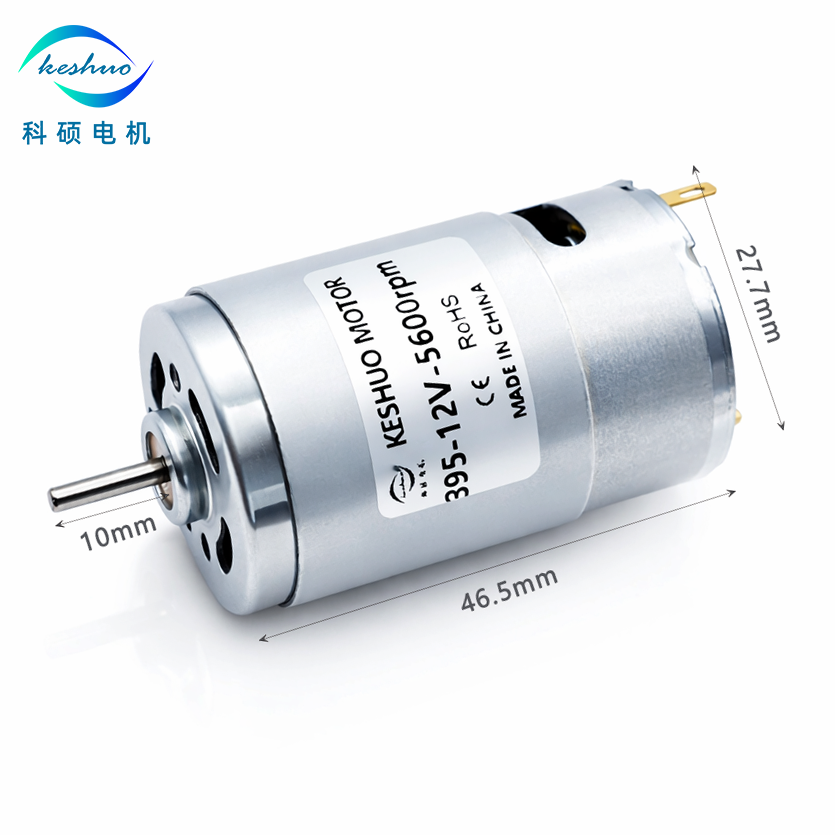

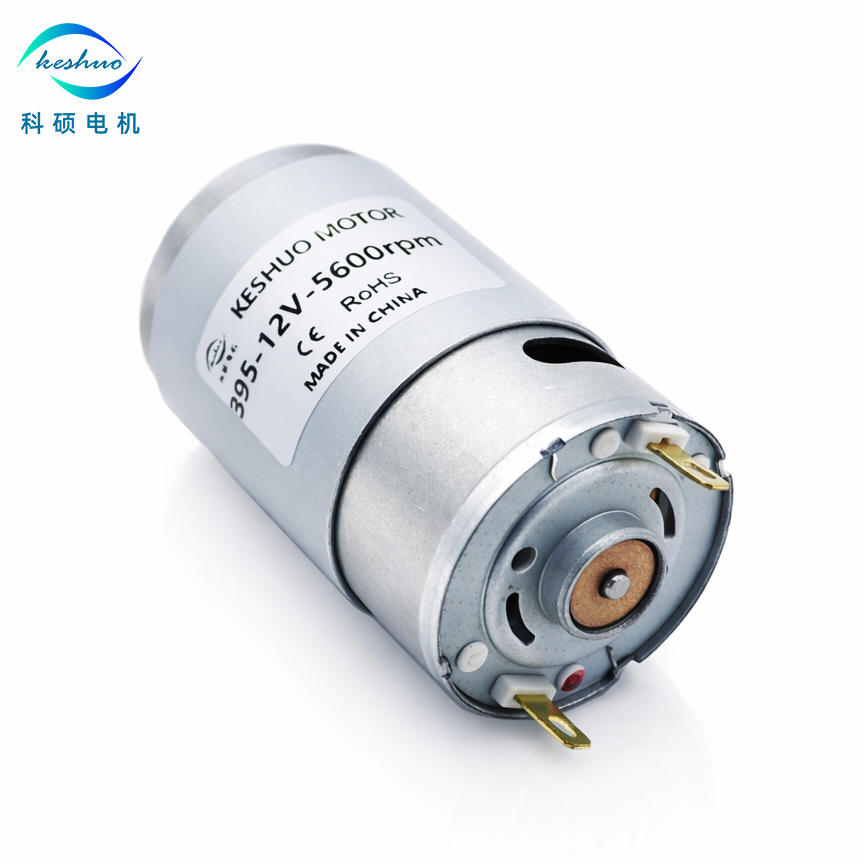

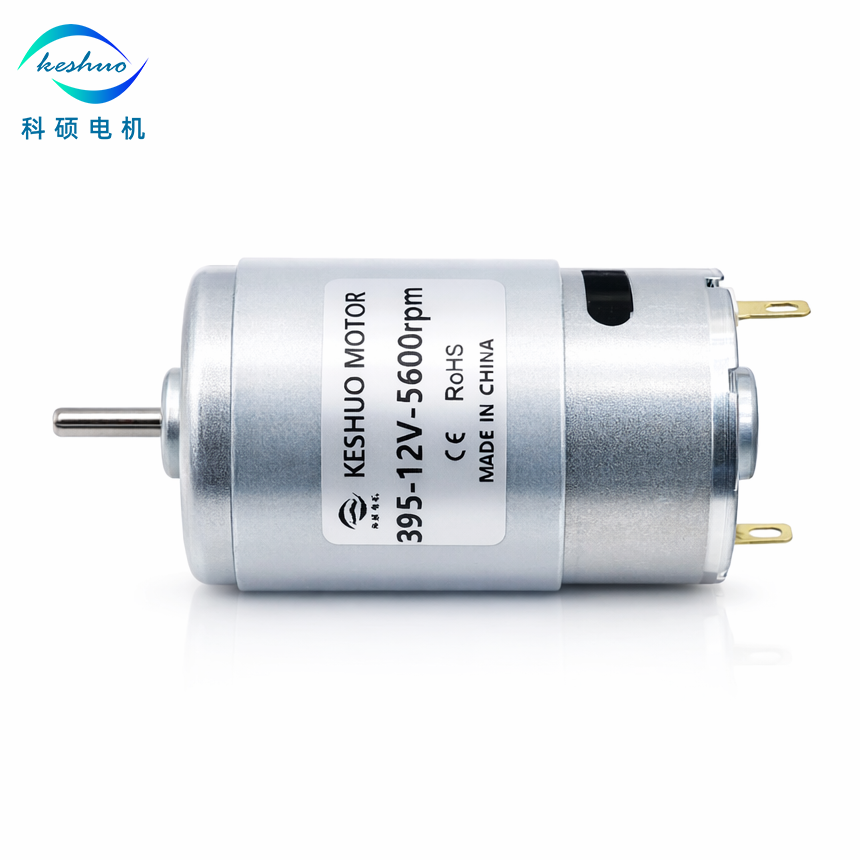

RS 395 28mm Brushed DC Micro Permanent Magnet Electric Motor 3000-25000rpm Speed Continuous Current 12V-24V ROHS Certified Home

1 / 5

RS 395 28mm Brushed DC Micro Permanent Magnet Electric Motor 3000-25000rpm Speed Continuous Current 12V-24V ROHS Certified Home

Send Inquiry

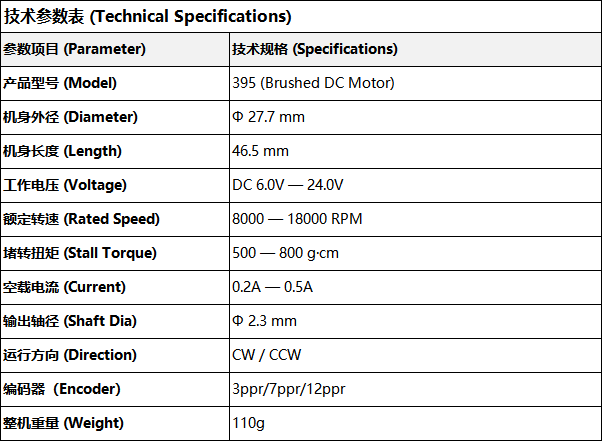

Product Description

Products Description

Model NumberRS-395
Motor TypeBrushed DC Motor
Voltage3V-36VDC
Speed1500rpm-25000rpm
Torque30g.cm-150g.cm
Shaft ODΦ2.3mm
Rotation DirectionCW/ CCW
BearingBushing/Ball bearing
Typical ApplicationPump, blender, smart home electronics, audio equipment

Recommend Products

Motor Raw Materials

Production Equipment

Enterprise Profile

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Application Scenario

Medical Equipment	Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric Powered Equipment	Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home	Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Frequently Asked Questions

What are the primary specifications of the RS-395 micro DC motor?

The RS-395 is a carbon-brushed micro DC motor operating within a voltage range of 3V-36VDC. It delivers speeds from 1500rpm to 25000rpm and torque between 30g.cm and 150g.cm. It has a shaft outer diameter of 2.3mm, supports CW/CCW rotation, and is configured with bushing or ball bearings.

What are the typical applications for the RS-395 motor?

The RS-395 motor is commonly used in pumps, blenders, smart home electronics, and audio equipment due to its reliable power output and compact micro design.

What kinds of micro motors do you manufacture?

The comprehensive product range includes various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors, designed to serve diverse technological and commercial needs.

In which industries are these micro motors widely utilized?

These motors find extensive application across several industries, including medical equipment, financial security, 5G applications, automotive systems, intelligent communication, smart home appliances, commercial intelligent locks, smart apparel, outdoor equipment, robotics, and power tools.

How are your micro motors applied in the food and beverage industry?

They are commonly integrated into hand blenders, mixers, coffee machines, food processors, juicers, fryers, ice makers, and soy bean milk makers to ensure high efficiency and durability.

What types of robotic systems utilize your precision micro motors?

They are extensively used in servicing robotics, food delivery robots, reception robots, medical serving robots, AGV & AMR systems, conveying robots, and inspection robots to drive mobility and automated functions.
