High Torque 3.175mm Long Double Shaft 36mm DC 12V 18V 24V RS-540 545 550 555 560 Motor 3000rpm 5000rpm 9000rpm Home Appliances

Product Description

Products Description

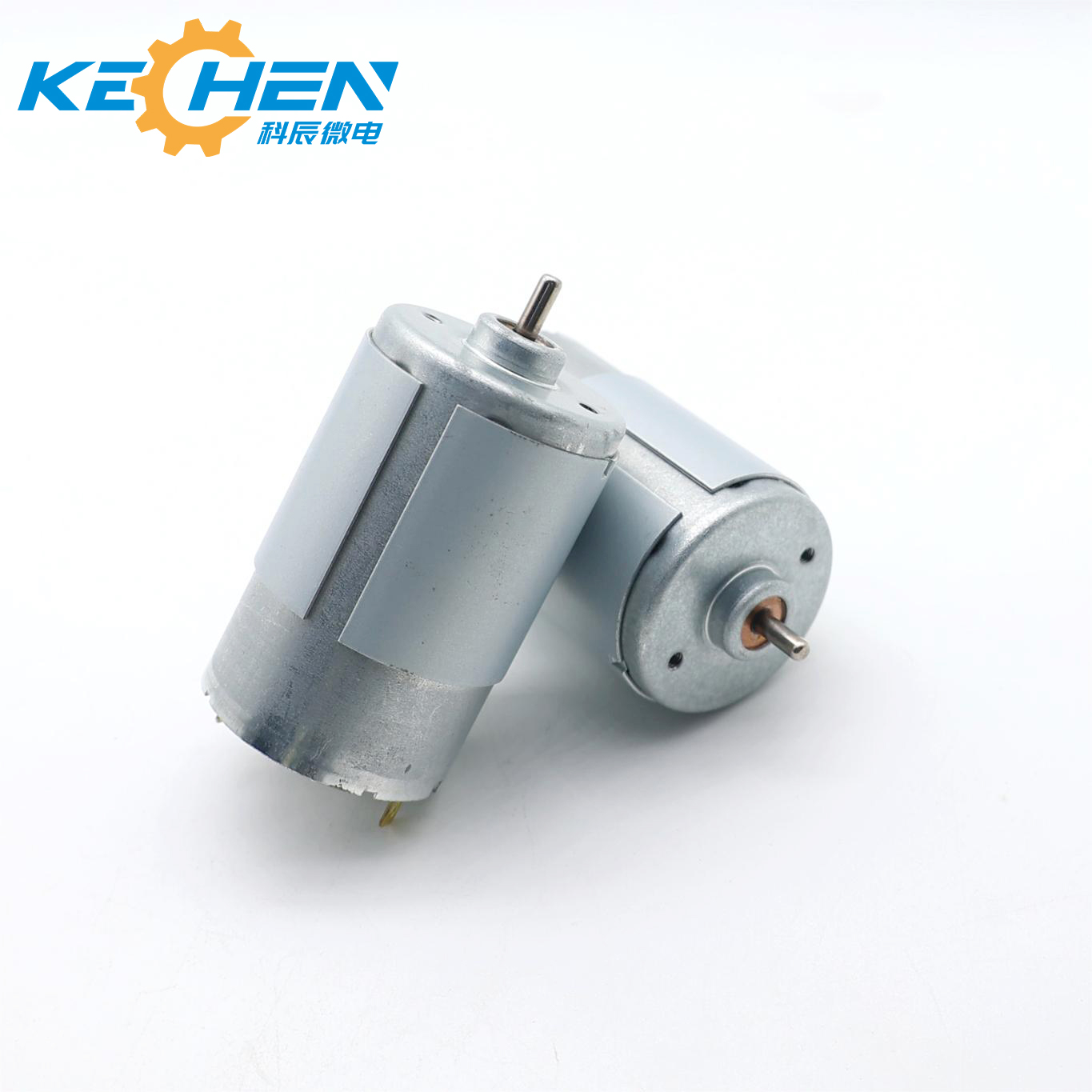

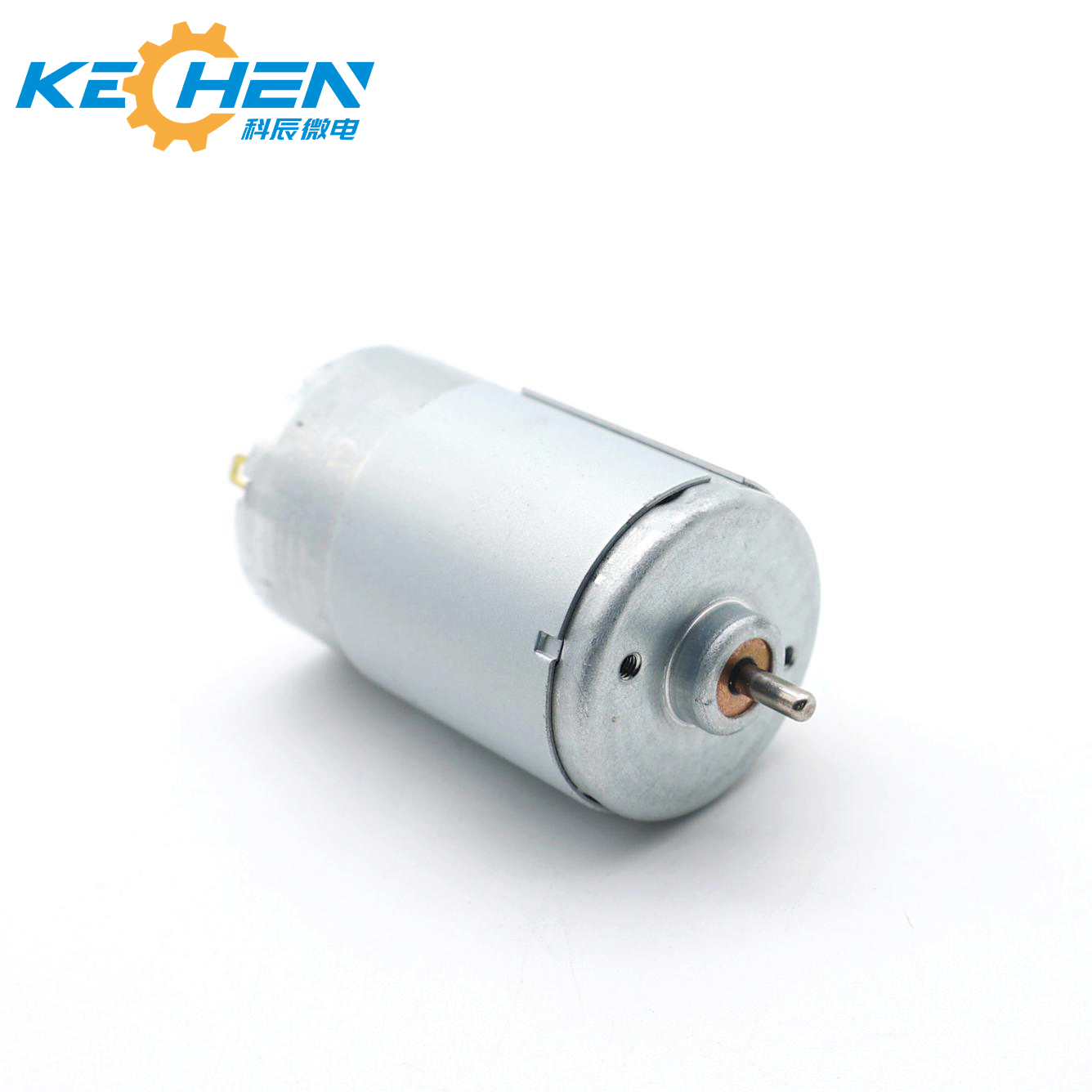

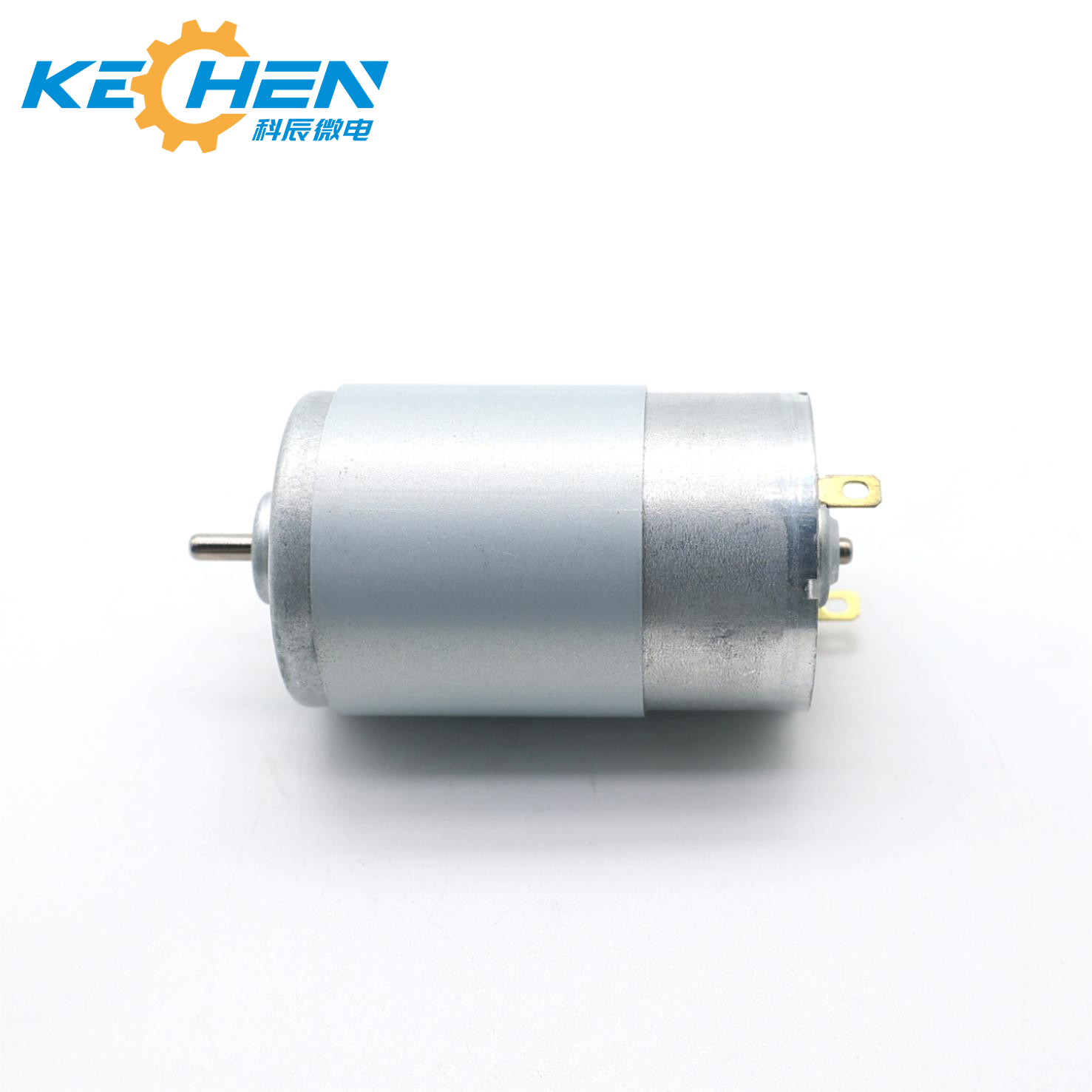

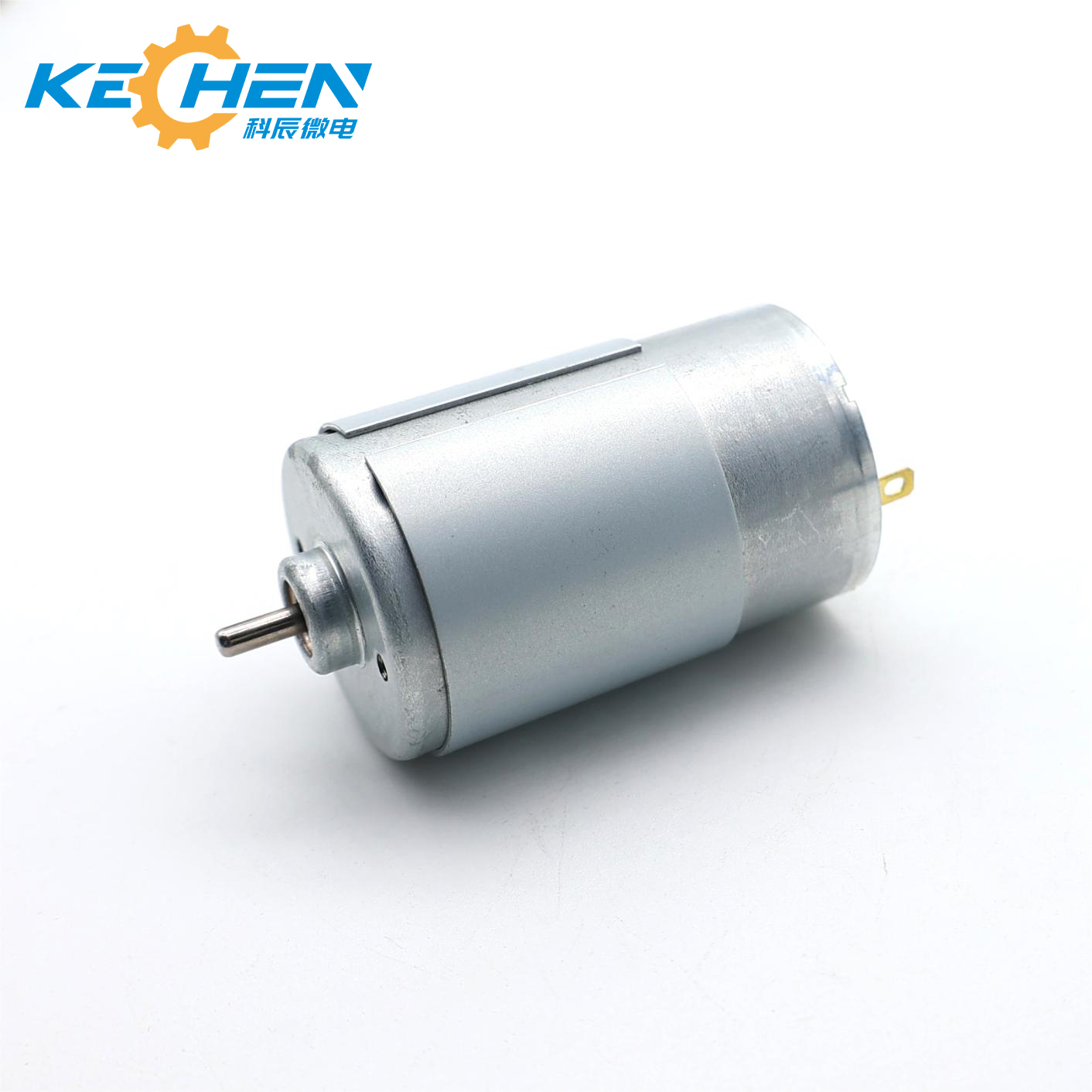

RS-555 Small DC Motor
  • Model: KC-555 dc motor

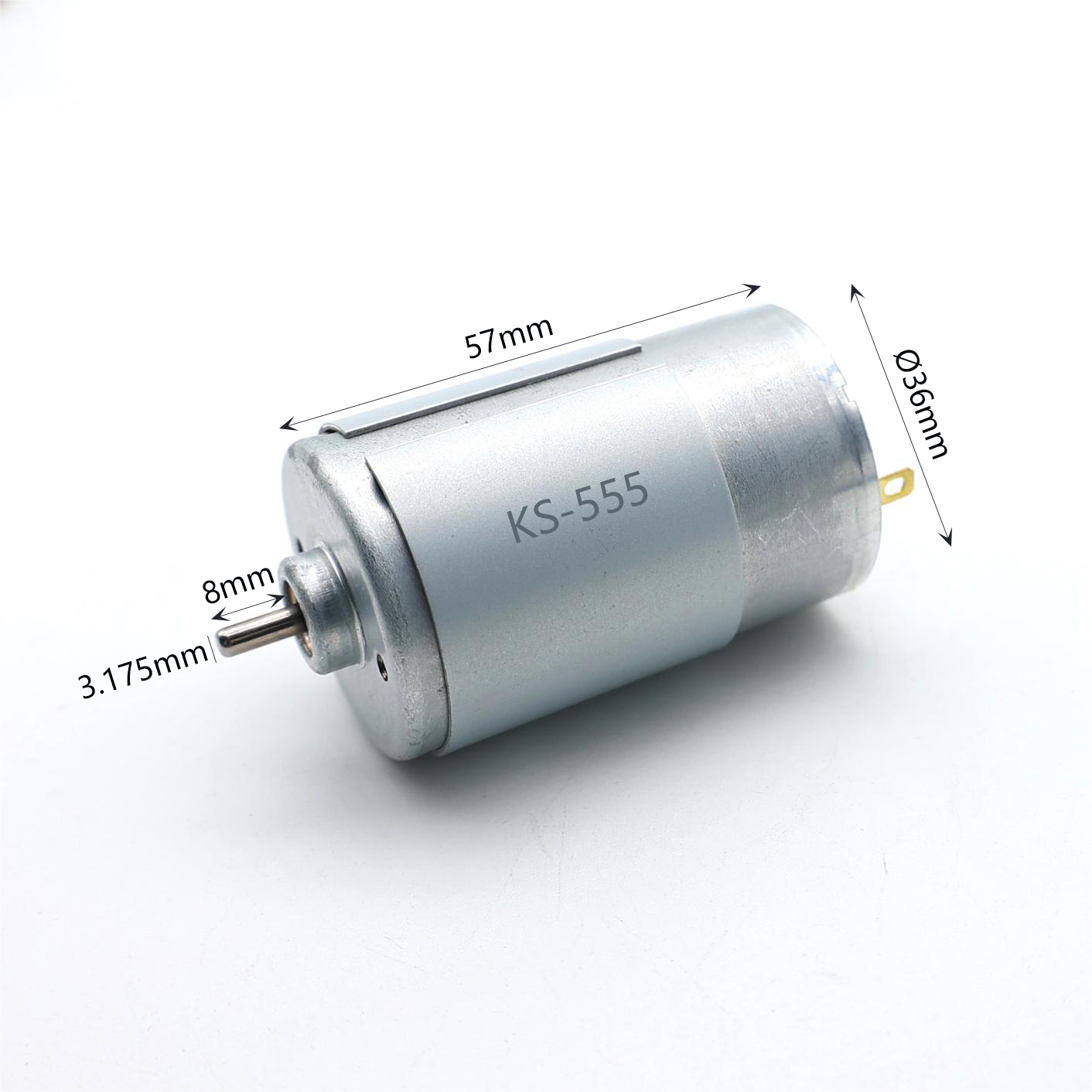

  • Motor Diameter: 35.8*57mm
  • Shaft Diameter: 3.175mm
  • Voltage: 3.6~24 VDC
  • No-load Speed: 3000~25000 rpm
  • ROHS compliance: Yes
  • Mounting holes: 2-M3.0*0.5, PCD Φ 25 mm
  • Shaft length and shape: Can be as customer required
  • Power: Can be as customer required, upto 50W
  • Assembly options: Can be assemble with 32/36mm planetary gearbox and 37mm spur gearbox
  • Double shaft: Can be made double shaft for a magnetic encoder, 2ppr, 7ppr, 11ppr
RS-555 Small DC Motor
Motor Dimension Details
Motor Design Diagram
Motor Component Layout
Motor Technical Specifications Drawing

Recommend Products

Recommended Micro Motor
Recommended Gear Motor

Motor raw materials

Motor Raw Materials Quality

Production Equipment

Production Facility Equipment 1
Production Facility Equipment 2
Production Testing System

Company Profile

Manufacturing Factory Facility
We were established in August 2009. We are a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since our establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Product Quality Certification Document

Application Scenario

Application Overview Diagram
Medical equipment
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines
intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment
Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain.
Smart Home
Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market Share Map
Market Distribution Chart
Market Distribution Analysis Graph

Frequently Asked Questions

What is the voltage and speed range of the KC-555 DC motor?
The KC-555 DC motor operates on a voltage range of 3.6V to 24V DC. It features a no-load speed capability ranging from 3,000 to 25,000 RPM, depending on your custom design requirements.
Can the shaft length and shape of the motor be customized?
Yes. The shaft length and shape can be fully customized according to your specifications. We also offer double shaft options suited for magnetic encoders (2ppr, 7ppr, 11ppr).
Is the RS-555 DC motor compatible with gearboxes?
Yes. It is designed to be highly compatible and can be seamlessly assembled with 32mm and 36mm planetary gearboxes, as well as 37mm spur gearboxes.
What is the maximum power output configuration of this motor?
The motor design supports power configurations tailored to customer requirements, reaching output levels up to 50W.
Do these DC motors meet environmental compliance regulations?
Yes. Our micro DC motors are manufactured in strict compliance with RoHS requirements, ensuring high environmental and safety standards for all regional markets.
