High Speed 130 Micro DC 6V-12V Toy Motor with 10000 Rpm Double Output Shaft Home Appliance Motor Permanent Magnet Construction

Product Description

Products Description
130 Carbon Brushed micro dc motor
  • 20 mm Carbon Brushed Micro DC Motor
  • Model Number: FF-130SH, FF-130RH
  • Shell Stator Size: Φ20.4 * L 25.1 mm (Φ 0.803 inch * 0.988 inch)
  • Shaft: Φ2.0mm (0.0787 inch), D shape, etc.
  • Shaft length free customization
  • Rated Output Power: up to 4W
  • Rated Voltage: DC 1.5V - 24V
  • Rated Torque: up to 12gf·cm (1.17 mN·m)
  • Construction: Permanent Magnet
  • Commutation: Metal brush
  • Clockwise/counter-clockwise rotation (CW&CCW)

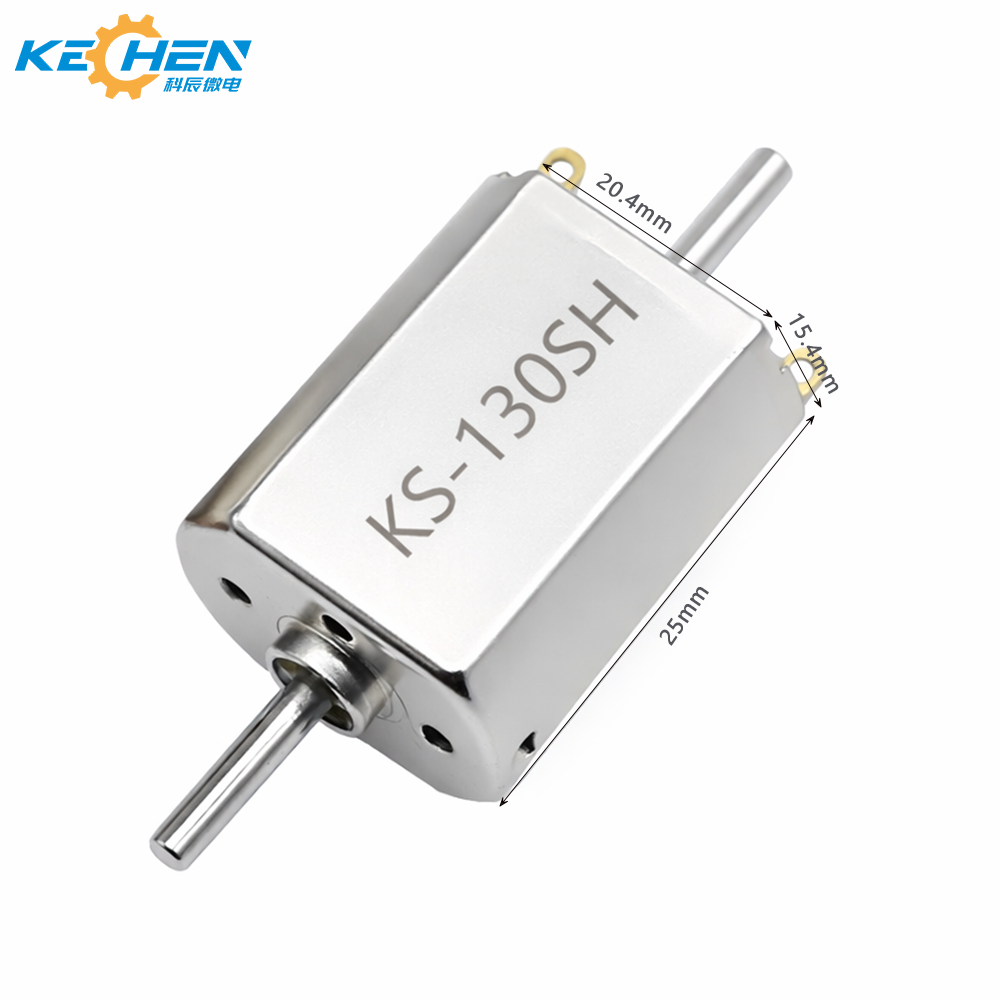

130 Carbon Brushed Micro DC Motor

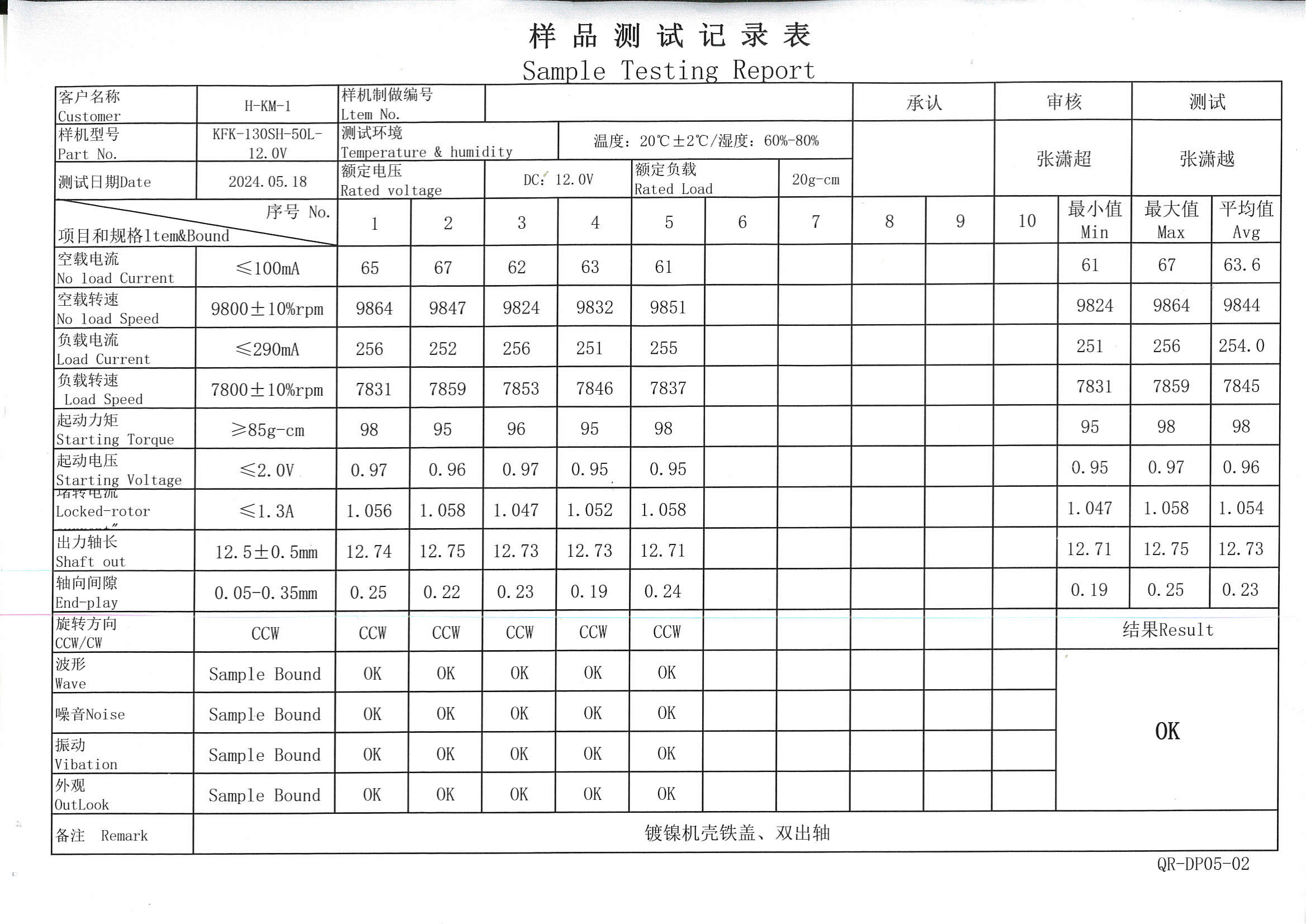

Motor Dimension Details
Recommend Products
Recommended Motor Product 1
Recommended Motor Product 2
Motor raw materials
Motor raw materials details

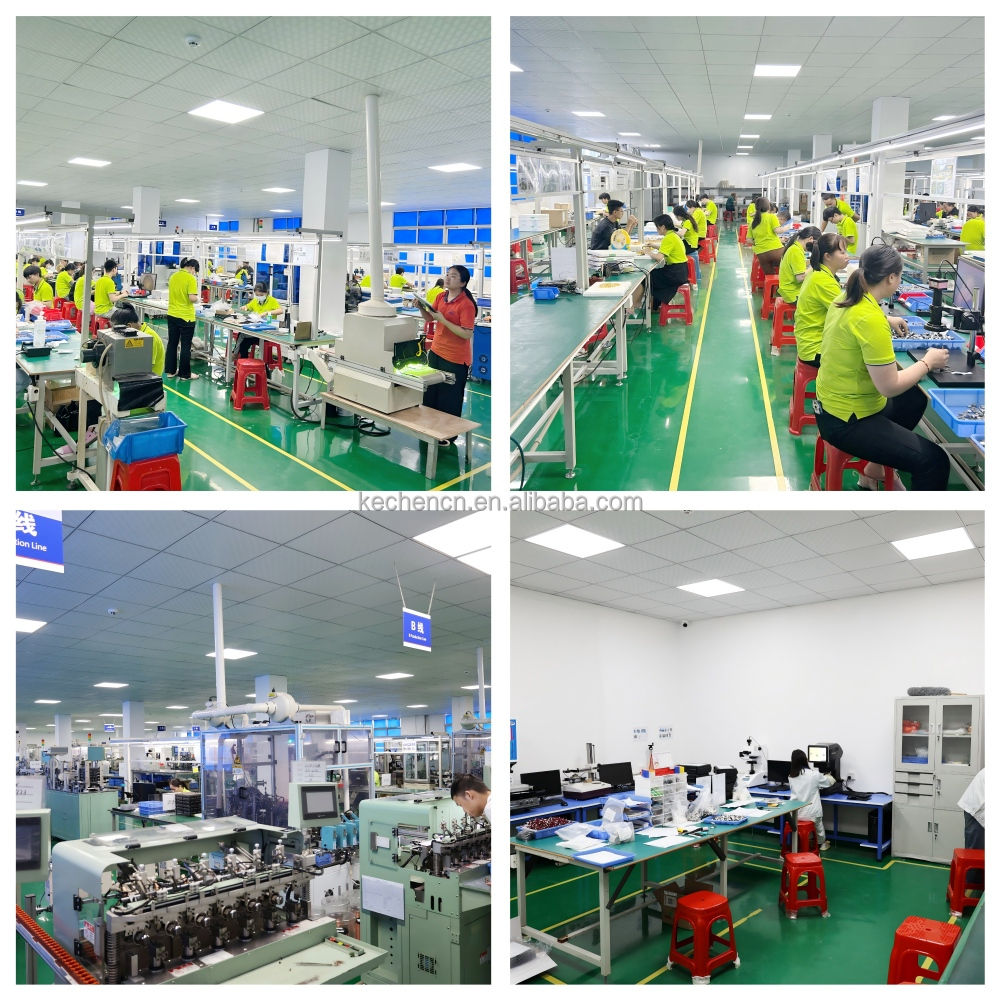

Production Equipment
Production Facility 1
Production Facility 2
Production Facility 3
Company Profile
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Manufacturing Workspace
Certifications
Quality Certifications
Application Scenario
Application Overview Diagram
Medical equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Share Map
Global Trade Partners
Frequently Asked Questions (FAQ)
?What are the key technical specifications of the 130 Carbon Brushed Micro DC Motor?
The 130 series (FF-130SH, FF-130RH) features a stator shell size of Φ20.4 * L 25.1 mm, a Φ2.0mm D-shape shaft, a rated voltage range of DC 1.5V - 24V, rated output power up to 4W, and a rated torque up to 12gf·cm (1.17 mN·m).
?Can the motor shaft length and shape be customized?
Yes. We support free customization of the shaft length and offer options such as D-shaped shafts to meet your unique product designs and mechanical requirements.
?In what industries can these micro DC motors be applied?
Our micro DC motors are highly versatile and widely applied in medical equipment (like air pumps and sphygmomanometers), business machines, smart home devices (including intelligent door locks and vacuum cleaners), food & beverage appliances, and various robotic platforms.
?What other types of motors do you manufacture?
Besides precision carbon brushed DC motors, our production capability includes stepper motors, reduction motors, planetary reduction motors, and brushless motors.
?Does the 130 micro DC motor support bidirectional rotation?
Yes, the motor is designed to support both clockwise and counter-clockwise rotation (CW & CCW) for maximum application flexibility.
