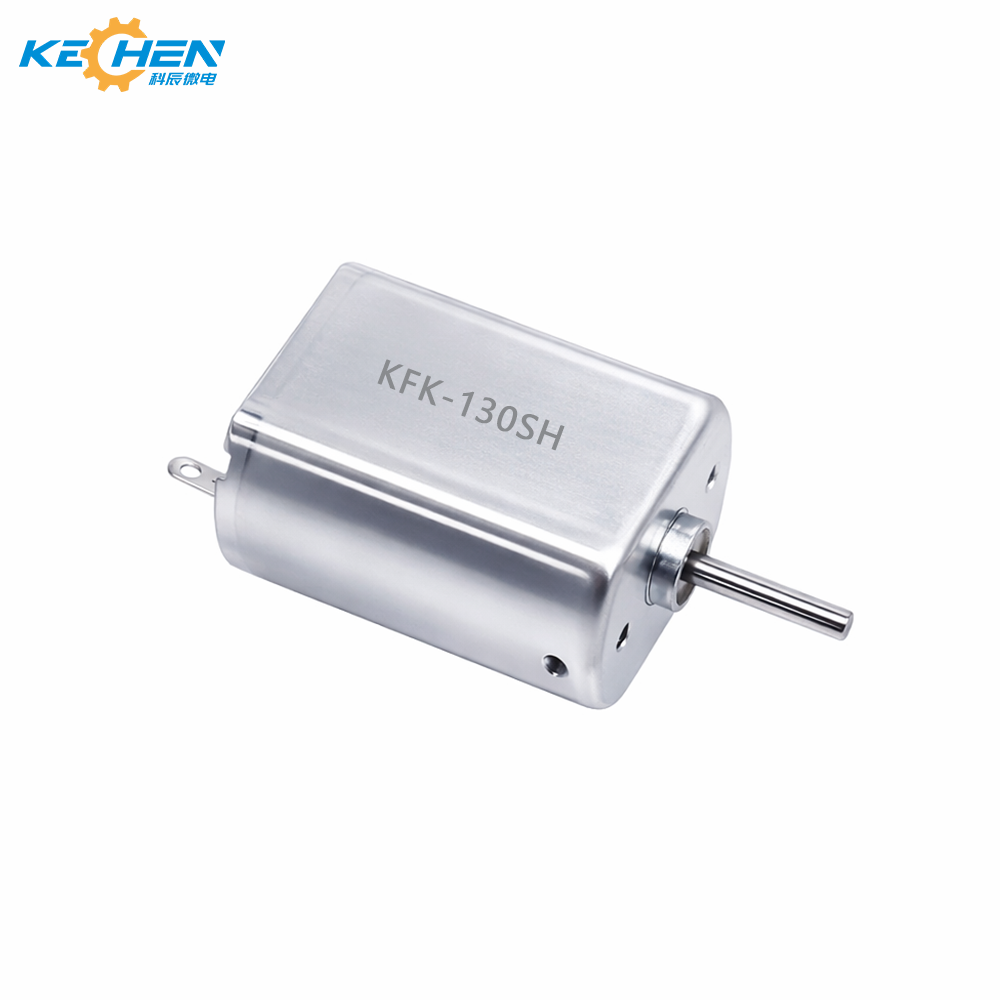

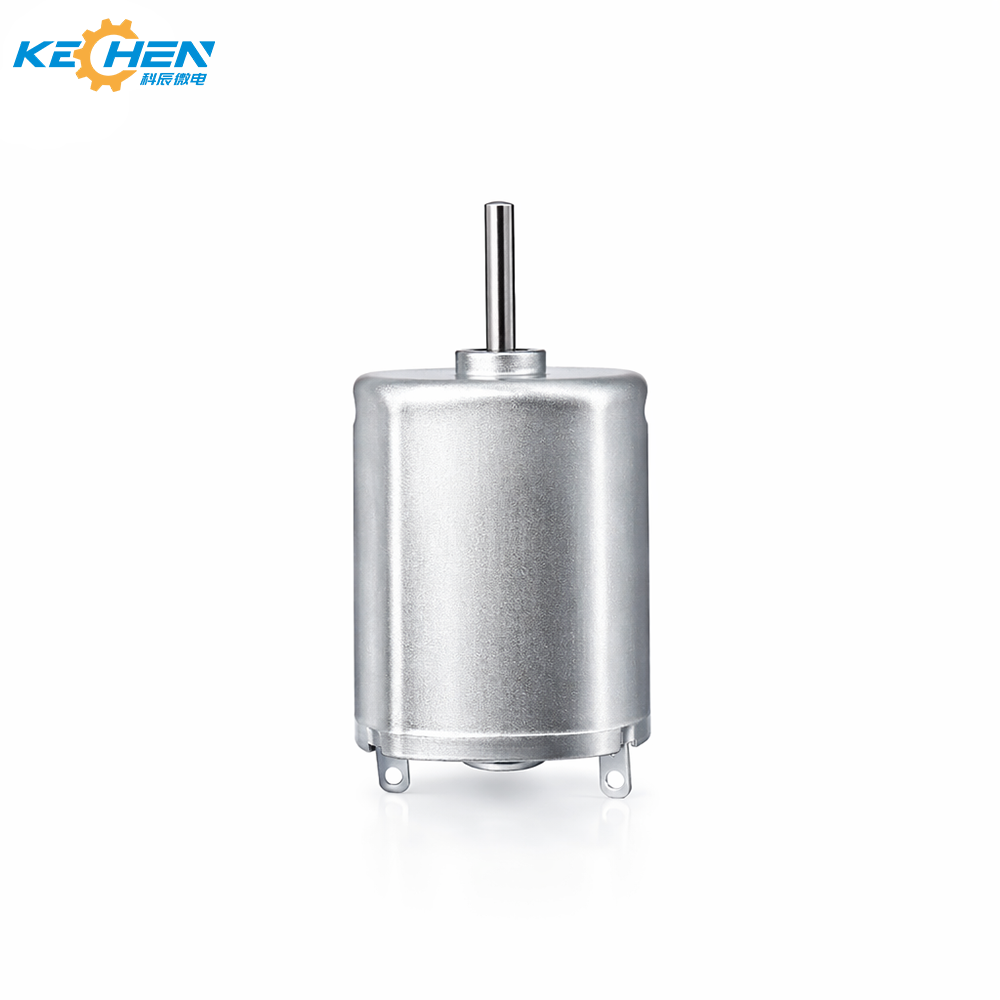

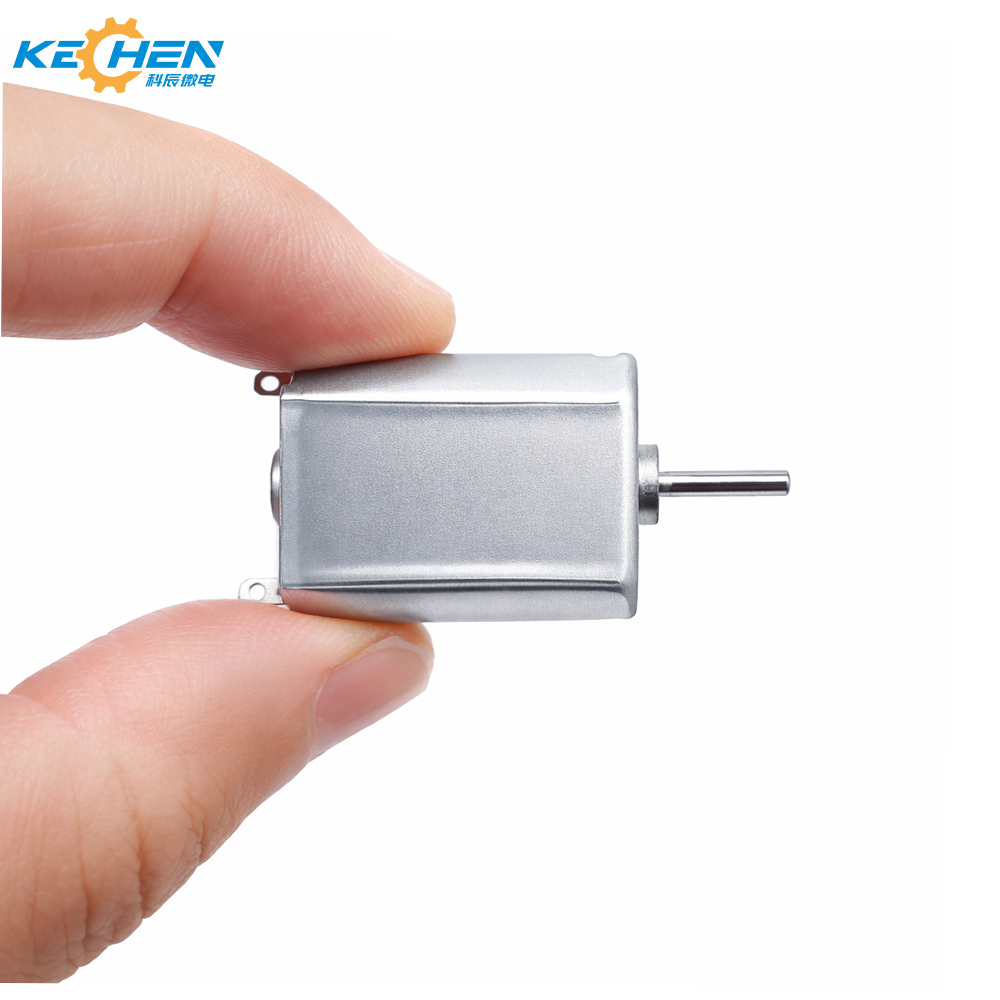

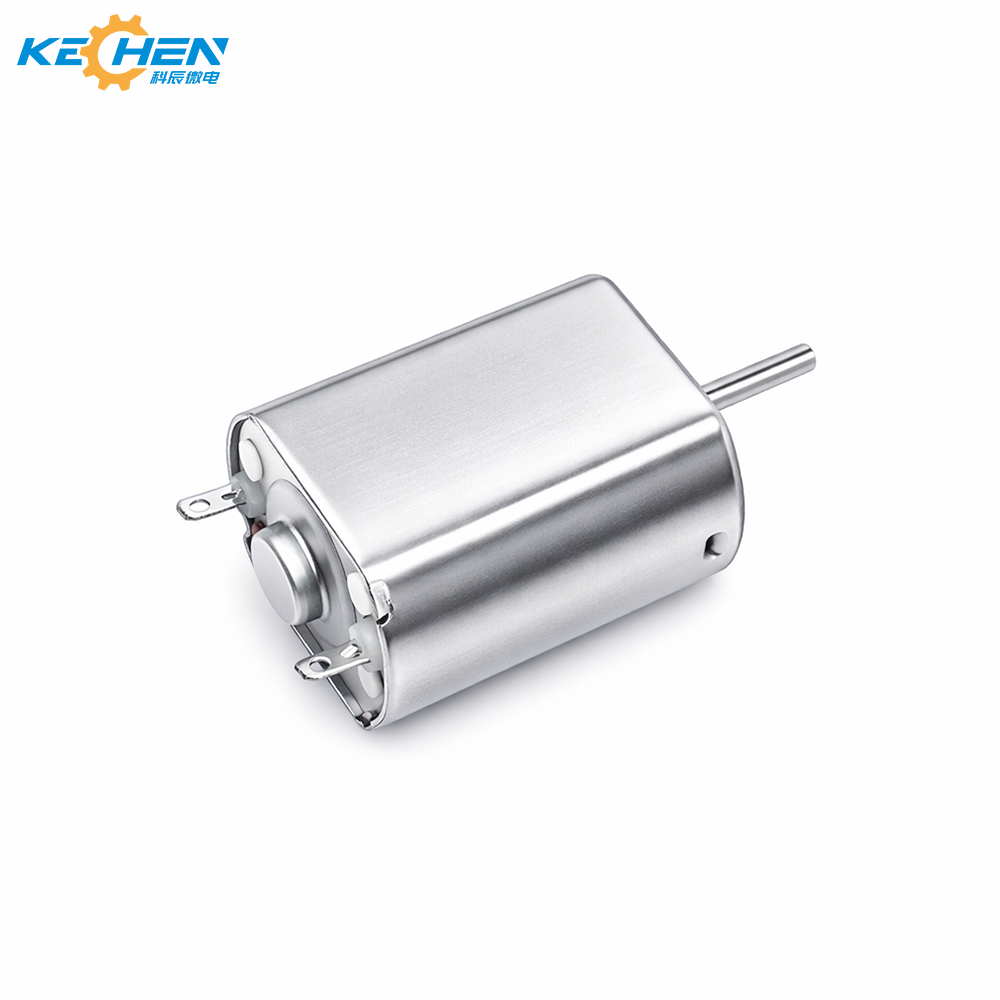

High-Speed 130 Micro DC Motor Permanent Magnet 3-24V 25000 RPM Metal Brushed for Cars Toys & Home Appliances

Product Description

Products Description
130SH mini carbon brush dc electric motor specifications
130SH mini carbon brush dc electric motor
Model Number: KC-130SH, KC-130RH

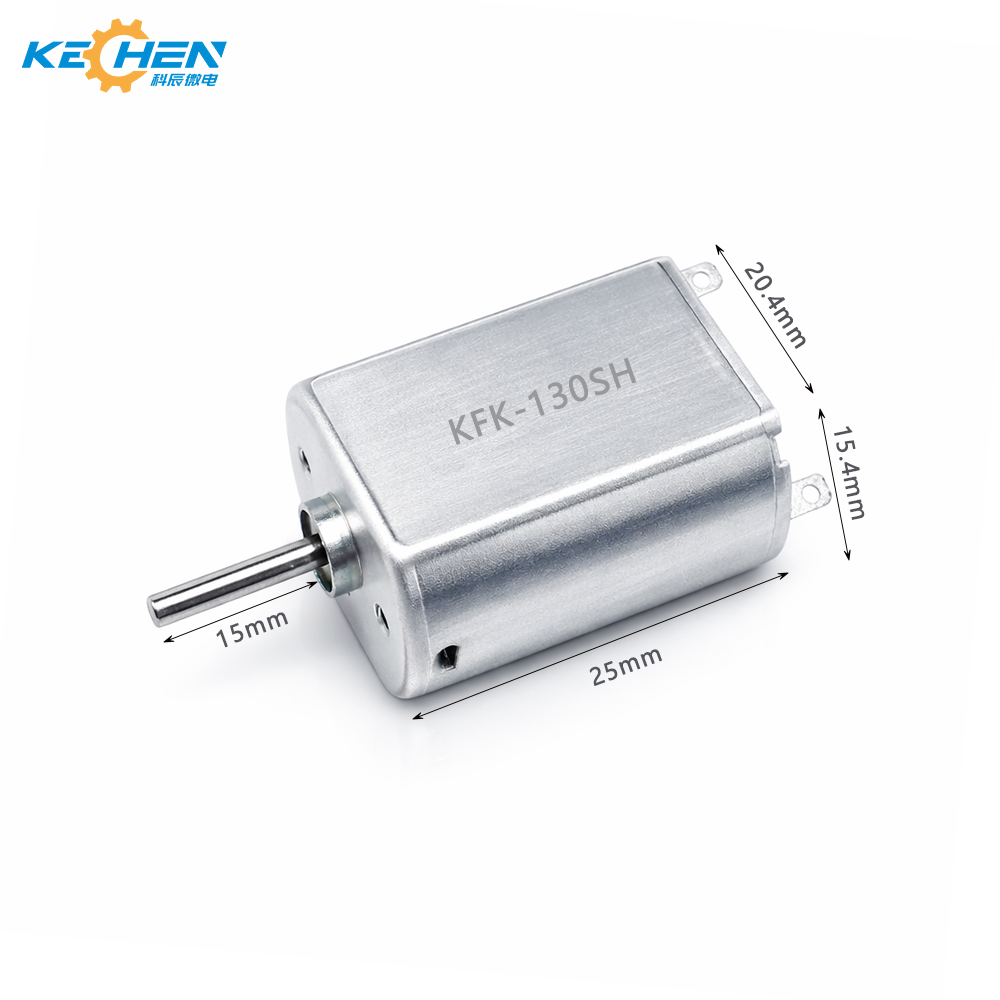

Shell Stator Size: Φ20.4 * L 25.1 mm (Φ 0.803 inch * 0.988 inch)
Shaft: Φ2.0mm (0.0787 inch), D shape, etc.
Shaft Length: Free customization
Rated Output Power: Up to 10W
Rated Voltage: DC 1.5V - 24V
Rated Torque: Up to 24gf-cm (1.17 mN-m)
Construction: Permanent Magnet
Commutation: Metal brush
Rotation: Clockwise / Counter-clockwise (CW & CCW)

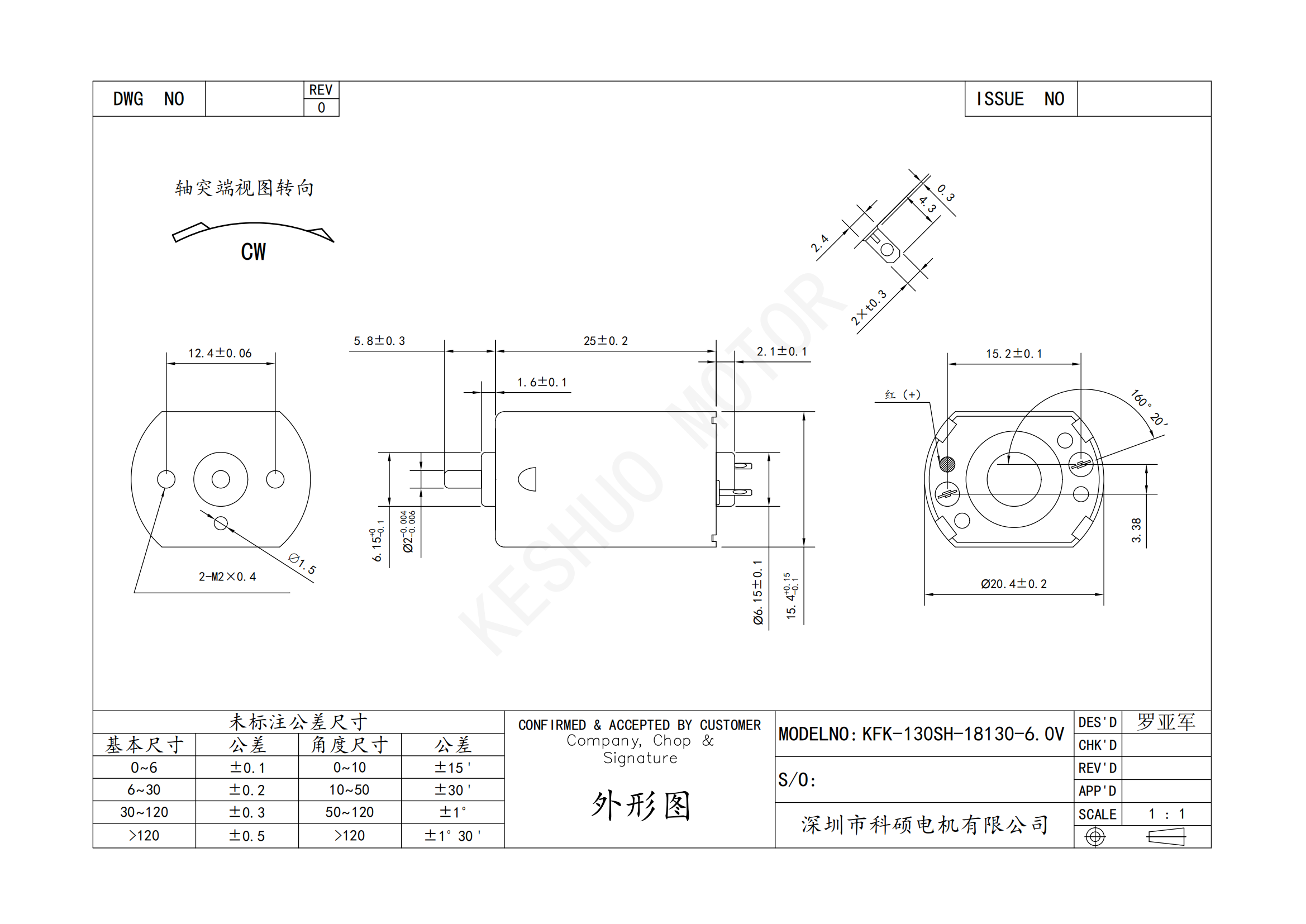

Motor Dimension Details
Motor Internal Construction
Recommend Products
Recommended Products Lineup
Motor Raw Materials
Premium Raw Materials
Production Equipment
Advanced Equipment 1
Advanced Equipment 2
Advanced Equipment 3
Company Profile
Manufacturing Plant
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After rapid development, it has built a group of young, pragmatic, professional, and efficient work teams, equipped with advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning wide recognition from global customers.
Certifications
Product Quality Certifications
Application Scenario
Applications Overview
Medical Equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric Powered Equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Market Distribution Chart
International Trade Coverage
Frequently Asked Questions (FAQ)
Q: Can the shaft length of the 130SH mini DC motor be customized?
Yes, we support free customization of the shaft length, shaft shape (such as D-shape, round shape, or flat cuts), and other output options to perfectly match your structural design.
Q: What voltage configurations are available for this motor?
The motor can operate within a wide rated voltage range from DC 1.5V up to 24V, allowing compatibility with various battery systems and power supplies.
Q: Does the 130SH motor support both clockwise and counter-clockwise rotation?
Yes, the motor is designed to support both clockwise (CW) and counter-clockwise (CCW) rotation depending on the electrical connection polarity.
Q: What is the maximum rated torque and output power of this micro motor?
The motor delivers a rated output power of up to 10W and can achieve a rated torque of up to 24gf-cm (1.17 mN-m) depending on the configuration.
Q: What applications are most suitable for the 130SH/130RH motor?
Due to its compact size and high reliability, it is highly suitable for medical equipment (like air pumps and sphygmomanometers), smart home devices (like intelligent door locks), electric tools, and robotic components.
