High Precision Planetary Gear Motor 12V 25mm Geared Stepper Motor NEMA 8 Permanent Magnet 0.05-2Nm Torque Medical Devices ISO

Product Description

Products Description
⚙️ Products Description
GMP24-25BY Stepper Motor Specifications
Motor model GMP24-25BY
Motor Type 25mm PM Stepper Motor
Motor Dimensions Φ25mm x 11.8mm
Rated Voltage 5.0 V/12.0 DC
Phases 2-phase, 4-wire
Step Angle 7.5° / step
Gear Ratio 4:1/16:1/20:1/22:1/27.5:1/64:1/80:1/88:1/100:1/5125:1/138:1/151:1/256:1/320:1/352:1/400:1/500:1/550:1/625:1/688:1/756:1/832:1
Coil Resistance 10 Ω-40 Ω/phase(±10%)
OPERATING TEMPERATURE RANGE −0 ~ +55 °C
Line sequence A+A-B+B-
Terminal model 1.25/1.5/2.0/2.54
Encoder 3ppr/7ppr/12ppr

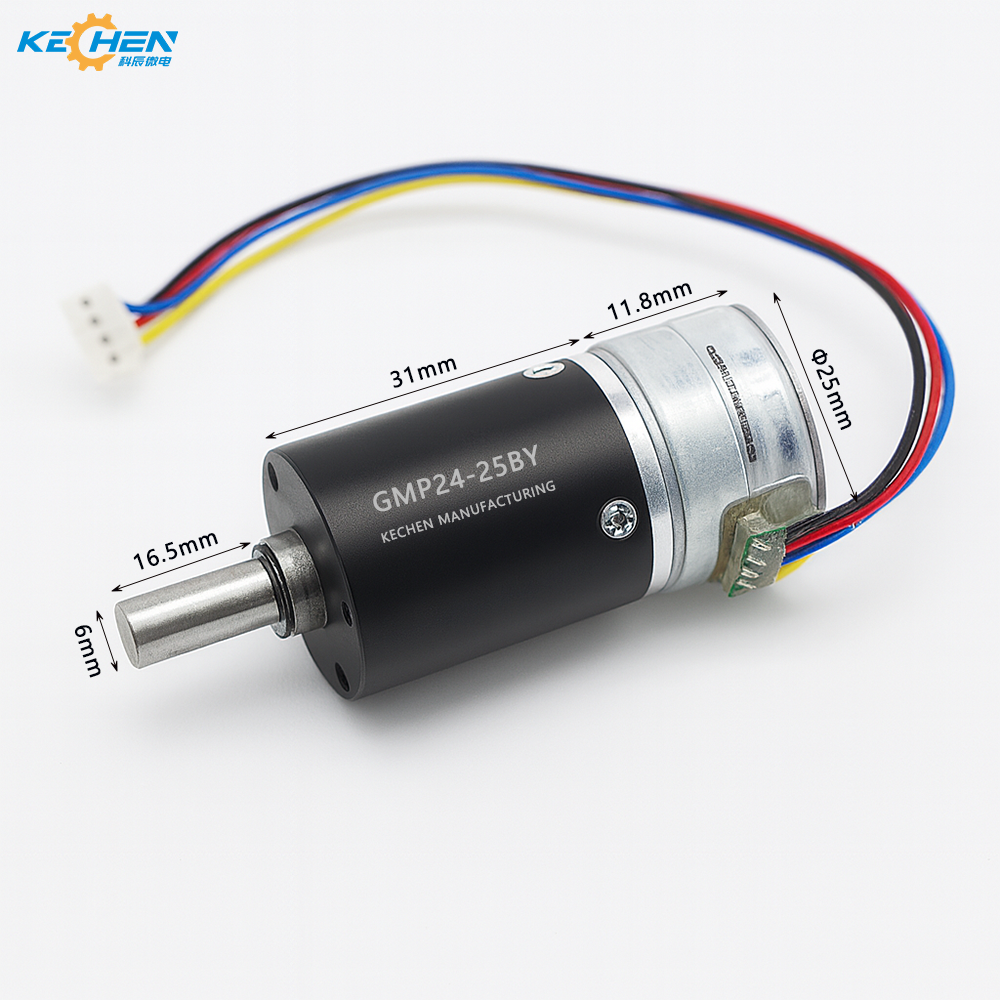

Motor Dimension Details
Motor Performance Curves
🎯 Core Application Areas
🔬 Micro-pumps/Injection Pumps
  • Microfluidic Analyzers
  • Optical Instruments
  • Precision Positioning Platforms (XYZ Axis Fine-tuning)
🏥 Medical and Portable Healthcare Devices
  • Small Infusion Devices
  • Portable Respirators, Sampling Equipment
  • Medical Metrology Units (Pharmaceutical Dosing)
📁 Office Equipment
  • Portable Scanners
  • Mini Printers/Label Printers
  • Projector Optics
🎛️ Small Valves and Fluid Control Devices
  • Small Electric Valves
  • HVAC Damper Control
  • Flow Regulation Control
🌟 Recommend Products
Recommend Products
🔩 Motor raw materials
Motor raw materials
🏭 Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
🏢 Production Facilities
Facilities 1
Facilities 2
Facilities 3
📜 Certifications
Certifications
🚀 Application Scenario
Application Scenario Overview
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
🌍 Global Market Distribution
Global Market 1
Global Market 2
Global Market 3
💬 FAQ
Q: How to select a suitable motor?
A: If you have detailed specifications like voltage, speed, torque, motor size, working mode, expected lifetime, and noise level, please let us know. We can recommend a suitable motor based on your requirements.
Q: Do you offer customization services for standard motors?
A: Yes, we customize parameters such as voltage, speed, torque, and shaft size/shape. We can also add connectors, customized leads, capacitors, or EMC suppression options.
Q: Can I request samples for testing first?
A: Yes, you can. After confirming the motor specifications, we will provide a quote and sample invoice. Once payment is processed, we will proceed with sample production.
Q: How do you guarantee the quality of your motors?
A: We maintain strict quality control: incoming materials are inspected against drawings/samples; production processes are monitored throughout, and a final inspection is performed before shipment.
Q: What is the typical lead time?
A: Typically, standard products require 25-30 days. Customized motors may take slightly longer depending on the specific requirements and complexity.
Q: What certifications do you hold?
A: We currently hold CE, RoHS, ISO13485, IATF16949, and REACH certifications.
