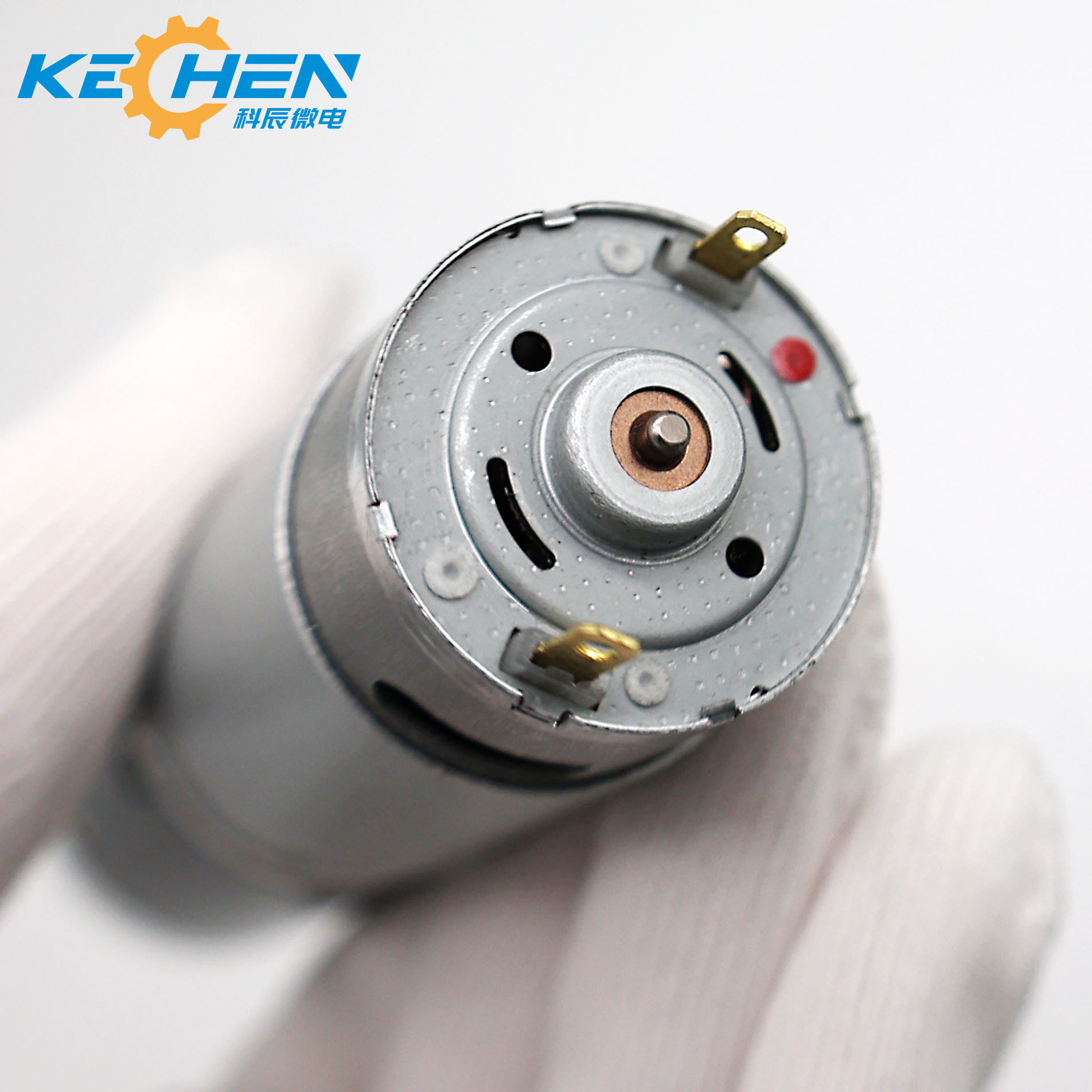

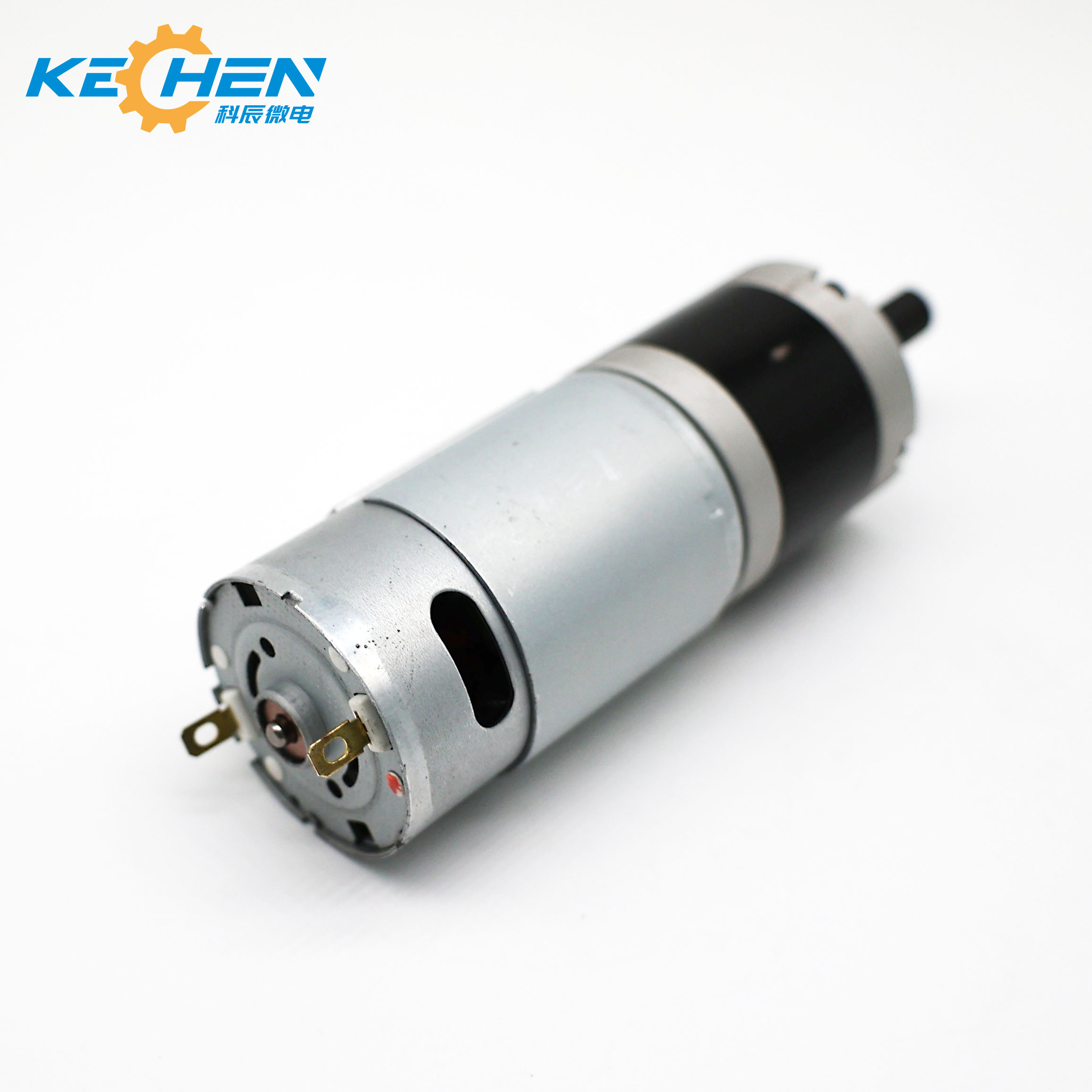

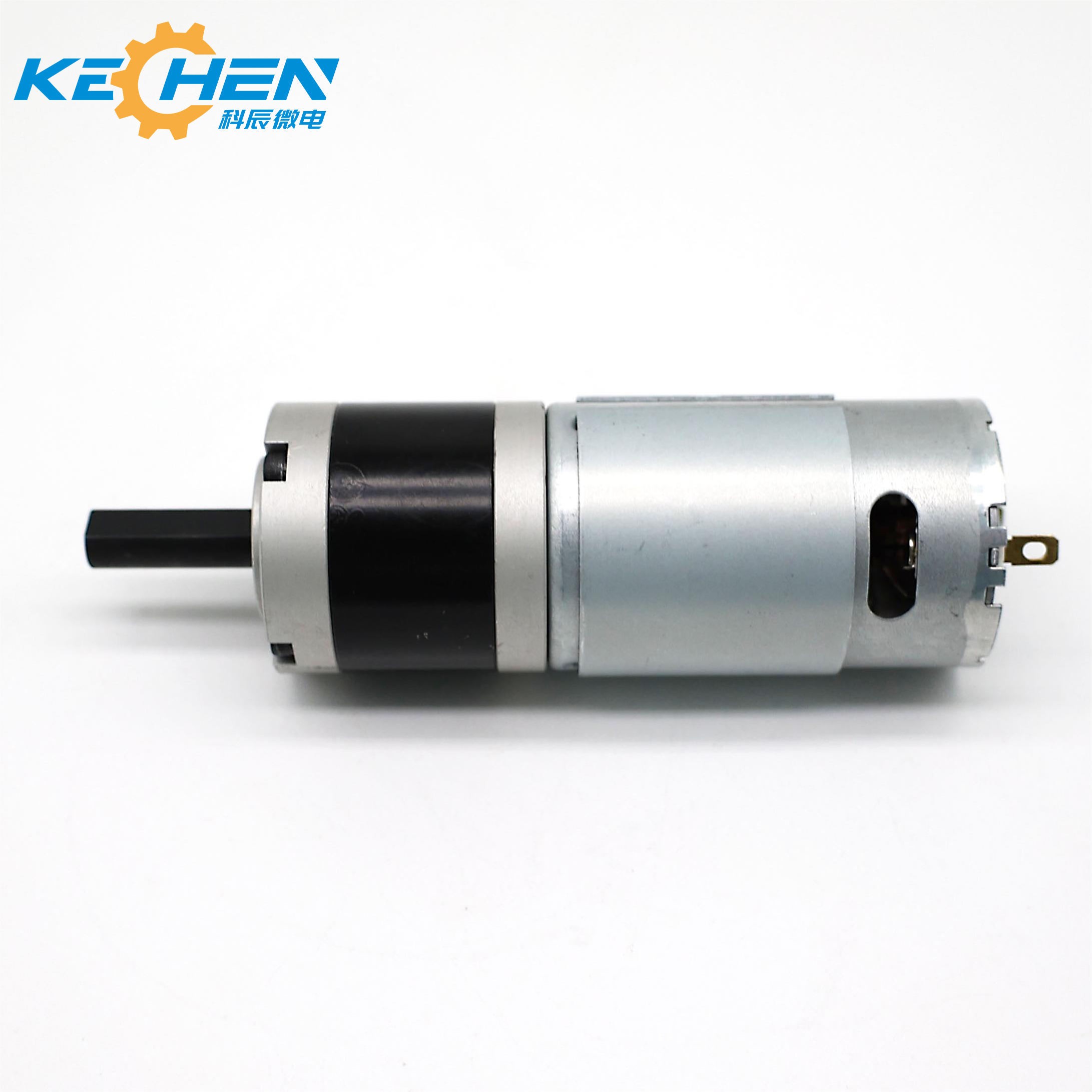

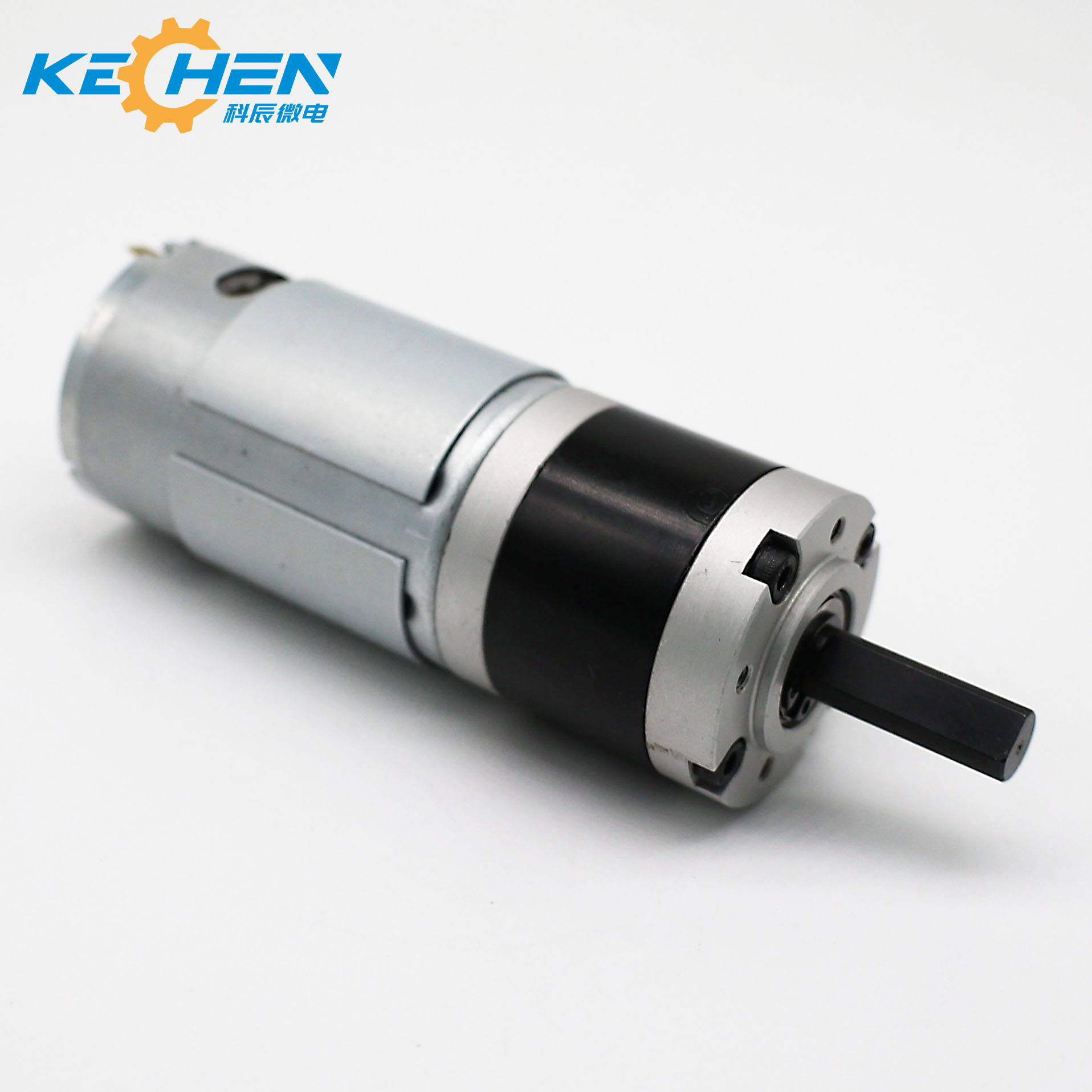

GMP42-775 Mini Planetary Gear Motor Brush 42mm Asynchronous DC Motor 12V/24V Vending Machines Certified ROHS Rotation CCW CW

Product Description

Products Description

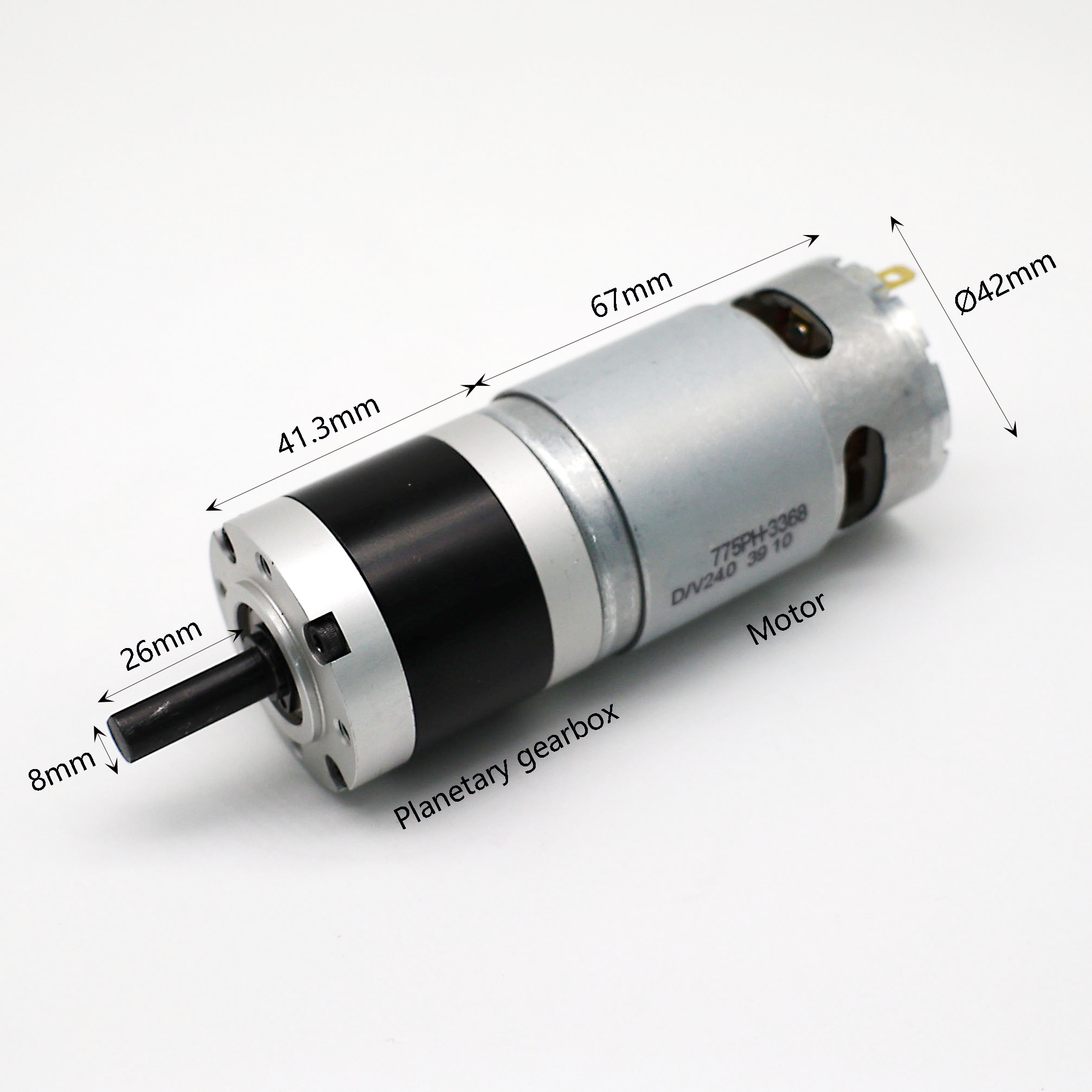

Planetary Gear Motor

42mm Planetary Gear Motor Main Features

  • Model:  GMP42-775 geared DC motor
  • Gearbox:  Metal planetary gear reducer
  • Rated Voltage:  DC 6V, 9V, 12V, 24V, 36V
  • Rated Torque:  Max. 200 Kgf-cm
  • Size:  Φ42* L TBD
  • Shaft:  Concentric driveshaft, Φ8mm/Φ10mm D-cut 1mm, custom
  • Commutation:  Carbon brush/Graphite brush
  • Construction:  Permanent Magnet
  • Encoder:  Magnetic/Optical encoder
  • MOQ:  500 pcs

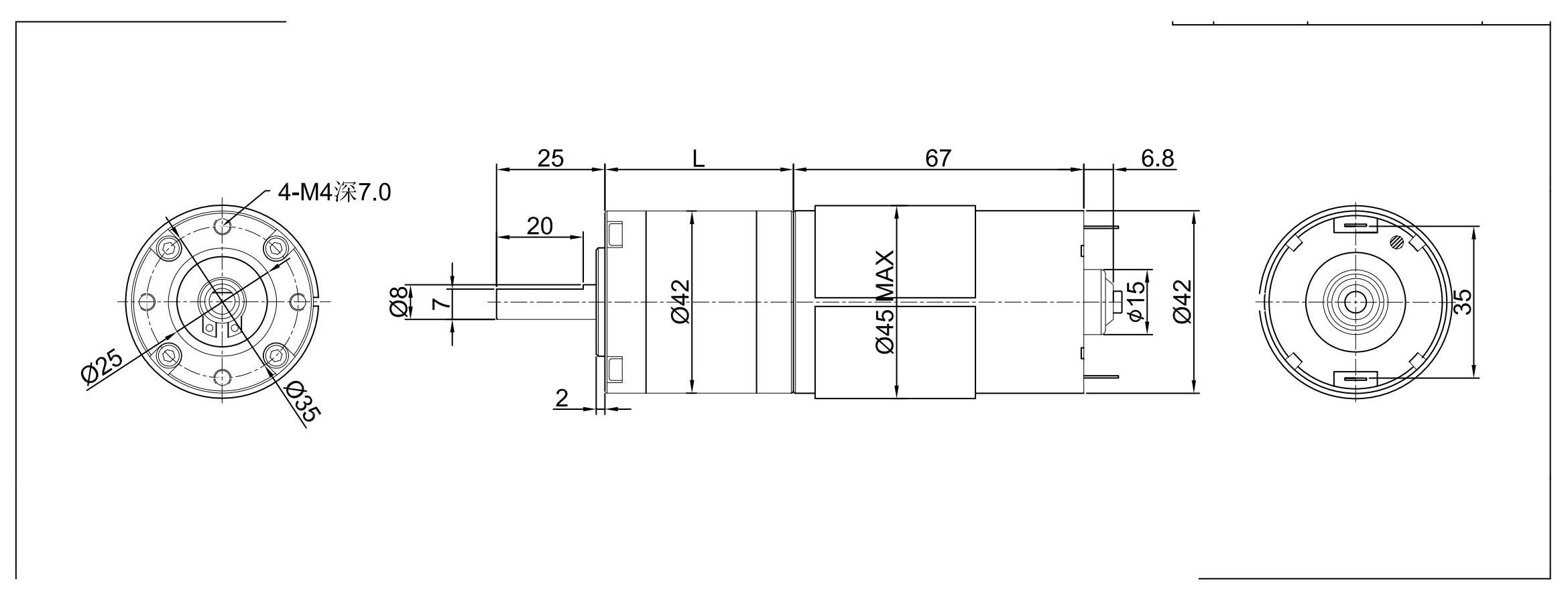

Motor Structure Diagram

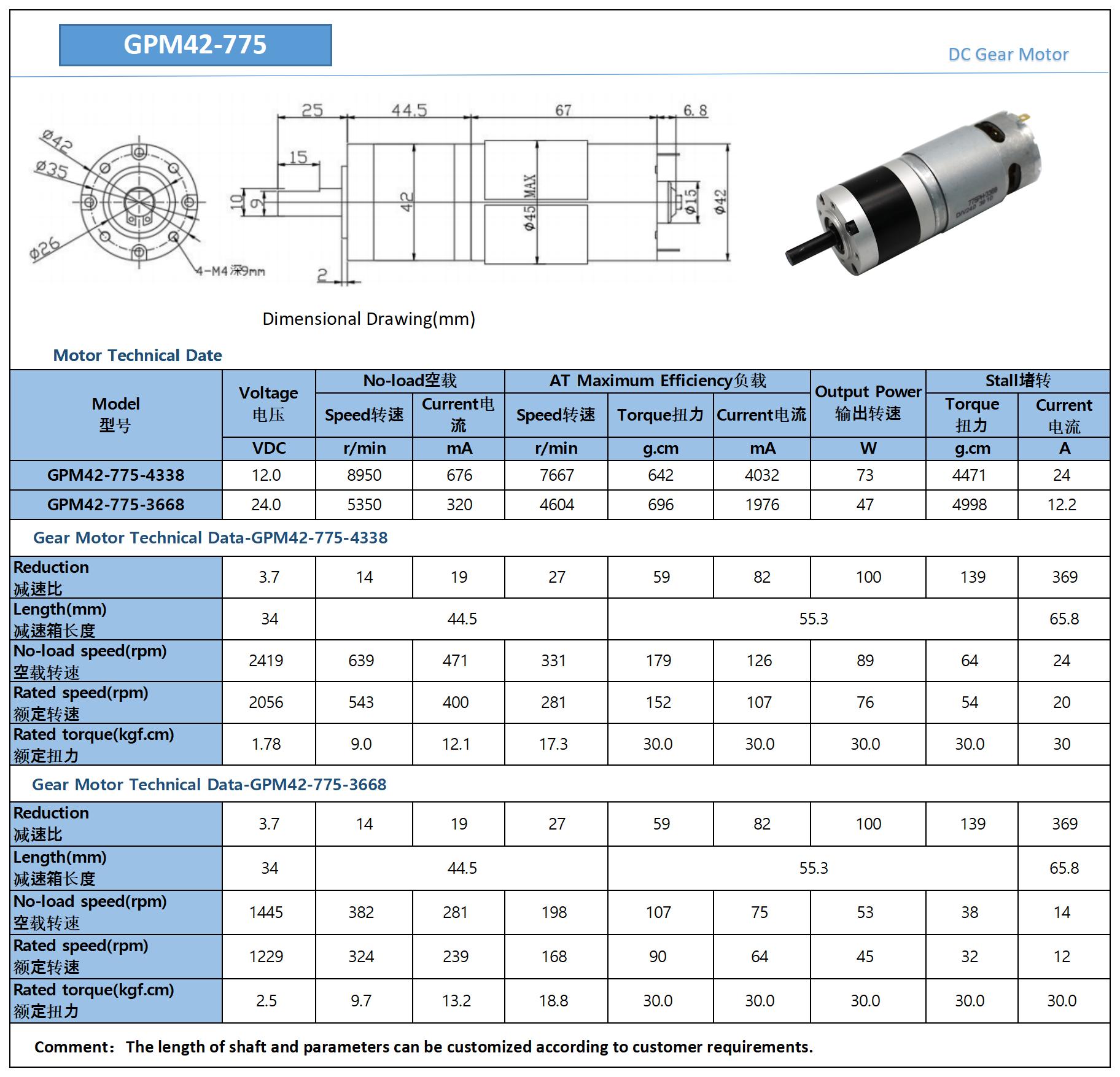

Motor Specifications Sheet
Recommend Products
Recommended Motor 1
Recommended Motor 2
Motor raw materials
Motor Raw Materials Diagram
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Profile
Facility Image

We are a high-tech enterprise integrating the research and development, production, and marketing of micro motor series products. Our main products include various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since our establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". Through rapid development, we have established a group of young, pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from customers worldwide.

Certifications
Product Quality Certifications
Application Scenario
Application Scenario Banner
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map
Market Distribution Chart
Global Logistics
Frequently Asked Questions
Q1: What are the main features of the 42mm planetary gear motor?
A1: It is equipped with a high-torque metal planetary gear reducer, permanent magnet construction, concentric driveshaft (Φ8mm/Φ10mm D-cut), optional magnetic or optical encoders, and supports custom configurations.
Q2: What DC voltage options are available for this motor?
A2: The rated voltages supported by this planetary gear motor are DC 6V, 9V, 12V, 24V, and 36V, satisfying various industrial and smart appliance voltage standards.
Q3: Can the output shaft dimensions be customized?
A3: Yes. The default shaft is a concentric driveshaft featuring Φ8mm or Φ10mm with a D-cut of 1mm, but we can customize the dimensions and shape according to your design specifications.
Q4: What is the Minimum Order Quantity (MOQ) for orders?
A4: The standard Minimum Order Quantity (MOQ) for the GMP42-775 planetary geared DC motor is 500 pieces.
Q5: Which industries commonly use these micro motors?
A5: Our micro motors are extensively applied in medical equipment, smart home appliances (like intelligent window openers and door locks), business machinery, robotic platforms, food processing tools, and security hardware.
Q6: What is the maximum rated torque for the 42mm geared motor?
A6: The motor is designed to deliver a high-capacity torque output of up to a maximum of 200 Kgf-cm, depending on the chosen gearbox reduction ratio.
