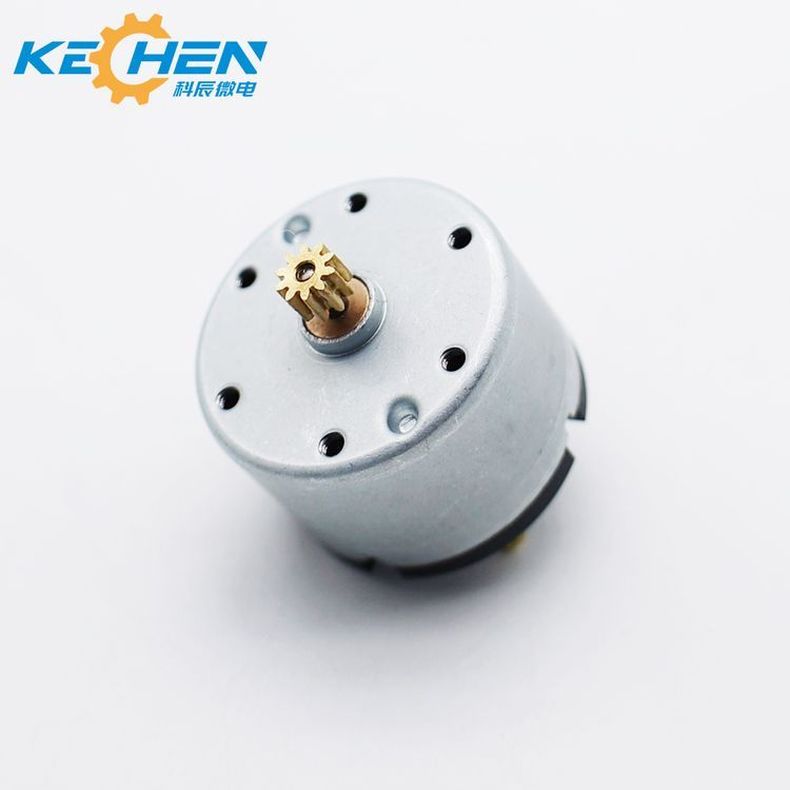

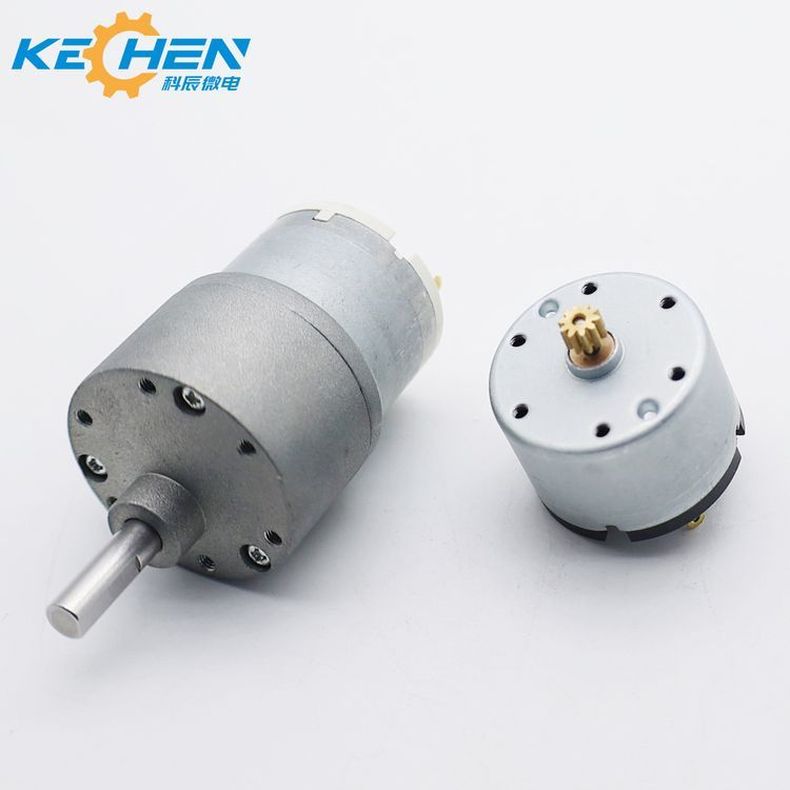

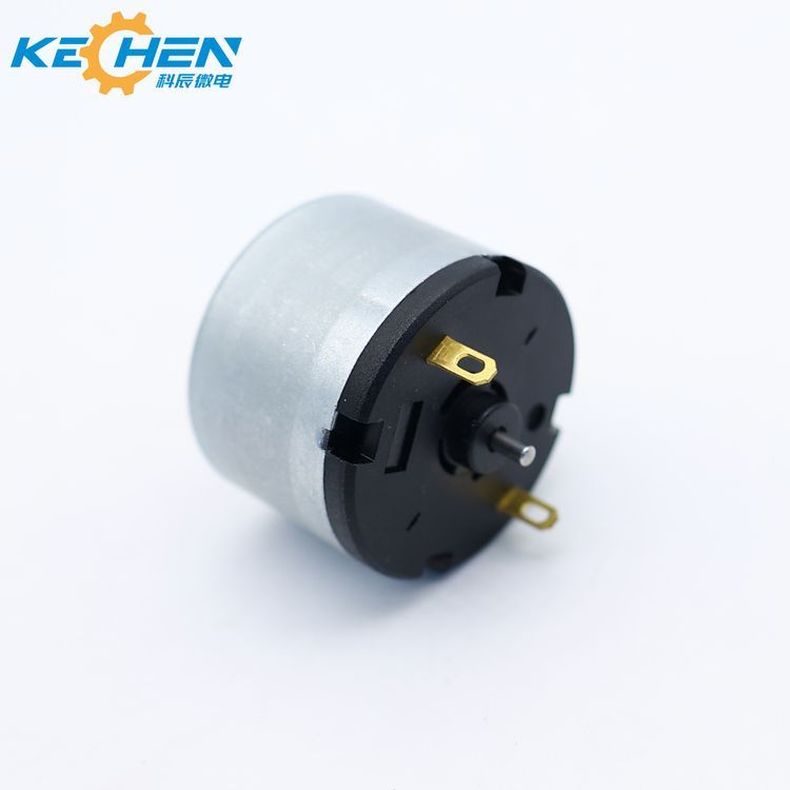

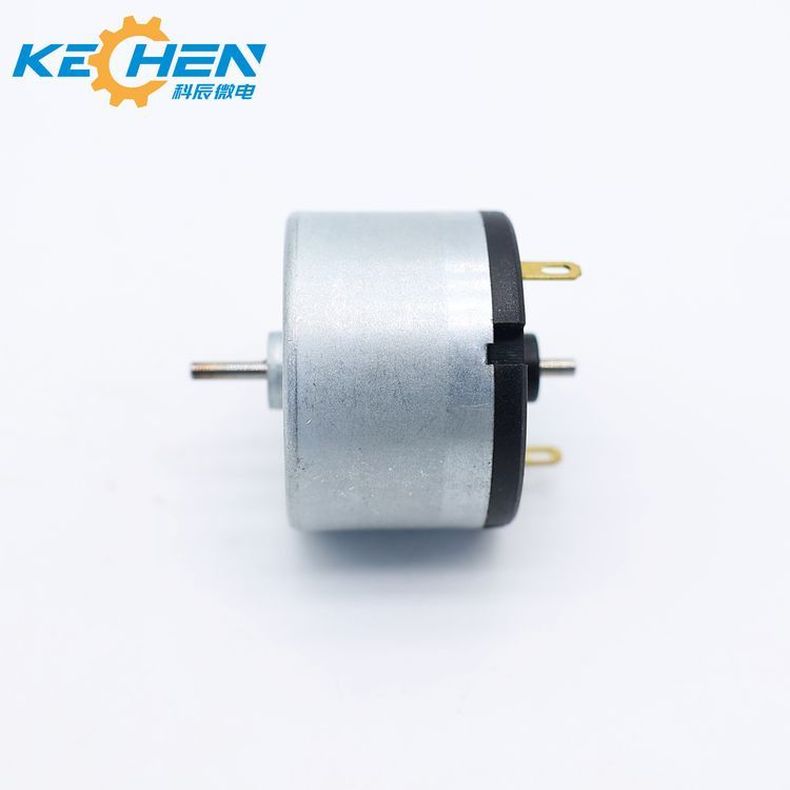

33mm 520 DC Brush Micro Motor 3-24V 5000-6500RPM Permanent Magnet for Smart Home & Fan Use

Product Description

Products Description
Model Number 520SH

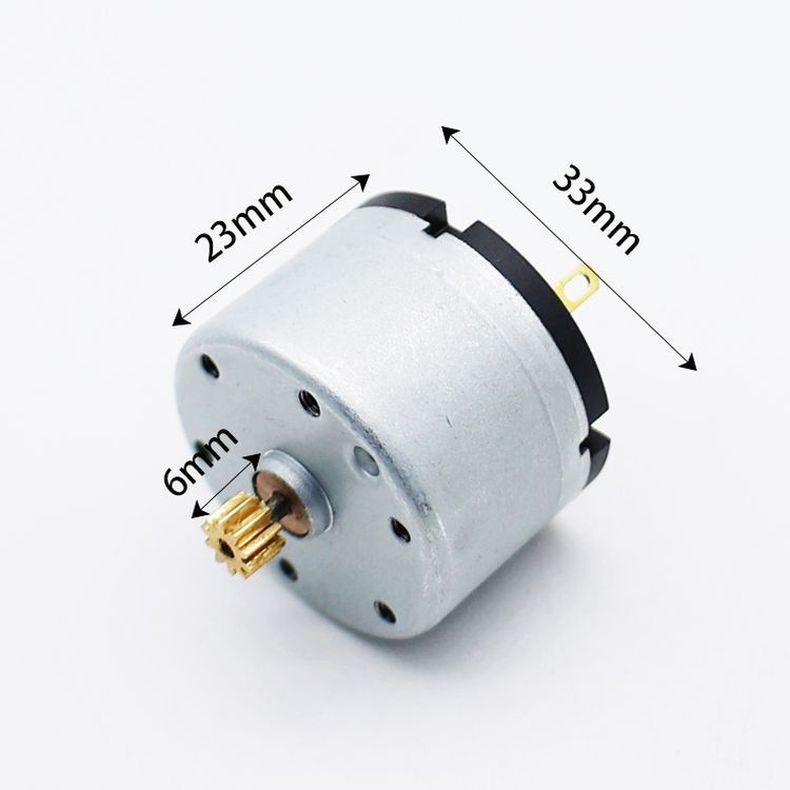

Shell Stator Size 33*L 22.7 mm(Φ 1.3inch * 0.8937 inch)
Shaft 20mm(0.079 inch), D shape, etc.
Rated Output Power up to 3W
Rated Voltage DC 1.5v-24V
Rated Torque up to 70 gf-cm(6.86 mN-m)
Construction Permanent Magnet
Commutation Metal brush
520 Brushed Micro DC motor
520 Brushed Micro DC motor
  • Model Number: 520SH
  • Shell Stator Size : Φ33* L 22.7 mm(Φ 1.3 inch * 0.8937 inch)
  • Shaft : Φ2.0mm(0.079 inch), D shape, etc.
  • Shaft length free customization
  • Rated Output Power: up to 3W
  • Rated Voltage: DC 1.5V - 24V
  • Rated Torque: up to 70 gf·cm(6.86 mN·m)
  • Construction: Permanent Magnet
  • Commutation: Metal brush
  • Clockwise/counter-clockwise rotation (CW&CCW)
Motor Dimension Diagram 1
Motor Dimension Diagram 2
Recommend Products
Recommend Product 1 Recommend Product 2
Motor raw materials
Motor Raw Materials
Production Equipment
Production Equipment 1 Production Equipment 2 Production Equipment 3
Company Profile
Company Banner
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". Through rapid development, it has built a group of young and pragmatic, professional and efficient work teams, utilizing advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from customers.
Certifications
Certifications Proof
Application Scenario
Application Scenarios
Global Market Distribution
Market Distribution Map Global Shipping and Logistics
Frequently Asked Questions
Q1 What are the core technical specifications of the 520SH micro DC motor?
The 520SH micro DC motor features a stator size of 33 * L 22.7 mm, works within a rated voltage range of DC 1.5V to 24V, offers a rated output power up to 3W, and delivers a rated torque up to 70 gf-cm (6.86 mN-m).
Q2 Can the shaft size of the micro motor be customized?
Yes, the shaft length and design (such as D-shape, round shape, etc.) can
