22mm 180 Planetary Gear Motor 12V 24V High Torque DC Gear Motor 20rpm 60rpm 280rpm 350rpm 450rpm for Robot Vacuum

Product Description

Products Description

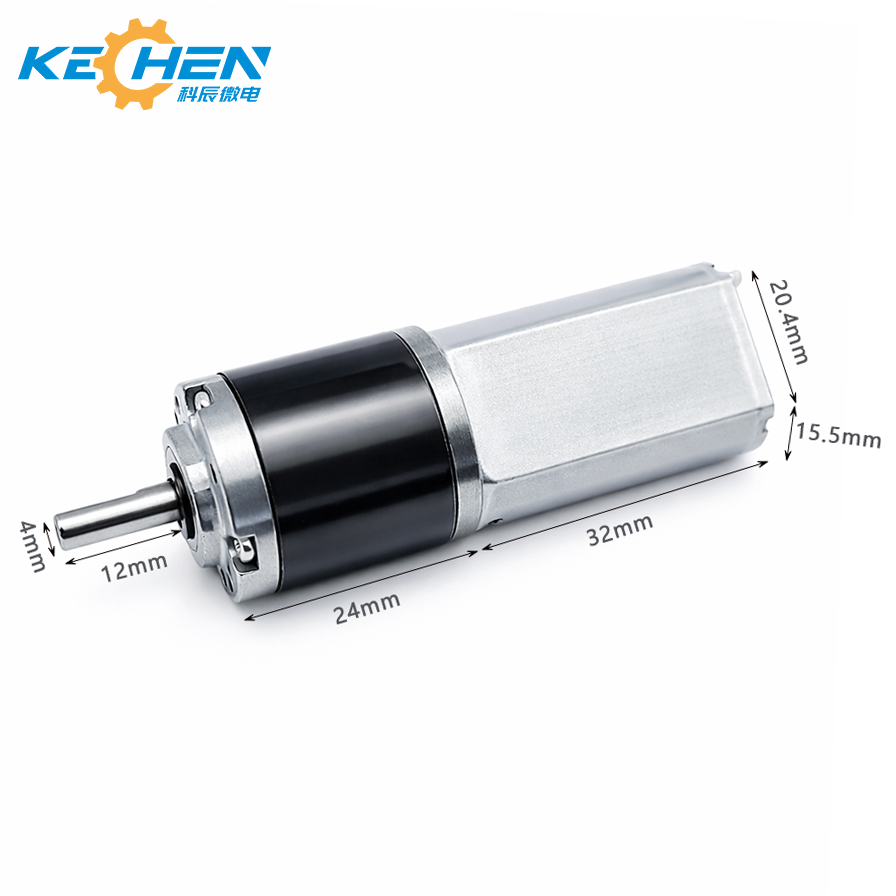

Planetary Gear Motor Overview
GMP22-180 Planetary Gear Motor Specifications
Model GMP22-180
Motor type Planetary Gear Motor
Brush Type Metal Brushed Or Carbon Brushed
Gearbox diameter 22mm
Motor diameter 20.4mm
Speed 10rpm - 2500rpm
Output torque 0.1~0.6 N·m
Reduction ratio 16:1/64:1/84:1/ 107:1/224:1/ 304:1/361:1/428.7:1/1024:1
Current 70–350 mA
Efficiency 65%–85%
shaft diameter 4.0 mm—D-shaft(Customized shaft type according to requirements)
Encoder 1-1024ppr

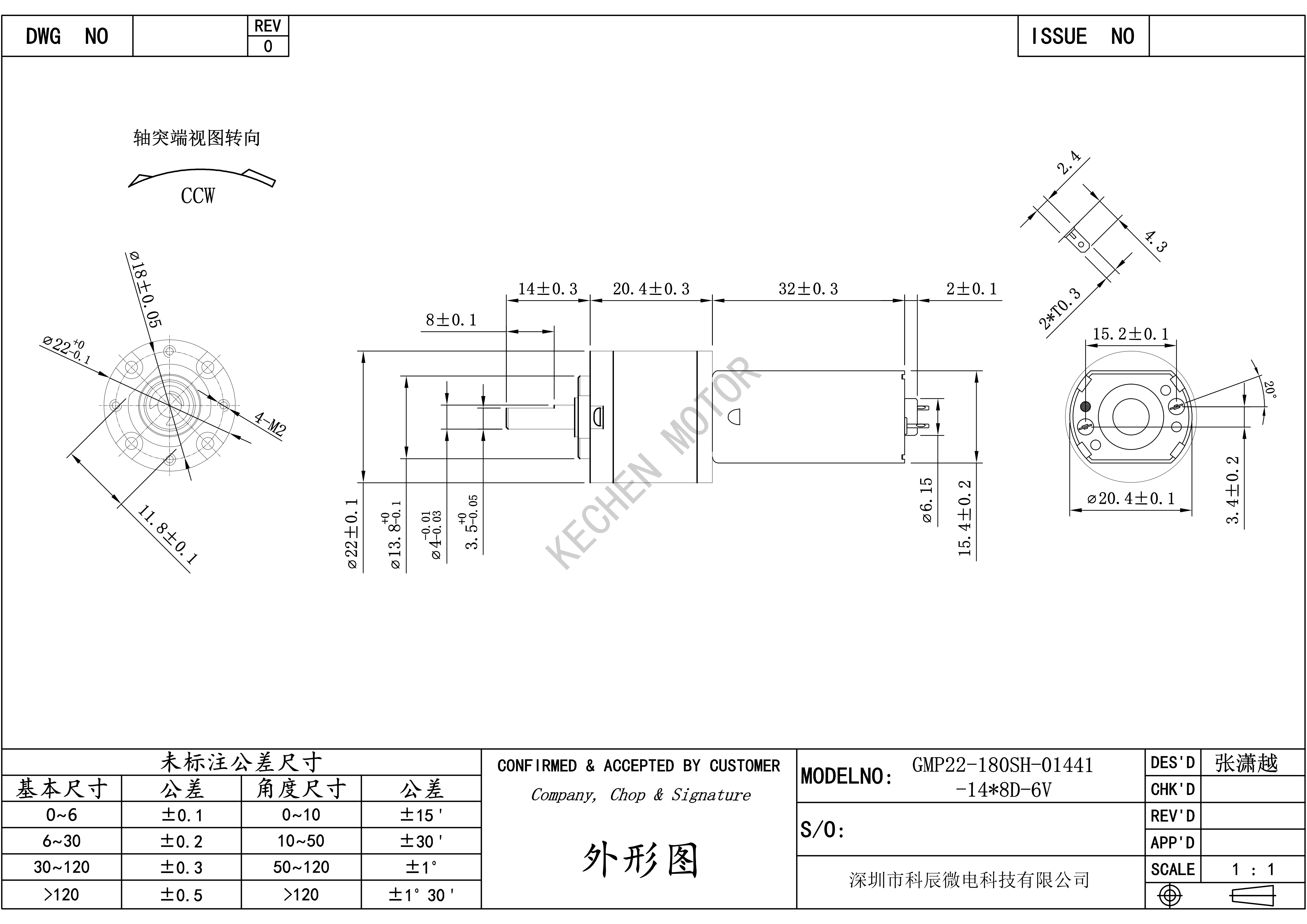

Dimension Details
Specification Graph
Application Areas
Smart Home Devices
  • Smart Door Lock Drives
  • Automatic Curtain/Blind Systems
  • Smart Water/Gas Valve Controllers
  • Automatic Pet Feeders, Electric Cat Litter Boxes
Vending & Commercial Equipment
  • Coffee Machine Extraction Mechanisms
  • Automatic Beverage Machine Push Rods/Transmissions
  • Small Food Vending Machine Feeding Mechanisms
  • Automatic Soap Dispensers, Disinfectant Dispensers
Medical & Portable Devices
  • Handheld Medical Instruments (Scanning Pens, Injection Devices)
  • Portable Testing Instrument Drives
  • Medical Delivery Mechanisms, Small Pump Drives
Automotive & Instrument Systems
  • Central Locking Drives
  • Air Vent Angle Adjustment Mechanisms
  • Small Measuring Instrument Actuators
Recommend Products
Recommend Product 1
Recommend Product 2
Motor raw materials
Motor raw materials

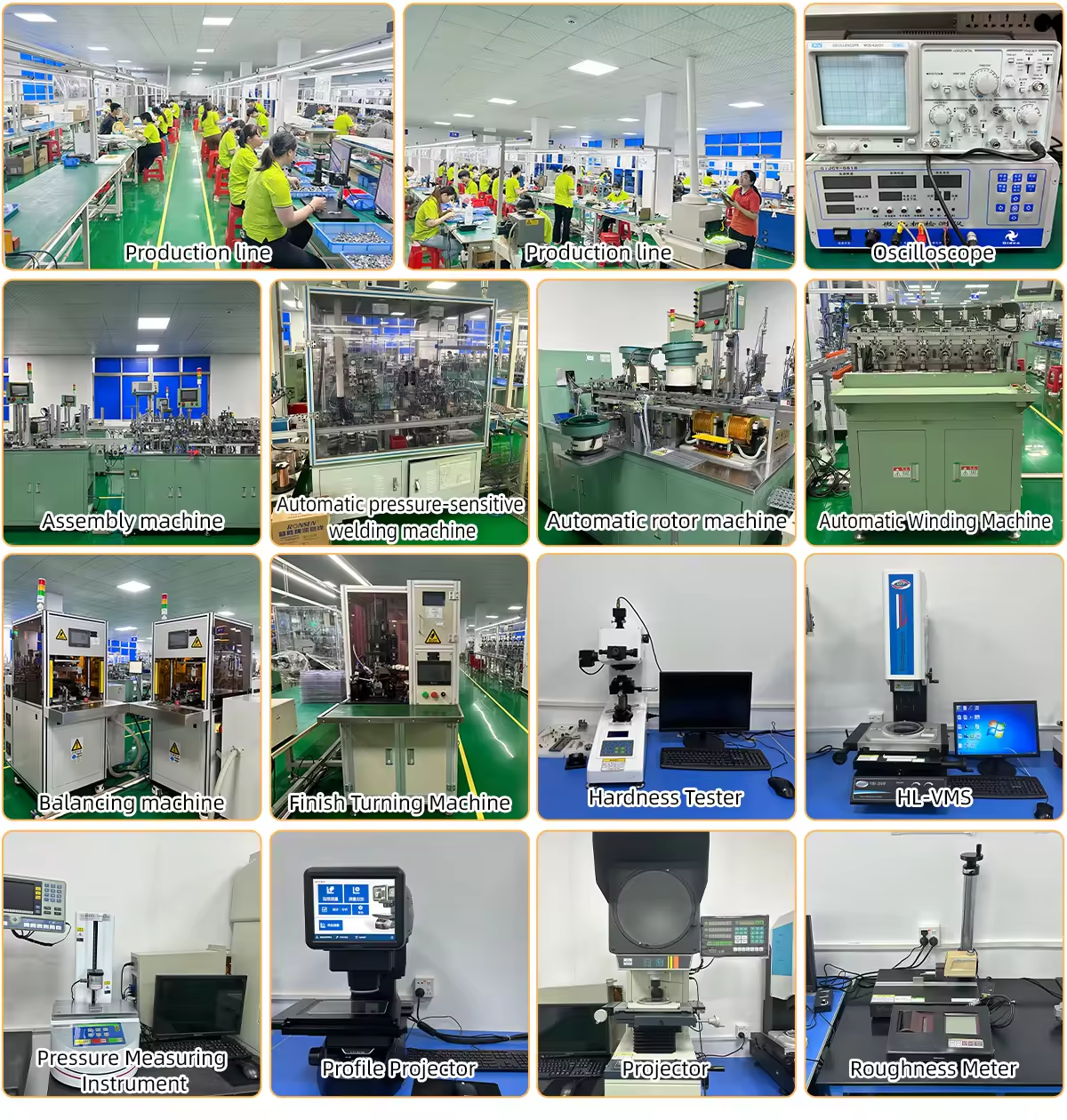

Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Facility Image 1
Facility Image 2
Facility Image 3
Our factory was established in August 2017. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, win more and more recognition from customers.
Certifications
Certifications
Application Scenario
Application Scenario Overview
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Chart 1
Global Market Chart 2
Global Market Chart 3
Frequently Asked Questions
What's your main products?
We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors, and Coreless Motors, etc. You can check the specifications on our website.
How to select a suitable motor?
If you have motor pictures or drawings, or detailed specs like voltage, speed, torque, motor size, working mode, life expectancy, and noise level, please let us know so we can recommend a suitable motor model accordingly.
Do you have customized service for your standard motors?
Yes, we can customize parameters such as voltage, speed, torque, and shaft size/shape. We can also provide custom terminal wires, connectors, capacitors, or EMC configurations.
Can I have samples for testing first?
Yes. After confirming the motor specifications, we will provide a quote and proforma invoice for samples to initiate the sample production process.
How do you make sure motor quality?
We maintain strict incoming material inspection and in-process auditing, along with final product tests to guarantee all output products meet international quality standards prior to shipment.
What certifications do you have?
We currently hold CE, RoHS, ISO13485, IATF16949, and REACH certifications.
