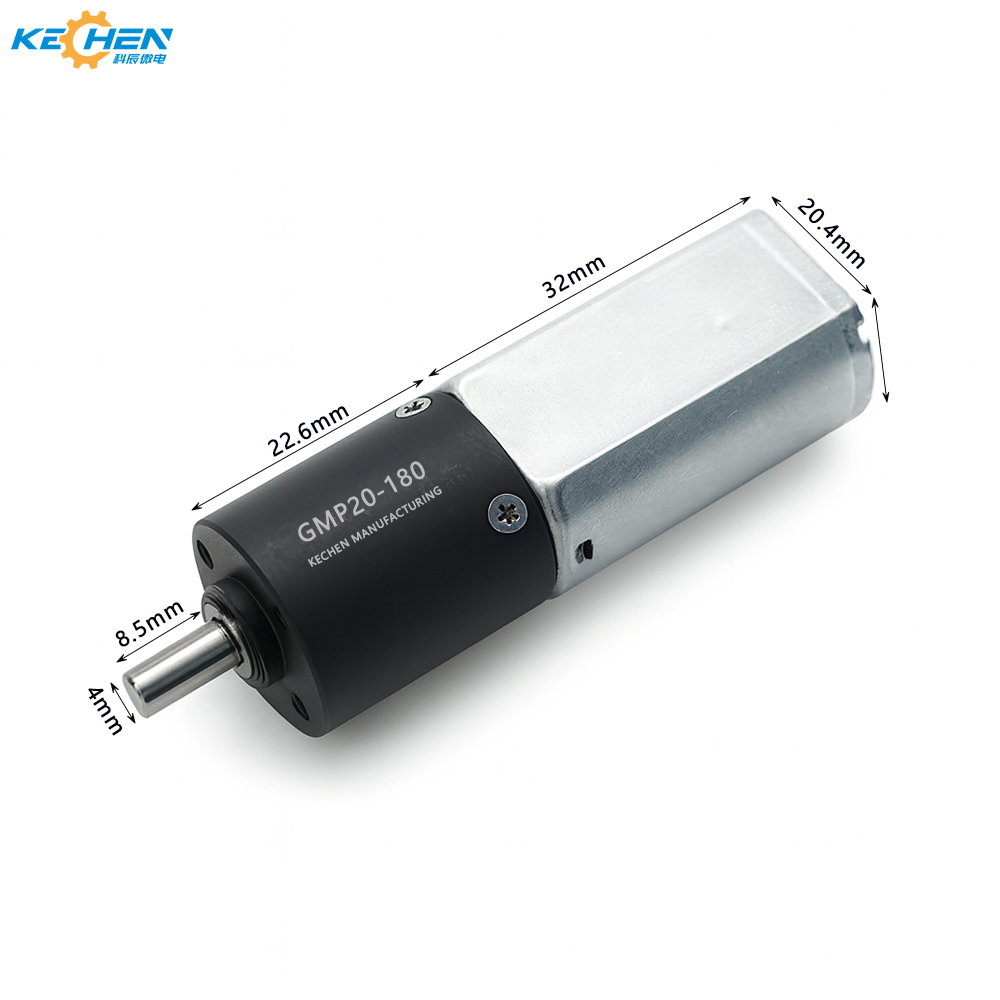

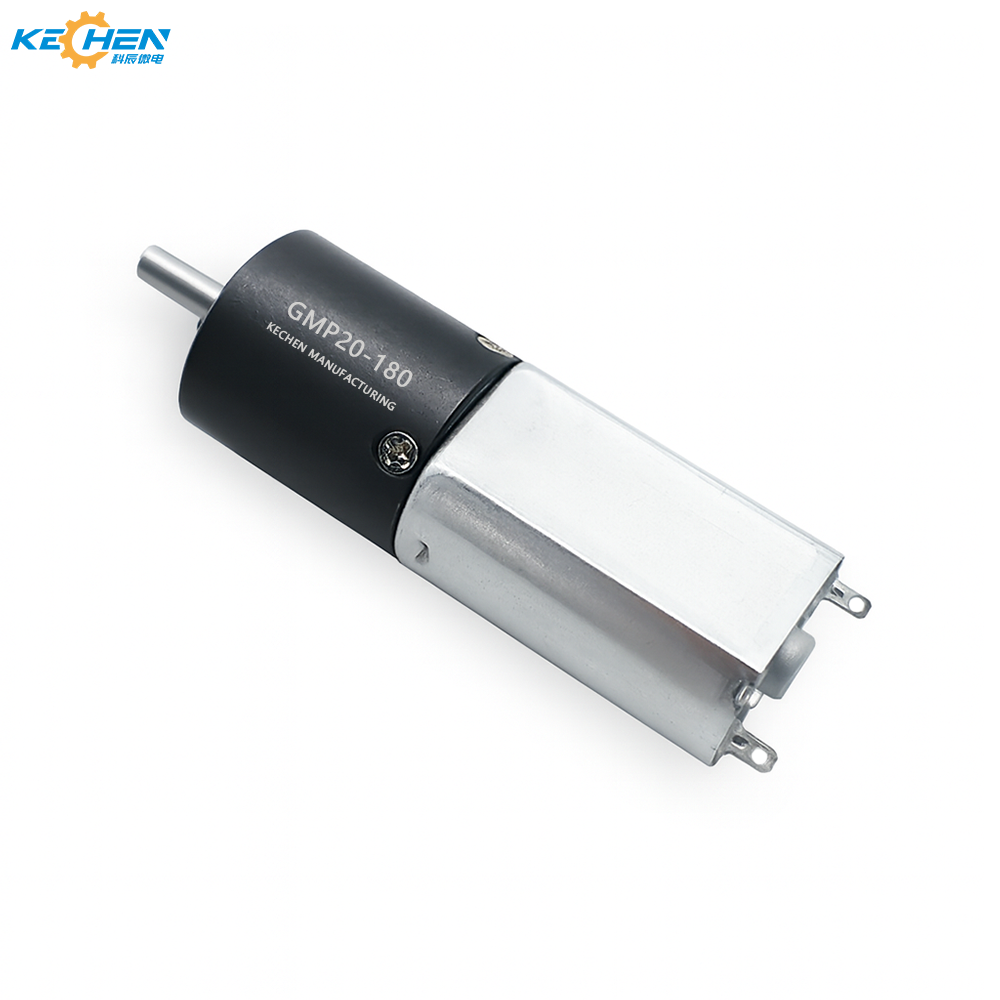

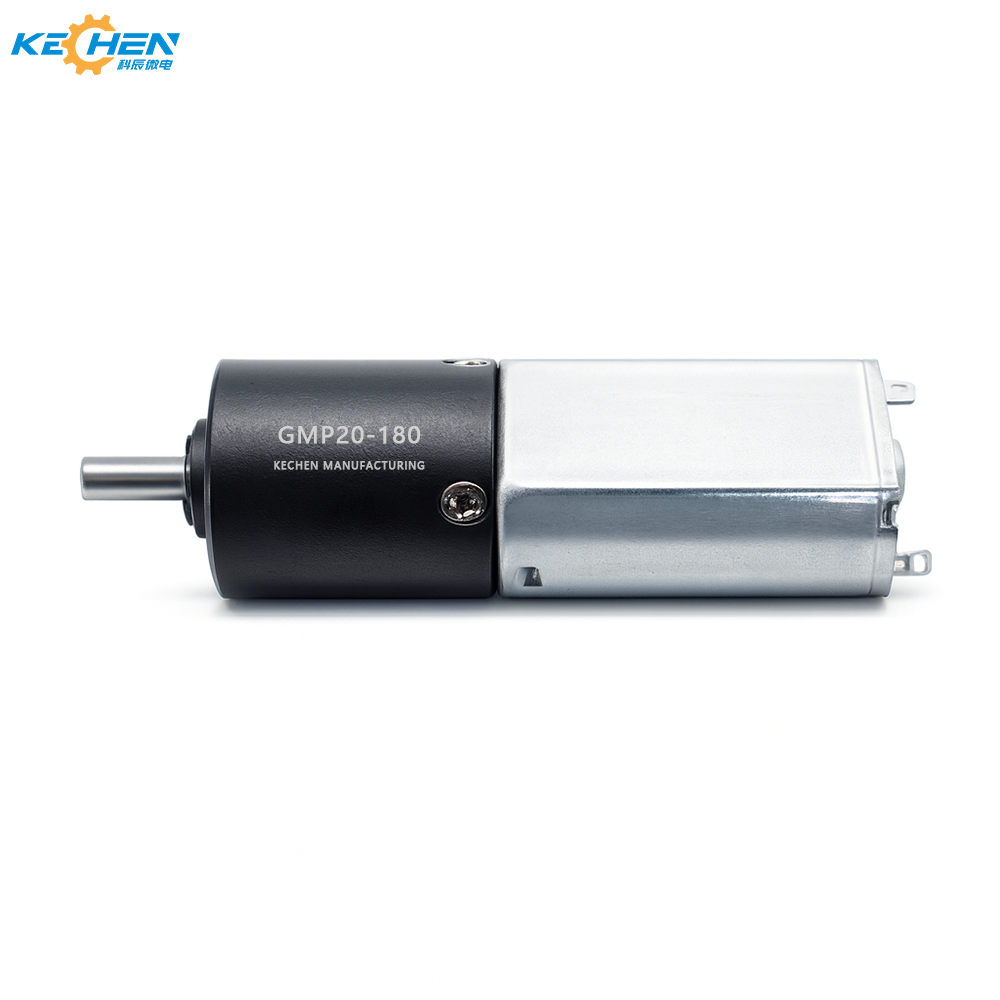

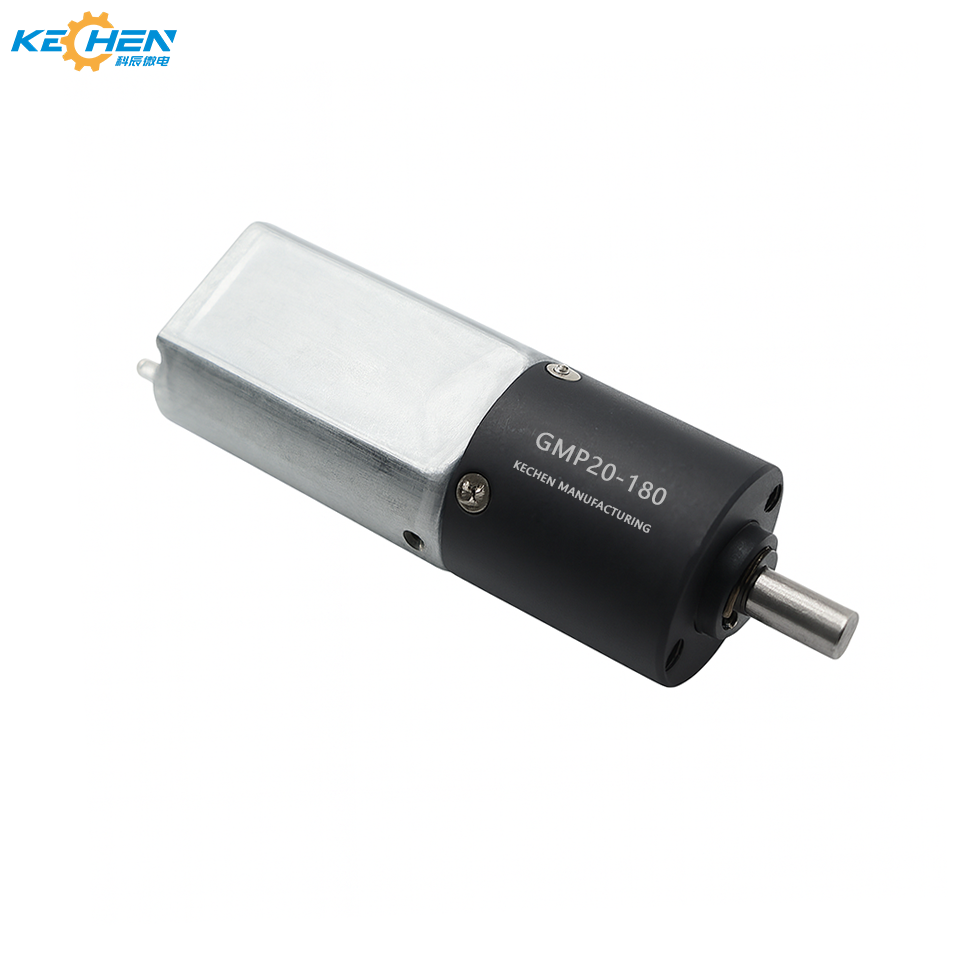

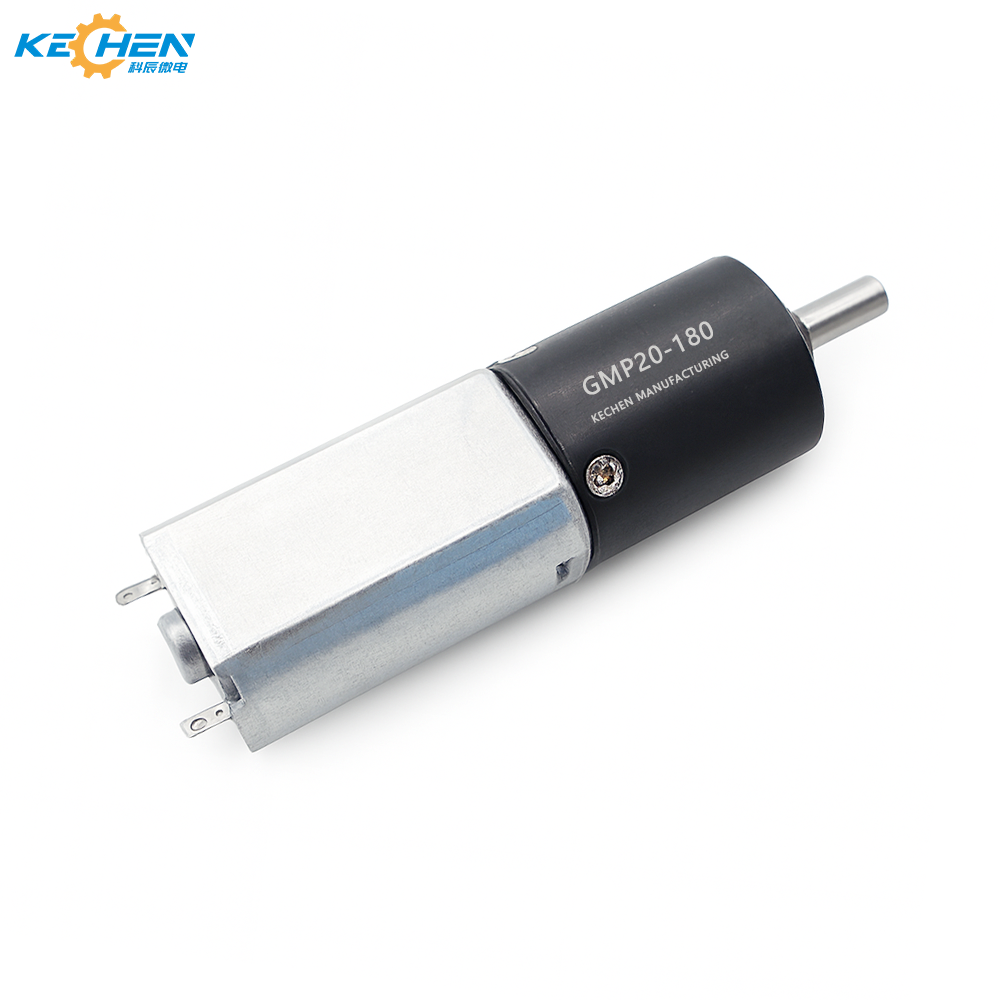

20mm Planetary DC Gear Motor 12V 100rpm 24V 300rpm 180sh Small DC Gear Motor for Infusion Pump

Product Description

Products Description
GMP20-180 Planetary Gear Motor Specifications
Motor type Planetary DC Gear Motor
Motor diameter 20mm
Operating voltage 5V/6V/12V/24V DC
Output shaft Diameter Φ4 mm; D-shaped shaft
Shaft length 8-10.5mm (Customized)
Reduction ratio 5.4:1 / 19:1 / 29:1 / 84:1 / 128:1 / 157:1 / 370:1 / 560:1 / 850:1
Encoder 3ppr / 7ppr / 12ppr
Encoder signal interface PH2.0-6PIN
Gear material All-metal gears or powder metallurgy gears
Coil winding Pure copper wire winding; low resistance, high conductivity
Gearbox length It changes as the reduction ratio increases.
Weight 80g

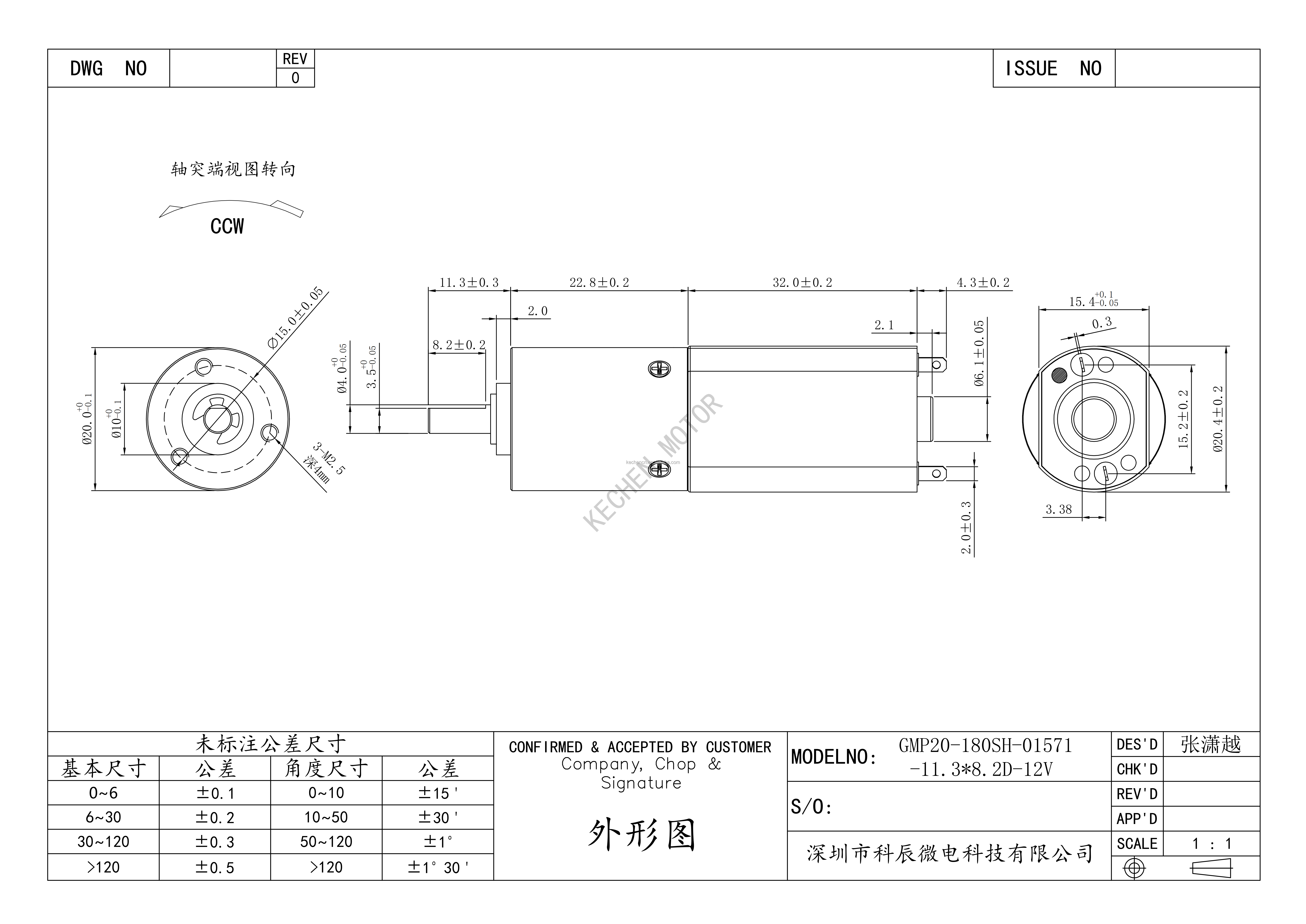

Planetary Gear Motor Dimension
Planetary Gear Motor Performance Chart

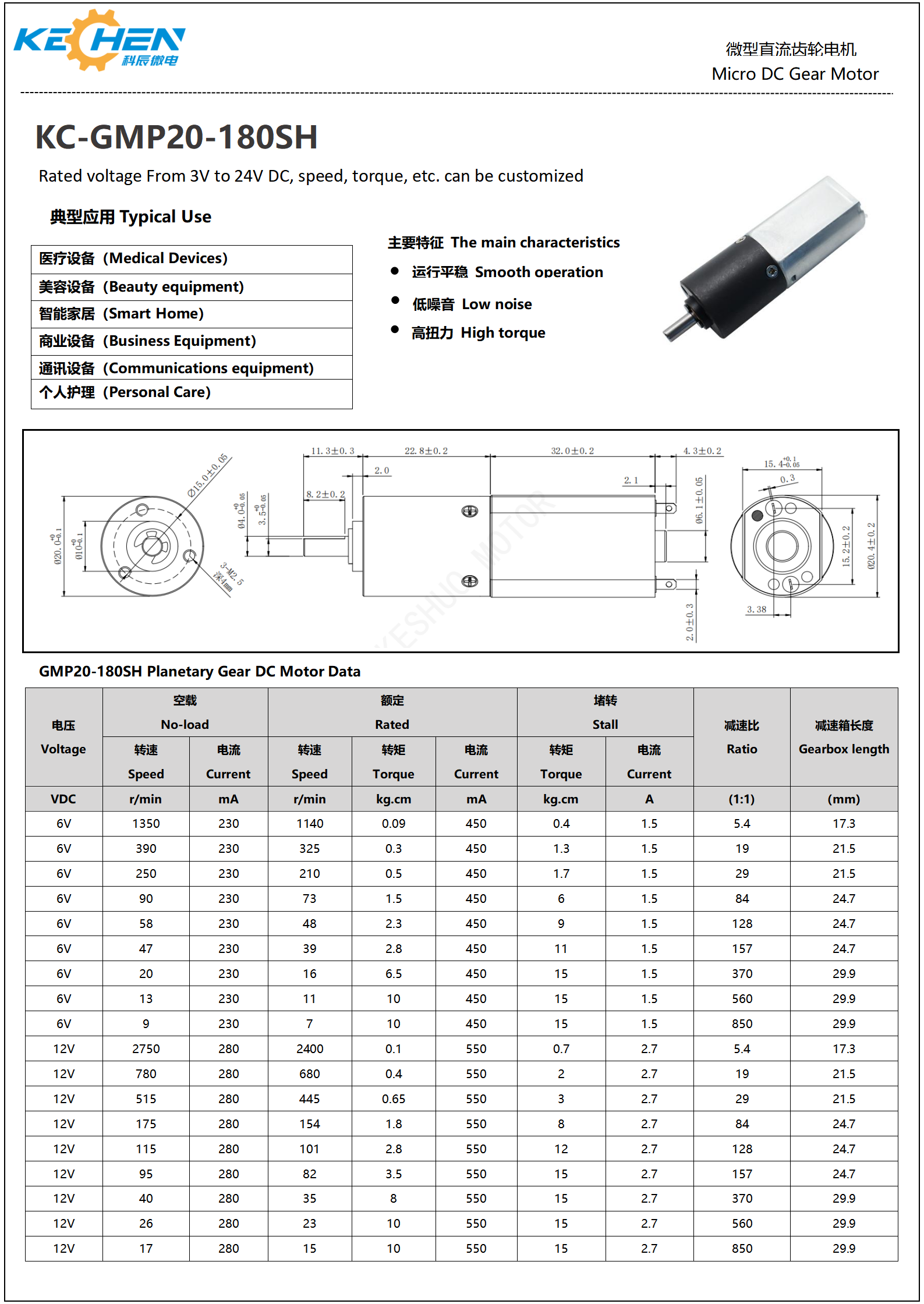

Planetary Gear Motor View 1
Planetary Gear Motor View 2
Recommend Products
Recommended Motor Product 1
Recommended Motor Product 2
Motor Raw Materials
High Quality Motor Raw Materials
Production Equipment
Production Facility Equipment 1
Production Facility Equipment 2
Production Facility Equipment 3
Company Profile
Company Office and R&D Center
Manufacturing Workshop
Assembly Line
Established in August 2017, our enterprise is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since inception, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Product Quality Certifications
Application Scenario
Motor Application Fields Overview
Industry Sector Application Details
Medical equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Share Map
Export Demographics Diagram
Global Logistics Packaging
Frequently Asked Questions
What are your main products?
We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors. You can view the specifications on our product pages.
How to select a suitable motor?
If you have motor pictures or drawings to share, or detailed specifications such as voltage, speed, torque, motor dimensions, working mode, expected lifetime, and noise level, please let us know. We will recommend the most appropriate motor based on your parameters.
Do you offer customization services for standard motors?
Yes, we can customize parameters such as voltage, speed, torque, and shaft dimensions/shapes. We can also handle requests for terminal leads/cables, connectors, capacitors, or EMC suppression components.
Can I have samples for testing first?
Yes, sample orders are welcomed. Once the necessary specifications are confirmed, we will provide a proforma invoice. Upon receipt of payment, we will proceed with the fabrication of the samples.
How do you ensure motor quality?
We implement rigorous quality inspection protocols. For all incoming components, we verify specifications against approved reference samples and drawings. Throughout the production process, we conduct in-line checks alongside a final complete inspection prior to dispatch.
What product certifications do you hold?
Our micro motor line complies with industry standard certifications, including CE, RoHS, ISO13485, IATF16949, and REACH.
