Frequently Asked Questions
Q1: What is the rated torque of the GMP16-030 planetary gear motor?
The motor is capable of outputting a maximum rated torque of up to 3.5 Kgf-cm, which makes it ideal for high-torque requirements in a miniature form factor.
Q2: What voltages are supported by this motor?
The GMP16-030 planetary gear motor supports multiple rated voltage options, including 3V, 5V, 6V, 9V, 12V, and 24V, to fit different application demands.
Q3: Can the output shaft dimensions be customized?

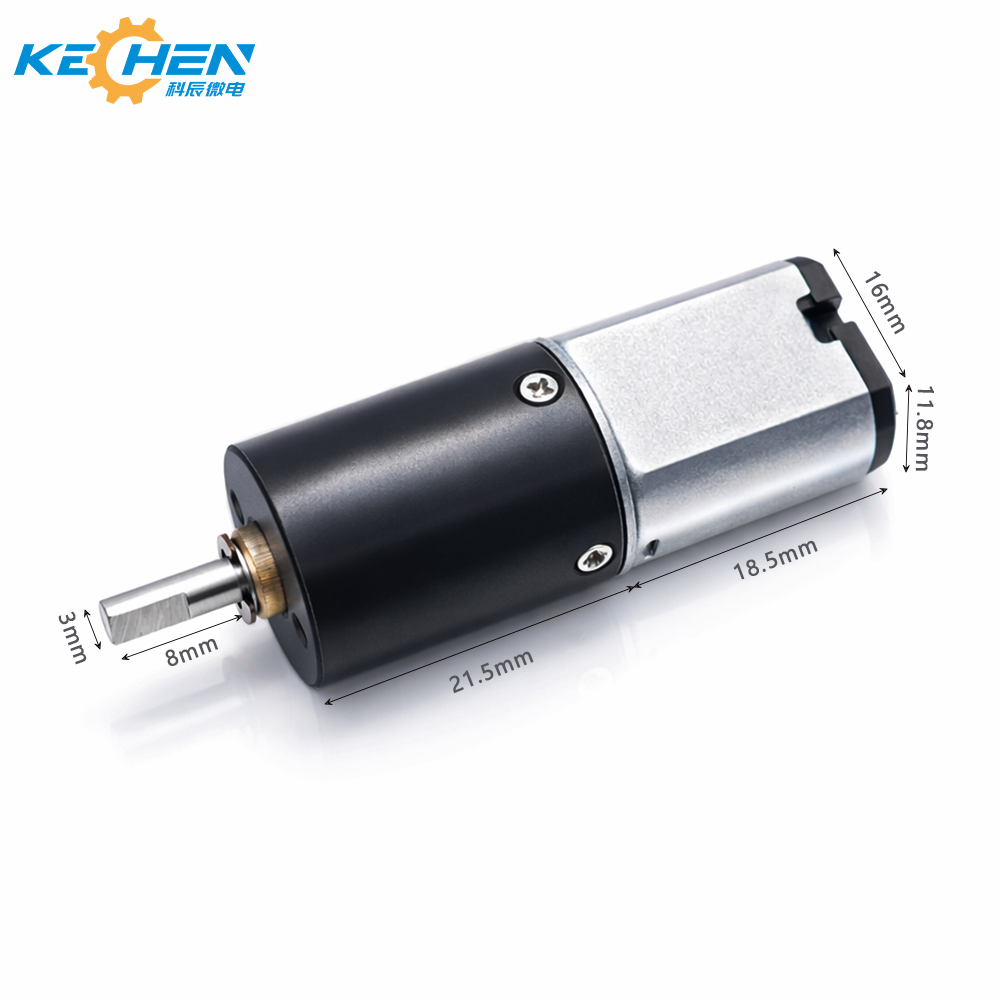

Yes, while the standard shaft is a Φ3mm D-cut (0.5mm depth) shaft, custom designs are available to meet your specific application requirements.
Q4: Does the motor support encoders for precise control?
Yes, the motor can be equipped with encoders supporting 3ppr, 7ppr, or 12ppr, allowing for highly accurate rotation, positioning, and speed control.
Q5: What certifications are applicable to these micro motors?
These motors comply with international quality and safety standards, holding certifications such as ISO9001, ISO13485, IATF16949, CE, REACH, and ROHS.
Q6: In which fields is the GMP16-030 motor most commonly used?
It is widely used in intelligent electronics (smart locks, pan/pan cameras), robotics, medical and beauty equipment (massagers, medical pumps), automotive mechanisms, and precision instrumentation.
