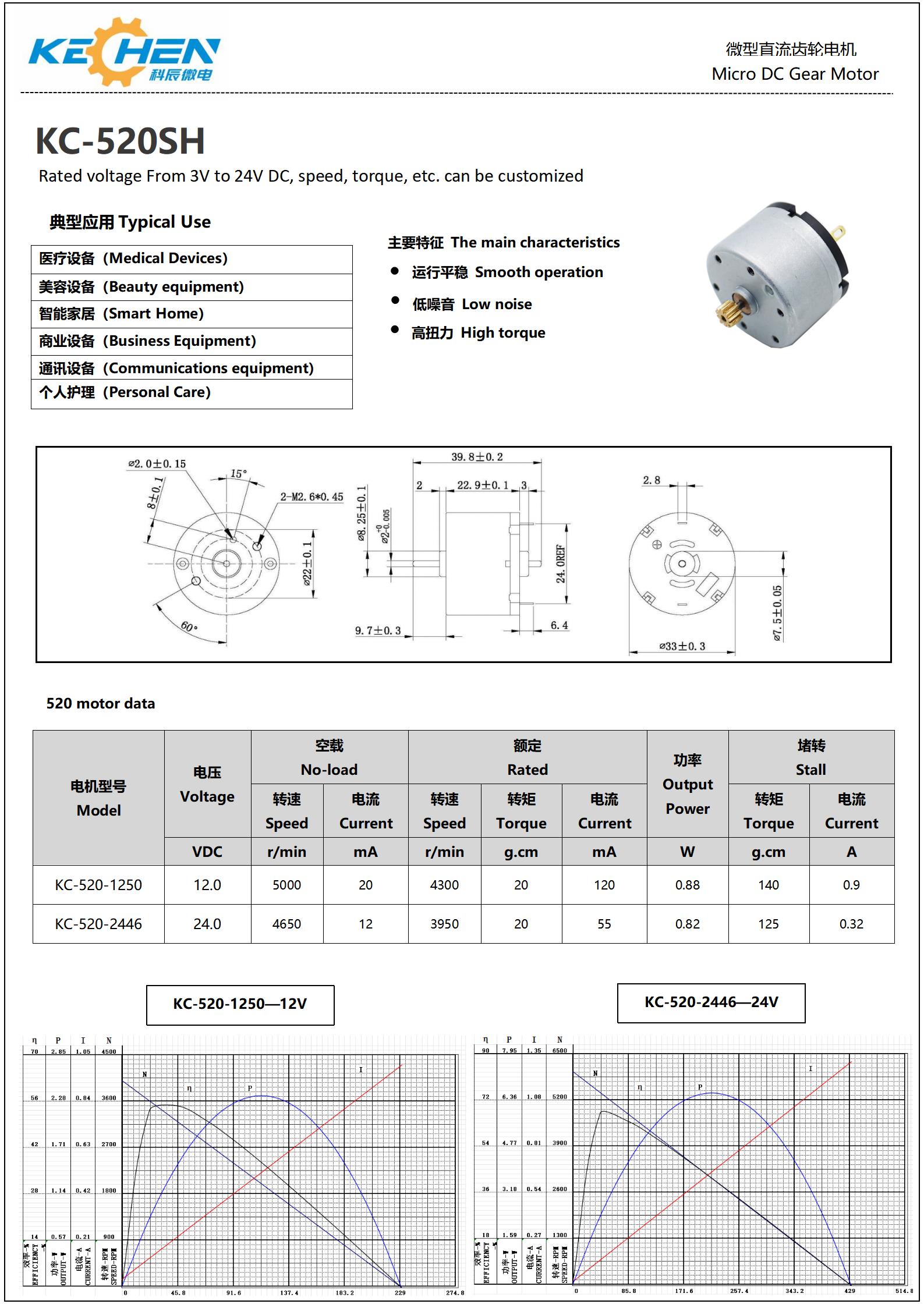

Products Description
| Model Number |
520SH |
| Shell Stator Size |
33*L 22.7 mm (Φ 1.3inch * 0.8937 inch) |
| Shaft |
20mm(0.079 inch), D shape, etc. |
| Rated Output Power |
up to 3W |
| Rated Voltage |
DC 1.5V-24V |
| Rated Torque |
up to 70 gf-cm (6.86 mN-m) |
| Construction |
Permanent Magnet |
| Commutation |
Metal brush |
520 Brushed Micro DC Motor Key Features
- Model Number: 520SH

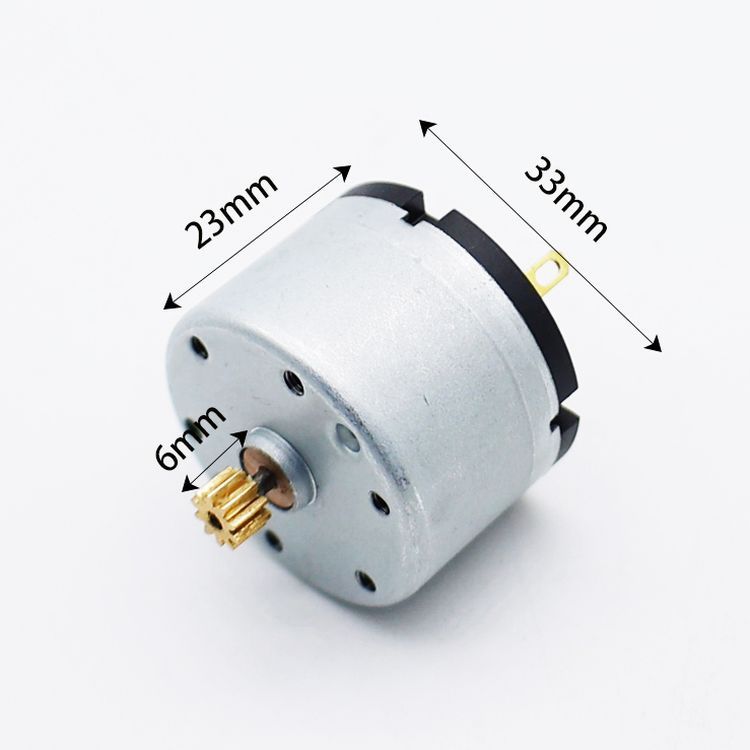

- Shell Stator Size: Φ33 * L 22.7 mm (Φ 1.3 inch * 0.8937 inch)
- Shaft Parameters: Φ2.0mm (0.079 inch), D shape, custom options available
- Shaft length free customization
- Rated Output Power: up to 3W
- Rated Voltage: DC 1.5V - 24V
- Rated Torque: up to 70 gf·cm (6.86 mN·m)
- Construction: Permanent Magnet
- Commutation: Metal brush
- Clockwise/counter-clockwise rotation (CW & CCW)
Recommend Products
Motor Raw Materials
Production Equipment
Manufacturer Profile
We are a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since inception, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Application Scenario
Global Market Distribution
Frequently Asked Questions
Can the shaft specifications of the 520SH motor be customized?
Yes. We support free customization of the shaft length, shape (such as D-shape), and other custom shaft dimensions to suit your specific application.
What is the rated voltage range for this micro DC motor?
The 520SH micro DC motor operates reliably within a wide rated voltage range from DC 1.5V to 24V.
What are the primary applications for this series of micro motors?
These micro motors are widely utilized in smart homes, commercial intelligent locks, medical equipment, AI intelligence, robotics, electric tools, beauty tools, and automotive appliances.
Does the 520SH motor support bidirectional rotation?
Yes, the motor supports both clockwise and counter-clockwise (CW & CCW) rotation depending on polarity.
What are the torque limits and rated output power details?
The motor features a rated output power of up to 3W and delivers a rated torque of up to 70 gf-cm (6.86 mN-m).
What materials and commutation technology are used?
It features a permanent magnet construction and uses durable metal brush commutation to ensure long-term performance stability.
