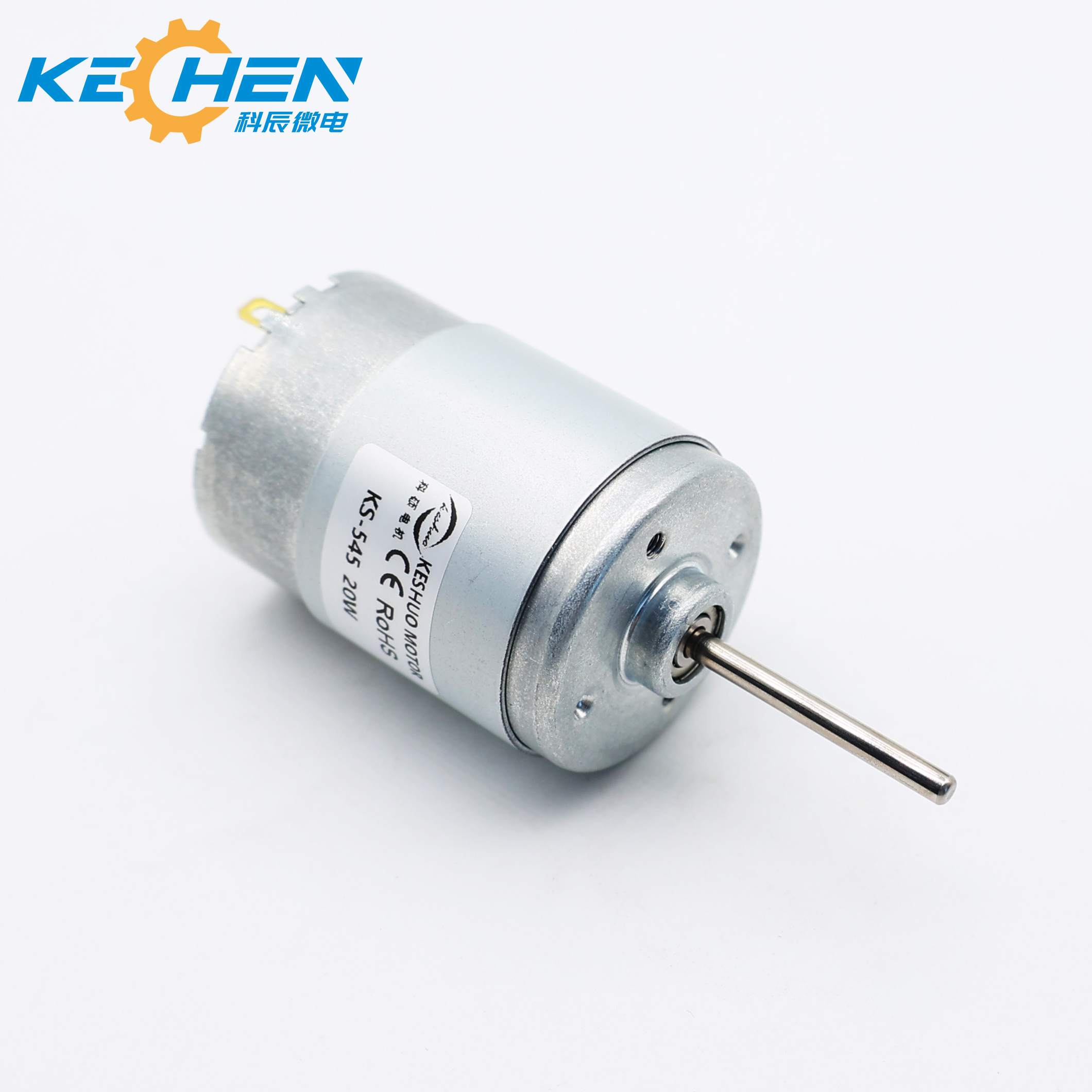

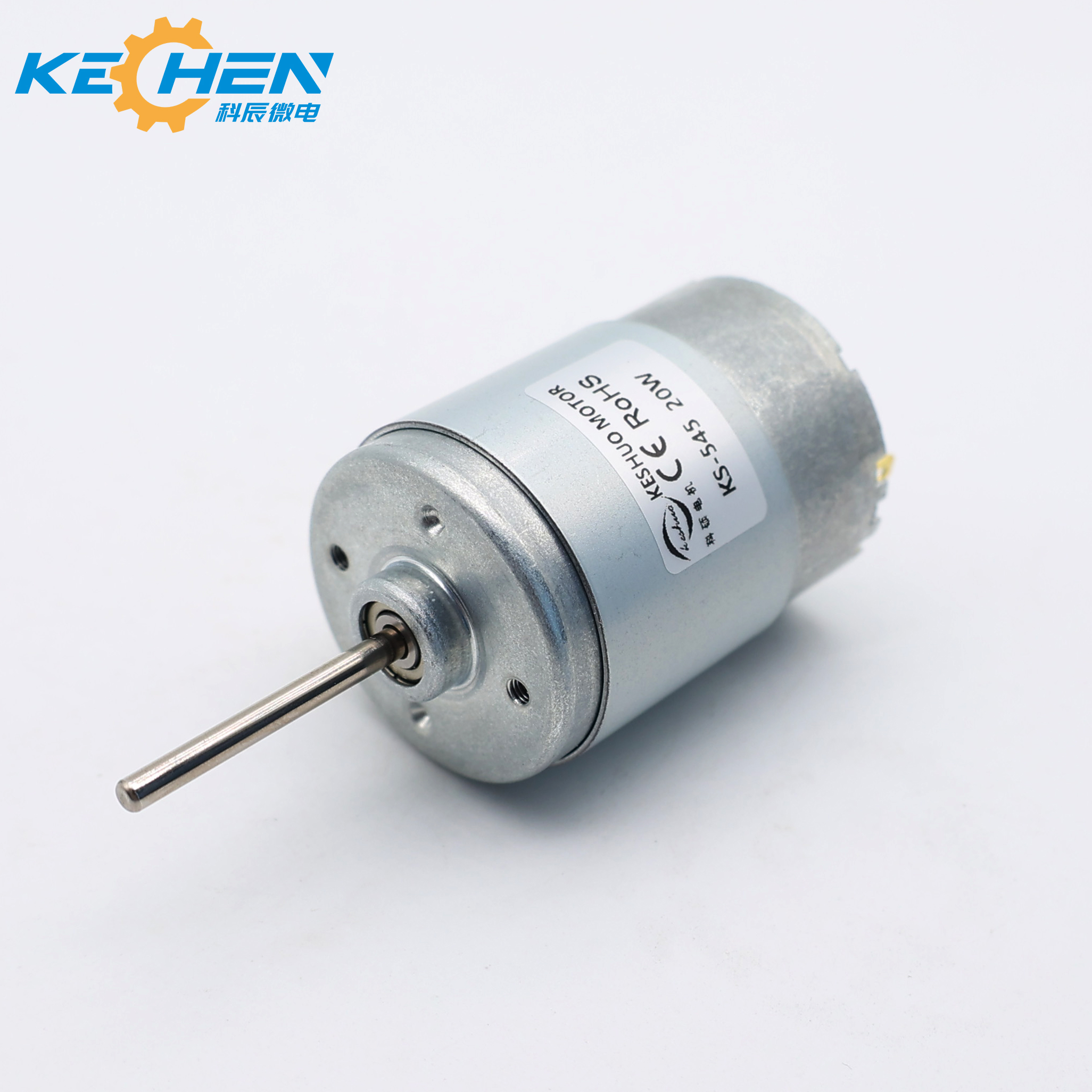

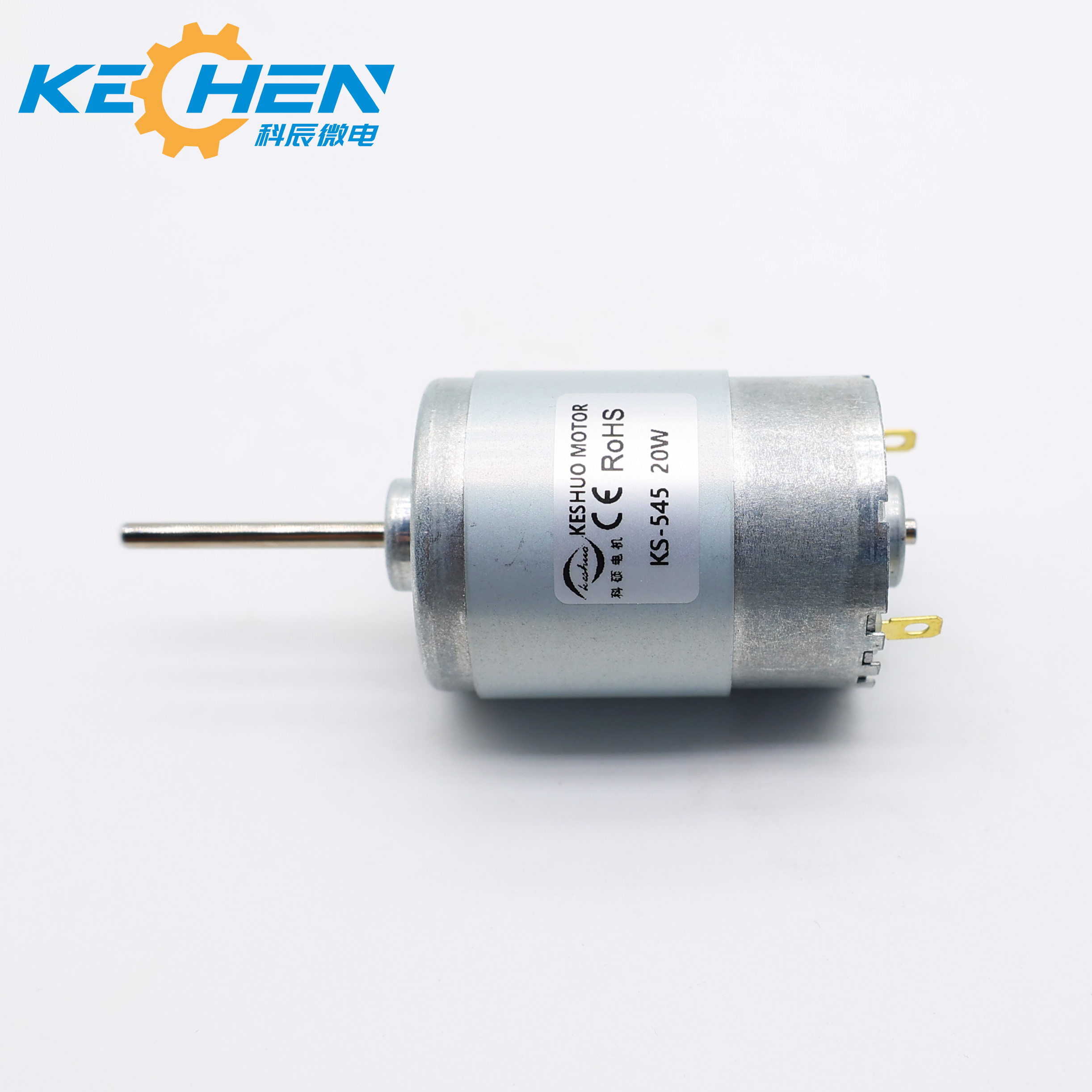

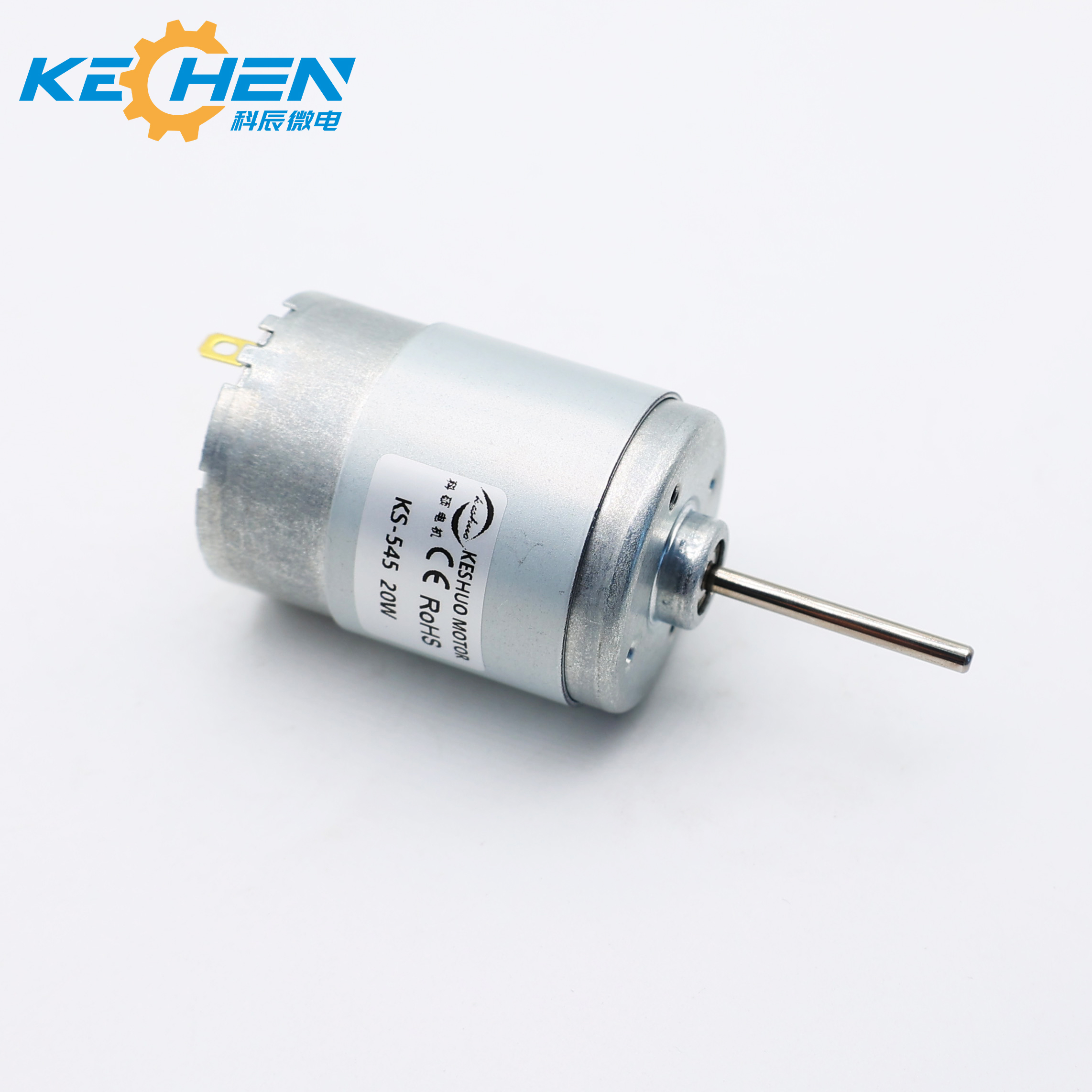

12V 24V Brushed DC Motor with Long 36mm RS 545 Shaft 12000rpm Speed Smart Home Compatible Permanent Magnet for Home Appliances

Product Description

Products Description

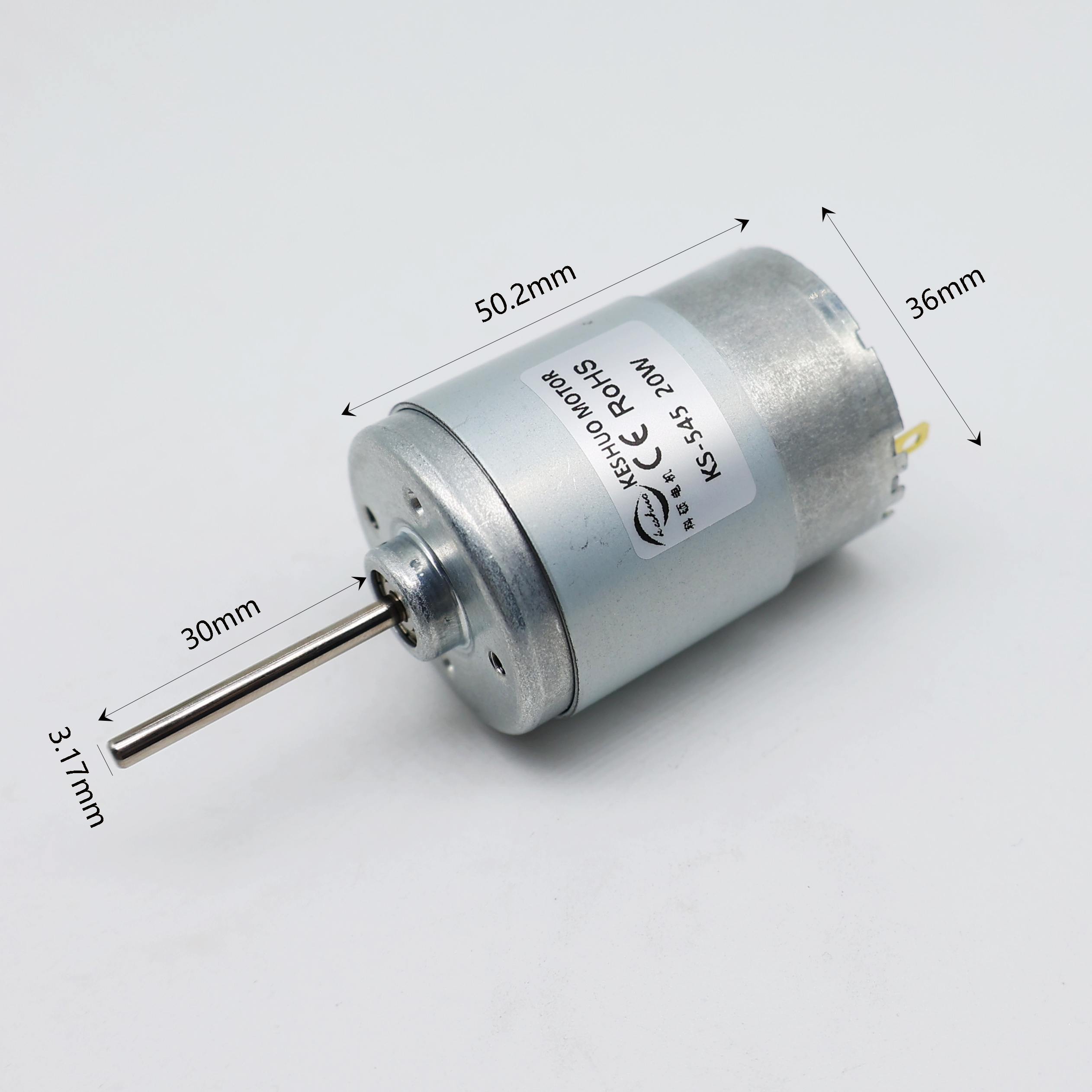

RS-545 Carbon Brushed Micro DC motor

RS-545 Carbon Brushed Micro DC motor

  • Model Number: RS-545
  • Shell Stator Size: Φ35.8 * L 50 mm (Φ 1.409 inch * 1.97 inch)
  • Shaft: Φ3.175mm (0.125 inch), screw lead, D shape, etc.
  • Shaft length: Free customization
  • Rated Output Power: Up to 50W
  • Rated Voltage: DC 6V - 24V
  • Rated Torque: Up to 0.5 Kgf·cm (0.49 N·m)
  • Construction: Permanent Magnet
  • Commutation: Carbon brush
  • Rotation: Clockwise / counter-clockwise (CW & CCW)
Model Voltage (V) Start voltage (V) No-load Starting torque (Kg.cm) Stall
Speed (r/min) Current (mA) Speed (r/min) Current (A)
KC-545PH-4560 12.0 0.7 7597 337 2.5 7039 1.7
KC-545PH-2968 24.0 0.9 6989 229 2.6 6055 1.8

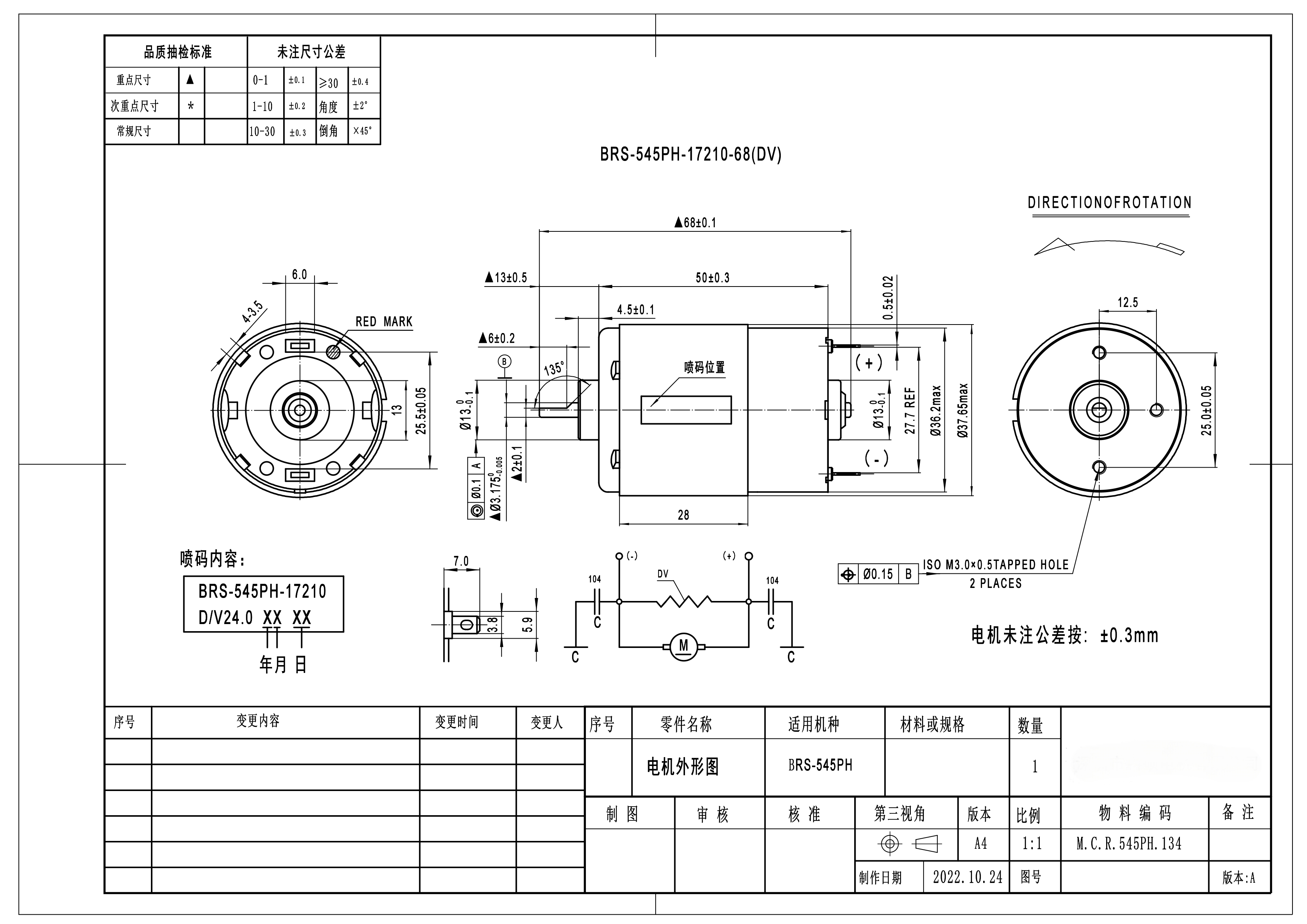

Motor specifications drawing
Motor dimension detail
Recommend Products
Recommend Product 1
Recommend Product 2
Motor raw materials
Motor raw materials structure
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Factory facilities
The enterprise was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Quality Certifications
Application Scenario
Motor Application Scenario
Global Market Distribution
Global Market Distribution Map
Market share diagram
Global trading network
Frequently Asked Questions
What are the primary applications of the RS-545 micro DC motor?
The RS-545 micro DC motor is widely integrated into smart home appliances, medical testing equipment, power tools, intelligent locking mechanisms, beauty devices, and smart robotic systems.
Can the motor shaft design and length be customized?
Yes. Shaft specifications including length, thread type, D-shape profiling, and general dimensional modifications can be custom-tailored to suit specific product integration requirements.
What voltage options are available for the RS-545 series?
The typical operational voltage range for the RS-545 carbon brushed motor is DC 6V to 24V, optimized to deliver consistent power efficiency for various load conditions.
Does this micro motor support bidirectional rotation?
Yes, this motor is designed to support both clockwise (CW) and counter-clockwise (CCW) rotation depending on polar electrical configurations.
What are the main design features of this motor?
It features a permanent magnet stator, reliable carbon brush commutation, a high-durability shell structure, and a customizable shaft, outputting up to 50W of power.
