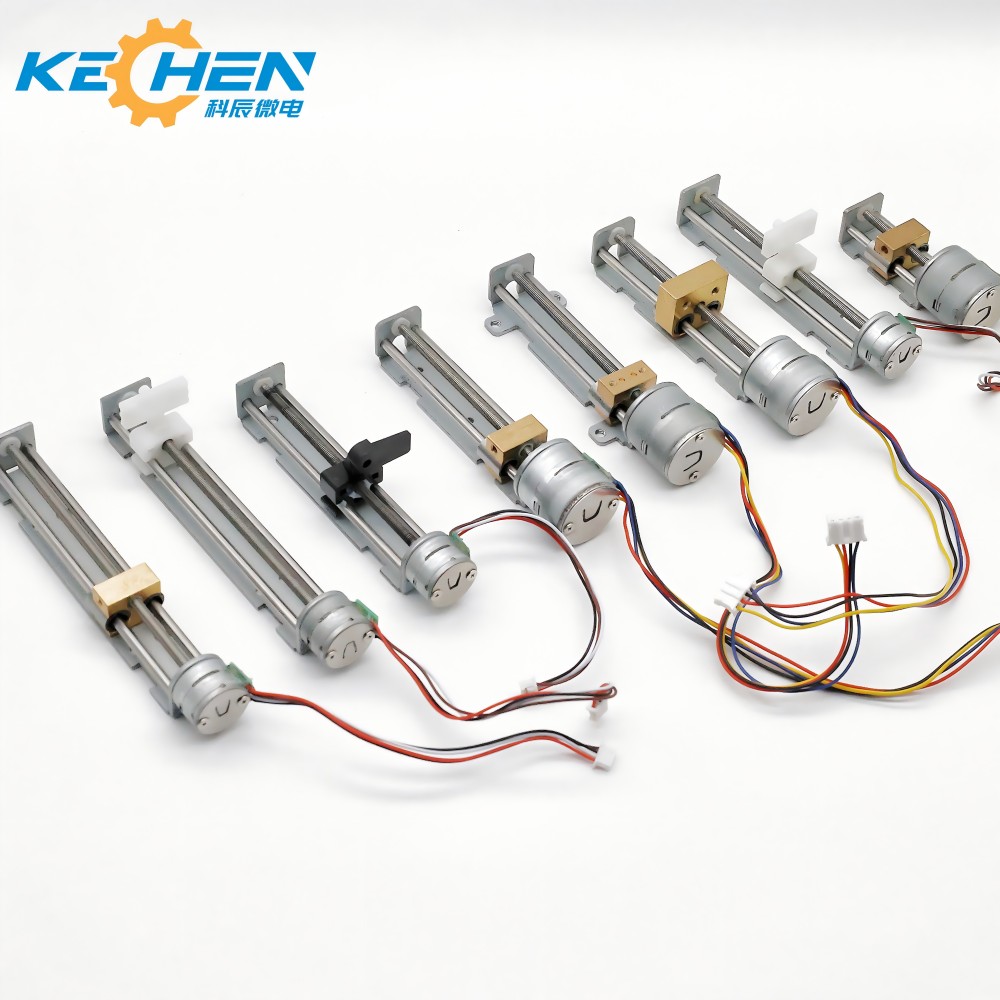

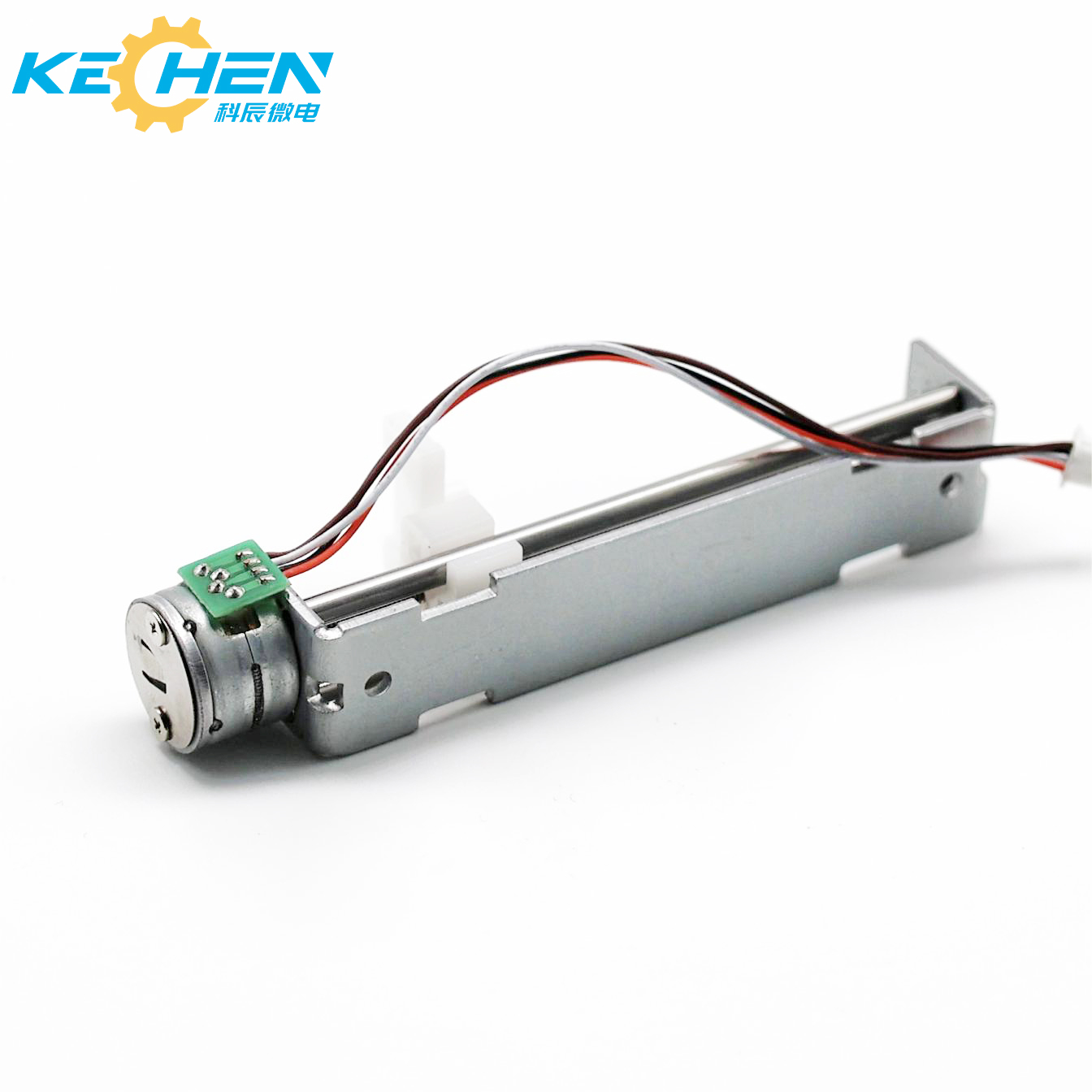

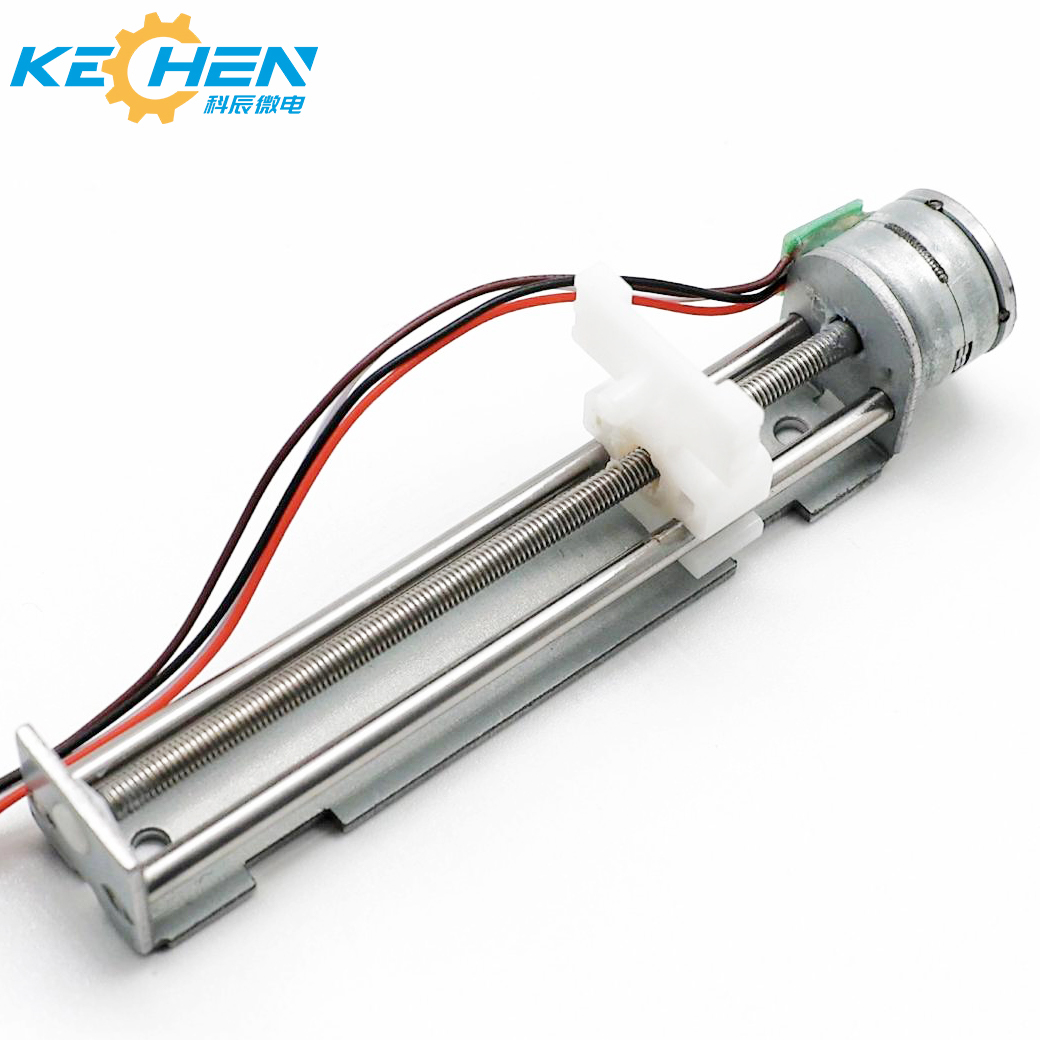

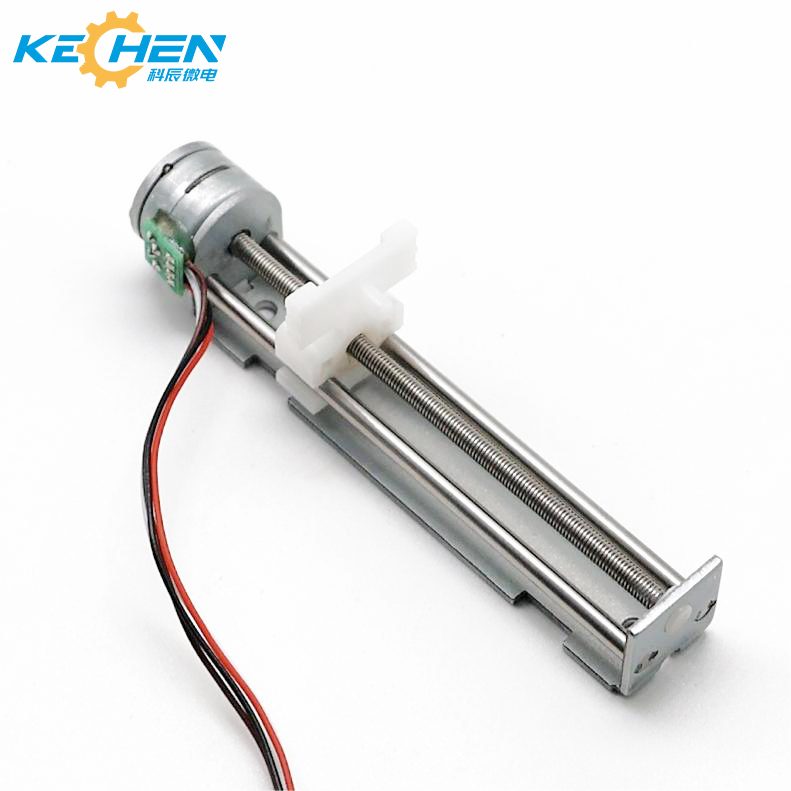

Small Permanent Magnet Linear Stepper Motor 15mm 77mm Travel Rail Medical Devices Automation Equipment DC 5V 2-Phase 1.5kg.cm

Product Description

Products Description

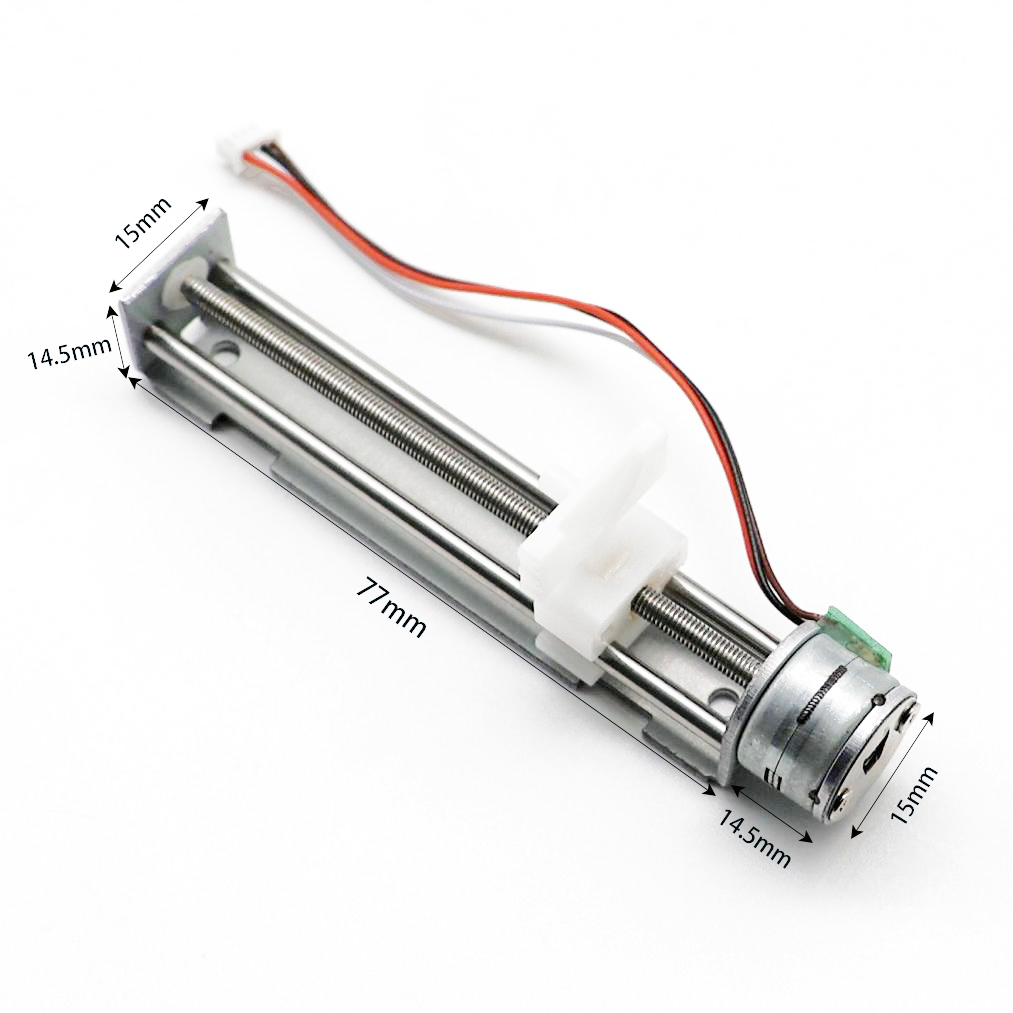

15BY-77 Linear Stepper Motor Specifications
Motor type Permanent-Magnet Linear Stepper
Motor diameter 15mm
Travel guide length 77mm
Phase bipolar / 2-phase
Step Angle 18° / step
Rated Voltage 5V/12V DC
Rated Power 4.6 W
Rated Current 600 mA
Lead Screw (Lead screw pitch) 0.5 mm (“Pitch M3 * P0.5”)
With slider plastic slider
Holding torque 900 g·cm /1000 PPS
Thrust / Pull-out > 700 g.cm
Line sequence A+A-B+B-
Terminal model 1.25/1.5/2.0/2.54
Product Description Image 1
Product Description Image 2
Product Description Image 3
Product Description Image 4
Recommend Products
Recommend Product 1
Recommend Product 2
Motor raw materials
Motor raw materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Established in August 2017, we are a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since our establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Company Profile View
Certifications
Certifications
Application Scenario
Application Scenario
Global Market Distribution
Global Market Distribution Map
Global Market Distribution Graph
FAQ
QHow to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
QDo you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
QDo you have individual design service for motors?
Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
QCan I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
QHow do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
QWhat certifications do you have?
We currently have CE, ROHS, ISO13485, IATF16949, REACH certifications.
