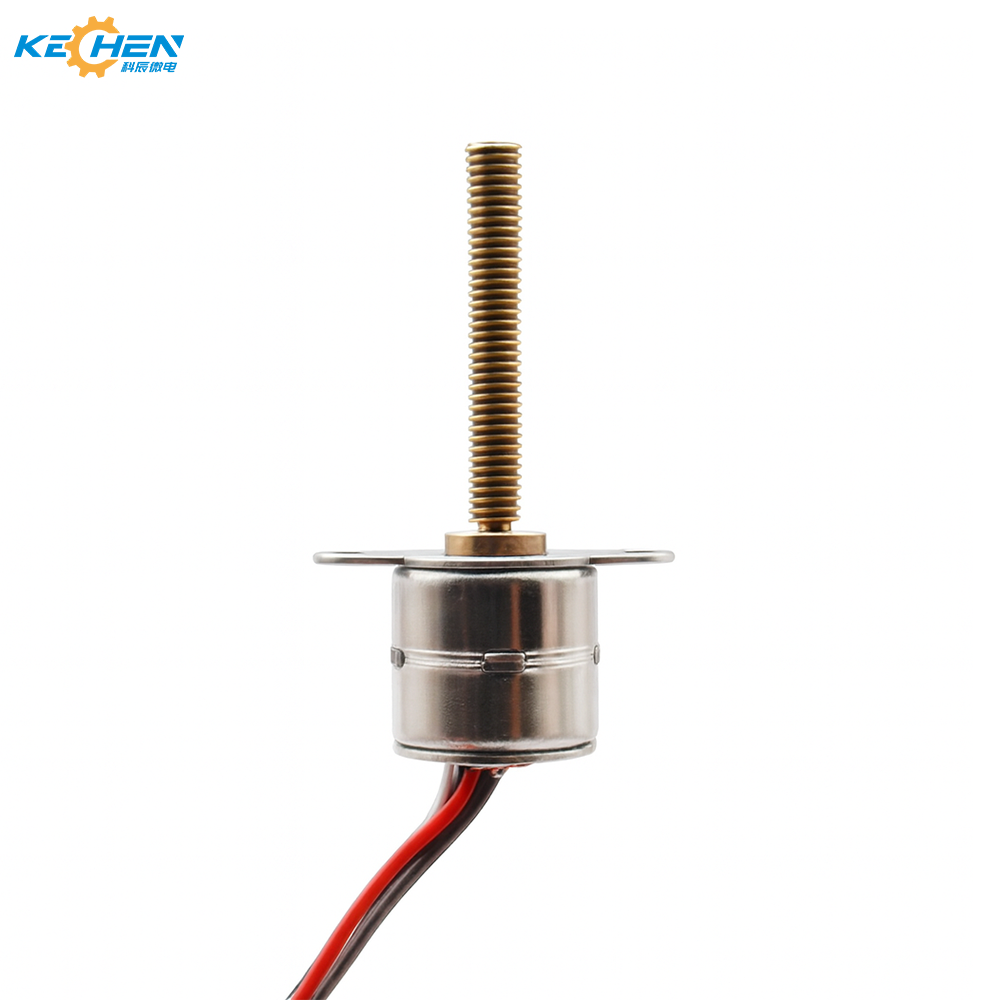

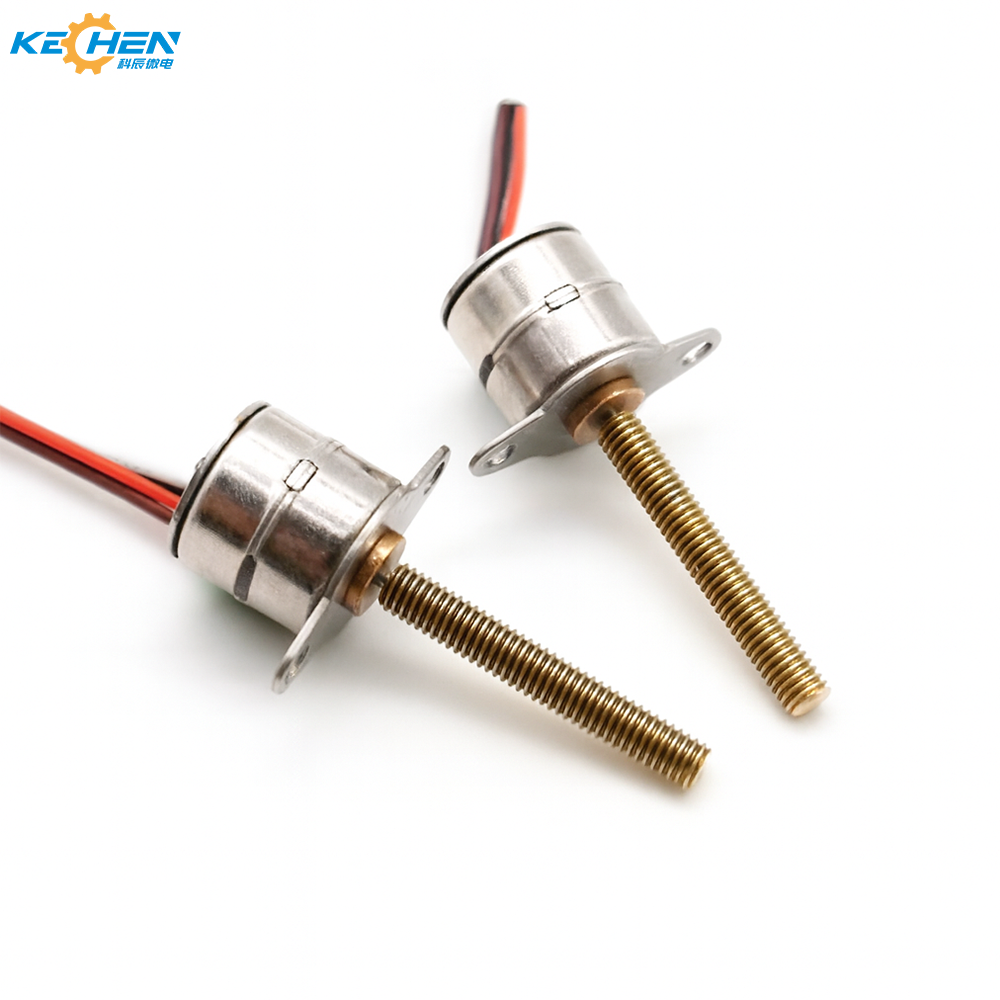

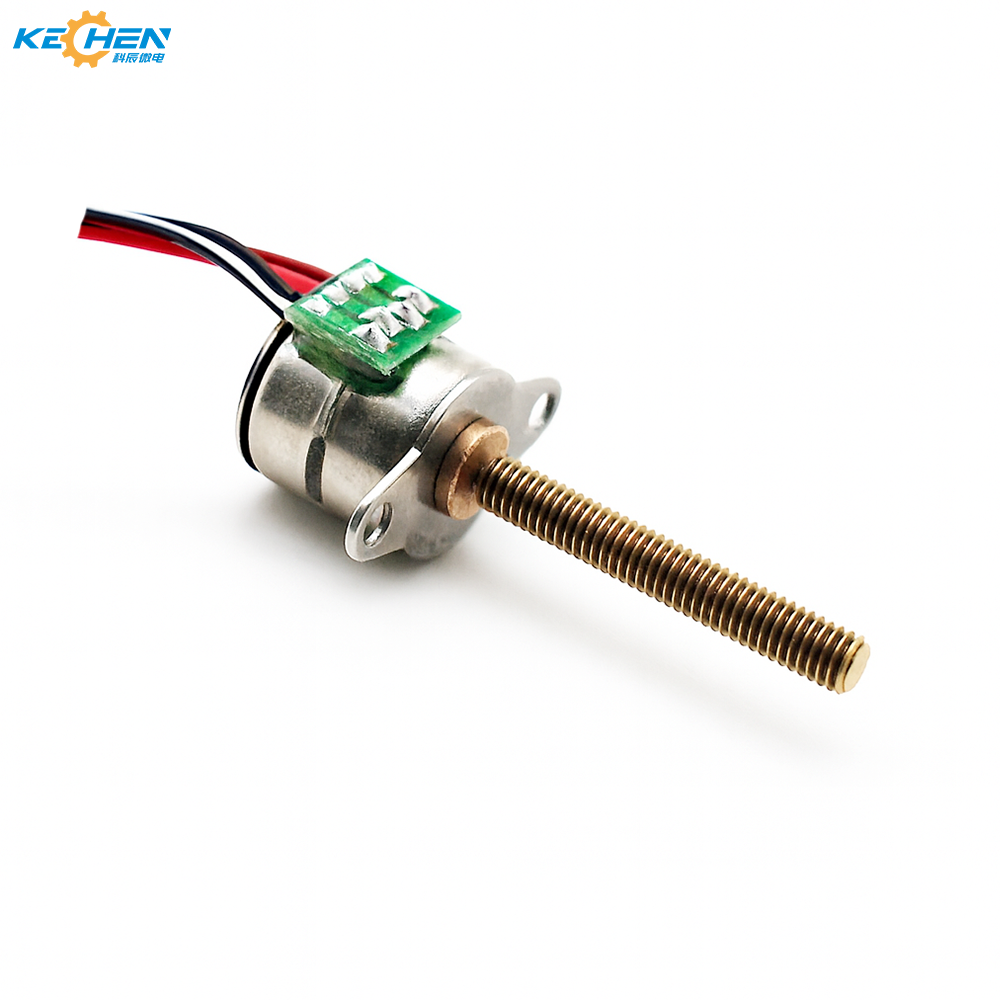

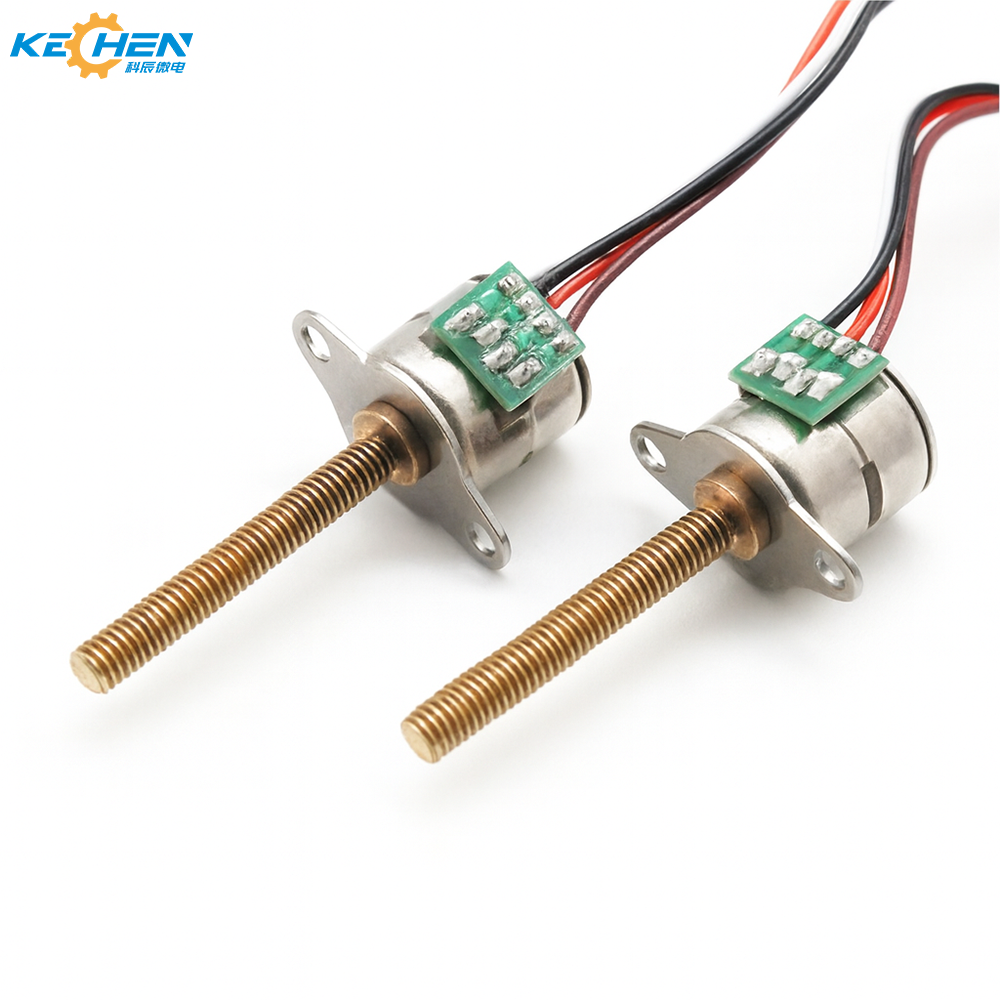

High Precision Linear Stepper Motor 10mm 5V Linear Stepper Motor for Medical Equipment

Product Description

Products Description
10mm Stepper Motor - Specifications
Motor Diameter 10 mm
Shaft Diameter 3.0 mm (customizable)
Shaft Length 4–10 mm customizable
Step Angle 18°
Phases 2-phase
Driving Mode Bipolar or Unipolar
Rated Voltage 3.3 V / 5 V / 6 V
Rated Current 80–200 mA per phase
Coil Resistance 10–50 Ω
Holding Torque 25 gf·cm
Pull-in Frequency 200–500 pps
Pull-out Frequency 400–800 pps
Operating Temperature −10 °C to +60 °C
Noise Level <40 dB
Line sequence A+A-B+B-
Weight 7 g

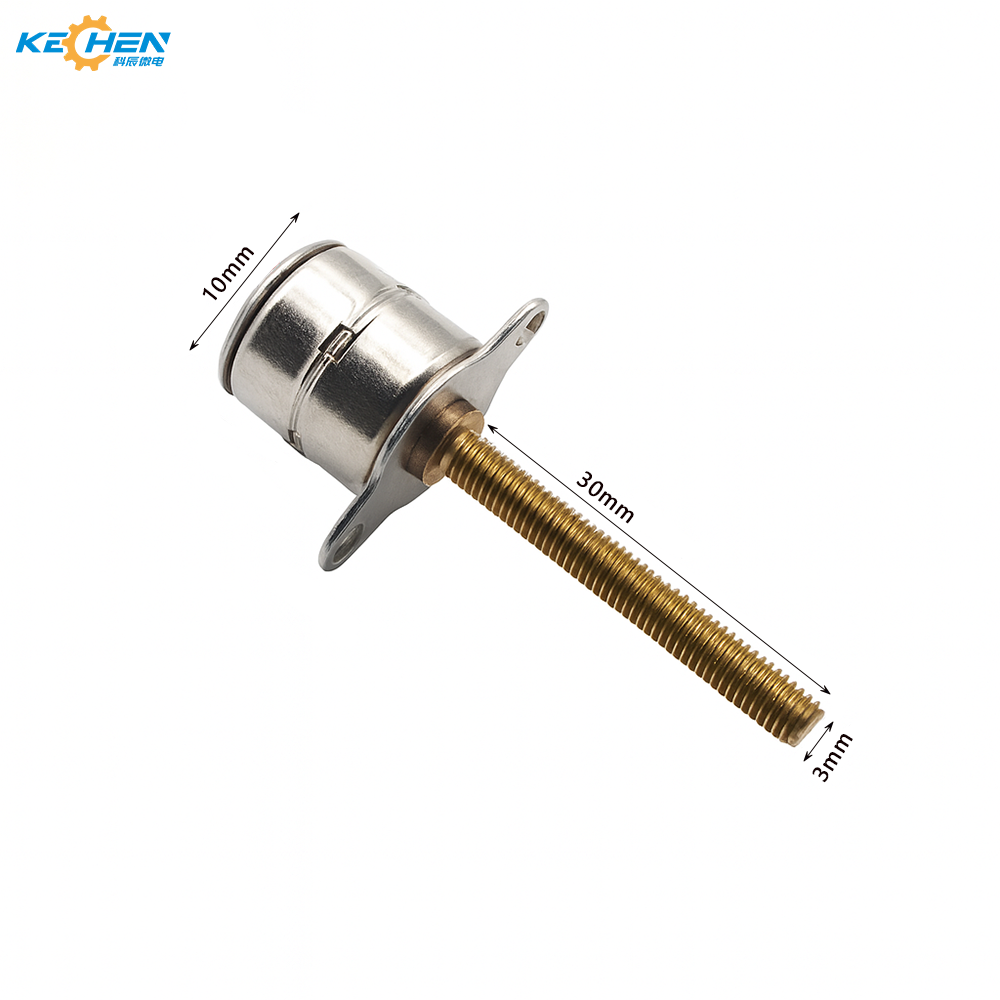

Specs Sheet 1

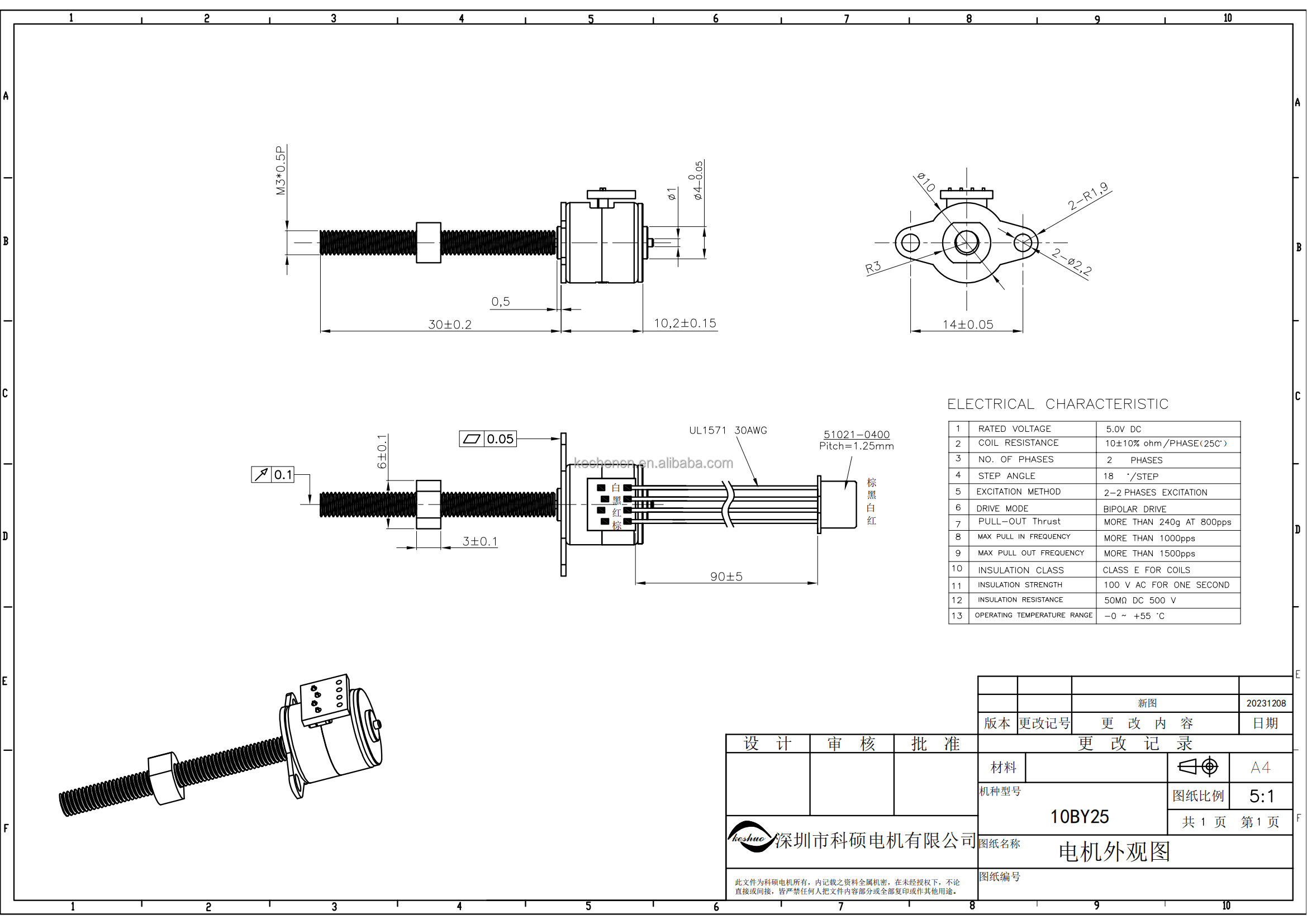

Specs Sheet 2

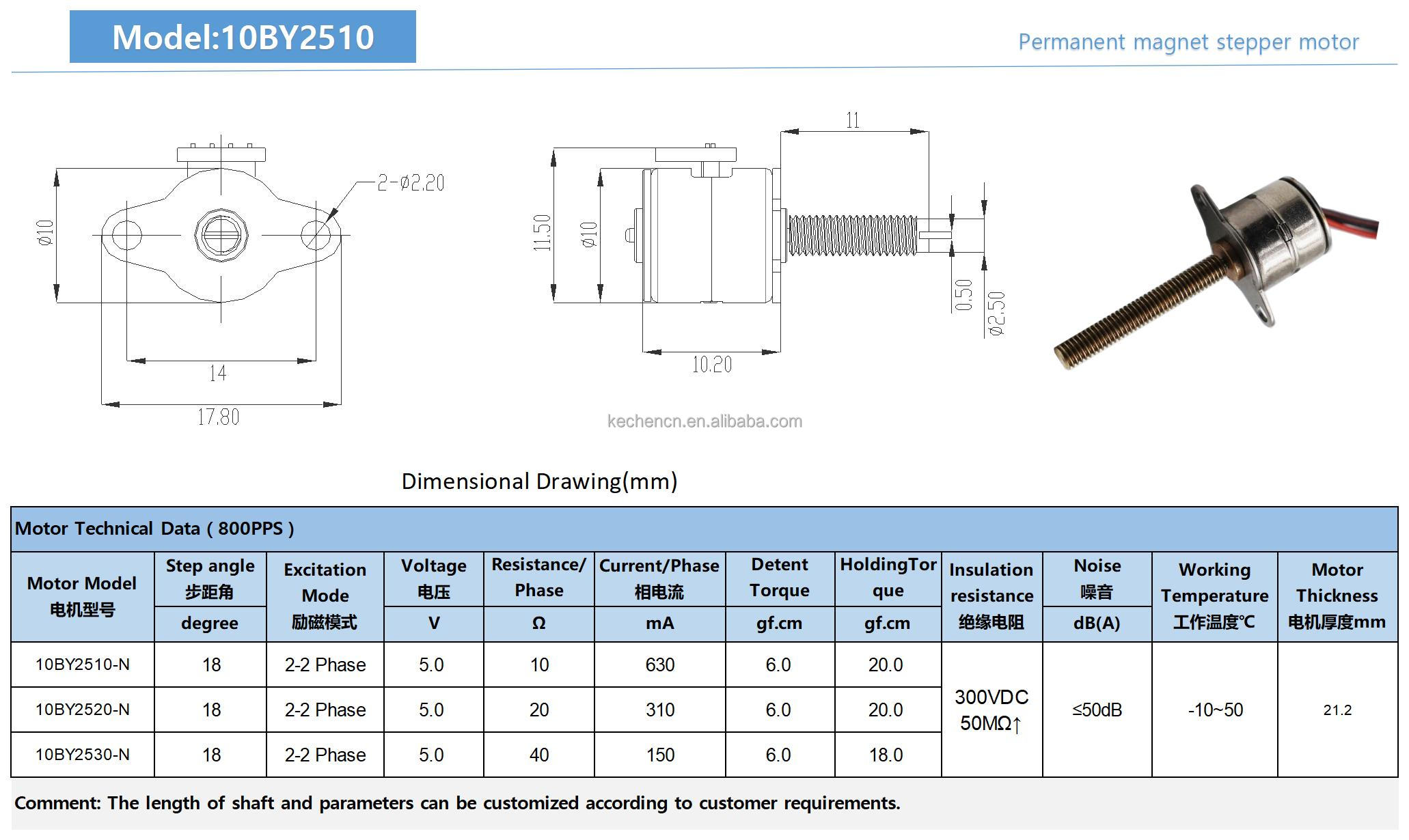

Product Diagram
Recommend Products
Recommend Products
Motor raw materials
Motor raw materials
Production Equipment
Equipment 1 Equipment 2 Equipment 3
Company Profile
Factory Overview
Production Line
Testing Lab
Established in August 2017, the company is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. These micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, and more. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has built a young, pragmatic, professional, and efficient work team, with advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning wide recognition from global clients.
Certifications
Certifications Grid
Application Scenario
Applications Summary
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Market Share Map Export Distribution Chart Global Trade Network
FAQ
Q: What are your main products?
A: We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors. You can review the specifications on our website.
Q: How do I select a suitable motor?
A: If you have motor pictures or drawings to share, or detailed specifications such as voltage, speed, torque, motor dimensions, duty cycle, expected lifespan, and noise level requirements, please let us know so we can suggest a matching model.
Q: Do you offer customization for standard motors?
A: Yes, we customize parameters like voltage, speed, torque, and shaft configurations. We can also add lead wires, connectors, capacitors, or EMC solutions.
Q: Can I request samples for testing first?
A: Yes. Once the required specifications are confirmed, we will issue a proforma invoice for the samples, and proceed with production upon payment confirmation.
Q: How do you verify motor quality?
A: We employ a complete quality control workflow: incoming material inspection based on design drawings, active in-process inspections, and a final inspection prior to packaging.
Q: What certifications do you hold?
A: Our products and management lines hold CE, RoHS, ISO13485, IATF16949, and REACH certifications.
