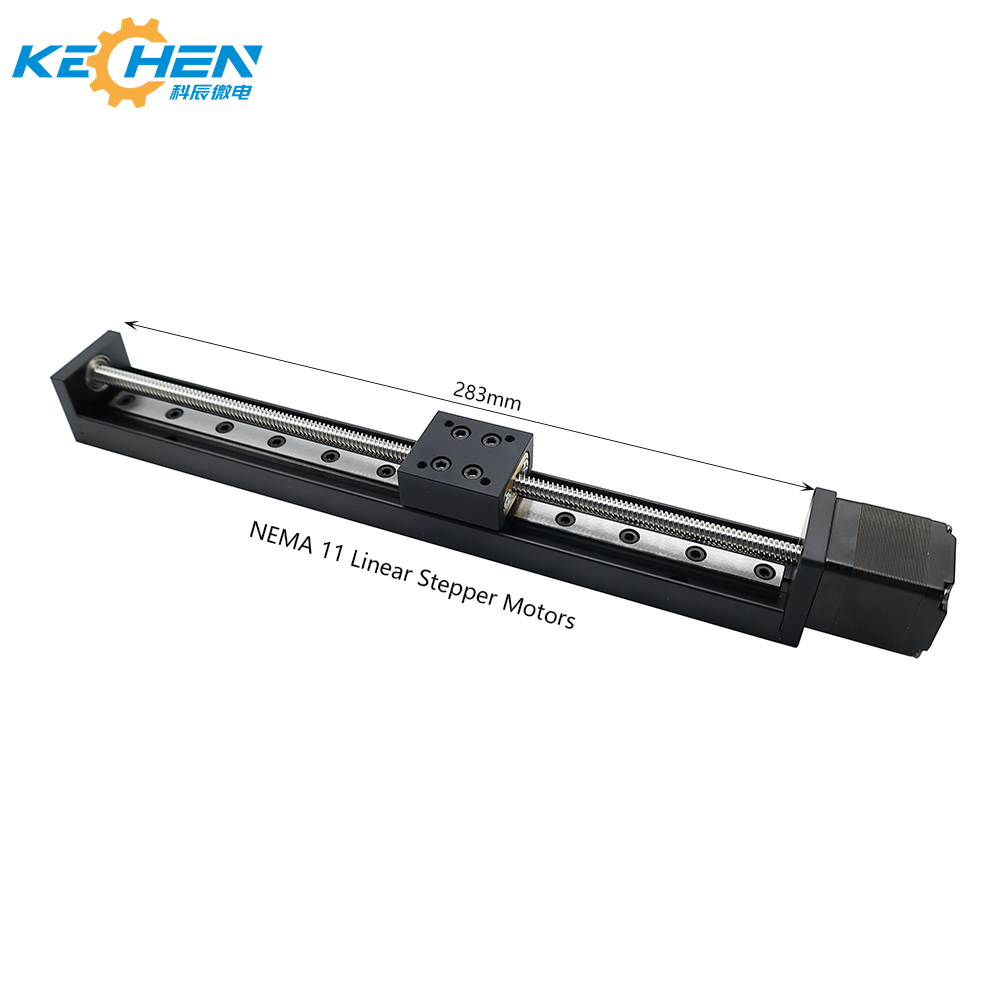

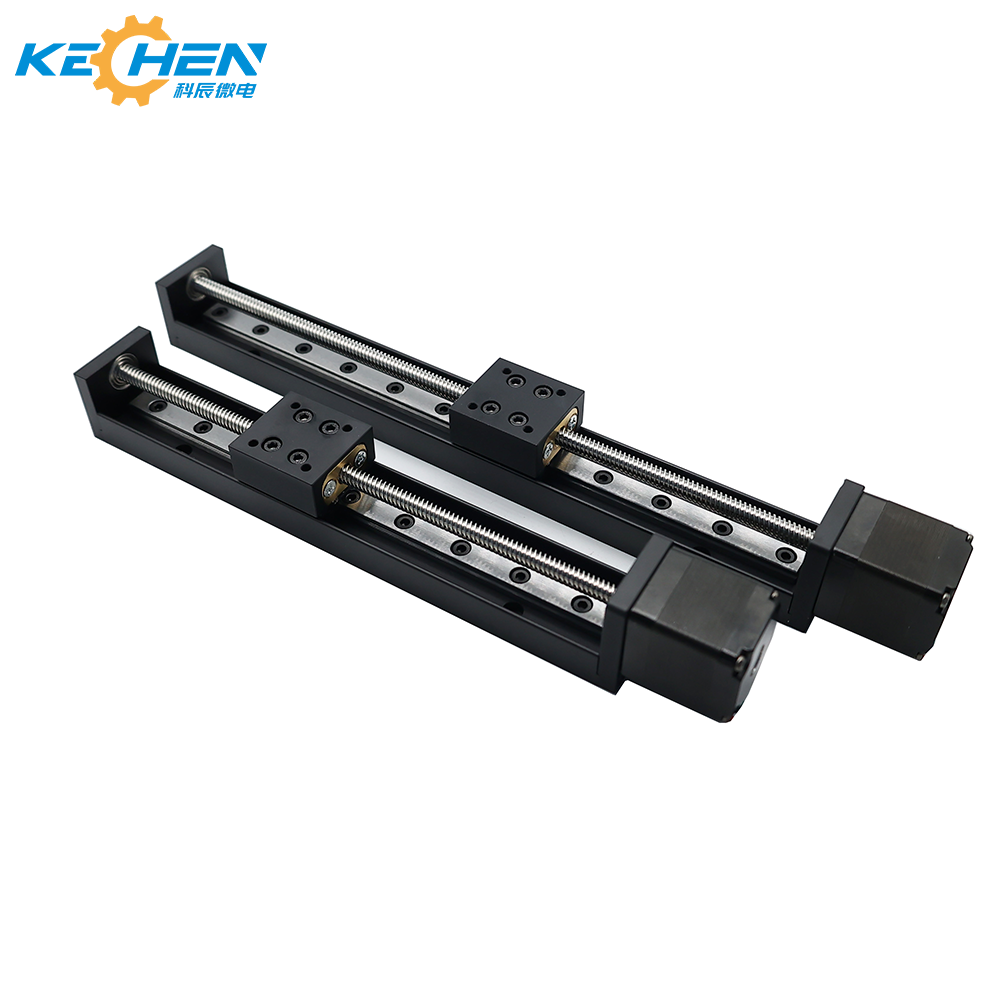

Products Description
| External dimensions |
28 mm × 28 mm |
| Rated voltage |
5V / 12V |
| Motor length |
28mm/30mm/34mm/40mm/48mm/54mm/60mm/68mm |
| Step angle |
1.8° / step (200 steps /RPM) |
| Phases |
2 phases |
| Phase current |
0.5 A – 1.0 A / phase |
| Phase resistance |
3.2 Ω – 10 Ω (depending on the winding) |
| Lead screw material |
SUS304 / 45# steel |
| Threaded rod diameter |
Φ6 mm |

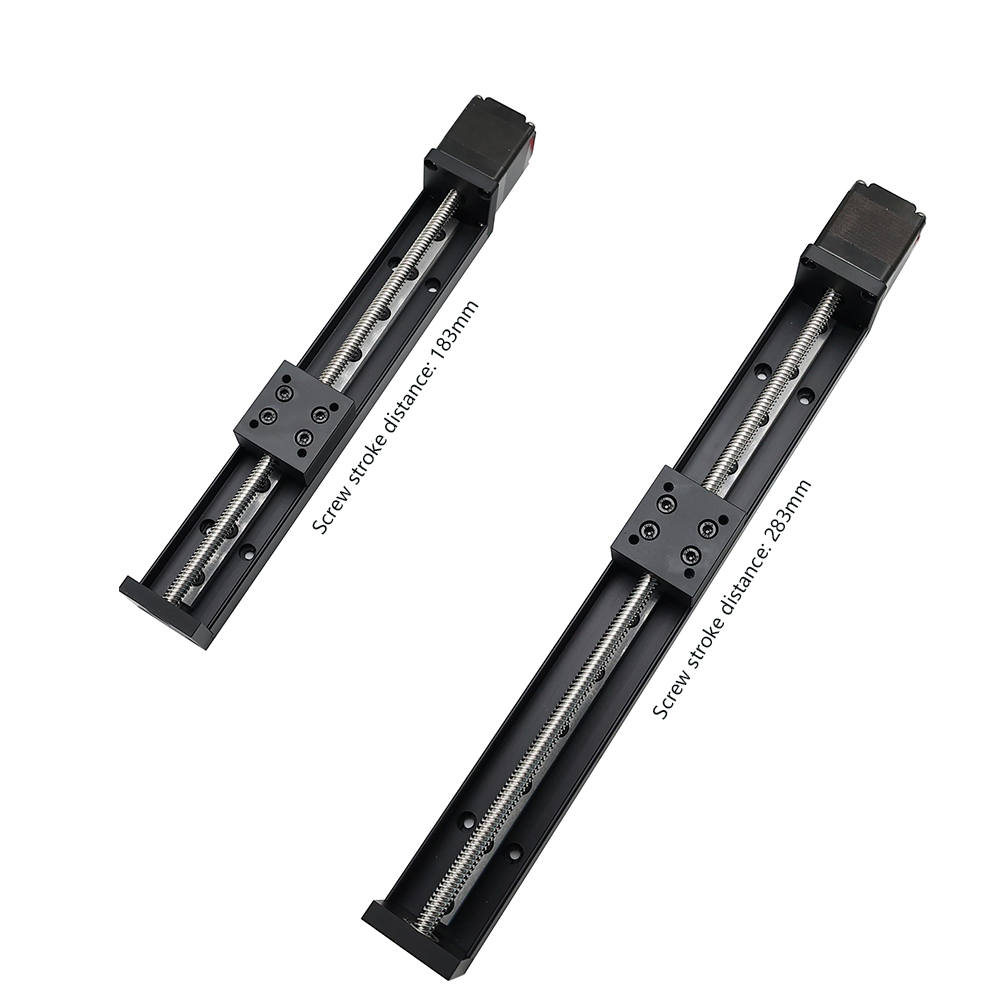

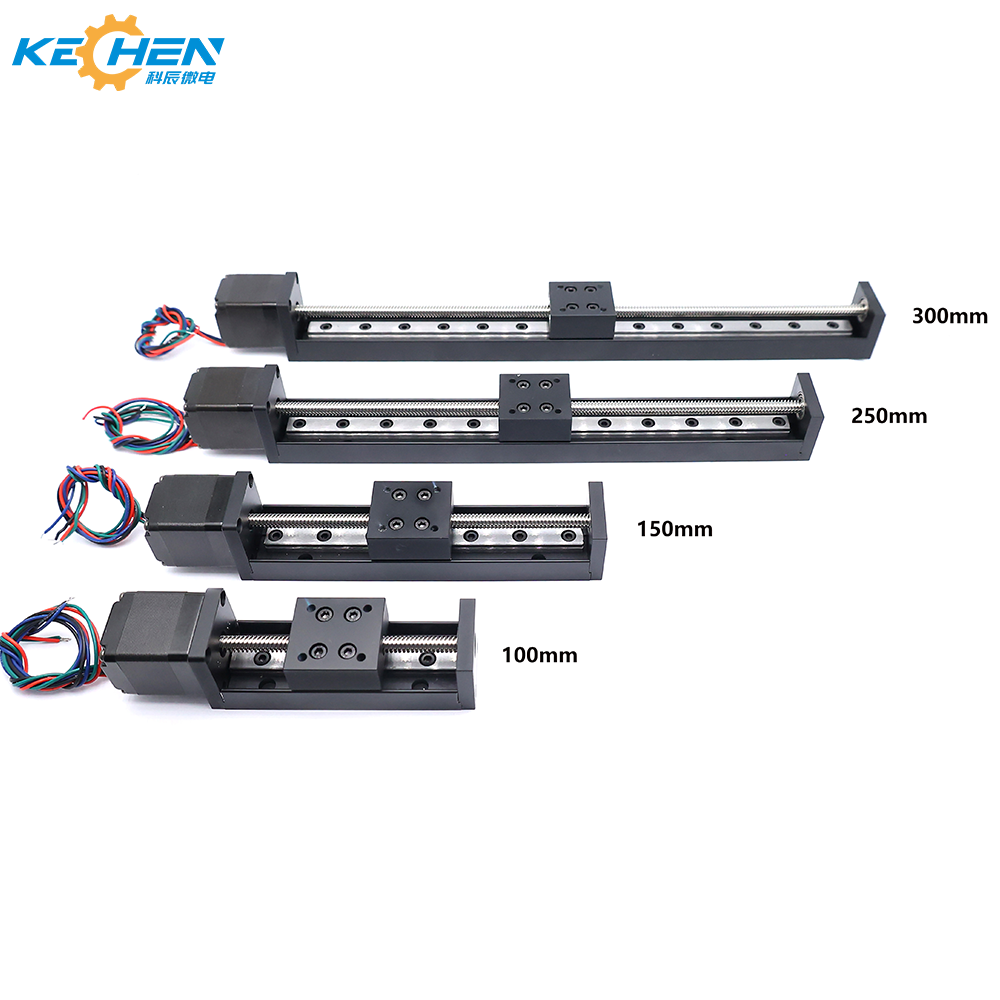

| Screw length |
50–300 mm (customizable) |
| Nut type |
POM / brass / stainless steel nuts are available |
| Maximum thrust |
10–120 N (depending on length and lead) |
| Electric wire |
JST 4Pin / UL1007 |
| Exercise |
Linear screw drive / external nut slider structure |
| Weight |
120–260 g (varying with length) |
Recommend Products
Motor raw materials
Production Equipment
Overview
Established in August 2017, the enterprise is a high-tech manufacturer integrating the research, development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Adhering to the concept of "people-oriented, pioneering and innovative spirit", and through years of rapid development, it has built a group of young, pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, and excellent quality to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Application Scenario
| Medical equipment |
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines |
Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment |
Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home |
Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage |
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics |
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
Global Market Distribution
FAQ
QWhat's your main products?
We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Coreless Motors etc.
QHow to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
QDo you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
QCan I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will proceed samples accordingly.
QHow do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
QWhat certifications do you have?
We currently have CE, ROSH, ISO13485, IATF16949, and REACH certifications.
